Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.











More than 100 kinds of welding machine are selling. We could also customize for you.





We have videos show how our machines work. Also professional R&D team can be provided to design machines according to your unique requirement.

                                   Awaiting cooperating with you ! Thank you !





1. Use the roller electrode to replace the cylindrical electrode of spot welding



2.Generate weld nuggets to verlap with each other and finish welding of workpieces.



3. AC pulse current, amplitude modulation current, three (single)-phase  rectification, medium frequency and high frequency DC can be available.



4. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can,  heating radiatior, airplane and fuel tank, rocket and missile. (the welding  thickness is within 3mm of single plate. )



5.The seam/roll welding is composed of welding spots.



6.According to different overlap of the melting cores, it could be divided into roll spot welding  and air-tight seam welding.



7.Three stages in the forming process: pressurization, heating  fusing and cooling crystallization.





----  Intelligent microcomputer single piece control welding system.

---- Stabe performance

---- High rigidity, good conductivity.

---- Low consumption of electricity. Stronger and more stable power.

---- Easy to be assembled and unassembled.

---- The transmission tile axis adopts the latest silver tile conductive technology        from abroad.









  Automobile, damper of motocycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tinmaking, coopery industry, etc.

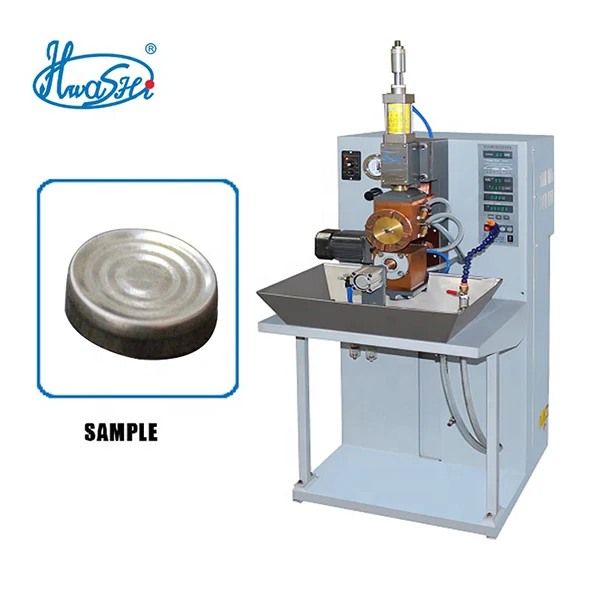

Model	WL-FS-100K
Input Voltage	380 V
Input Power	100 KVA
Forming Time	10 min/pc
Weight	800 kg
Current Model	AC,DC,medium(high) frequency,capacitor discharge are adjustable.
Output Current	30000 A
Welding Diameter	1-5 mm
Sevice Life	8-10 years
Welding Wheel Manner	Vertical
Dismension	500*900*1250 mm







•  Intelligent microcomputer control system:

  1. Single piece controller: pure digital setting, online computer programming, LED digital display

  2. Intelligent microcomputer control welding system.

• Digital circuit control;
• Allcomponents from famous factories in the world:

   1. SEMIKRON and IXYS from West Germany,

   2. IR silicon controlled from United States.

   3. The transmission tile axis---- the latest mercury conductive technology from abroad.

   4. Welding roll wheel---- alloy copper material from Japan. High rigidity, good conductivity.

   5. Transformer---- high pure silicon steel sheet from Japan

   6. Welding mold and the connection of the whole machine---- mosaic connection

• Welding power source are available:

         AC pulse, secondary rectifying, medium frequency, high frequency, capacitive energy storage type



 We have professional production team,  production line,  experienced technical experts who engaged in this industry for more than 20 years.
 The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.




1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
