Анемометр из АБС-пластика 0-360 9-30 в датчик

Alibaba website ABS material Angle Measuring Instruments 9-30V wind direction sensor

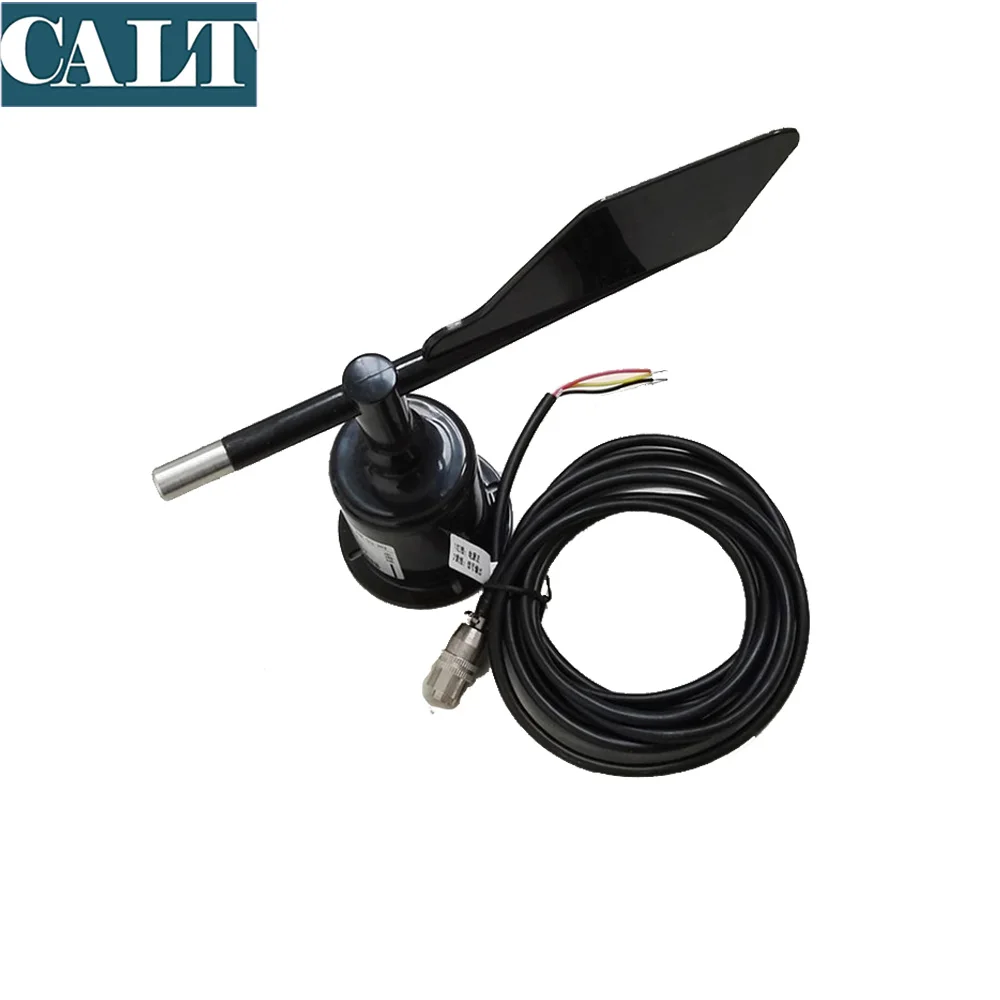

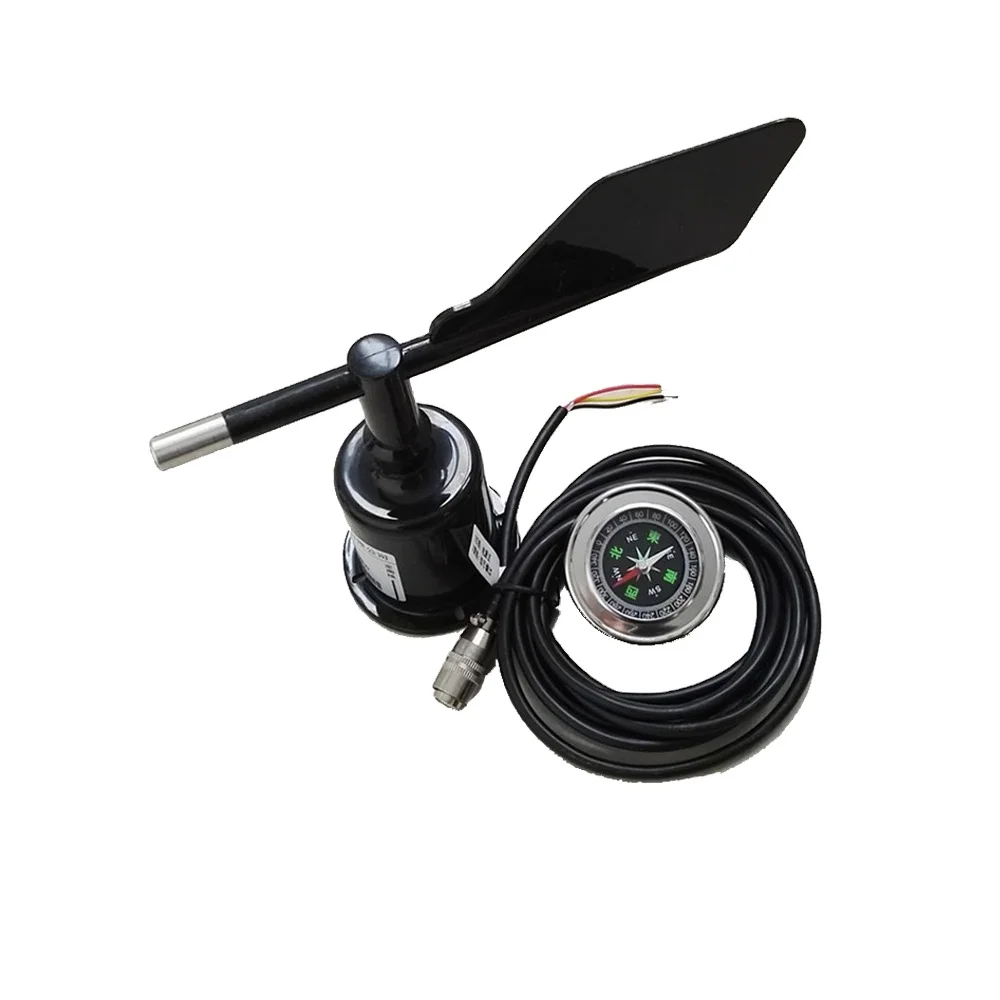

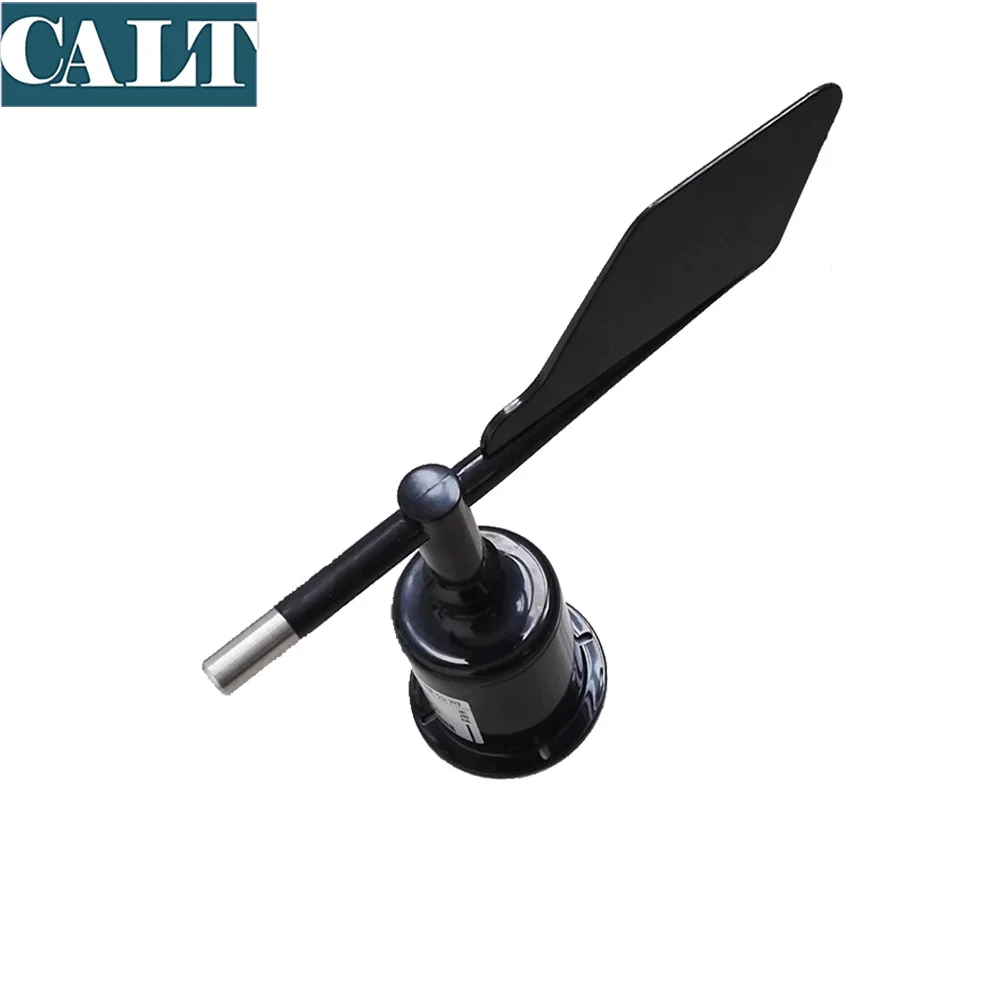

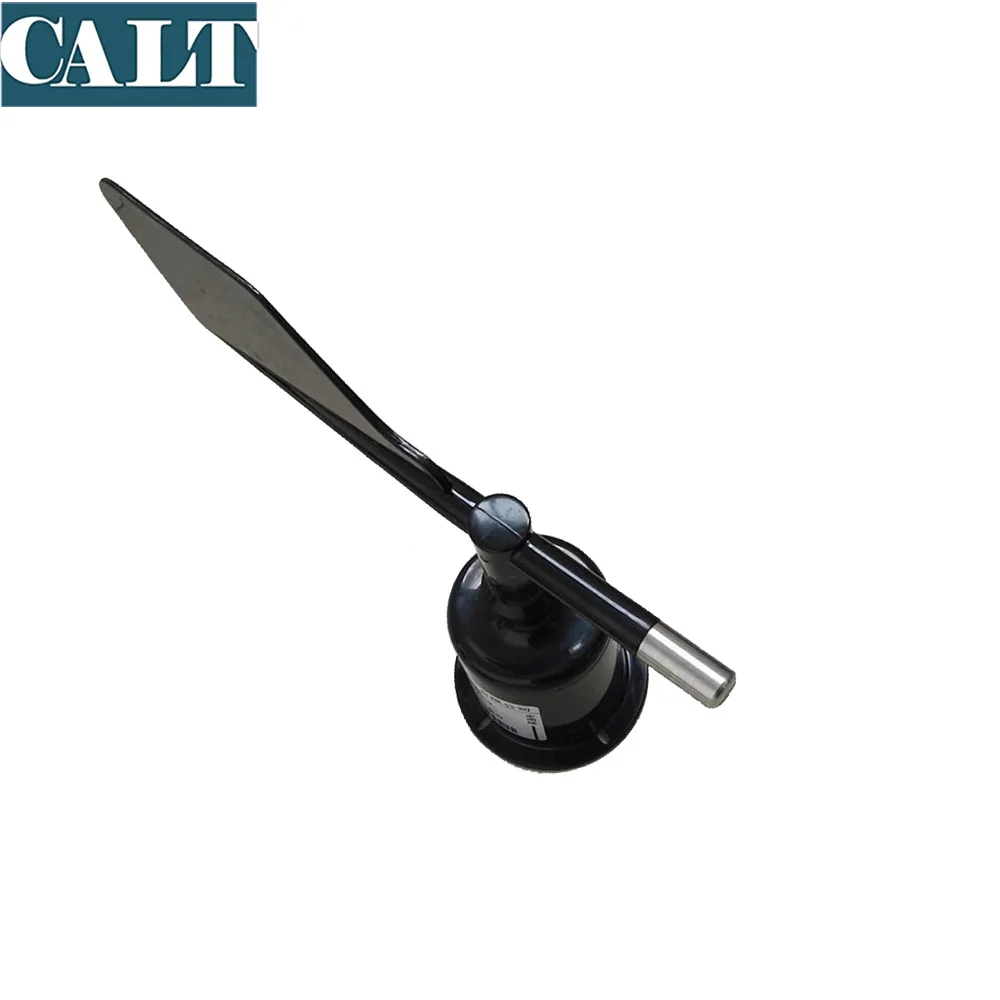

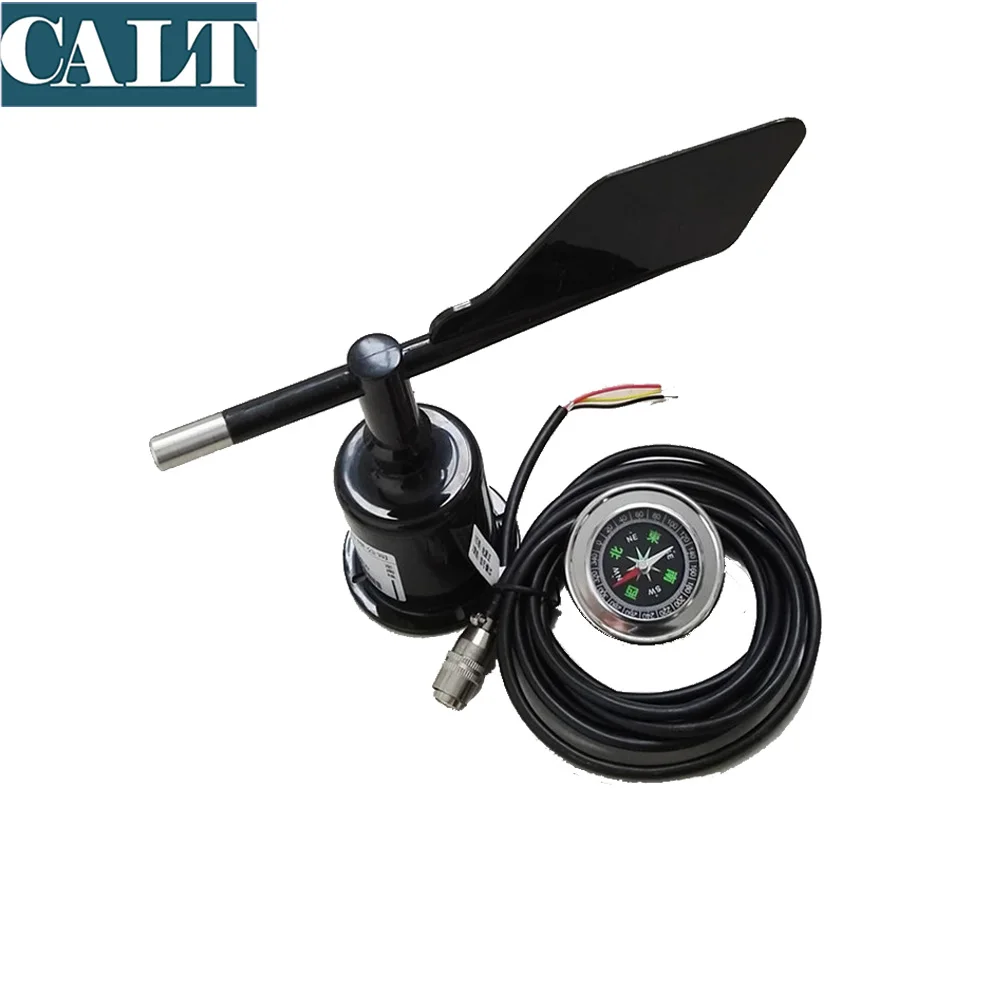

 YGC-FX wind sensor (transmitter) internal precision angle sensor, and use low-inertia light metal wind vane response to the wind, dynamic characteristics.

Technical Parameters:
Measuring range: 0~360°
Accuracy: ±1°
Starting wind speed: ≤0.5m / s
Power supply: □ DC 5V

                          □ DC 12V
                          □ DC 24V
                          □ Others
Output form: □ Voltage: 0 ~ 5V
                        √□ Voltage: 1 ~ 5V
                        □ Current: 4 ~ 20mA
                        □ RS232
                        □ RS485
                        □ pulse: pulse signal
                        □TTL level: (□frequency □pulse width)
                        □Others
Instrument length: √□ Standard: 2.5 m
                                   □ Others
Load capacity: Current-type output impedance ≤ 250Ω
                           Voltage-based output impedance ≥ 1KΩ
                          Working environment: temperature -40 ℃ ~ 80 ℃; humidity ≤ 100% RH
Protection class: IP45
Cable rating: Rated voltage: 300V
Temperature rating: 80 ℃
Product weight: 210 g
Product power consumption: 150mW

Calculation formula

Voltage type (0 ~ 5V output):
D = 360 ° × V / 5
(D is the wind direction indication value; V is the output voltage)
Current type (4 to 20 mA output):
D = 360 ° (I-4) / 16
(D for the wind direction; I for the output current mA)

 Structure
