Шлифовальная машина SPC для пола включая многоструйную
- Категория: Оборудование для производства половых досок >>>
- Поставщик: Suzhou,Hotjin,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.66 $* | 0.16 $* |
| Aug-16-2025 | 0.33 $* | 0.36 $* |
| Jul-16-2025 | 0.32 $* | 0.3 $* |
| Jun-16-2025 | 0.16 $* | 0.43 $* |
| May-16-2025 | 0.22 $* | 0.80 $* |
| Apr-16-2025 | 0.61 $* | 0.63 $* |
| Mar-16-2025 | 0.87 $* | 0.4 $* |
| Feb-16-2025 | 0.29 $* | 0.30 $* |
| Jan-16-2025 | 0.18 $* | 0.21 $* |
Характеристики
HOTJIN
HOTJIN
Technical parameters
A．Product size（L*W)： Width: 1220 mm，Thickness：4-25mm
B．Speed of production line：60-80 m/min
C．Direction of production line：Right
D．electric control：Working voltage: 380V，50Hz
Control voltage: 220V，50Hz&24V (DC)
Total power: 150KW
E．Air Pressure： 0.6-0.8Mpa
Air capacity： 3 m³/h
High speed production line need dust extraction system winds up to 30 m/s for good
Dust extraction system spec： 50000m³/H
F．Equipment’s color：Main body： RAL7035 greyish white
Lines of body： RAL5012 light blue
B．Speed of production line：60-80 m/min
C．Direction of production line：Right
D．electric control：Working voltage: 380V，50Hz
Control voltage: 220V，50Hz&24V (DC)
Total power: 150KW
E．Air Pressure： 0.6-0.8Mpa
Air capacity： 3 m³/h
High speed production line need dust extraction system winds up to 30 m/s for good
Dust extraction system spec： 50000m³/H
F．Equipment’s color：Main body： RAL7035 greyish white
Lines of body： RAL5012 light blue
Warning color： RAL1016 LY. yellow.
EQUIPMENT LIST
Longitudinal multi rip saw
Table size: 1250*3500mm；
Width:1250mm；
Spindle power of saw：15KW; Outer dia:80 mm
Feeding motor:1.5 kW. Speed: 15~30m/min

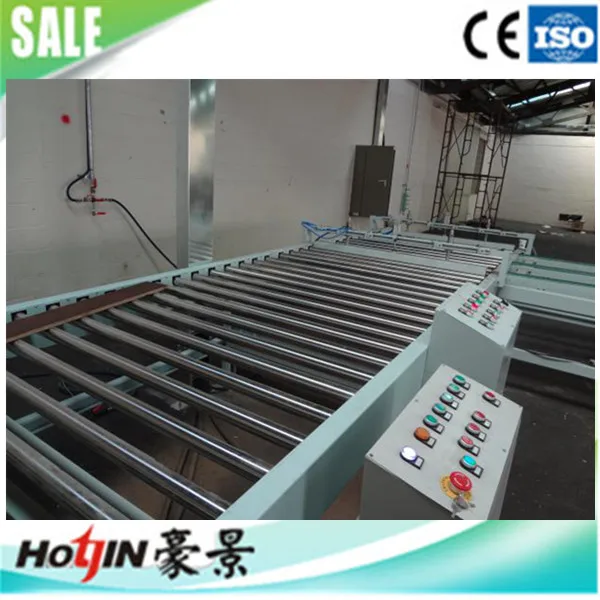

Roller conveyor
Speed：adjustable，10-40m/min
Motor power：1.1KW*2
Longitudinal and transverse double end tenoner line
Feeding roller conveyor
Table size: 300*2400mm；
Working table height:400mm；
Motor: 1.1kW：Speed: 40~80m/min
Longitudinal Double End Tenoner
DTLZ6/06/10D+2G
1．Working width：125-400（600）mm
2．Working thickness： 4.5-15 mm
3．Height of working table：1100 mm
4．Rotate speed of cutter shaft：6000-7000 rpm
5．Feeding speed：40-60 (80)m/min
6．Weight：7500 Kg
Transverse Double end tenoner
DT6/18/10D+2G
1．Working width：600-1800 mm
2．Working thickness： 4.5-15 mm
3．Height of working table： 950 mm
4．Rotate speed of cutter shaft： 6000-7000 rpm
5．Feeding speed：15-3m/min（Max.60pcs floor per min）
6．Weight：7500 Kg

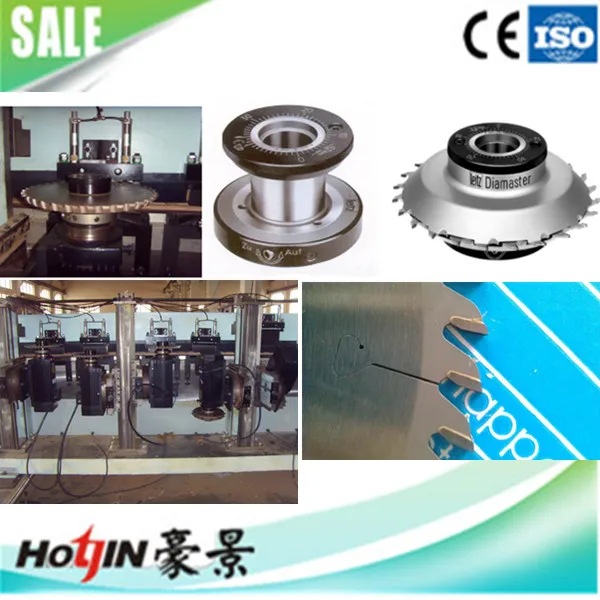

Tool(German brand made in their Chinese factory )
Pre-sale
●Provide the information in time at customer requirement and make reasonable proposals and budgeting
●Give technical support for the customer's renovation of old facilities for free
●Provide service and support to the customer's other equipments
In-sale
●On-site planning for the customers by professional engineer
●Valuable advice and recommendations on the purchasing of other auxiliary accessories
●Free training for operators
After-sale
●For all sold prodcts ,provide one-year free door to door service,lifetime keep-up and maintenance service
●All-around keep-up,transportation and transformation of equipment
●Provide production and technical advisory service
Name：SUZHOU HOTJIN PRECISION MACHINERY CO.,LTD
Add：58 Pusha rd.,Puzhuang Industrial Park ,Wuzhong District,Suzhou city, Jiangsu province, China.
Tel：+86-512-66520585
Fax：+86-512-66520585
Post code：215105
Website：http://www.hotjin.com.cn and http://www.szhotjin.en.alibaba.com
