3-х точечный Трактор Экскаватор вложения

Категория: Буксируемый экскаватор с обратной лопатой >>>
Поставщик: Wuhan,Xinkai,Machinery,Co.,Ltd.

Цена:113 006,85 ₽ - 188 344,75 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	134477.73 $*	141201.57 $*
Aug-15-2025	133347.14 $*	140014.97 $*
Jul-15-2025	111876.64 $*	117470.11 $*
Jun-15-2025	131087.99 $*	137641.16 $*
May-15-2025	114136.94 $*	119843.93 $*
Apr-15-2025	128827.35 $*	135268.97 $*
Mar-15-2025	127697.0 $*	134082.46 $*
Feb-15-2025	126567.74 $*	132895.91 $*
Jan-15-2025	125437.50 $*	131709.49 $*

Характеристики

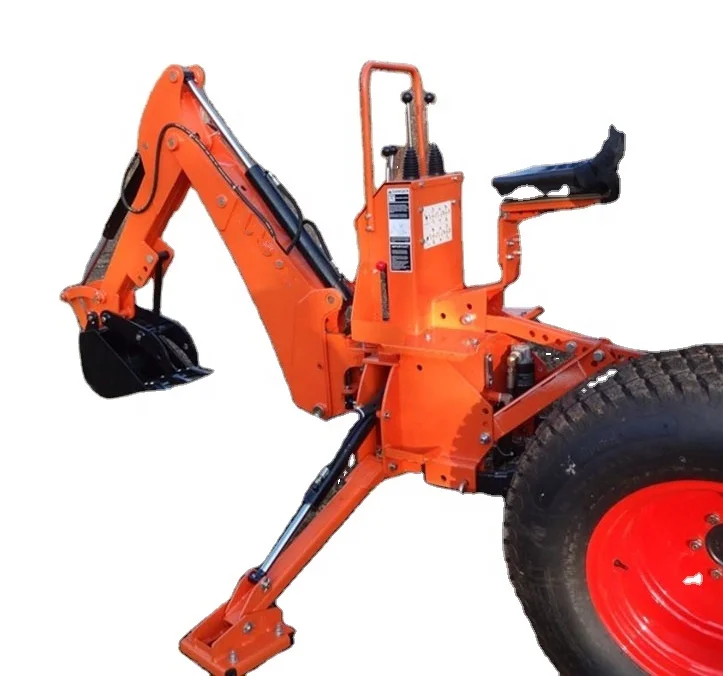

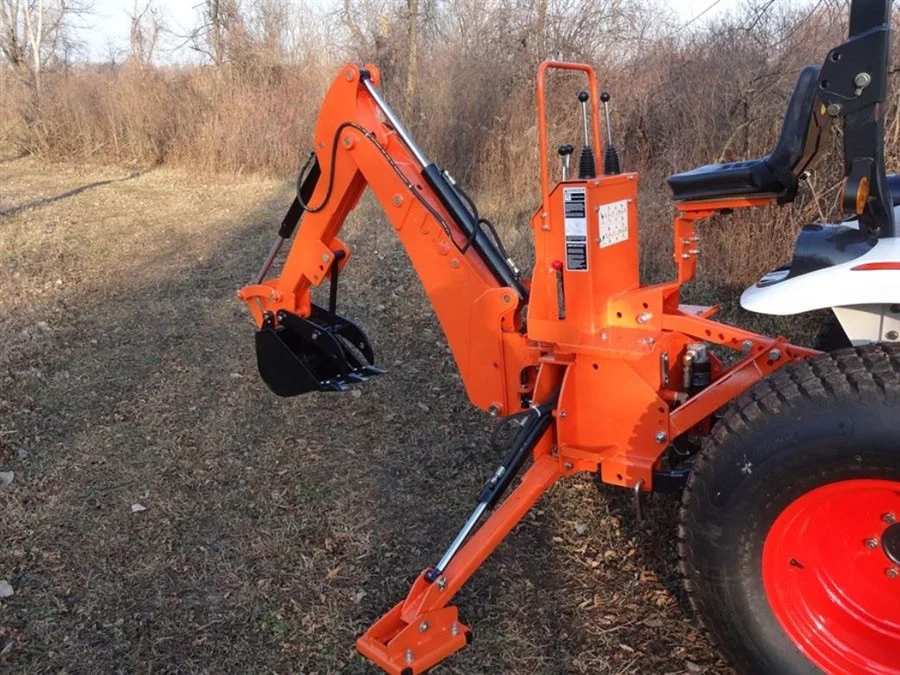

3 Point Tractor Backhoe Attachment LW-6

Product Description

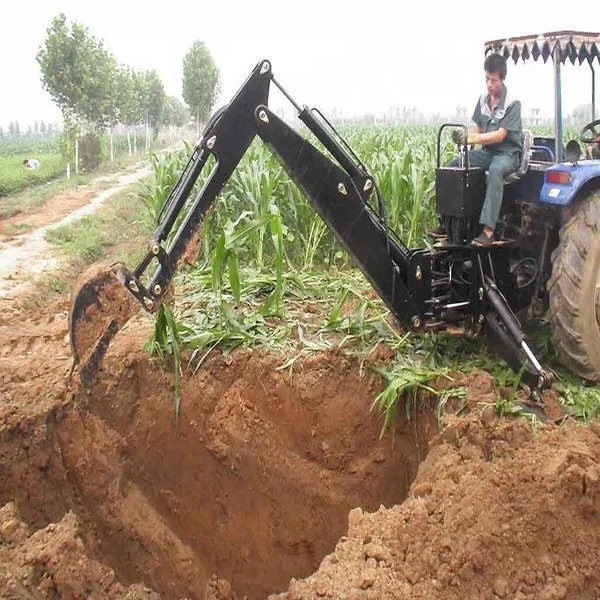

1). used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.

2). Tractor Backhoe used Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation.

3). 3 point hitch Backhoe loader used To better accomplish different kinds of work, bucket of different sizes can be selected and mounted on it.

4) Quick attach 20-140HP tractor by 3-point link, PTO drive, with Hydraulic pump, Oil tank

Specification Detail

Model		LW-6
Specification		Inch	Metric
Tractor HP		25-45HP
3-point Linkage		Cat-1
Structure Weight		1060lb	480kg
A	Digging Depth(two foot flat bottom)	5.74’	1750mm
B	Reach from center line of Swing pivot	8.53'	2600mm
C	Loading Height(bucket at 60°)	5.64’	1720mm
D	Transport Height(maximum)	6.03’	1840mm
E	Extend Height	9.41'	2870mm
F	Loading Reach(bucket at 60°)	3.11’	950mm
G	Transport Overhang	3.54'	1080mm
H	Undercut	2.4'	730mm
I	Bucket Rotation	180°
J	Stabilizer Spread(up position)	4.3’	1310mm
K	Stabilizer Spread(down position)	4.3’	2100mm
L	Swing Arc	180°
M	Bucket width	300mm
N	Bucket cubage	0.036
