Генератор AVR AC Автоматический регулятор напряжения

Генератор AVR AC Автоматический регулятор напряжения

Категория: Generator Parts & Accessories >>>
Поставщик: Fuan,Three,Bees,Electronic,Technology,Co.,Ltd.,[Fujian,China]Fuan

Цена:2 295,31 ₽ - 3 442,96 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	2915.72 $*	2973.40 $*
Jul-16-2025	2364.68 $*	2411.53 $*
Jun-16-2025	2869.62 $*	2926.30 $*
May-16-2025	2846.33 $*	2903.12 $*
Apr-16-2025	2272.80 $*	2317.89 $*
Mar-16-2025	2800.99 $*	2856.18 $*
Feb-16-2025	2777.92 $*	2833.15 $*
Jan-16-2025	2754.70 $*	2809.20 $*

Характеристики

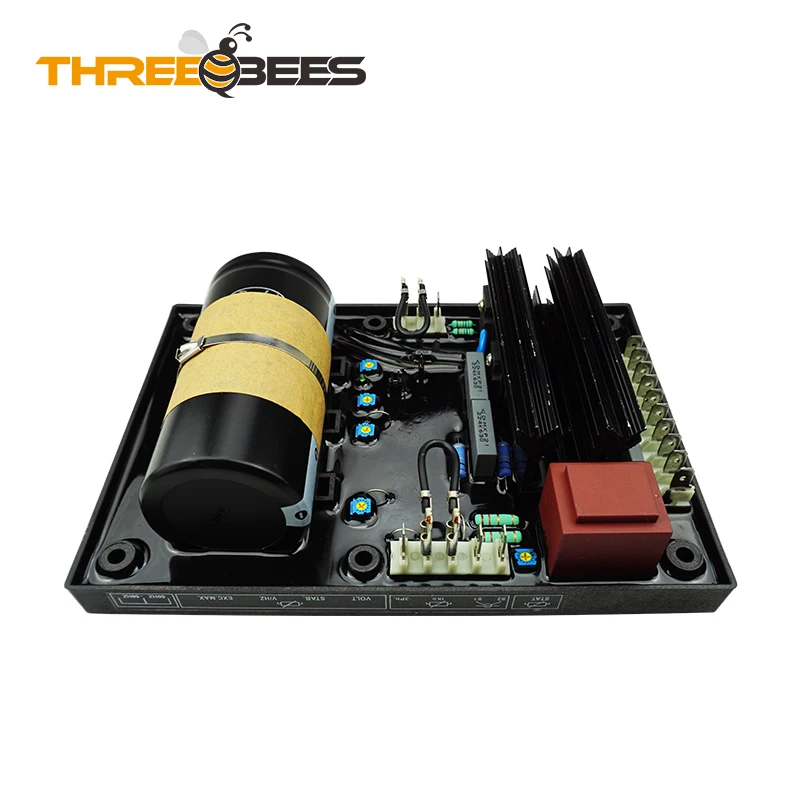

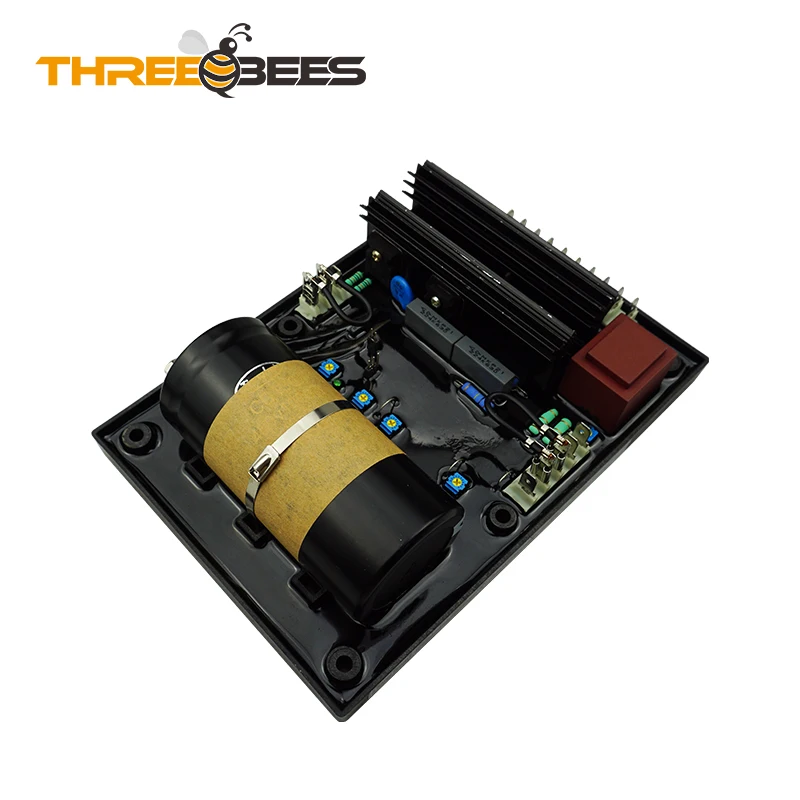

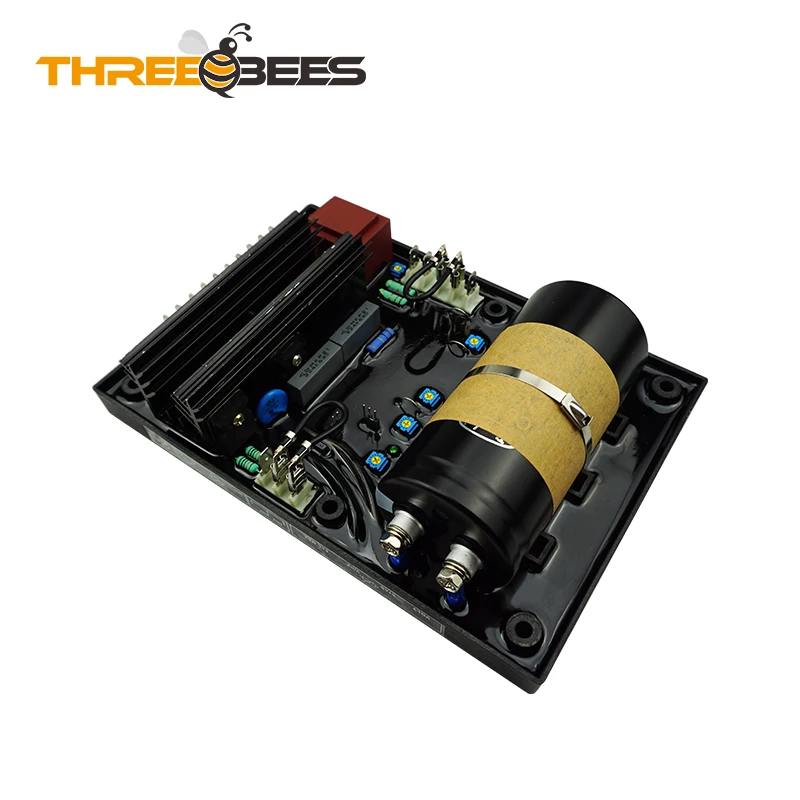

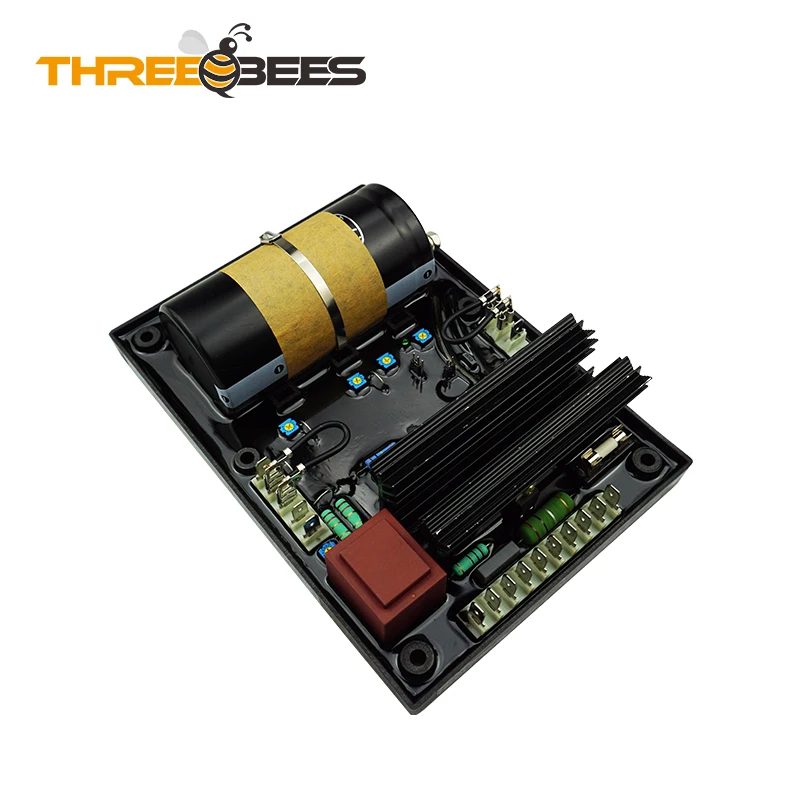

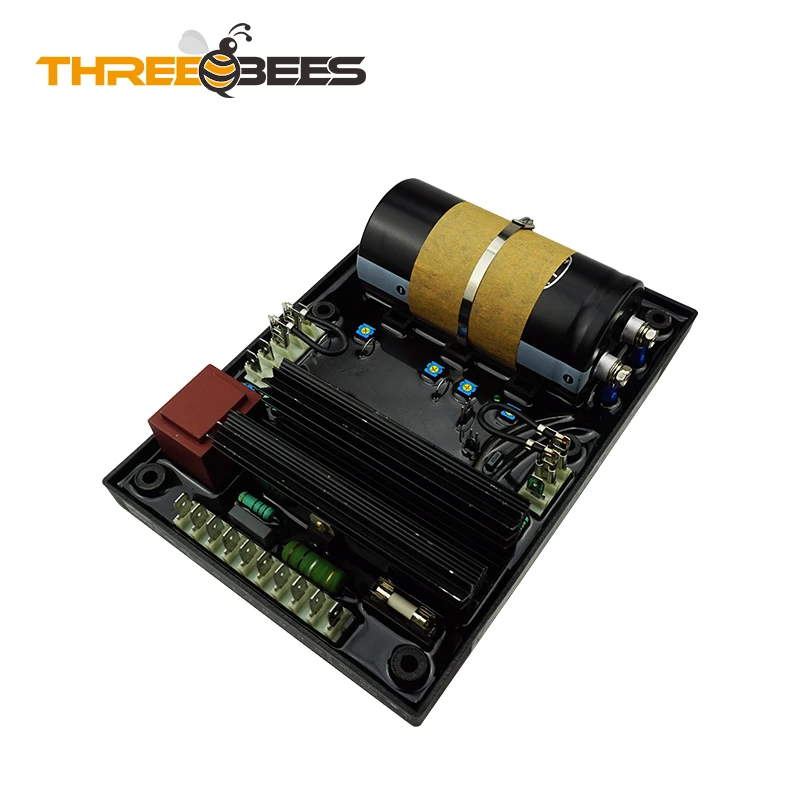

Brushless Generator AVR AC Automatic Voltage Regulator R448 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Product Name	R448
SENSING/POWER INPUT
Voltage	95-480VAC, 3 phase
MAGNETIC FIELD OUTPUT
Voltage	Max 160VDC at 120VAC input
Current	Max 10A
PRESSURE REGULATING ACCURACY	<+/0.05%RMS with 4% engine governing
