BFast Speed CO2 cutting machine laser wood metal mdf acrylic cnc laser cutter 150W
Product Description
1. Fast speed than handle making 2. Cutting quality good together with high accuracy. Computer control easy for complex design. 3. Self-design keeps same space from up to down as well as straight with surface. Small laser dot keeps thinner cutting lines. 4. Adjustable for working speed and laser power, change setting up easily.
Technical Parameter
Products model
Z6040
Z9060
Z1390
Working area
600x400mm
900x600mm
1300x900mm
Laser Types
Hermetic And Detached CO2 Laser Tube
Engraving speed
0-75,000mm/min
Cutting speed
0-40,000mm/min
Location precision
≤0.01mm
Resetting positioning accuracy
≤0.01mm
Power supply
AC 220V/50~60Hz (110V is optional)
Gross power
<1,000W
Operating temperature
0 - 45°
Operating humidity
5 - 95%
Minimum shaping character
English 1×1mm
360°slope engrave
YES
Motors driving system
Stepper (servo is optional)
Cooling mode
Water-cooling and protection system
Operating system
Windows XP, VISTA, Windows7, Windows8
Software
RDWorksV8(compatible with CorelDraw, AutoCad, Illustrator,
PS)
Graphic format supported
DXF,AI,PLT,DST,DSB,CDR,BMP,JPG,GIF,PNG,MNG etc
Standard accessories
Water pump, air pump, exhaust fan, water pump
Optional parts
Electrical up/down table, rotary clamp, red light pointer,
water chiller

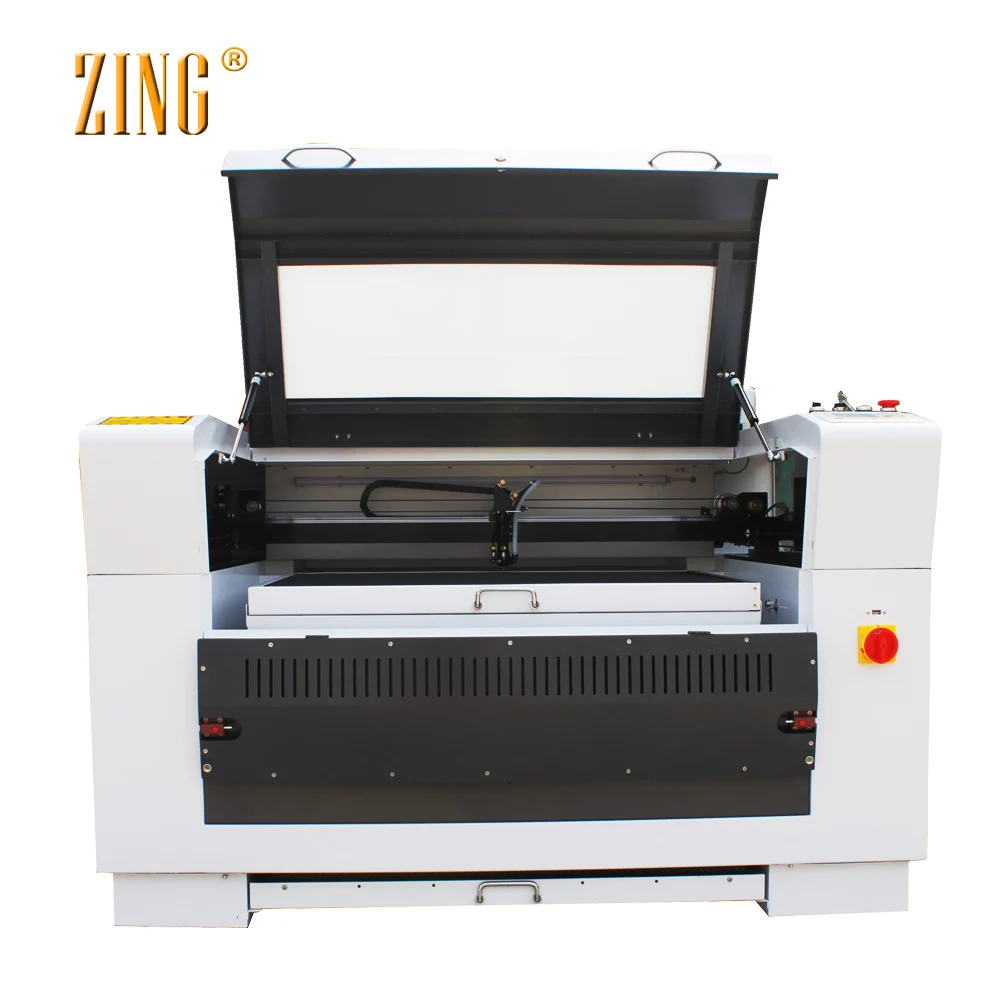

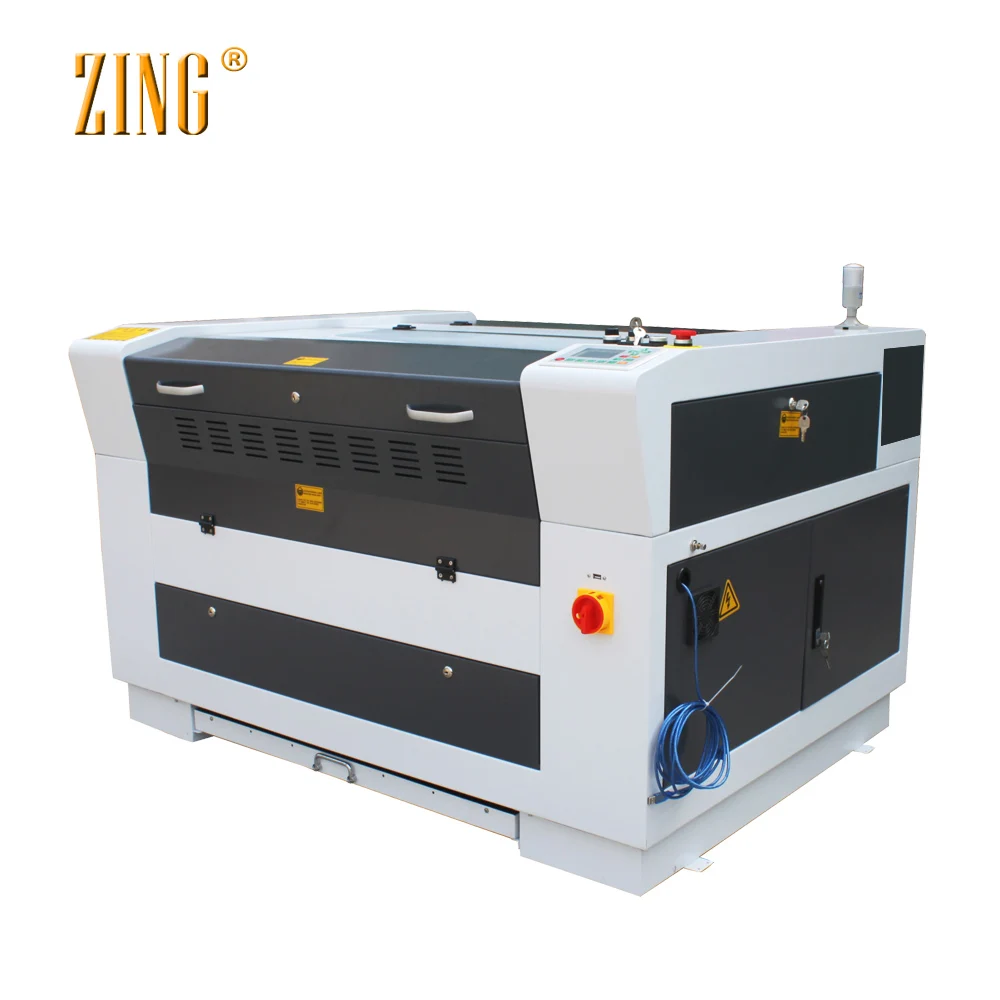

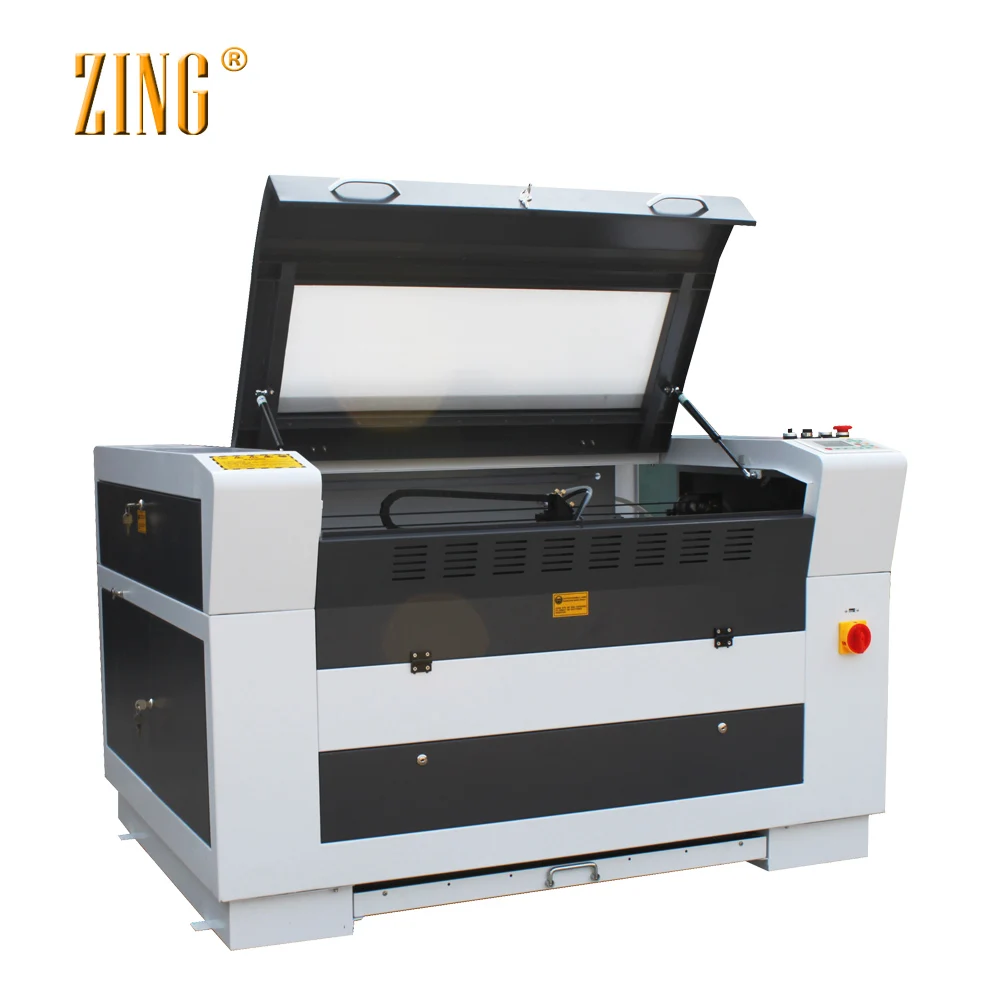

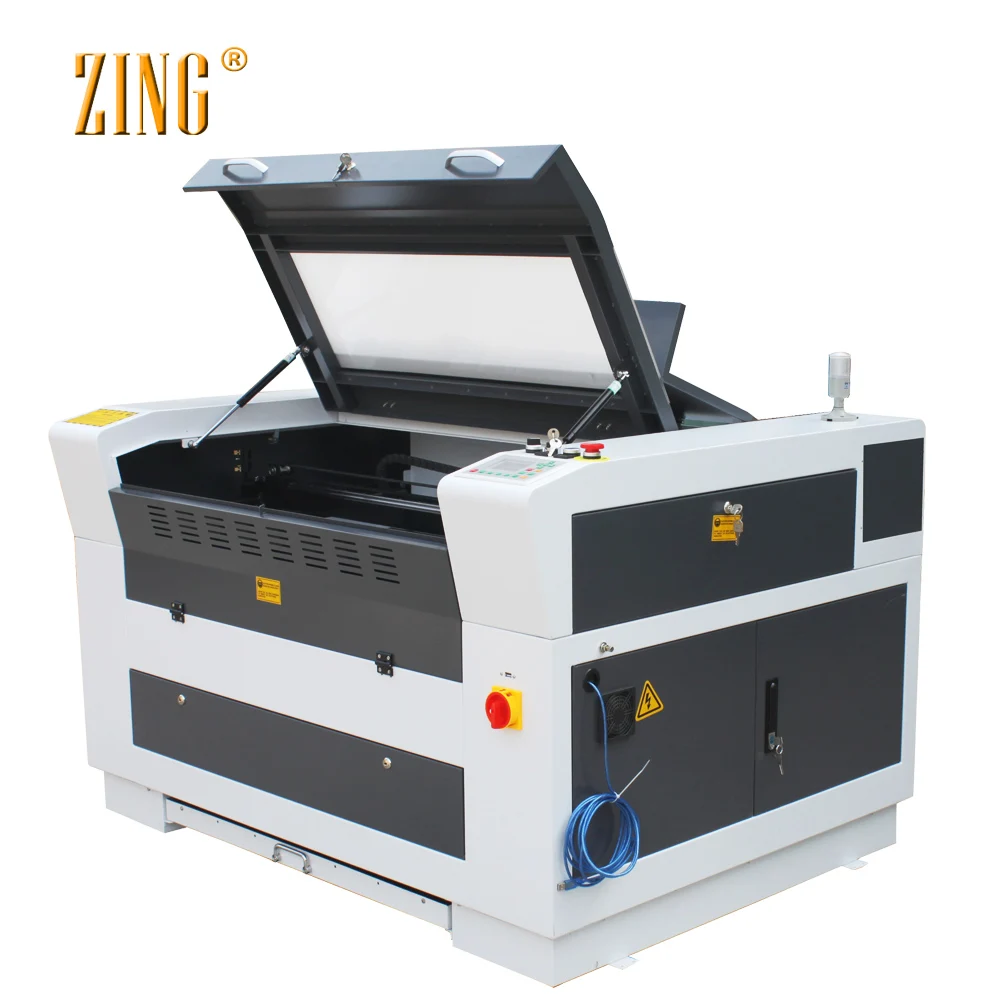

Machine Detail Parts
Taiwan square rail, square tube framework machine body, new high efficiency laser tube, red light positioning, advanced DSP control system, ensure high speed, high precision operation, and high work efficiency!
1. X&Y axis with HIWIN high accuracy square rail, perfect performance. 2. Only manufacturer adopts square tube framework machine body 40% higher than simple iron sheet structure, never distortion. Prevents machine from quivering and resonance during long time work. 3. High efficiency tube with stable laser path, life time reaches to 10000 hours. 4. Red cross point offers highest accuracy position. 5. Humanized and modern design makes work happy, safe and easy. 6. Transparent acrylic watching door, easy checking work process. 7. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.

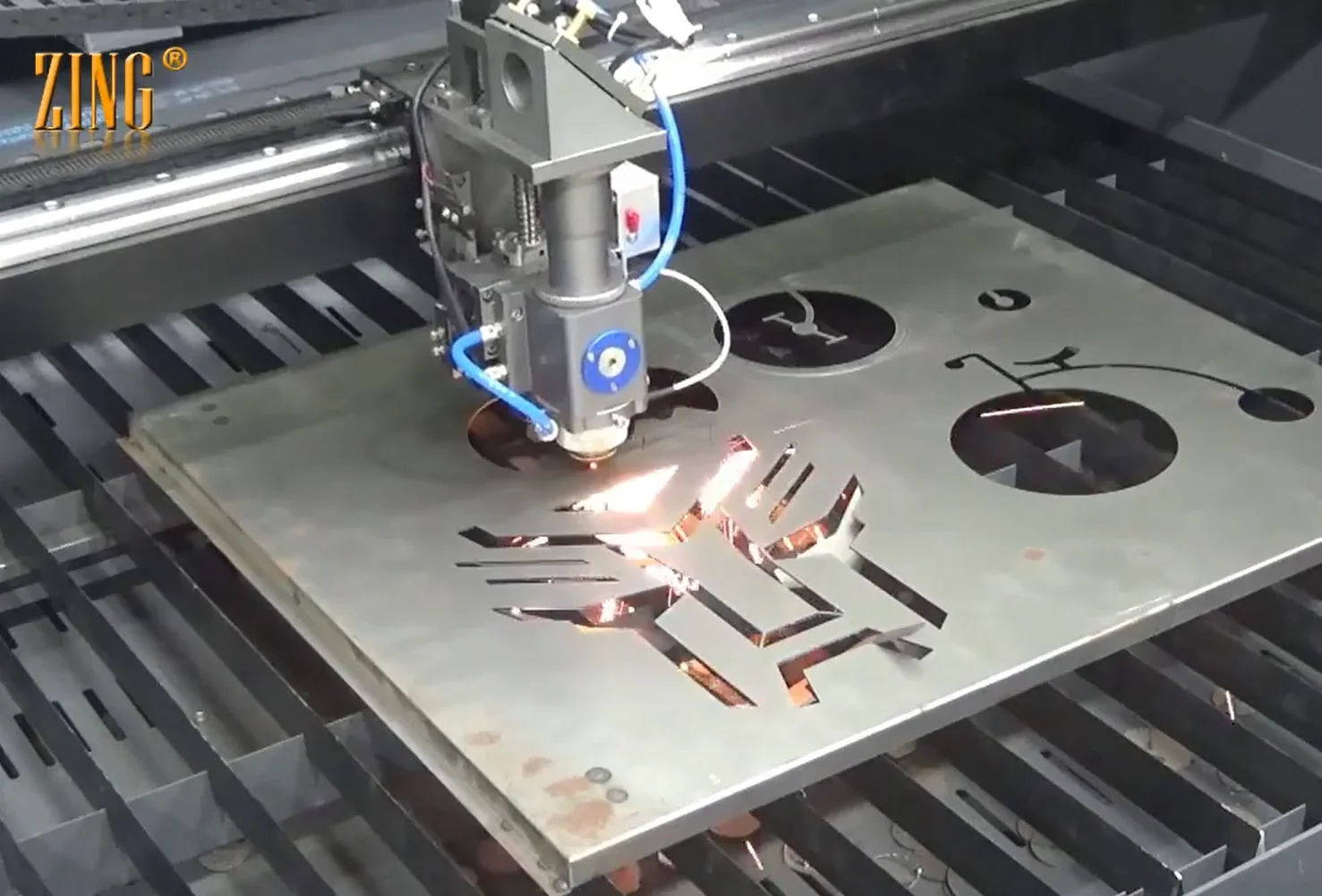

Samples
Packaging & Shipping
Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
Model
Machine size(L*W*H)
Packing size(L*W*H)
Z6040
1460*810*900mm
1600*950*1100
Z9060
1710*1010*900mm
1800*1160*1100
Z1390
1760*1310*900mm
1850*1460*1100
Our Services
1. Guarantee for 3 years.
2. Maintenance free of charge for 3 years .
3. We will provide the consumable parts at an agency price.
5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6. We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose? Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions. Q2: When I got this machine, but I don’t know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail. Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions. Q4: Before sending me an inquiry on our cnc laser, it is better for you to provide me the following information 1)Your metal or non-metal material size. Because in our factory, we have different models according to working area. 2)Your materials. Metal/Acrylic/plywood/MDF? 3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
