Detall Cold Rolled Steel Electronics Repair Lab Table

Product Description

detall esd workbench (2).jpg

Product Introduction

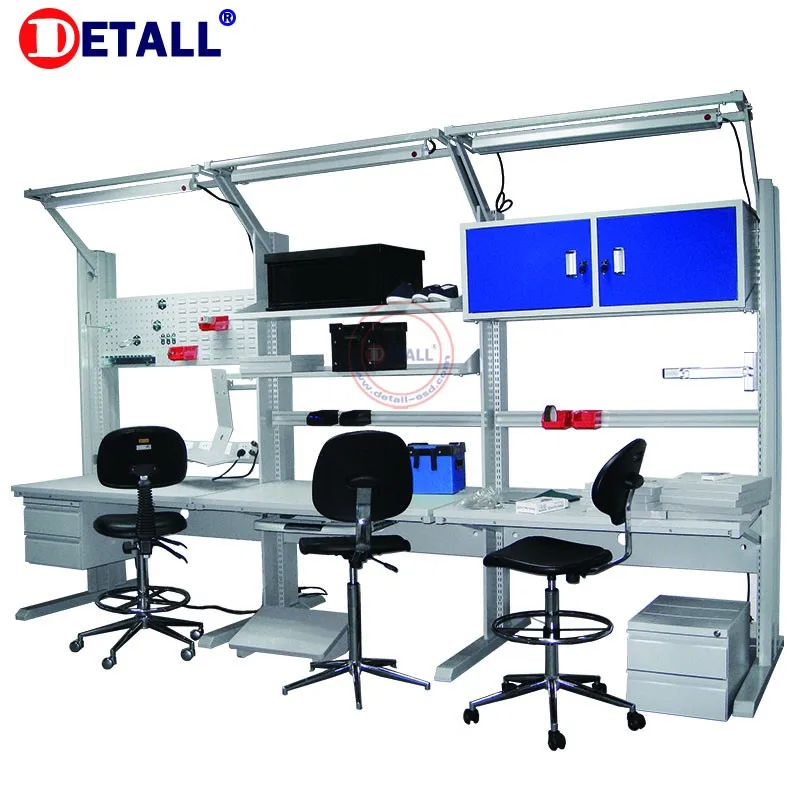

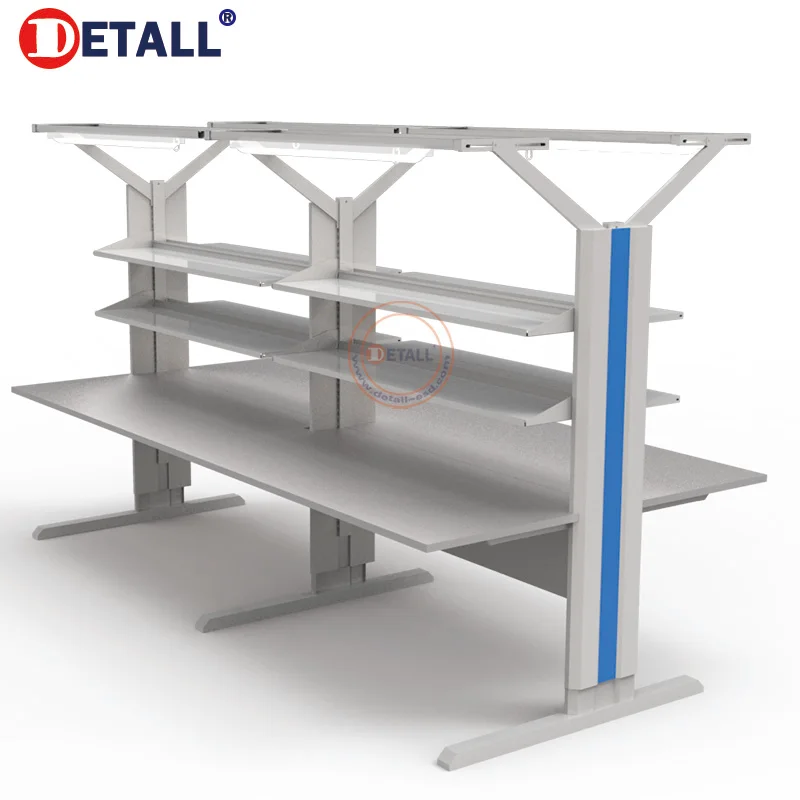

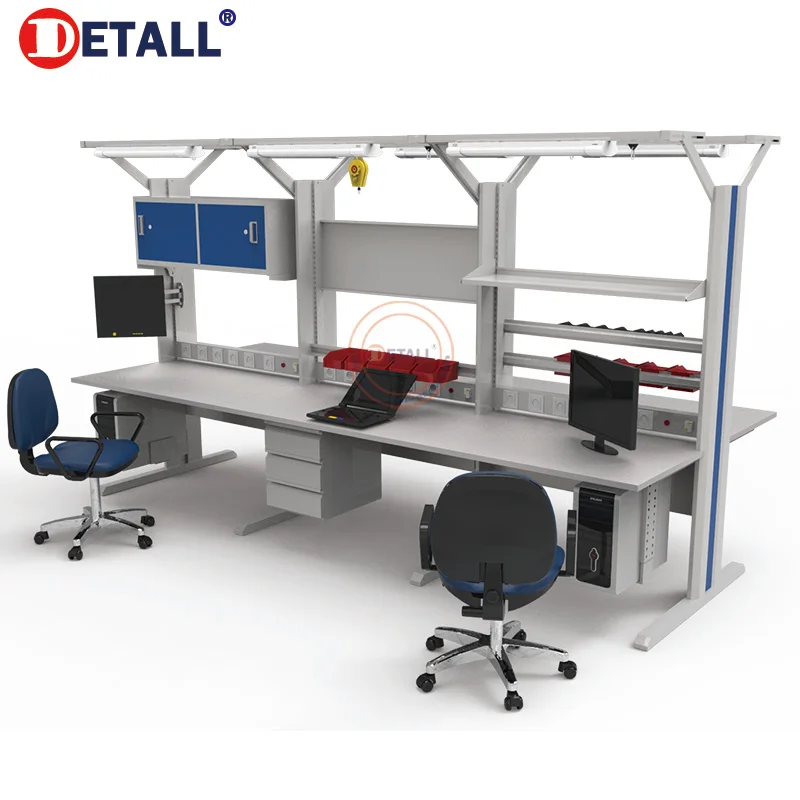

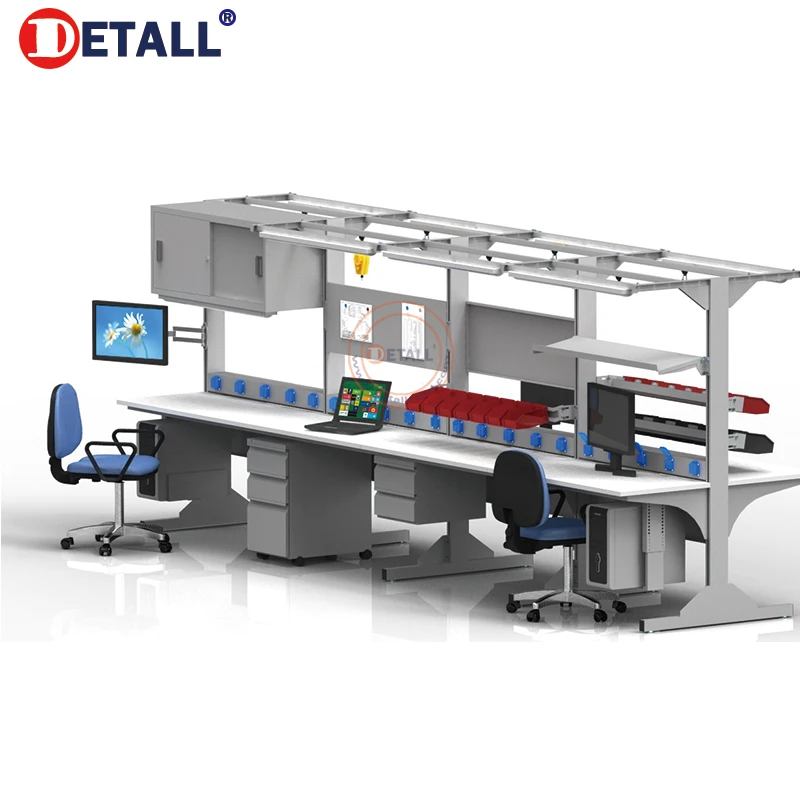

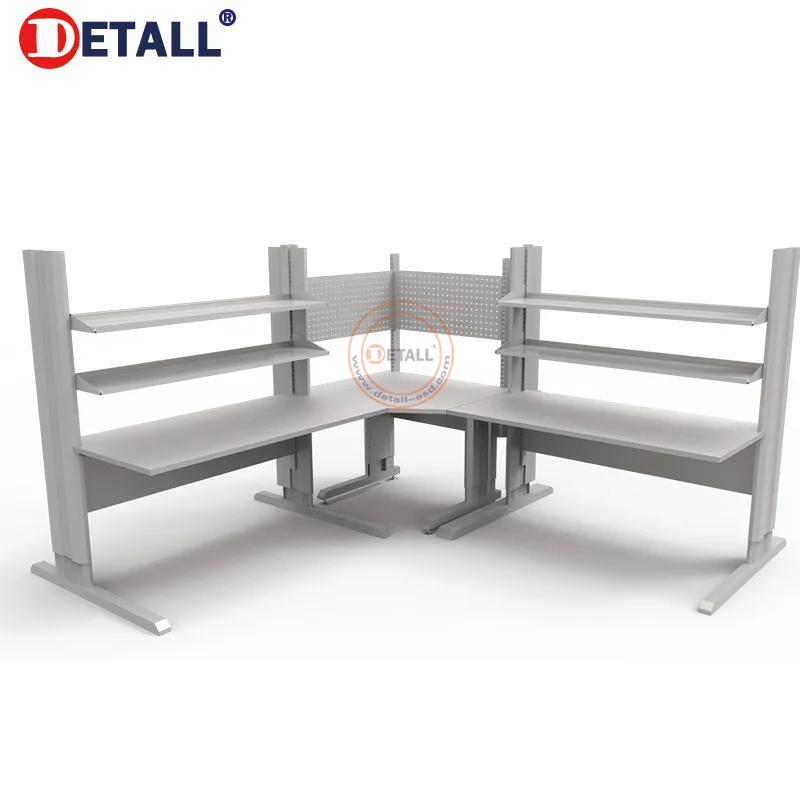

The towerline ESD workbench is a specific type of workbench which adopt the structure of table together with the double slotted Upright frame supporter . it is able to allow the work surface or the optional modular accessories to be mounted on either side of both the single sided and double sided station, and adjustable on workstation along column.

ESD Towerline workbench is suitable for electronics and semiconductor industries , military-industrial , aerospace sectors, contract manufacturers, research and educational organizations and telecommunication industries.

SPECIFICATIONS FOR Detall electronics repair lab table
Size	length	mm	1200/1530
	Deepth	mm	600/750
	Height	mm	785mm (table top to ground) 760-1120 (adjustable type)
Main performance parameters	ESD performance parameters	ohm (test input 100V, )	metal surface: 10⁵ - 10¹⁰ Laminate surface: 10⁶ - 10¹⁰
Main performance parameters	Static weight loading	KG	300kg - light duty type 500kg - standard duty type 800kg - heavy duty type

Extensible structure

In order to increase the functions and storage space of the workbench, Detall design the workbench's system be divided into different structure, maximum the numbers and variety of functional accessories, the design maximum extends the functions of the workbench.
The workbench is divided into1. 2 or 3 column by the double slotted Upright frame supporter to add the max quantity of accessories on the columns.

High Standard of Detall electronics repair lab table- CE certificated
EN ISO 12100:2010	Safety of machinery - general principles for design - risk assessment and risk reducion
EN 60204-1:2006 +A1:2009 +AC:2010	Safety of machinery - Electrical Equipment of machnies - part 1: Gerneral requirments
IEC 61340-5-1:2007	Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena

Electrical Properties of Detall test lab ESD table
Test	Relative Humidity	Electrical Results
Point to point resistance	60%-40%	10⁶ to 1 x 10⁷ ohms
	40%-20%	10⁷ to 1 x 10⁸ ohms
	20%-10%	10⁸ to 1 x 10¹⁰ ohms
Point to earth resistance	60%-40%	10⁶ to 1 x 10⁷ ohms
	40%-20%	10⁷ to 1 x 10⁸ ohms
	20%-10%	10⁸ to 1 x 10¹⁰ ohms
Volume Resistance	60%-30%	10⁷ to 1 x 10⁸ ohms
Volume Resistance	30%-10%	10⁸ to 1 x 10¹⁰ ohms
Static Decay	50%	0.01sec
Static Decay	10%	0.02sec
1. Per EOS/ESD - S 4.1 2. Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) 3. FTMS 101C, Method 4046
