Lab Sonochemistry Equipment  Industrial Ultrasonic Extractor





   Industrial Ultrasonic extractor equipment (also referred to as ultrasonic extraction instrument) is a traditional alternative to traditional Chinese herbal medicines and extracts of various active and botanical contents because of its unique advantages of low extraction temperature, high extraction rate, and short extraction time. The shearing process method realizes high-tech, energy-saving and environmentally-friendly extraction of modern high-tech means.

    Reasonable use of ultrasonic vibration method for extraction of new technology, so that the solvent quickly into the solid material, the organic components contained in the material as completely dissolved in the solvent to obtain a multi-component mixed extract

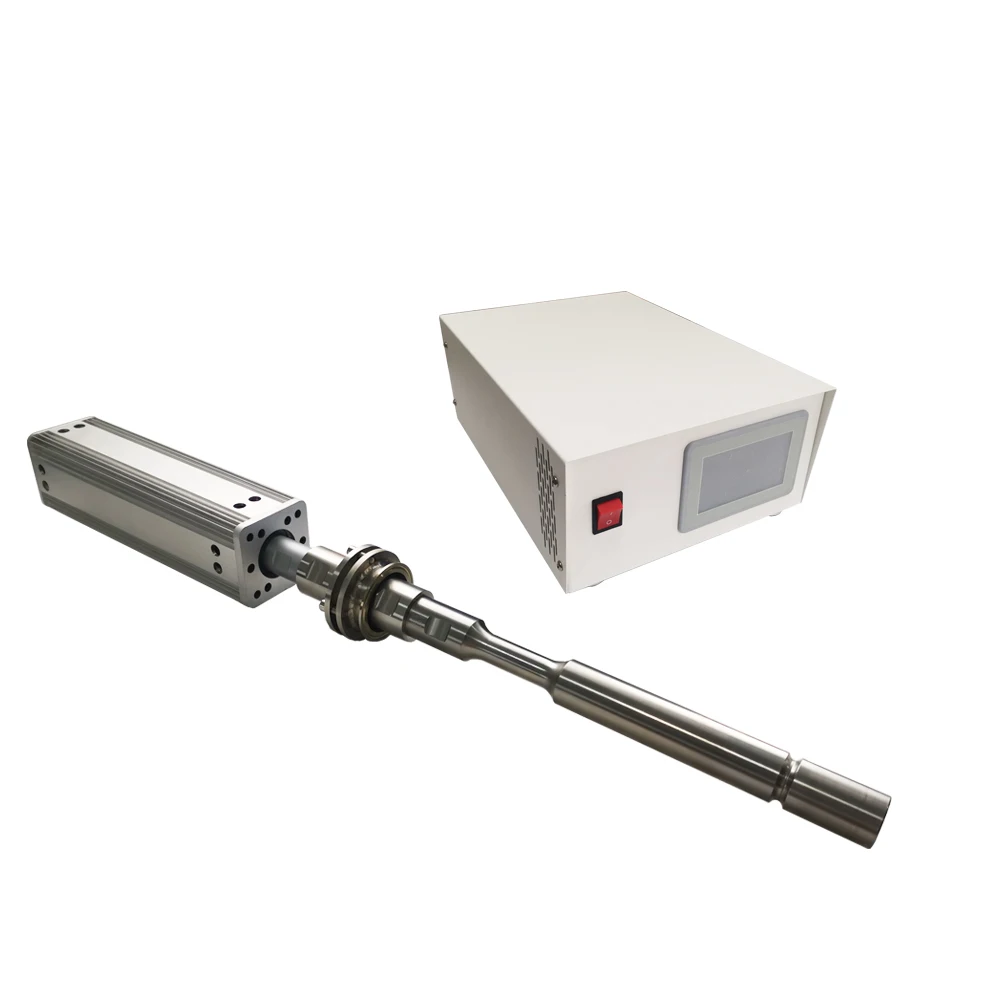

                                                           20khz ultrasonic extractor machine

Model	YPS55B-HB	YPS59B-MB	YPS61B-MB
Power	1000W	2000W	3000W
Frequency	20Khz	20Khz	20Khz
Amplitude	50-100%	20-100%
Handling Capacity	5-10L	10-50L
Effective Depth of Horn	450 mm
Diameter of Horn	40-50 mm
Standard Features	ultrasonic probe, ultrasonic extractor generator
Optional	soundproof box, alarm output, remote control



Technical Drawing of 20khz ultrasonic extractor in industrial:

                                        20khz ultrasonic dispersing machine for nano materials

1. The Horn is made by Titanium alloy

2. Equipped with Digital Generator, LCD display, and the operator can adjust the amplitude between 20-100%



Application:



Titanium dioxide dispersion in wate by experimental ultrasonic dispersion machine

ultrasonic dispersion machine



Typical application include cell disruption & disintegration, extraction, degassing as well as sonochemical process.
