Характеристики

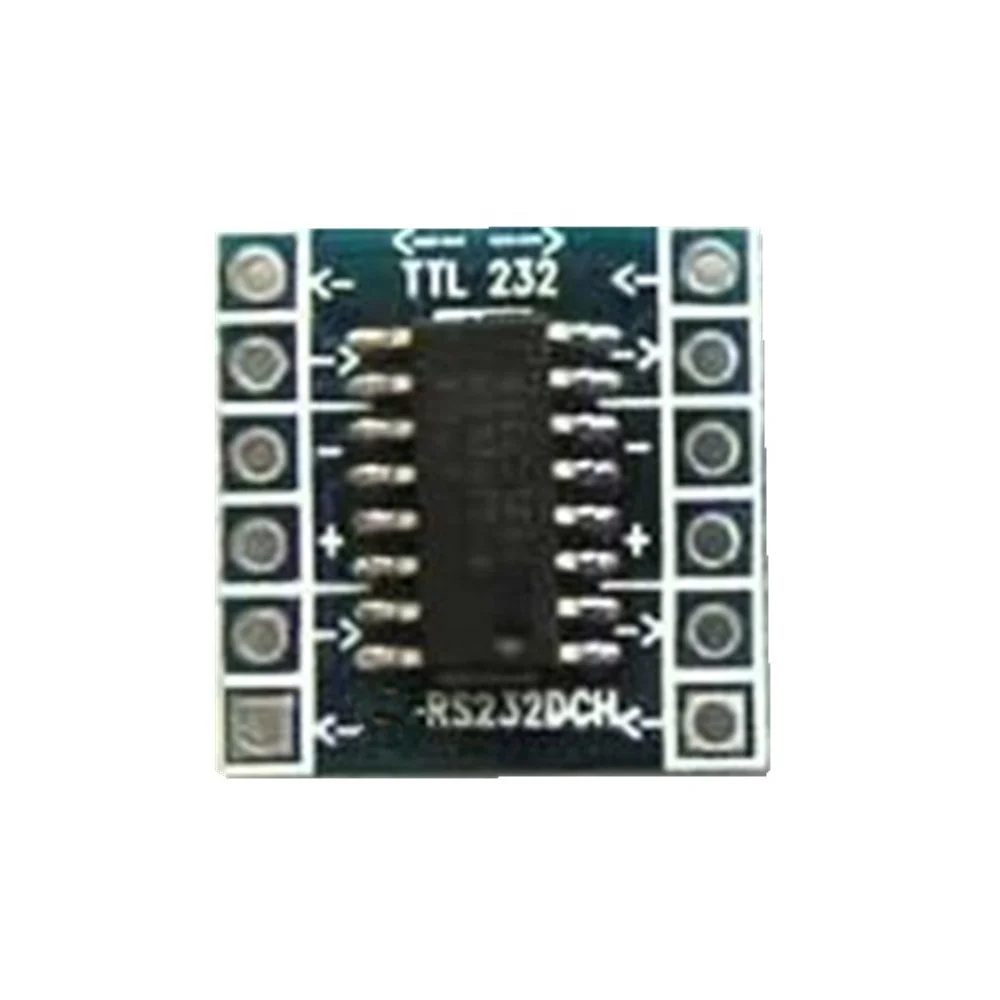

Taidacent RS232 To 3.3V ttl Converter Uart Level Shifter Circuit RS232 SP3232 TTL Serial Adapter 5V Rs232 to Ttl Converter
Product Description
Feature
PCB size: 15.7x15.7mm

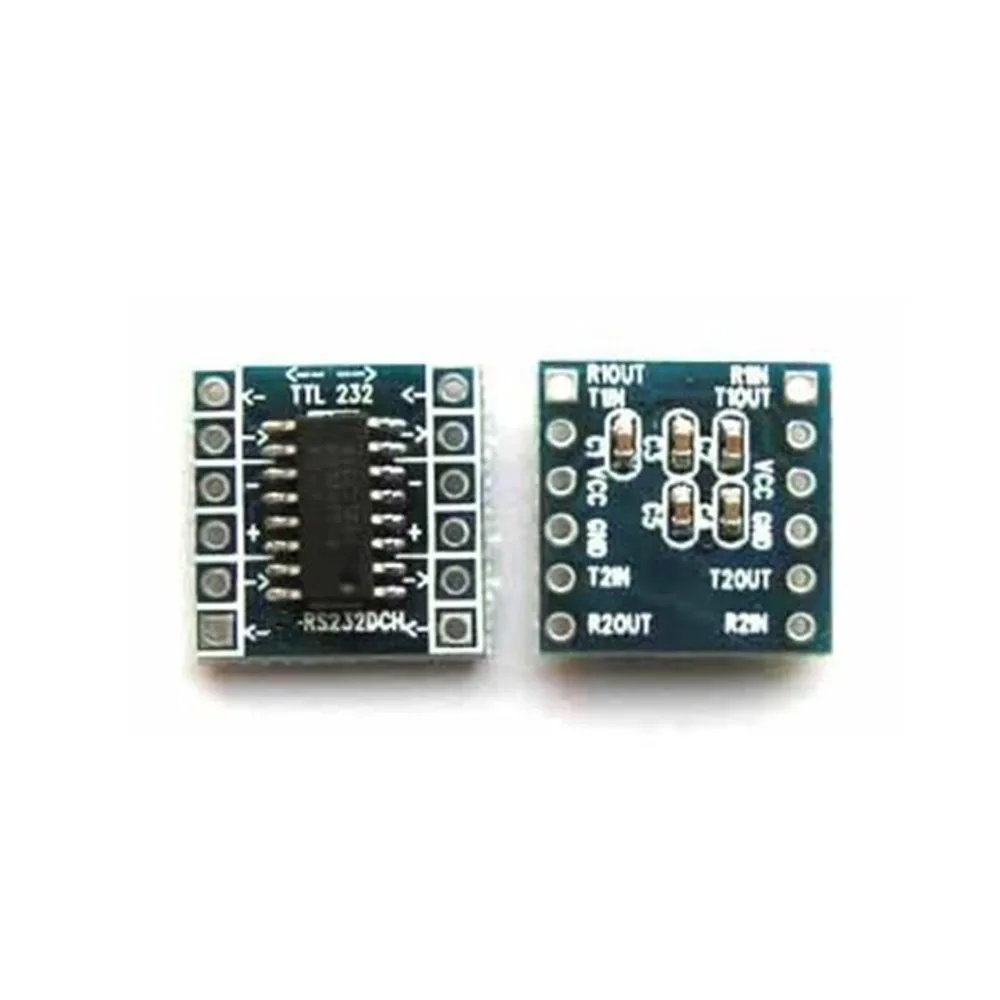

Signal transmission and reception directions are marked on the front and signal names are marked on the back
1mm pin hole, 2.54mm pitch, can be used for welding wire or pin
Wide voltage: 3 ~ 5.5V
Dual channel: support two sets of transceivers, can convert 4 serial signals at the same time
Using chip SP3232EEN, more stable performance
Signal transmission and reception directions are marked on the front and signal names are marked on the back
1mm pin hole, 2.54mm pitch, can be used for welding wire or pin
Wide voltage: 3 ~ 5.5V
Dual channel: support two sets of transceivers, can convert 4 serial signals at the same time
Using chip SP3232EEN, more stable performance
1 | TTL end RS232 end power VCC and ground GND are connected together, only one of them needs to be connected; |
2 | RxIN is connected to TXD of RS232, RxOUT is connected to RXD of TTL; |
3 | TxIN is connected to TXD of TTL, TxOUT is connected to RXD of RS232; |
4 | The arrow points to Rx, the tail points to Tx |
