Характеристики



Product Description




roduct Name
electric conduit
Material
steel
Surface treatment
galvanized/hot dipped galvanized
Standard
BS4568 BS31 EMT IMC RIGID(4)
Place of Origin
Shanghai, China (Mainland)


Thickness
0.7 - 2.11 mm
Certification
ISO9001 CE
Used
electric wiring system


EMT TUBE
OD*WT*L(MM)
1/2
17.93*1.07*3050
3/4
23.42*1.24*3050
1
29.54*1.45*3050
1-1/4
38.35*1.65*3050
1-1/2
44.20*1.65*3050
2
55.80*1.65*3050
2-1/2
73.03*1.83*3050
4
88.90*1.83*3050
3
114.3*2.11*3050


Surface finish.

1. H D G-Normally the thickness of zinc is between 60 micron-70 micron on average.This finishing is widely used in outdoor projects and corrosive environment.

2. P r e-galvanized steel sheet:in accordance with A S T M 653/A 653 M.The coating is smooth,ductile and adherent.This finish is suitable indoors..



Detailed Images




I M C steel conduit(UL 6-ANSI 80.1)



Nominal Diameter
Outside Diameter
Wall Thickness
Length
Weight
inch
inch
mm
inch
mm
FT
mm
KG/PC
1/2"
0.840
21.3
0.104
2.6
10
3050
3.72
3/4"
1.050
26.7
0.107
2.7
10
3050
4.94
1"
1.315
33.4
0.126
3.2
10
3050
7.3
1-1/4"
1.660
42.2
0.133
3.4
10
3050
9.89
1-1/2"
1.900
48.3
0.138
3.5
10
3050
11.93
2"
2.375
60.3
0.146
3.7
10
3050
15.87
2-1/2"
2.875
73
0.193
4.9
10
3050
25.35
3"
3.500
88.9
0.205
5.2
10
3050
32.97
3-1/2"
4.000
101.6
0.215
5.5
10
3050
39.91
4"
4.500
114.3
0.225
5.7
10
3050
46.71
5"
5.563
141.3
0.245
6.2
10
3050
63.49
6"
6.625
168.3
0.266
6.8
10
3050
83.45


Notes: Application tolerance

Length:10 FT ± 0.197 inch,3050 mm ± 5 mm
Outsider Diameter:1/2"to 2" ± 0.015 inch.(21.3 mm to 60.3 mm ± 0.38 mm)
                                  2-1/2"to 4" ± 0.025 inch.(73 mm ± 0.64 mm)
                                  5" to 6 "± 1%
Features:Steel Thin wall I M C conduit is easy to cut and easy to bend-reducing waste and installation time.Metal conduit is non-combustible and easily adaptable to future wiring changes.Metal conduit is a proven equipment grounding and conductor and can reduce electromagnetic fields by up to 95%.

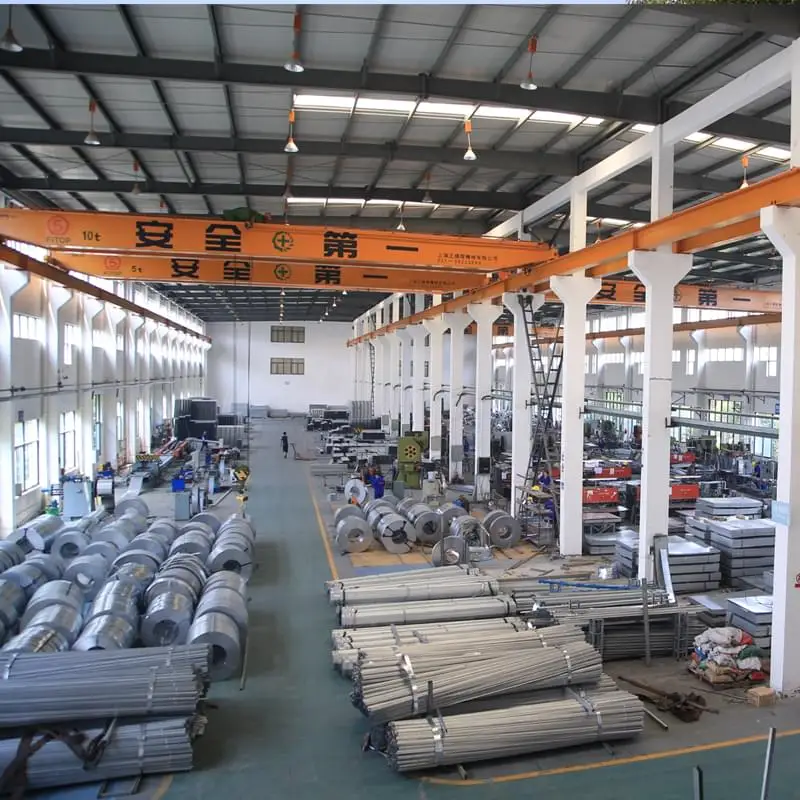

Our Company




Shanghai Xiaokai Building Material Co.,Ltd is a professional manufacturer which specializing in manufacturing and selling the modern constructive conduits, cable trays and C purlin and other relative products.

The company located in the famous financial city – Shanghai.
Main products including: HDG conduit, GI conduit, GI C purlin, SS cable tray, GI cable tray and others. Our products could be

manufactured according the UL standard which is widely used in the markets, hotels, power plant, underground construction and mansion. etc



Application




Cilents




Our products have been mainly exported to Russia,Korea,Japan,Saudi Arabia,United States,Austria,etc.XK is always dedicating to the development of international market and offering professional services to the clients.



Packing & Delivery




Packing and delivery of rigid electrical conduit:

The manner of packing for your reference:
1. Wooden Pallets
2. Wood Frame
3. Plywood Case
4. Steel Frame
5. Steel Pallets
6. Waterproof  Packaging Film
7. Or as your requirements
Delivery time：Shipped In 10-15 Days After Payment



FAQ


1.Q.Are you a factory or not?
A.Yes we are a leading pipe manufacturer whose factory in Tianjin. Welcome to visit our factory.
2.Q.How about the Delivery Time?
A.The products will be produced since we get your deposit by T/T or your original L/C.For normal sizes,some stocks in our factory now,we can supply once you need.

3.Q.What kind of payment does your company support?
A.T/T,100% L/C at sight,Cash,Western Union are all accepted.
4.Q.What's your warranty?
A.Free samples;mill test certificate;shipping inspection or any third party inspection in your site.
5.What's your advantages ?
More than 100 employers who work at our factory.Key projects: the 2008 Olympic games venues,the 2010 Shanghai world expo exhibition hall,the capital international airport,etc.
