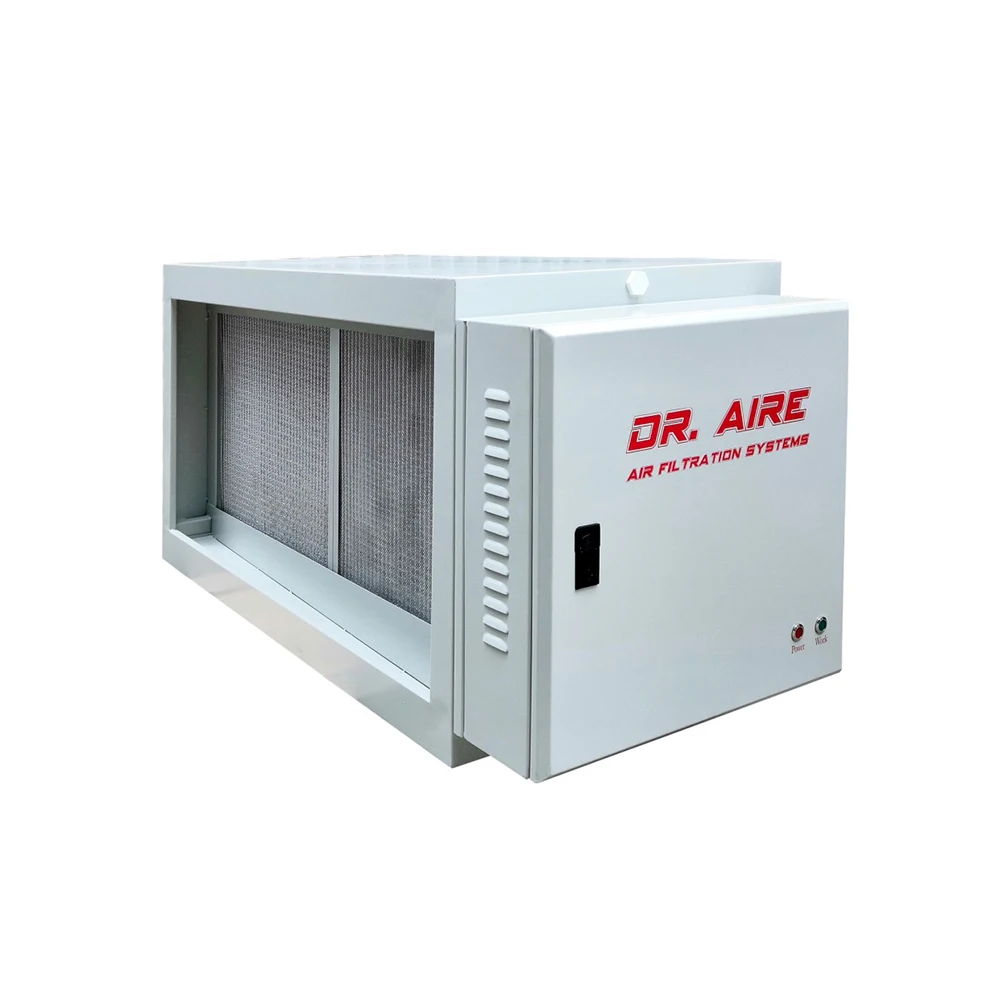

Коэффициент удаления дыма DR AIRE 98% Кухонное устройство для коммерческий электростатический воздушный

Описание и отзывы

Трекер стоимости

Характеристики



Air pollution is cutting global life expectancy by an average of 1.8 years per person, making it the world’s top killer. While we cannot control outdoor air quality, we can choose to protect us and create a clean commercial kitchen. DR.AIRE smoke air filter's mission is to create healthy indoor commercial kitchen for people.







                                              WORKING  PRINCIPLE

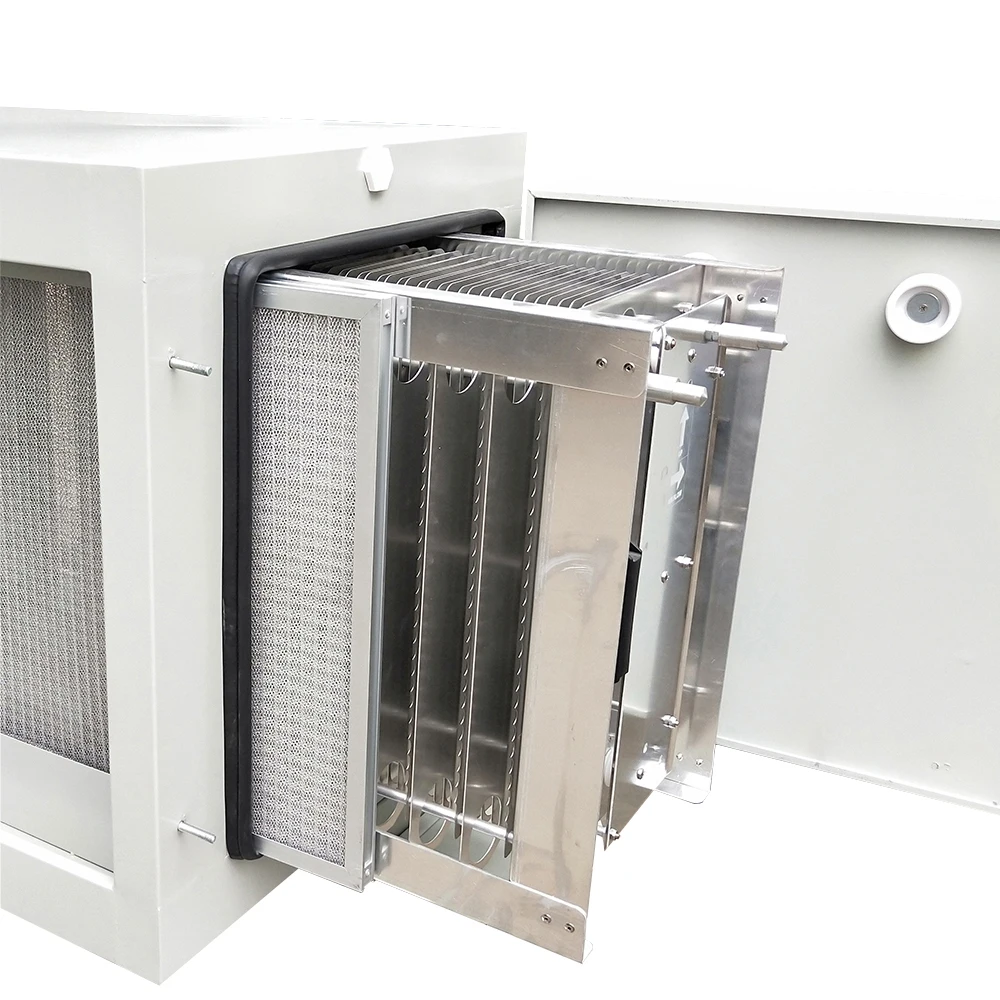

1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.



2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell

section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.



3. The particulates remain on the plates or drain down in to the sump.



4 UVC-ultraviolet light produces OZONE and undergoes chemical processes such as Photolysis and Ozonolysis that breaks down grease and odour containing compounds



produced during cooking.



5. The cleaned air exits through the cabinet.





DGRH-K  Single Pass ESP parameter

NO.	Model	Air Flow  (CMH)	Cabinet Size  L*W*H  (mm)	Flange Size  W*H(mm)	Removal  efficiency  Rate	Power (Watt)
1	DGRH-K-3500(U)	3000-3500	640*765*690	485*530	93-98%	110
2	DGRH-K-7000(U)	6000-7000	640*1300*690	1020*530	93-98%	176
3	DGRH-K-10500(U)	9000-10500	640*1835*690	1560*530	93-98%	242
4	DGRH-K-14000(U)	12000-14000	640*1300*1380	485*1210	93-98%	330
5	DGRH-K-21000(U)	18000-21000	640*1835*1380	1020*1210	93-98%	484
6	DGRH-K-31500(U)	27000-31500	640*1835*2070	1560*1890	93-98%	726

Product Advantage

1. Odor, smoke, oil control efficiently
2. Modular in design:  Modular units allow to vertical/horizontal stacking combination as per different air flow or removal efficiency rate request.

3. Intellegent electrostatic power control system

    Electric intensity auto-control function ensures the Kitchen ESP Collector unit maintains a high purification rate after a long time service.
4. Photolysis and odor removal:  High power UV tube will remove food odor more efficiently.

 Would you like protect the blue sky with DR AIRE ?

Do everything for you, would you like support my job ? tks.





 The First time choice for DR AIRE ESP, Forever Trust !
Welcome order. Please Send US Enquiry and get 2% discount now. Click Here   tks

Dongguan Rui zhaohe Environmental Protection Equipment Co., Ltd is one of leading manufacturers in China,specialized in manfacturing commercial, industial air pollution control machines.



DR AIRE is our brand,main products: commercial kitchen electrostatic precipitator (ESP), mobile cooking station ,BBQ cart with Smoke filter, industrial Esp, ductless range hood,,coffee Roasters smoke filter ,actived carbon filter, CNC oil mist collectorand etc.











DR AIRE ESP teams not only sell the products, we also offer perfect air purification scheme  and professional service for you! 100% protect your order. Not miss the business opportunity !
