QiheTVM802A низкая цена светодиодная сборка производственная линия монтажная машина для монтажа и установки чипов бесплатная
- Категория: Оборудования для электронных изделий >>>
- Поставщик: Yueqing,Qihe,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.78 $* | 0.0 $* |
| Aug-16-2025 | 0.87 $* | 0.86 $* |
| Jul-16-2025 | 0.95 $* | 0.25 $* |
| Jun-16-2025 | 0.20 $* | 0.26 $* |
| May-16-2025 | 0.15 $* | 0.39 $* |
| Apr-16-2025 | 0.42 $* | 0.75 $* |
| Mar-16-2025 | 0.25 $* | 0.43 $* |
| Feb-16-2025 | 0.63 $* | 0.8 $* |
| Jan-16-2025 | 0.44 $* | 0.51 $* |
Характеристики

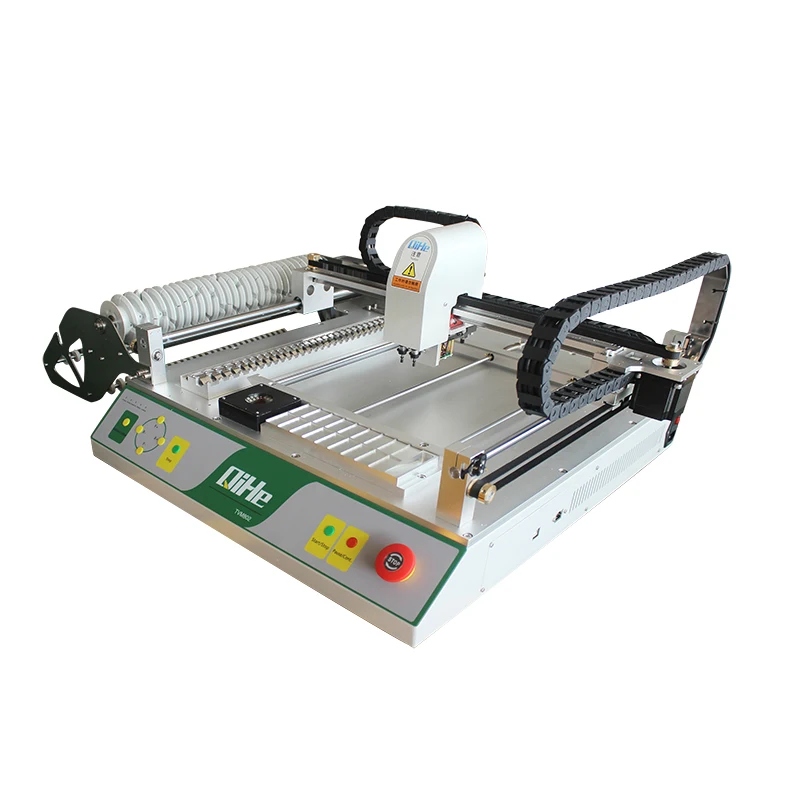

QiheTVM802A Low Cost LED assembly production line chip mounter pick and p
lace machine
P & P machine 802A
| Model | TVM802A |
| Max applicable PCB | 20*20mm~340*340mm |
| Max XY Moving rang | 395*450mm |
| Max Z Moving range | 12.5mm |
| Placement head quantity | 2 |
| Mounting speed | Vision off: 6500CPH |
| Vision on: 5500CPH | |
| Applicable component | 0402-5050. SOP. TQFP. QFN etc. |
| Component supply | Tape reel, Bulk, Tubular, Tray etc. |
| Vision system | 2 HDCCD Camera |
| Control scheme | Stepper high voltage drive, Z-axis reset detection |
| Feeder count & Tape width | 29 , 8mm=25pcs, 12mm=3pcs, 16mm=1pc |
| Pump | 1 silent brushless vacuum pump, Blowing pump |
| Leakage material detection | Vision, Pressure, Vision & Pressure |
| Power | 125W(average power) |
| Power supply | AC220V or AC110V |
| Machine size | L940*W640*H330mm |
| Package size | L1070*W760*H420mm |
| Volume | 0.35CBM |
| Net weight | 39kg |
| Gross weight | 60kg |
| Support PCB design software | Protl99/Altium Designer/Eagle/Pads/Allegre etc. |
Recommended Products
 |  |
P & P MACHINE HOT SALE PLS CLICK PICTURE DIRECTLY FOR DETAIL!!! | |
Company Information
Company Show
Exhibition Show
Certificate
FAQ
1. Q: How many nozzles do you supply? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM61 has 6 nozzle-heads, we supply 8 nozzles. |
2. Q: Which language is the software? Do you provide software updates? |
A: English or Chinese. Free to upgrade software for lifetime. |
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
A: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service. |
4. Q: Can we customize the machine? |
| A: Of course. All of our machines can be customized. |
5. How about the warranty? |
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
Company | Yueqing Qihe Electrical Technology Co.,Ltd. |
Address | No.222 Latitude Five Road, Economic Development Zone,Yueqing, Zhejiang,China |
Tel | +86 0577 62058872 |
Fax | +86 0577 89736269 |
Zip code | 325600 |
15325505802 | |
Skype | 17198668029 |
Email: |
|
Website | www.qhsmt.com |
