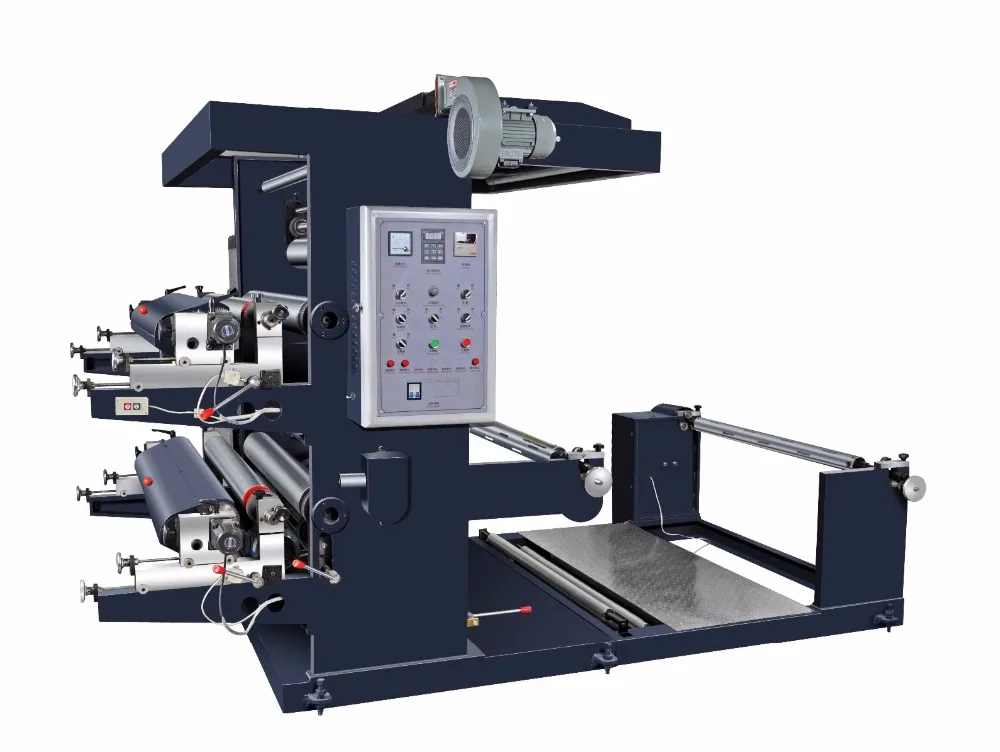

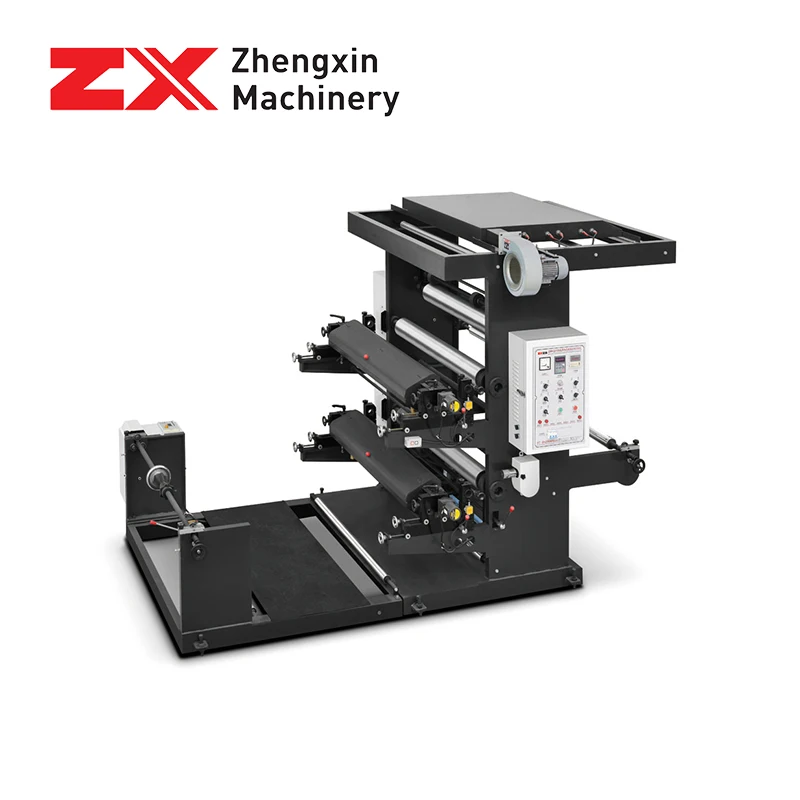

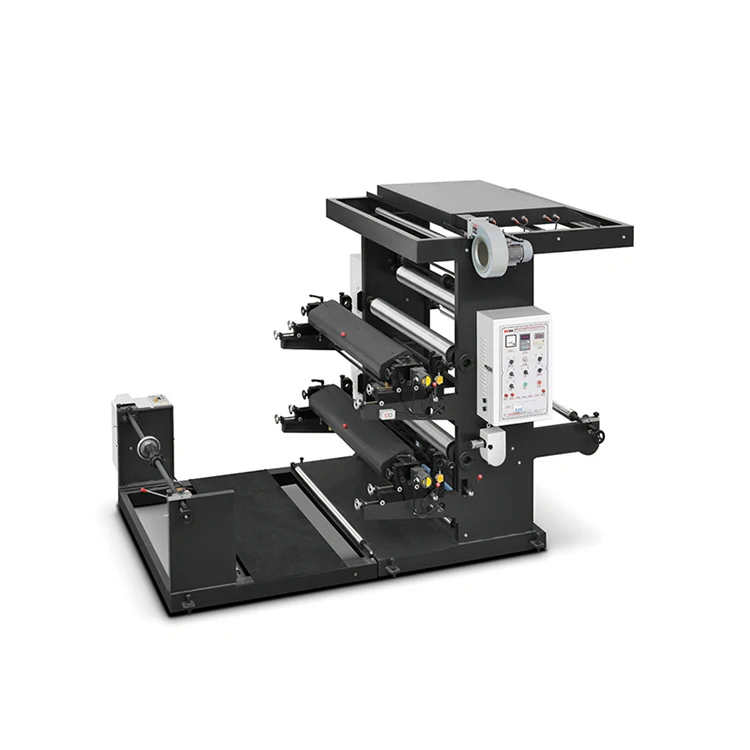

This machine is two-color letterpress printer, adopts rubber plate(or photosensitive resin plate) as printing plate, specialized in the printing of non-woven fabric, it’s an idea equipment for non-woven printing.
Simple operation, flexible starting and accurate chromatograph.
Meter-counter could freely setting the printing quantity according to the requirement, auto stopping when finish or material break.
Adopts netting ink transfer roller, uniform process.
Equipped with reliable drying system, high speed rotation, auto cutout when stop.
Different printing speed can be met by frequency conversion speed control.
Model
ZXH-C21200
Max Material Width
1200mm
Max Printing Width
1160mm
Max Printing Length
190-1000mm
Max Diameter of the Material Roll
1000mm
Printing Speed
10-60m/min
Plate thickness
2.38/3.94mm
Total Power
8KW
Overall Dimension
3200*2300*2200mm
Weight
1500KG
Related Products
Sample display
Company Information
Packaging & Shipping
Packaging
Volume
CBM
Weight
KG
Packaging Details
Before packing, we grease the machine with white oil to make metal parts rustproof and shining forever.
The packaging is export standard sea worth and will use PET film for packing or pack it according to customers’ special requests.
Delivery
within 30 days after the payment of deposit. Production lead time 7-30 days.
FAQ
1. How long will your engineer reach our factory? Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing ? We will finish installation and training within 15 days.
3. What should we charge for your engineer? You should charge for the cost of our engineer's air tickets, hotel,food,and also their salary 80USD one day per person.
4. How long is your machine's warranty period? All our machine have one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do after one year warranty period? We also can do service for you, but you need pay salary for our technicians 80USD/day for each person.
6. How could you do if the parts broken within warranty? We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installationexperience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location? Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving? Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
10. How many workers do we need running those machines? Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
