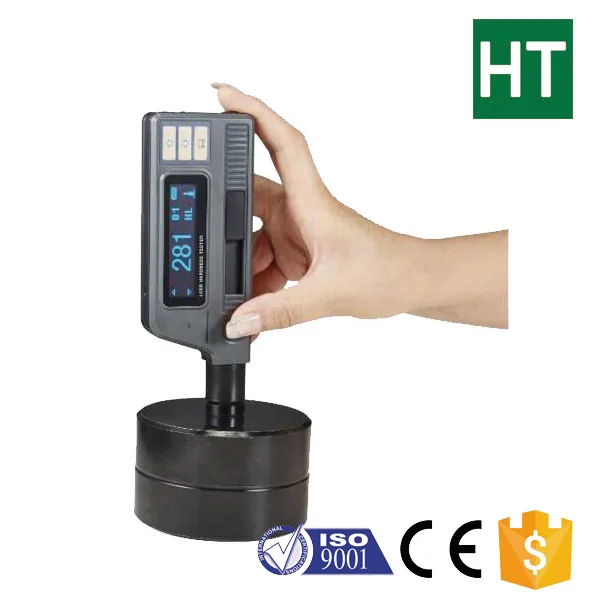

DGT-HT720 portable leeb probe hardness tester and stainless steel hardness tester



Features
Customaries curve for a specific testing material
DGT-HT720: OLED display of 128×32 matrix
Converts to all common hardness scales (HL, HV, HB, HRC, HRB, HRA, HS).
Easy to use Menu driven system

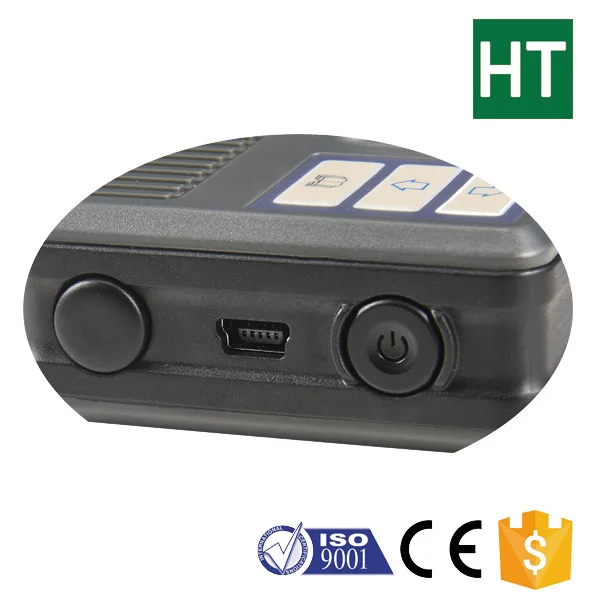

With mini USB interface, multiple communication modes are adopted to meet customized requirements of various users.
Max 600 groups of data can be stored in memory.
Upper and lower limit of hardness can be preset; with alarm
Test values software calibration function.
Working voltage: 3.7V Rechargeable Li-Ion battery
Continuous working period: approx. 50 hours.
Optional Bluetooth, can be connected with printer through Bluetooth
The machine also include interface to connect with Impact device Type C, DC, G, D+15DL
Smart and skid proof design
Charging indicator
Note: The product uses the international popular streamlined plastic shell, ergonomic design. Surface anti-skid treatment, feel fine, soft, lightweight and durable. And has excellent resistance to electromagnetic, anti-vibration and other interference.





Technical Specifications
Measuring range: HLD(170-960)HLD
Measuring direction: 360°
Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS
Display: OLED, 128×32 matrix OLED
Data memory: up to 600 groups
Range of upper and lower limit: the same as measuring range
Rechargeable Li-Ion battery with no memorability
Continuous working period: approx. 50 h
Communication interface: mini USB
Outline dimensions:153 × 54 × 24mm
Weight: 250g



Main Application
The assembled machinery and permanently installed parts
Die cavity of molds
Heavy work piece
Failure analysis of pressure vessel, steam turbo-generator set and other large equipment
Testing of parts in confined areas or on gear teeth
Bearings and other parts
Material identification of the metal material warehouse



Configuration

	No.	Item	Quantity	Remarks
Standard Configuration	1	DGT-HTH720 Main unit	1
	2	Small Supporting Ring	1
	3	Standard test block	1
	4	Cleaning brush	1
	5	Charger	1
	6	USB Cable	1
	7	Data software	1
	8	Calibration Certificate	1
	9	Packing List	1
	10	Guarantee Card	1
	11	Manual	1
	12	Instrument package case	1
Optional Accessories	13	Other Types Impact Device: DC / D+15 / G / C / DL	1
	14	All kinds of special support ring	1



Testing range

Material	Hardness Scale
	HRC	HRB	HRA	HB	HV	HS
Steel and cast steel	19.8-68.5	59.6-99.6	59.1-85.8	80-651	83-976	32.2-115
Hammered steel				143-650
Cold work tool steel	20.4-67.1				80-898
Stainless steel		46.5-101.7		85-655	85-802
Gray cast iron				93-334
Nodular cast  iron				131-387
Cast aluminum alloys		23.8-84.6		19-164
Brass (copper-zinc alloys)		13.5-95.3		40-173
Bronze (copper-aluminum / copper-tin alloys)				60-290
Wrought copper alloys				45-315



Support rings for Shaped Materials

No.	Type	Sketch of non-conventional Supporting ring	Remarks
1	Z10-15		For testing cylindrical outside surface R10-R15
2	Z14.5-30		For testing cylindrical outside surface R14.5-R30
3	Z25-50		For testing cylindrical outside surface R25-R50
4	HZ11-13		For testing cylindrical inside surface R11-R13
5	HZ12.5-17		For testing cylindrical inside surface R12.5-R17
6	HZ16.5-30		For testing cylindrical inside surface R16.5-R30
7	K10-15		For testing spherical outside surface SR10-SR15
8	K14.5-30		For testing spherical outside surface SR14.5-SR30
9	HK11-13		For testing spherical inside surface SR11-SR13
10	HK12.5-17		For testing spherical inside surface SR12.5-SR17
11	HK16.5-30		For testing spherical inside surface SR16.5-SR30
12	UN		For testing cylindrical outside surface, radius adjustable R10
