Размеры стали Gi slotted c производитель прошел испытания UL

Размеры стали Gi slotted c производитель прошел испытания UL

Категория: Стальные швеллеры >>>
Поставщик: Shanghai,Hdmann,Industry,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.70 $*	0.37 $*
Aug-19-2025	0.3 $*	0.43 $*
Jul-19-2025	0.63 $*	0.15 $*
Jun-19-2025	0.33 $*	0.57 $*
May-19-2025	0.62 $*	0.98 $*
Apr-19-2025	0.76 $*	0.4 $*
Mar-19-2025	0.65 $*	0.61 $*
Feb-19-2025	0.60 $*	0.2 $*
Jan-19-2025	0.45 $*	0.51 $*

Характеристики

Product Description

Gi slotted c channel steel dimensions UL CE tested manufacturer

HDMANN CABLE LADDER SYSTEM

HDMANN c channel is constructed of precision engineered, high quality and is the result of decades of research gained from the installation of 94,000 miles of channel across the globe.w

Our c channel is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for from heavy power cable pathways on oil drilling platforms to data installation above the ceiling.

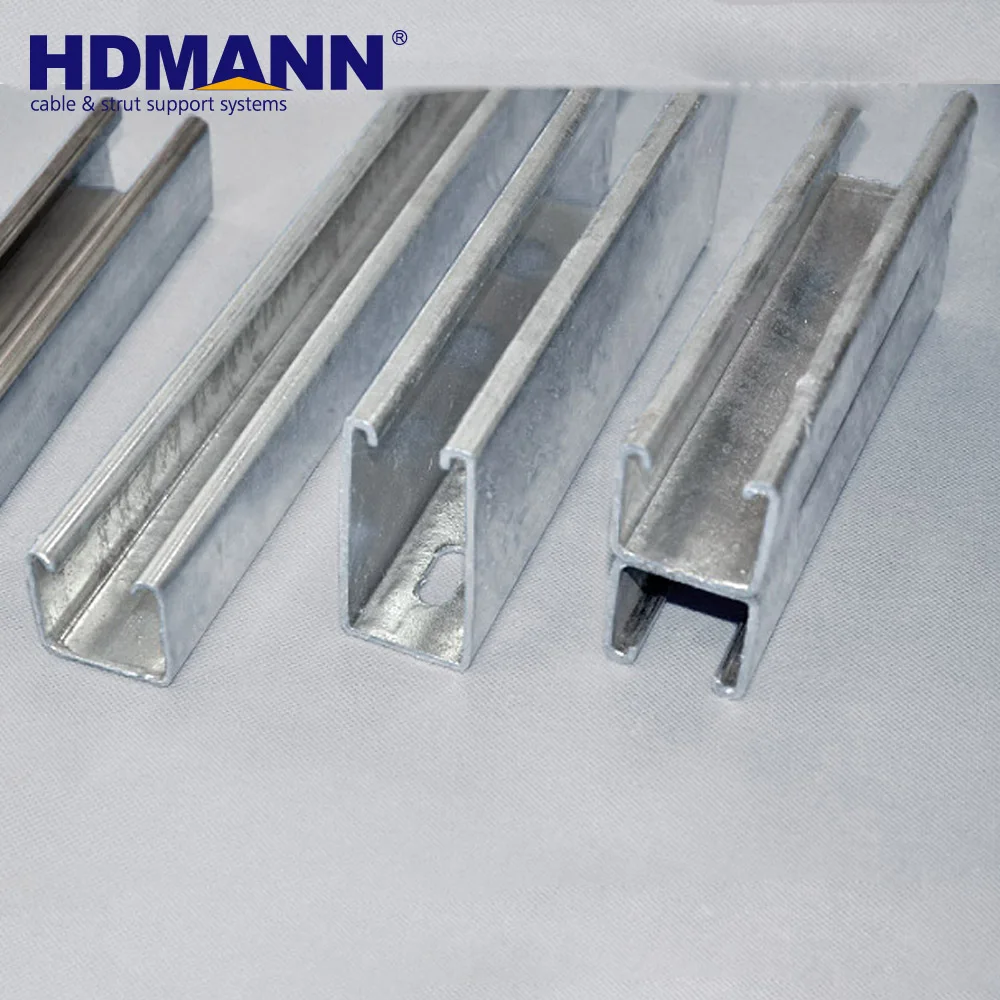

strut channel.jpg

size&accessory

c channel steel price

Ladder cable tray standard specification

Table of c channel standard specifiaction&weight(kg/meter)
						Dimension/Thickness	1.5mm	2mm	2.5mm	2.75mm	3mm
41*41	1.68	2.22	2.78	3.07	3.35
												41*25	1.29	1.72	2.14	2.36	2.57
												41*21	1.18	1.59	1.98	2.2	2.37
						41*72	2.42	3.22	4.03	4.43	4.82
41*82	2.65	3.53	4.4	4.85	5.28

Surface treatment

Electro zinc plating:

Thickness of coating >12um

Application environment (Indoor): IDC, Factory, Hospital, Railway Industry, Electricity industry, Energy resources, automation industry

Hot dip galvanized:

Thickness of coating >60um

Application environment (Indoor.Outdoor): Chemical Engineering, Railway Industry, Electricity industry, Energy resources, Wind power, solar energy

Powder coating after zinc coated(Colored channel):

Thickness of coating >60um

Application environment (Indoor): Chemical Engineering, Railway Industry, Electricity industry , Energy resources, Wind power, solar energy

Acid washing For stainless steel:

Application environment(High corrosion occasions): Pharmacy Industry, Machinery and Equipment Automation Industry, Seabrone, Robotics , Food Industry

Materials

Q235B(SS400B), Aluminum, Pre-galvanized steel, Stainless steel 304/316/316L

C channel combination

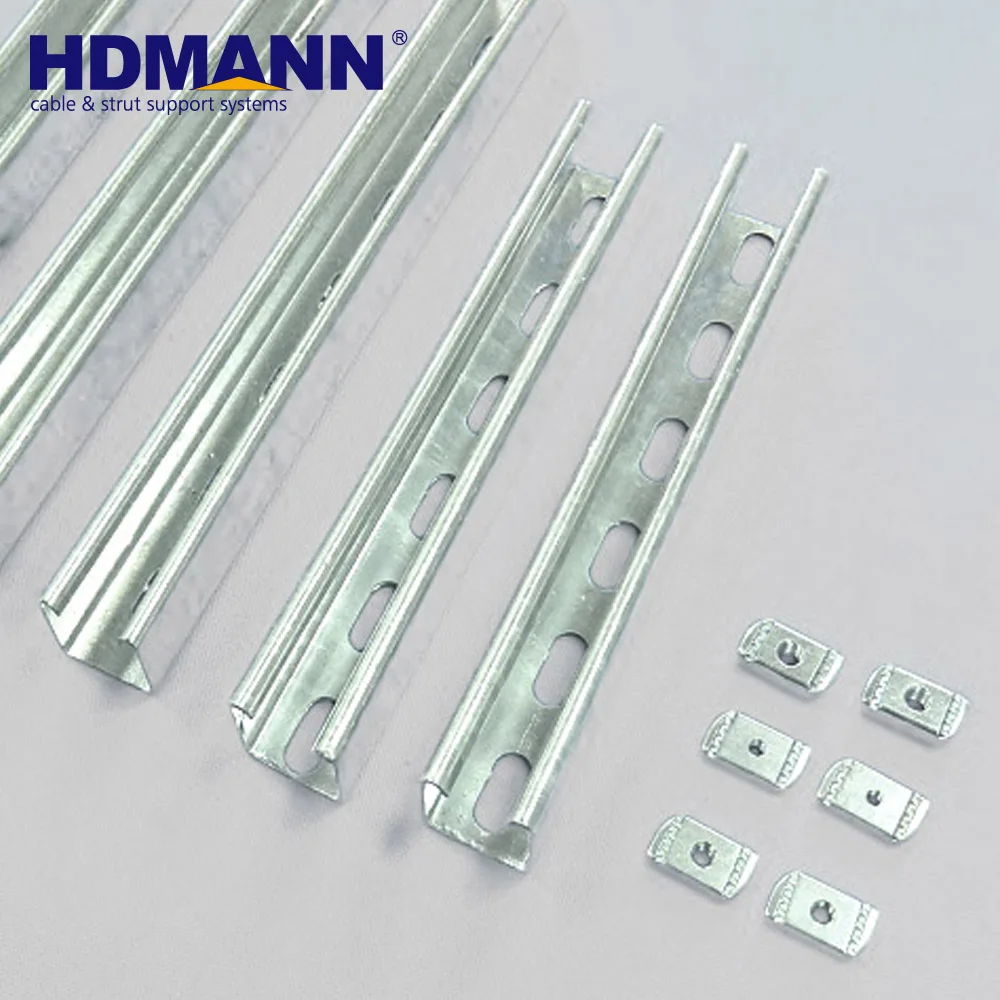

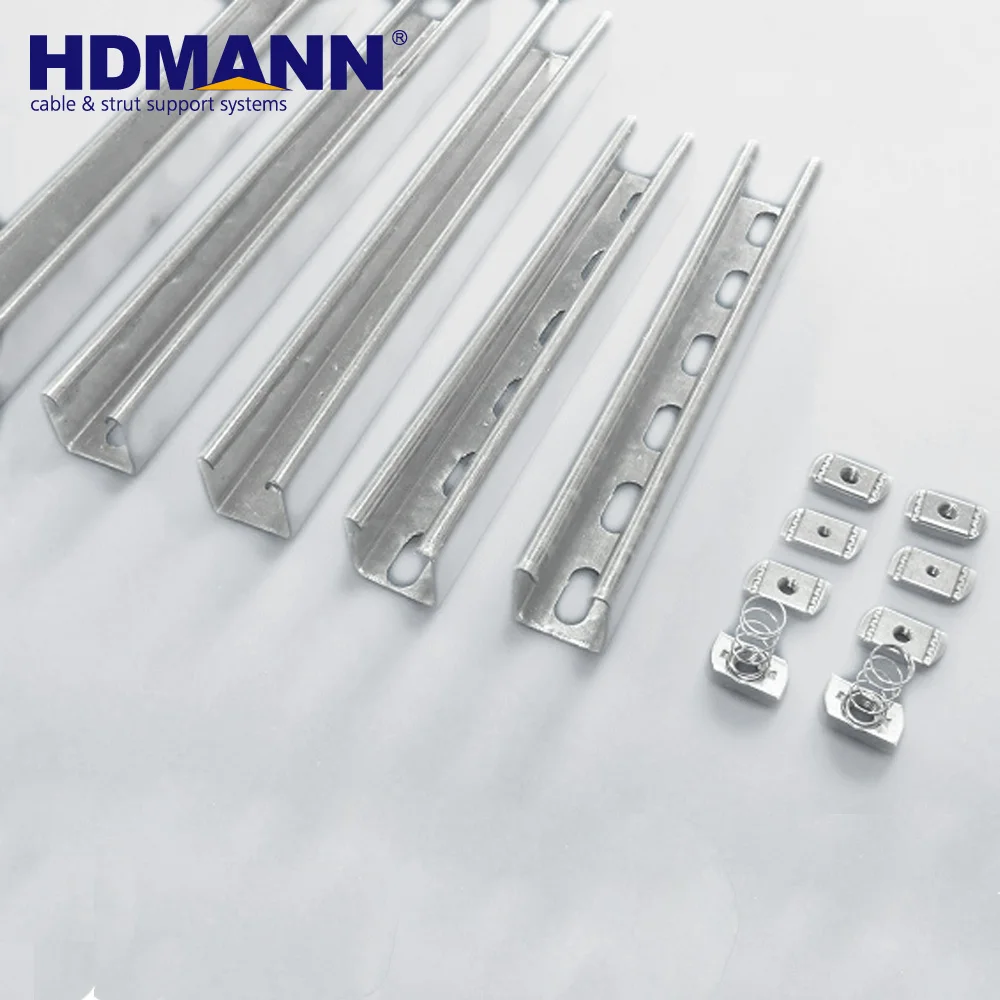

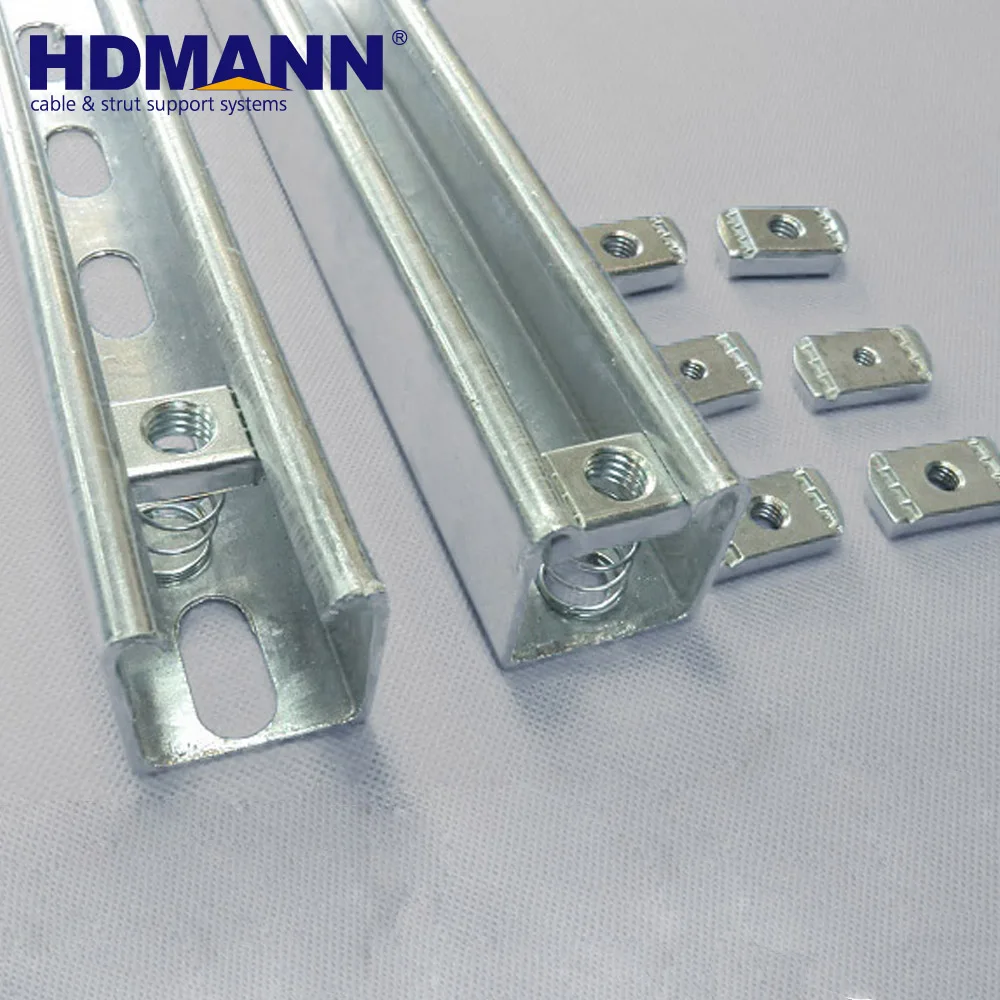

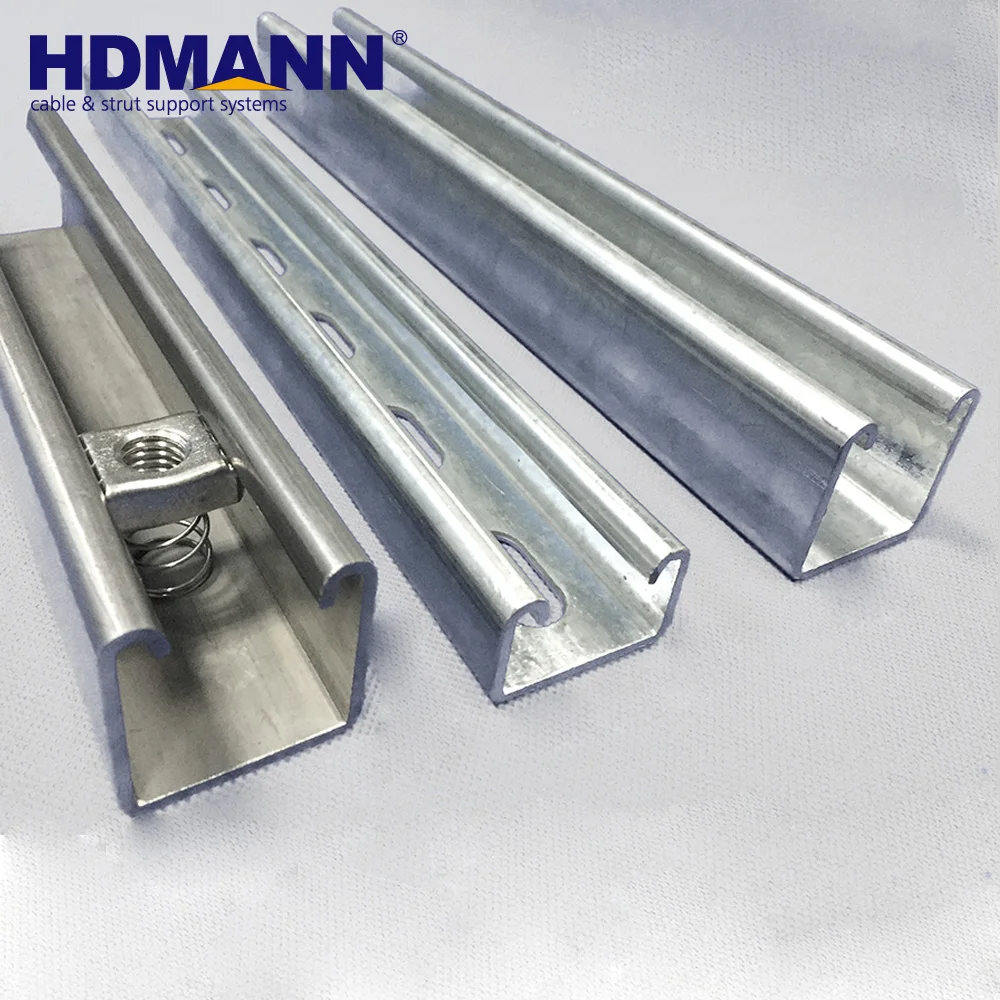

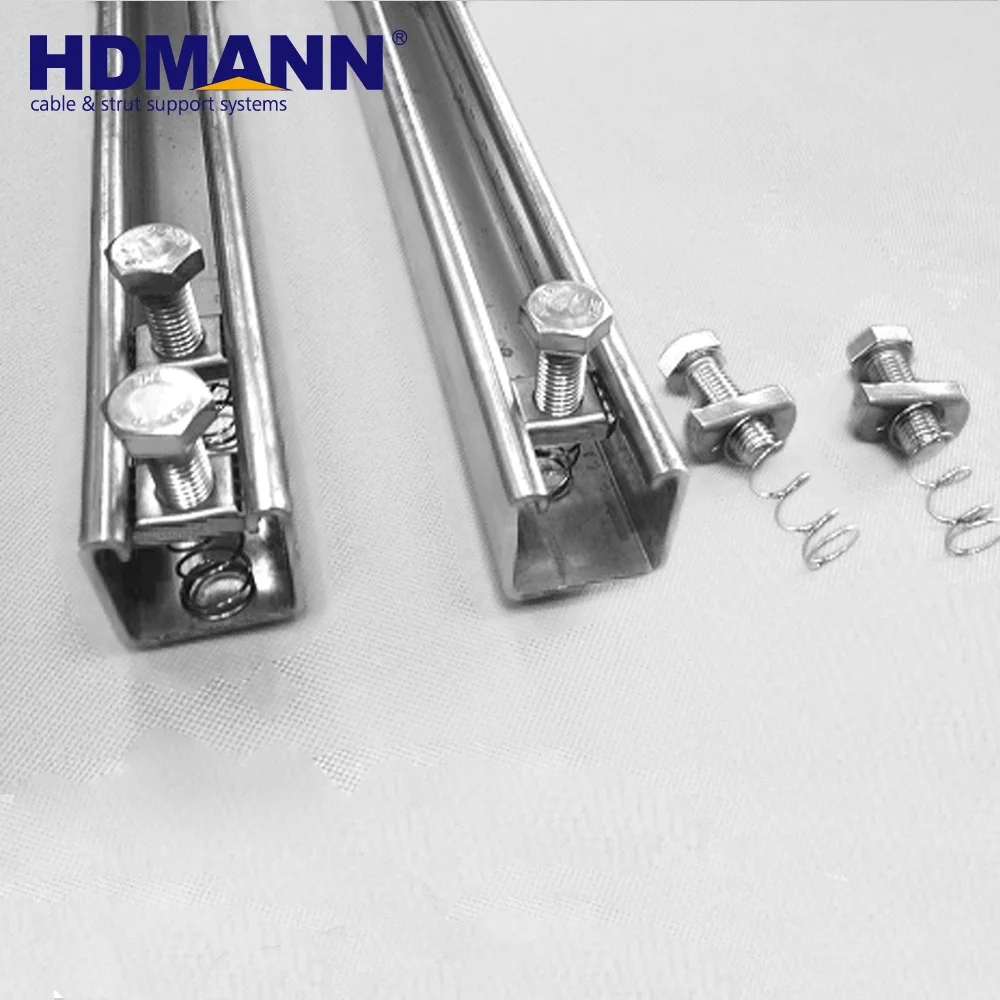

C channel fittings&accessories

C channel production line&QC

c channel steel price

Company Information

HDMANN INDUSTRY CO., LTD

photobank (4)

CHINA LEADING OEM SUPPLIER IN THE LINE OF CABLE SUPPORT

HDmann cable support&Framing system series products
Photos	Name	Description
	perforated cable tray	A perforated(ventilated) tray has openings in the bottom of the tray, allowing some air circulation around the cables, water drainage, and allowing some dust to fall through the tray. Small cables may exit the tray through the ventilation openings, which may be either slots or holes punched in the bottom.
	ladder cable tray	A ladder tray has the cables supported by a traverse bar, similarly to the rungs of a ladder, at regular intervals on the order of 4 to 12 inches (100 to 300 mm). Ladder and ventilated trays may have solid covers to protect cables from falling objects, dust, and water. Tray covers for use outdoors or in dusty locations may have a peaked shape to shed debris including dust, ice or snow.
	wire mesh cable tray	Lighter cable trays are more appropriate in situations where a great number of small cables are used, such as for telephone or computer network cables. These trays may be made of wire mesh, called "wire mesh cable tray", or "wire basket".
	trunking cable tray	A solid-bottom tray provides the maximum protection to cables, but requires cutting the tray or using fittings to enter or exit cables. A deep, solid enclosure for cables is called a cable channel or cable trough.
	strut channel	A standardized formed structural system used in the construction and electrical industries for light structural support, often for supporting wiring, plumbing, or mechanical components such as air conditioning or ventilation systems.
