Holykell UF2000-SW  clamp type ultrasound water  flow meter



Product Description





Profiles:

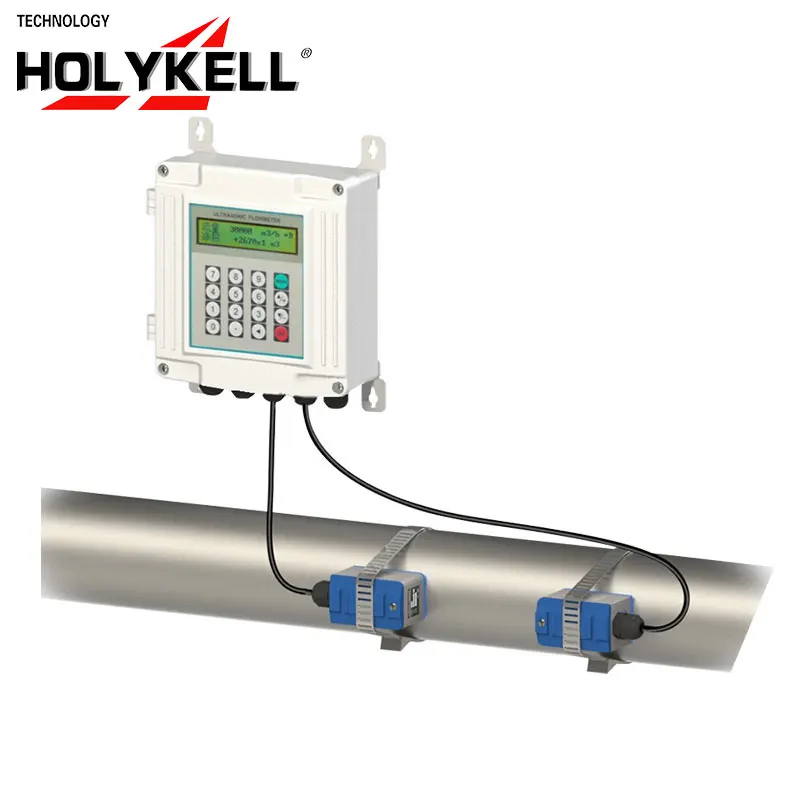

UF2000-SW Portable ultrasonic flow meter is designed to measure the fluid ve-locity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.Transit-time flow meter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection of the mounting method depends on pipe and liquid characteristics. The flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the ve-locity of the liquid in the pipe








Features:



  • Linearity: 0.5%, Repeatability: 0.2%, Accuracy: ±1%

  • Easy to operate.

  • Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm

  • Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.

  • Powerful Recording Function, record the totalizer data of the last 64 days/64 months/5 years.








Specification









































































Items



Spec



Main Unit



2 line x 20 character LCD with backlight


Working temperature: -20--60



Mini thermal printer with 24 line character output



4x4+2 pushbutton keypad



RS485 serial port, can download the newest software upgrading on our company’s website

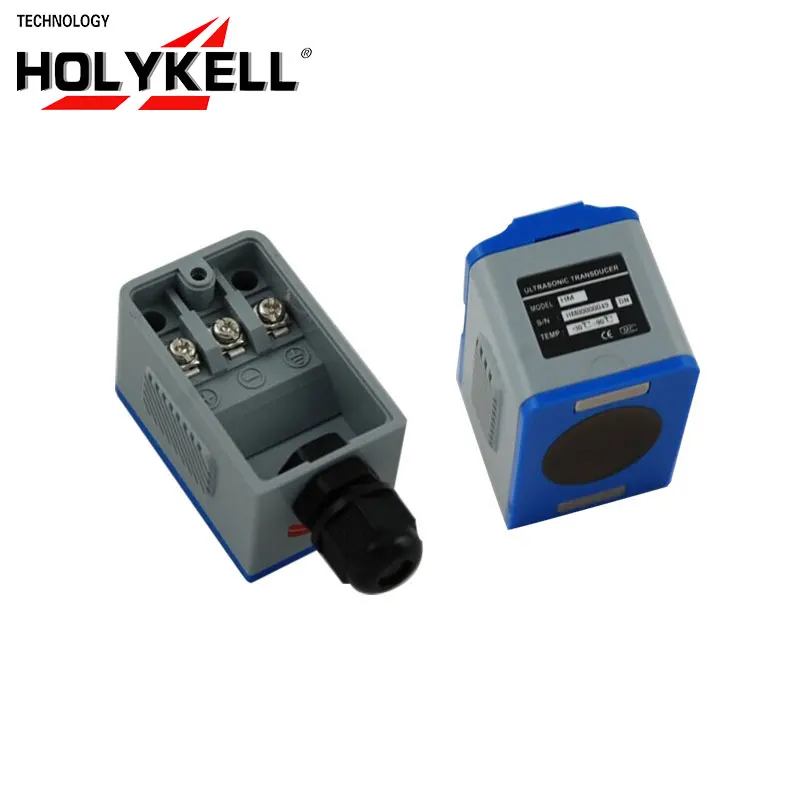

Transducers



TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110



TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110



TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110



Liquid types



Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave.



Flow ve-locity range



 0-±30m/s



Accuracy



 Better than ±1%



Power Supply



 Built-in rechargeable Ni-MH battery (for 20 hours operation) or


AC 220V



Power Consumption



1.5W



Charging



 Intelligent charging with AC 220V. After charging sufficiently, it automatically stop and display green light



Weight



 Net weight: 2.5kg (main unit)



Remarks



 With a high strength carrying case suitable for normal and harsh environment
