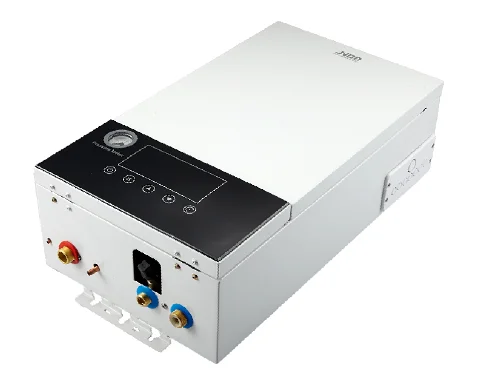

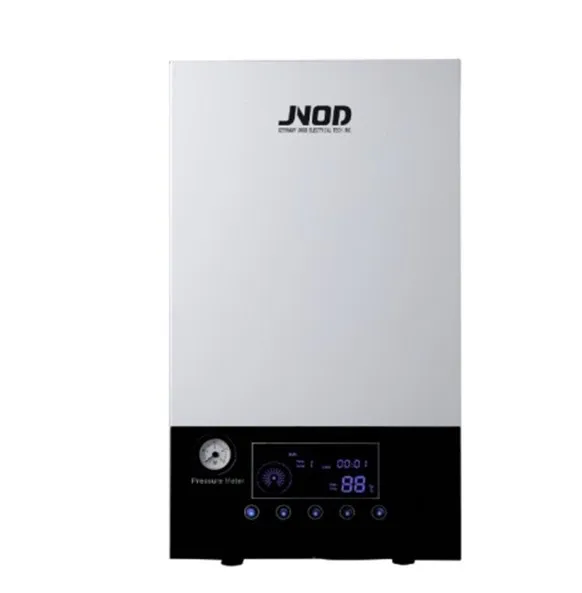

JNOD Одноместный электрический водонагреватель под полом или радиатор настенный Электрический

1. In door temperature: Please set the suitable in door temperature, then the temperature rise every 1C means that energy consumption increases by about 6%. The temperature should be adjusted according to the intended use of the room, for example, no need to set the temperature to be 20C for the rarely used room.
2. Uniform heating: Part of the space heating is a incorrect energy saving, a set of all rooms in the residence are evenly and according to the intended use to heat, it can get higher heating comfort and better working condition.
3. Heat Control Valve and Indoor Temperature controller:
    Please install heat control valve for each radiator, they can keep the setting indoor temperature accurately.
    Please turn on all the radiator valve in the room which installed indoor temperature controller. If not, the two control equipment may effect each other and effect the control quality.
4. Please don't use any furniture,window curtain or other object to cover the controller,controller should detect indoor circulating air without restriction.
5. During heating supply period, you can ventilate but do not open the windows. Ventilating in short time is more energy saving than keeping windows open. While you open the windows, please close all heat control valve. Or set the lowest temperature.
6. Boiler keep low temperature operational mode. During sleeping time or while no person at home, please set low temperature; while there is no person at home for long time, just keep the boiler operating at antifreeze mode.
7. Setting suitable operational mode in different environment and different season.
8. Set suitable water temperature.
9. Consciously to save water.

Technic

Model	GFEB 207	GFEB 209	GFEB 212	GFEB 215	GFEB 312	GFEB 315	GFEB 318	GFEB 321	GFEB 324
Voltage/ Hertz	220-240V/50/60Hz				380-400V/50/60Hz
Phase	1				3
Power (KW)	7	9	12	15	12	15	18	21	24
Wire (mm2)	4	6	10	12	2.5	2.5	4	6	6
Current (A)	31.8	40.9	54.5	68.2	18.2	22.7	27.3	31.8	36.4
Circuit Breaker (A)	32	50	63	70	25	25	32	40	40
Heating Area (m2)	70	90	120	150	120	150	180	210	240
Heating Supply	30-80ºC (Radiator mode)
	30-55ºC (Floor heating mode)
Max. Water Temperature	85℃
Antifreeze Start Temperature	<8°C
Output Voltage of Pump	220Vac, 0.5A
Product Size	610*320*108mm

Our Company

Quality Control

Packing & Delivery

Inner Packaging
Product Size	620(L) * 350 (W) * 200 (D)mm
Inner Box Size	700(L) * 420 (W) * 258 (D)mm
N. W.	32kgs
Product Portect Packing	Foam
Gift Box Material	5 layer corrugated paper
Remark	Color Packing will be free of charge base on 500pcs for each series.

Out Carton
Carton Size	720(L) * 438 (W) * 278 (D)mm
Units in CTN	1 units/CTN
G. W.	35kgs
Package Material	3 layer corrugated carton
Loading Quantity	20 'GP: 300pcs 40 'GP: 600pcs 40' HQ: 730pcs
