Автомобильный разъем fpc щит
- Категория: ГПП >>>
- Поставщик: ShenZhen,XinDaXing,Electric,Technology,Co.,Ltd,[Guangdong,China]ShenZhen
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 194.29 $* | 198.90 $* |
| Jul-20-2025 | 158.41 $* | 161.25 $* |
| Jun-20-2025 | 191.23 $* | 195.75 $* |
| May-20-2025 | 190.67 $* | 194.11 $* |
| Apr-20-2025 | 151.59 $* | 154.1 $* |
| Mar-20-2025 | 187.47 $* | 191.79 $* |
| Feb-20-2025 | 185.1 $* | 189.57 $* |
| Jan-20-2025 | 184.38 $* | 188.24 $* |
Характеристики

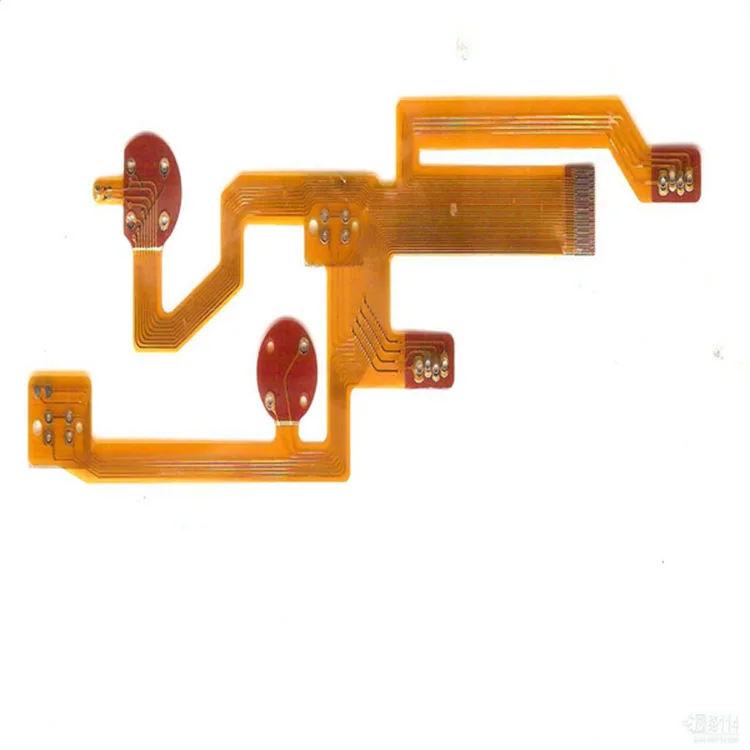

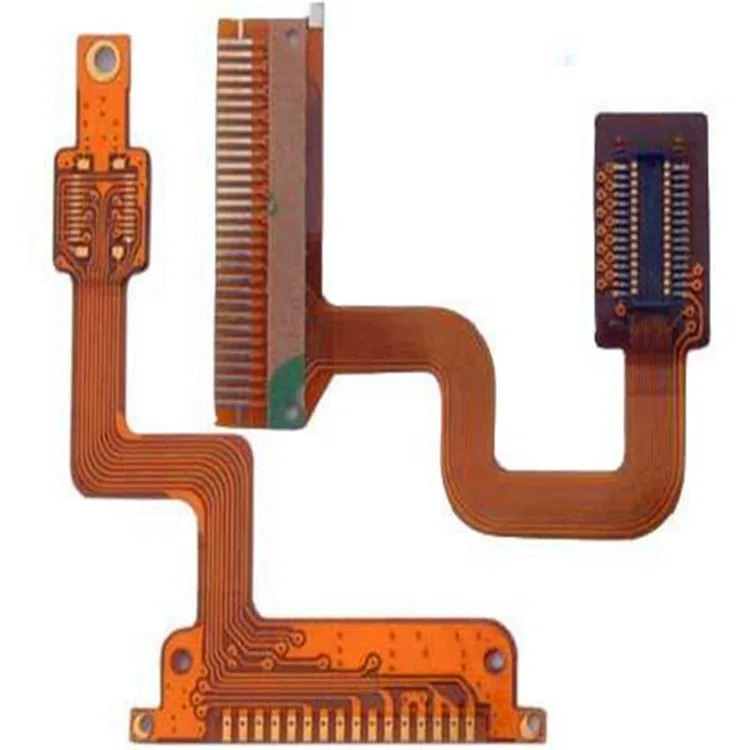

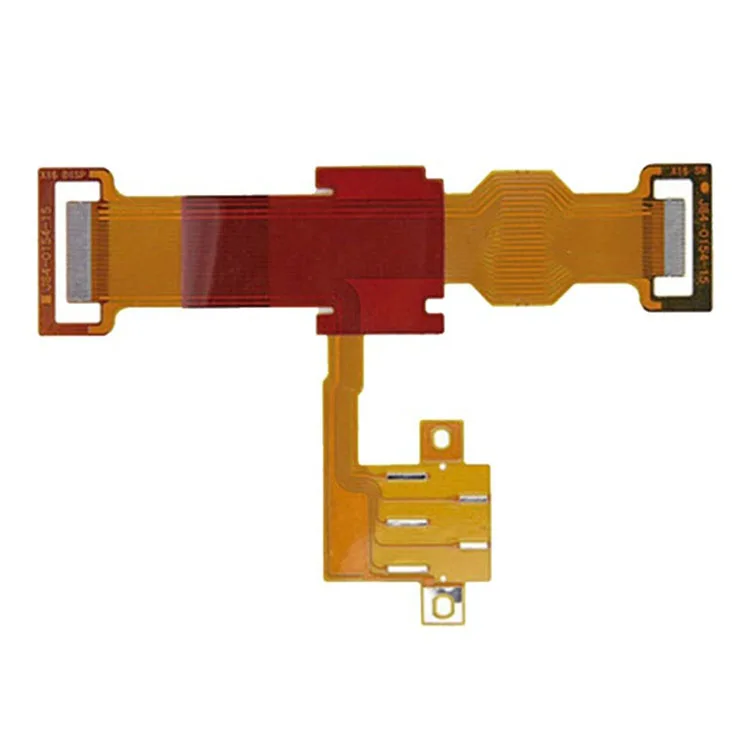

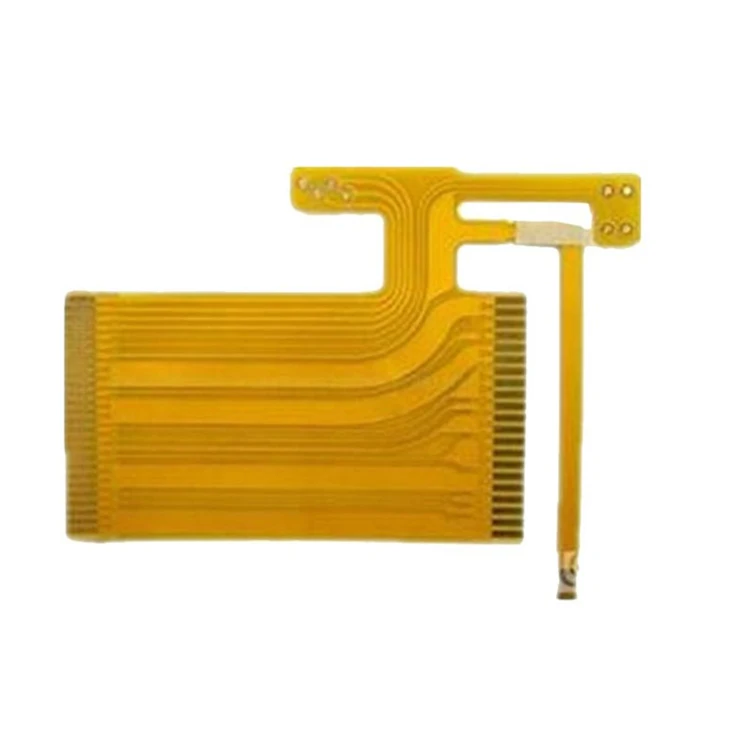

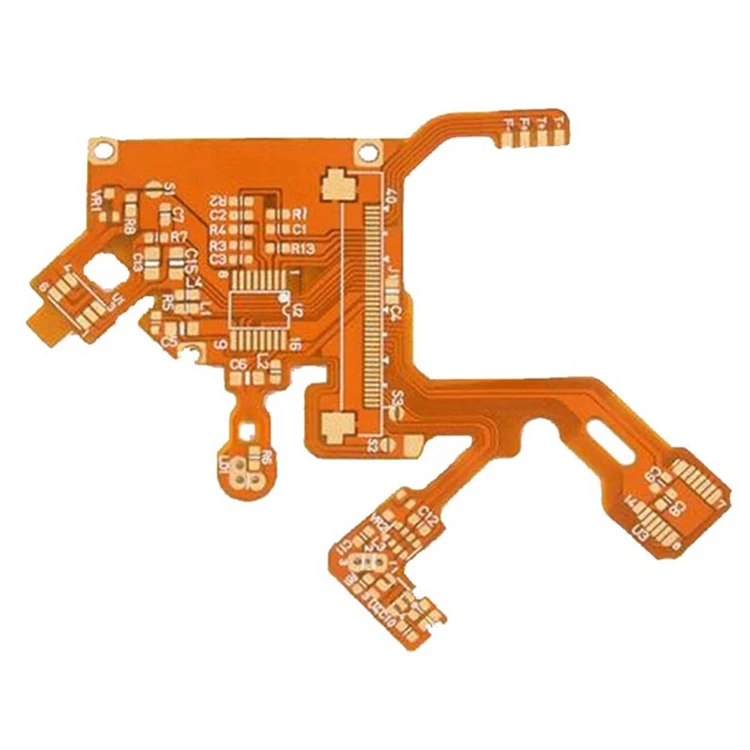

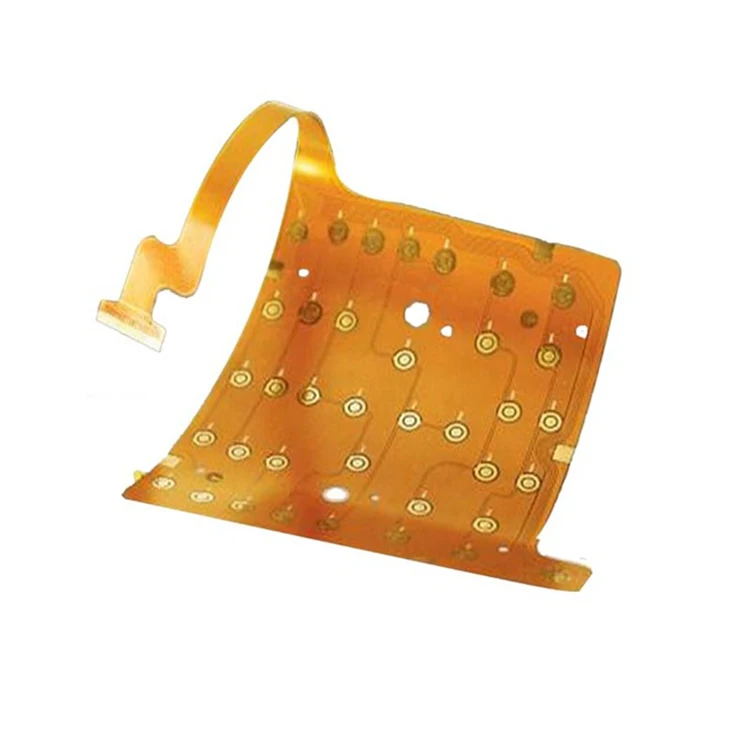

Good quality flex board assembly design sample manufacturer
Welcome to XingDa Electric Technology Co.,Ltd
Xindaxing Electric Technology Co.,LTd
Our Services
We can provide one-stop service:
1. PCB circuit boards.
2. E-test.
3.Electronic components purchasing.
4. PCB assembly: available on SMT, BGA, DIP.
5. PCBA function test.
6. Enclosure assembly.
Flexible PCB product Capacity
|
FPC Tech Specification |
|
|
Items |
Capabilities |
|
Layers |
FPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers |
|
Regular Base Materials |
Kapton,Polyimide(PI), Polyester(PET), FR4 |
|
Base Copper Thickness |
1/3 oz to 8oz |
|
Regular Base Material Thickness |
12.5um to 50um(FPC) |
|
0.1mm to 3.2mm(Rigid) |
|
|
Regular Coverlay Thickness |
27um to 50um |
|
Regular Adhesive Thickness |
12um to 25um |
|
Blind or Buried Vias |
Yes |
|
Impedance Control |
Yes |
|
Min.Line Width/Spacing |
0.04mm/0.04mm |
|
Surface Finishing |
Electroplate Ni/Au(Flash gold/Soft gold/Hard gold), ENIG, HASL, Immersion Tin,OSP |
|
Outline Fabrication |
Die cut, laser cut, CNC routing, V-scoring |
|
Hole to edge(Hard tool/Die Cut) |
±0.1/±0.2mm |
|
Edge to edge(Hard tool/Die Cut) |
±0.05/±0.2mm |
|
Circuit to edge(Hard tool/Die Cut) |
±0.07/±0.2mm |
PCB Assembly(SMT) Product Capacity
|
SMT Capacity |
|
|
SMT Item |
Capacity |
|
PCB Max. size |
510mm*1200mm(SMT) |
|
Chip component |
0201, 0402, 0603, 0805, 1206 package |
|
Min.pin space of IC |
0.1mm |
|
Min. space of BGA |
0.1mm |
|
Max.precision of IC assembly |
±0.01mm |
|
Assembly capacity |
≥8 million piots/day |
|
DIP capacity |
6 DIP production lines |
|
Assembly testing |
Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test) |
|
|
Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement. |
Related Products
High Quality PCB, FPC and PCBA!
View of Factory
Customer visiting
Exhibition Show:
FAQ
Q1:Are you a factory or trade company?
A: XingDa is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBs Board for 9 years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What payment do you accept ?
A: TT/ Western Union/ Paypal/ Unistream.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: How about the MOQ?
A: For PCB: 1 pcs
For PCBA: 1pcs
Q6: What's your main market?
A:Europe, USA, Brazil, Russia, Turkey, Austrialia, Singapore...
Packaging & Shipping
