Auxiliary Moulding Plastic Granule Weigh Scale

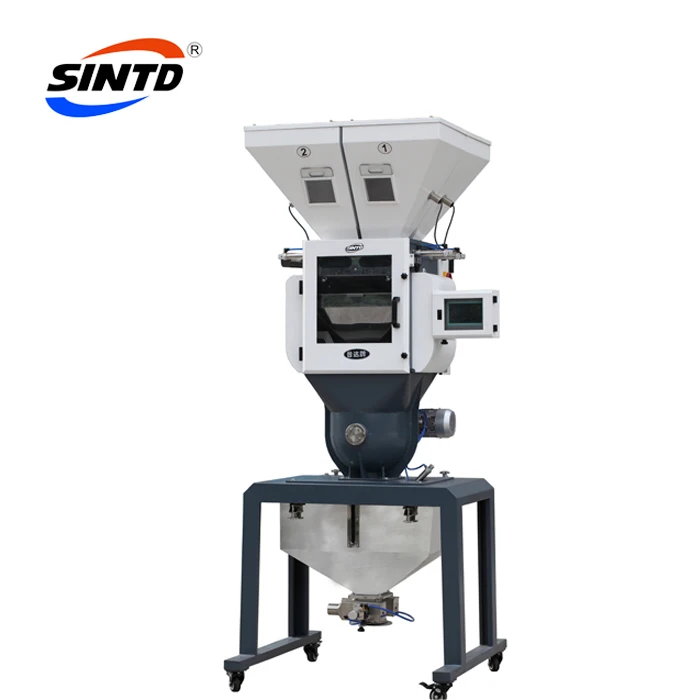

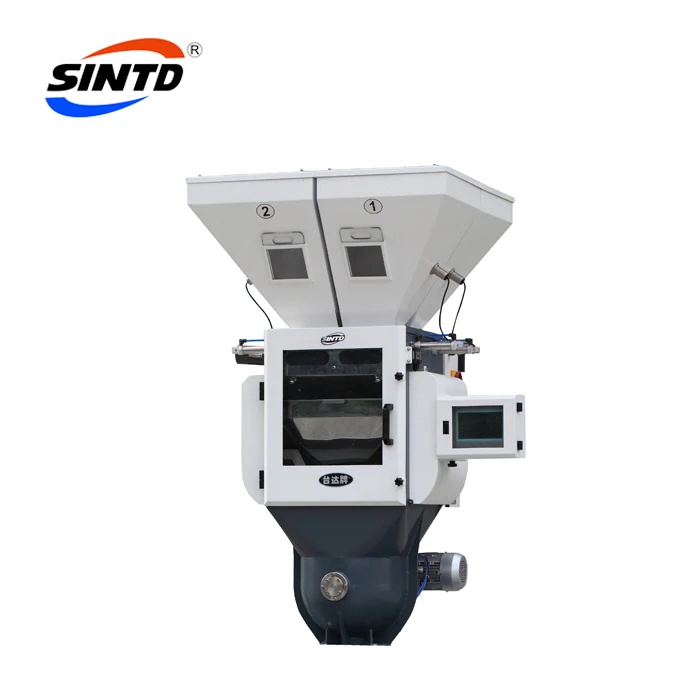

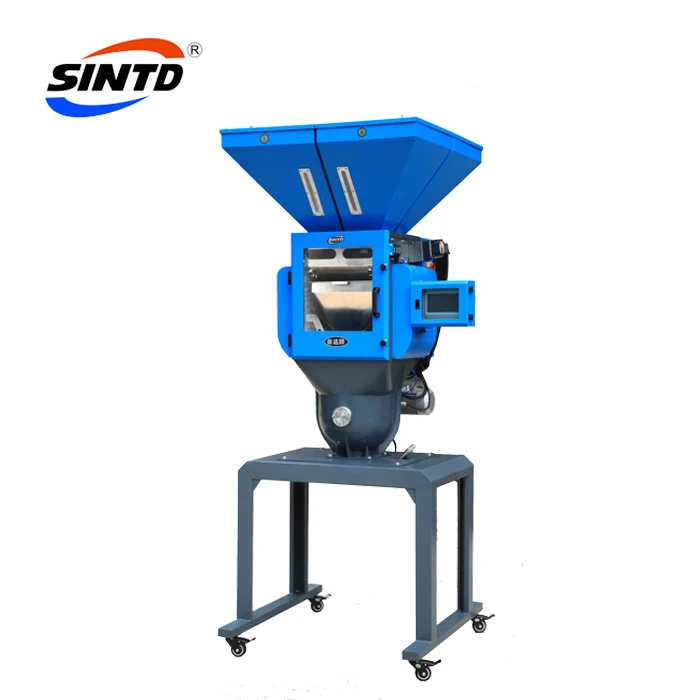

Gravimetric Mixing Machine

           TGB series gravimetric blenders adopt the latest single-chip microprocessor with a digital display for easy calibration. It has more powerful function, higher speed, and stronger antijamming capability. It has auto compensation ability, which will automatically calibrate in order to ensure the accuracy when the machine starts. It's mostly applied in plastic injection, extrusion or material mixing which requires a variety of raw materials to be accurately mixed according to the weight ratio.

Main Features:

1) Adopt single-chip microprocessor design, more powerful function, smaller size and good Anti-interference ability.

2) Use EEPROM, data will not be lost when power off, battery free.

3) Interface state, contact controller, easy use, can store lot of formula data (500set)

4)High speed, high accuracy, catching material by AD, more stable.

5)All material will be weighed by gravity measurement then mixed, strictly control precision.

6)Recheck the weight data and material, ensure the precision and accuracy.

7)Can directly install it on molding machine, but need to choose and buy base of mixer.

8)When install on the floor, need to choose pneumatic material-stop valve, floor stand, storage bunker, and material-inhale box.

Note:

1: Proportion error is the D-value from set data to actual proportion;
2: Knife metering is suitable for proportion above 5%, the error can below ±0.3%;
3: Screw or micro quantity metering is suitable for 0.5% to 5% proportion, the error can be below ±0.1%;
4: The result above is got from test with granule of 3-4mm diameter, aggregation degree 0.8 , continuous running.
