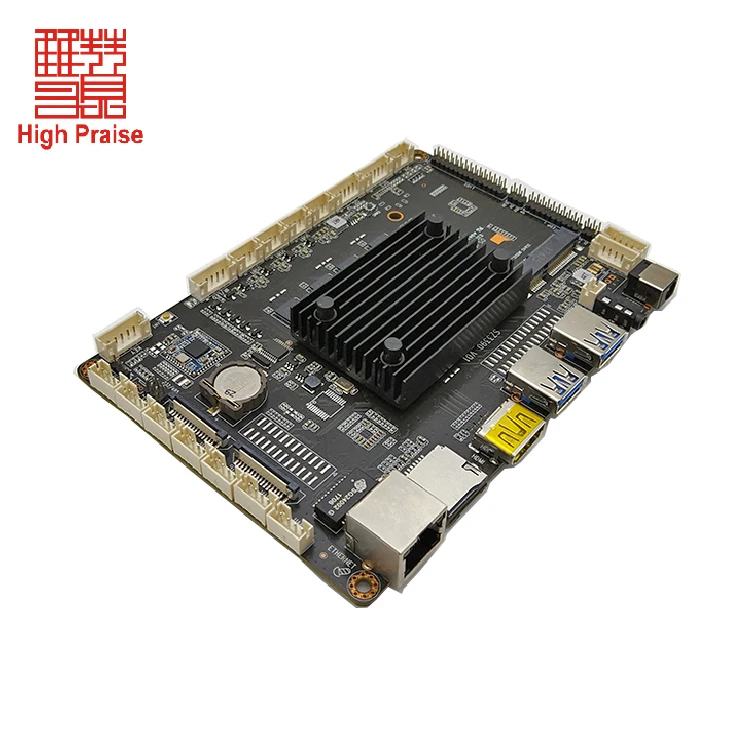

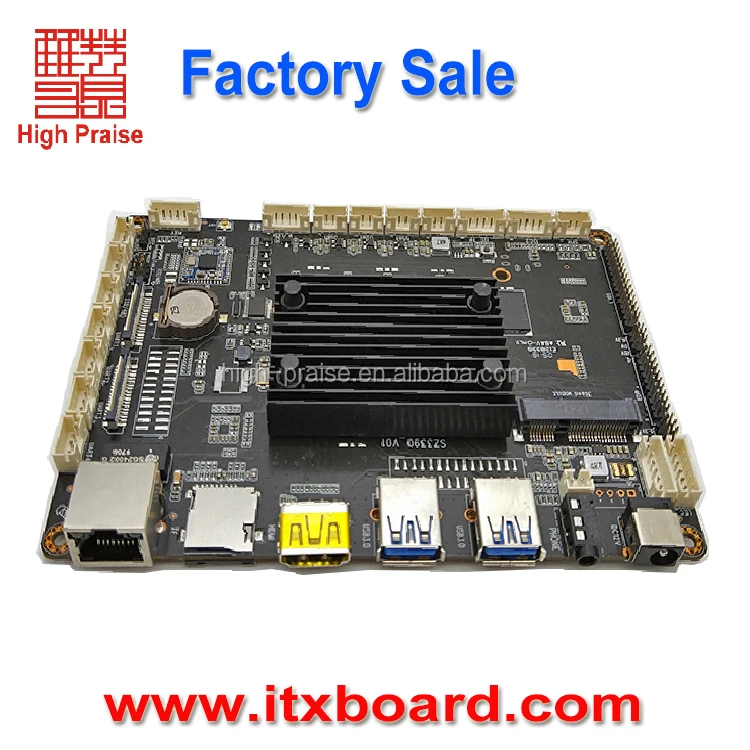

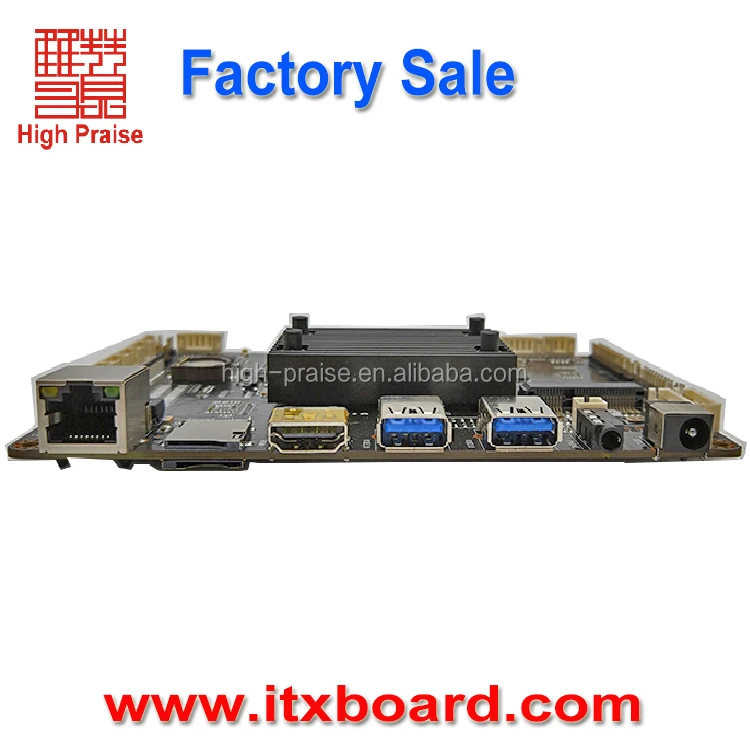

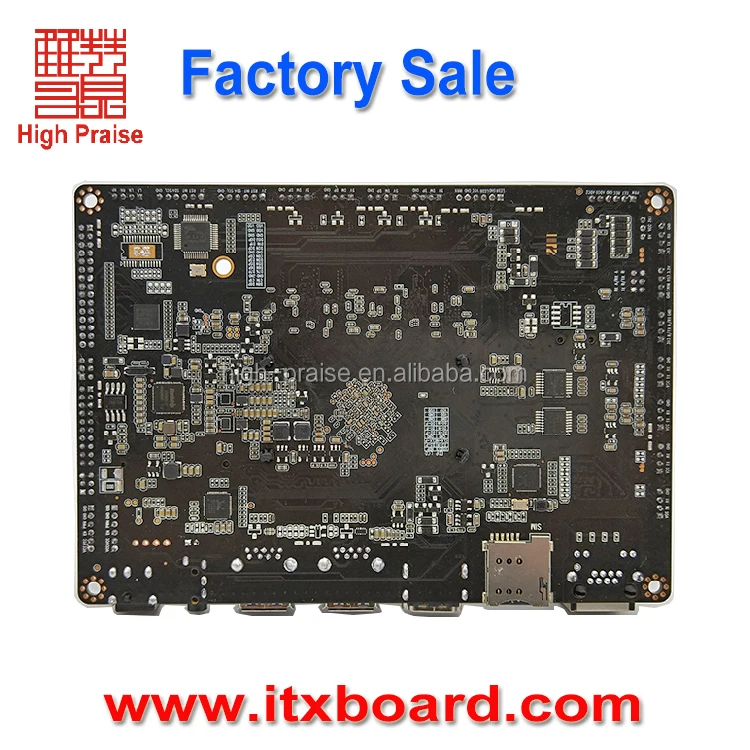

Материнская плата Rockchip 3399 6 ядер 2 0 ГГц android с ОС 7
Материнская плата Rockchip 3399 6 ядер 2 0 ГГц android с ОС 7
Материнская плата Rockchip 3399 6 ядер 2 0 ГГц android с ОС 7
Материнская плата Rockchip 3399 6 ядер 2 0 ГГц android с ОС 7
Материнская плата Rockchip 3399 6 ядер 2 0 ГГц android с ОС 7

Материнская плата Rockchip 3399 6 ядер 2 0 ГГц android с ОС 7


Поделиться:


Цена:108,00 $ - 127,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 129.90 $* 135.19 $*
Aug-20-2025 127.10 $* 133.60 $*
Jul-20-2025 107.75 $* 112.50 $*
Jun-20-2025 125.44 $* 131.32 $*
May-20-2025 109.7 $* 114.49 $*
Apr-20-2025 123.4 $* 129.13 $*
Mar-20-2025 122.25 $* 128.61 $*
Feb-20-2025 121.6 $* 127.10 $*
Jan-20-2025 120.52 $* 126.64 $*

Характеристики


Product Description

1. Rockchip RK3399 6 Core ARM® 64bit ,frequency up to 2.0GHz android motherboard

2.  HDMI Support  4K 60HZ
3.  With Android 7.1 , (Ubuntu optional）
4.  Apply to Financial mahcine 、Advertising Machine、Vending machine etc.


\t
Model No.
\t
SZ3390
\t
CPU
\t
RK3399 6 Core ARM® 64bit ,frequency up to 2.0GHz
Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53
\t
GPU
\t
Quad Core ARM Mali-T860
Support OpenGL ES 1.1/2.0 /3.0，OpenVG1.1，OpenCL，Directx11
\t
Memory
\t
On-board DDR3 2G high-spead dual channel Ram（4G optional）
\t
Storage
\t
On-board EMMC 8G 5.1 high-speed storage（MAX.128G optional）
1*TF slot，support MAX.128G TF card
\t


Display Interface
\t
LVDS interface（single double way，6bit，8bit，10bit），Support Max Resolution 1080P
Support eDP 1.3(4 lines, 10.8Gbps)，Support dual channel MIPI-DSI
HDMI Port，Support Max Resolution 4K 60HZ
Support two screen display asynchronously（LVDS+eDP，HDMI+eDP，HDMI+LVDS)
\t
OS
\t
Android 7.1 (Ubuntu optional）
\t
Internet
\t
100M ethernet，Support WiFi/BT4.0，3G/4G port（MINI-PCIE）
\t
Video Display Format
\t
wmv avi flv rm rmvb mpeg ts mp4 etc.
\t
Picture Format
\t
Support BMP JPEG PNG GIF etc.
\t
USB
\t
2 USB 3.0 ports，4 USB PH2.0-4P socket, support USB-OTG (ADB debugging)
\t
COM
\t
4*RS232（TTL optional），1* TTL (RS485 optional) , 1*TTL debugging port
\t
SD Card
\t
TF Card
\t
GPIO
\t
4 way IO，input or output optional
\t
Audio Output
\t
1*3.5mm earphone jack，1*PH2.0-2P MIC input jack
Built-in 8R/5W×2 Amplifier，left right audio channel output
\t
Special Function
\t
Built-in RTC real-time clock，support timing turn-on/off
\t
Power supply
\t
DC-12V
\t
Working Humidity
\t
0% ~ 95% (relative humidity, non-condensing)
\t
OS Update
\t
Support USB Update, or Update by Internet
Our Service

pre-sales&after sales

Free Technical Support Reassuring Guarantee
3 Years Warranty.

ODM&OEM

AMD Intel Gold Partner

Design and  Product base on customer request
20 People R&D Department
Latest Equipment Factory

Quality Control System

72 Hours Strict Burn-in Test
Running Board In Different Condition
Re-Testing Before Shipping Out

Firm Packing for Express.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details : 20pcs/carton
Carton Size: 50*49*20 CM

1. Special logistics packaging

2. Suitable carton size

3. Shock bubble film

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 15-30 days if the       goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample, but need to pay the cost.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:

Skype: yoyoliao1983

Phone No.:0086 20 39150578
