Водонепроницаемые электрические провода из луженой меди FEP/PFA/PTFE/ETFE с сертификатом

Водонепроницаемые электрические провода из луженой меди FEP/PFA/PTFE/ETFE с сертификатом

Категория: Electrical Wires >>>
Поставщик: Shanghai,Shenyuan,Hi-Temp,Wire,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.63 $*	0.20 $*
Aug-17-2025	0.16 $*	0.92 $*
Jul-17-2025	0.46 $*	0.11 $*
Jun-17-2025	0.53 $*	0.81 $*
May-17-2025	0.64 $*	0.3 $*
Apr-17-2025	0.95 $*	0.95 $*
Mar-17-2025	0.67 $*	0.98 $*
Feb-17-2025	0.7 $*	0.42 $*
Jan-17-2025	0.99 $*	0.54 $*

Характеристики

Product Description

"Protecting high-temperature electricity safety" is our development policy, Carefully manufacturing every meter cable, protect the high temperature environment electricity safety is the mission of the company.

_11_01

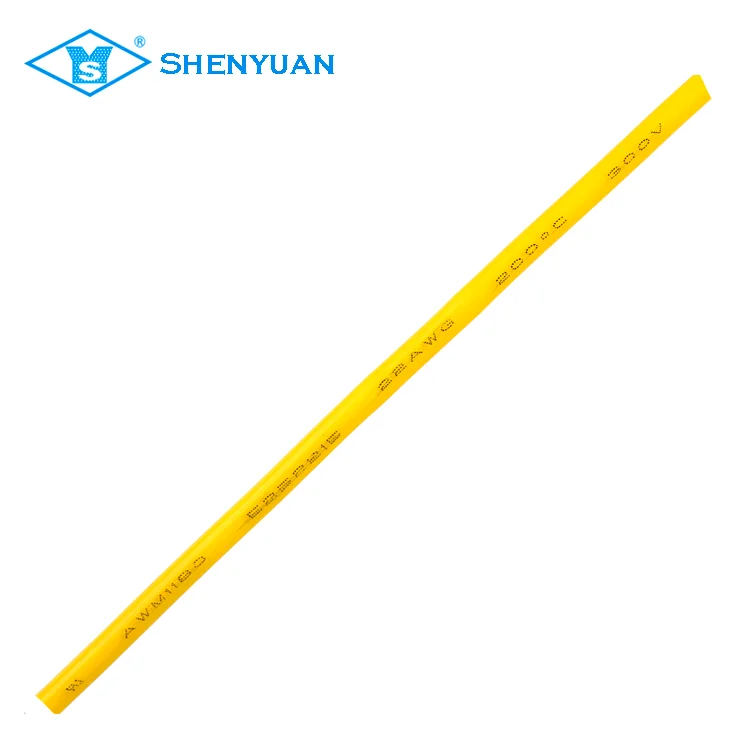

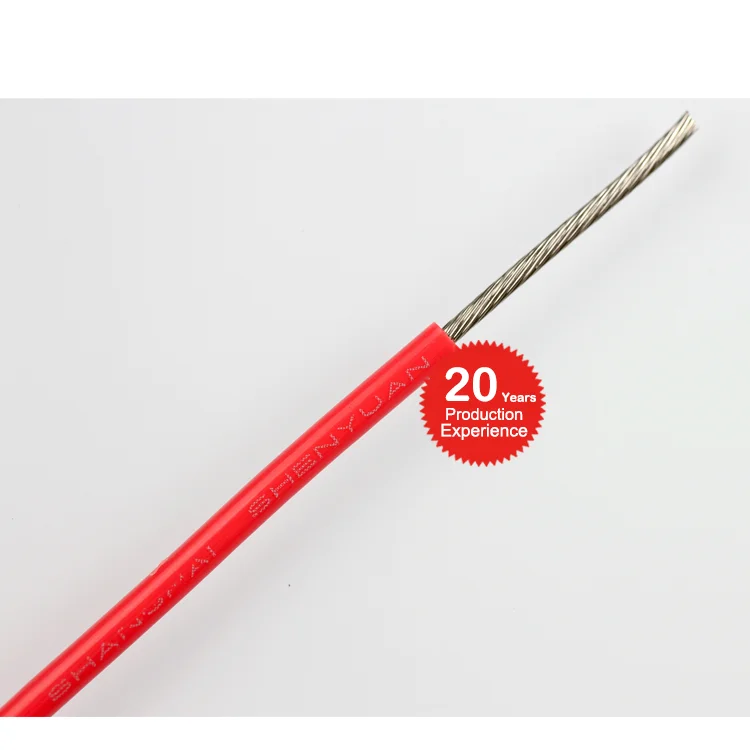

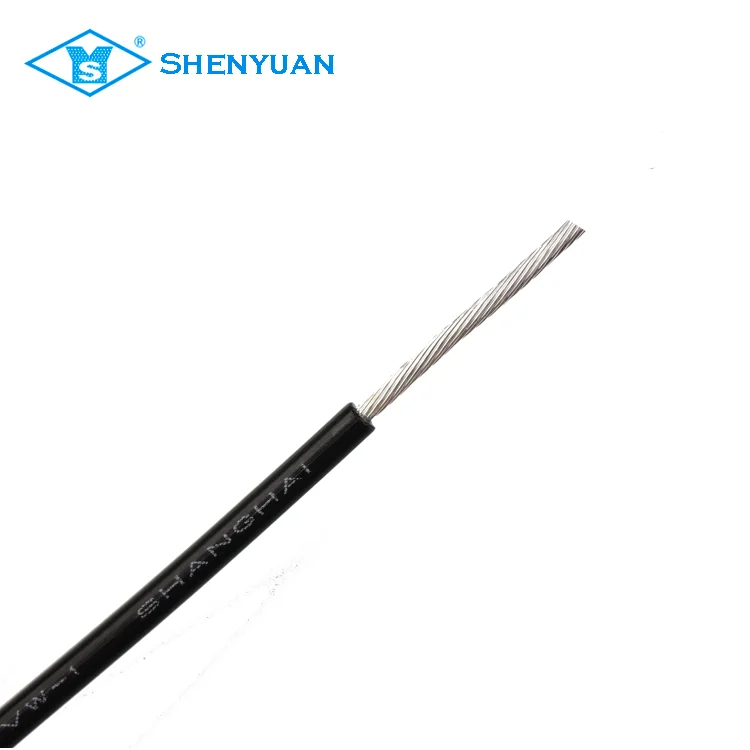

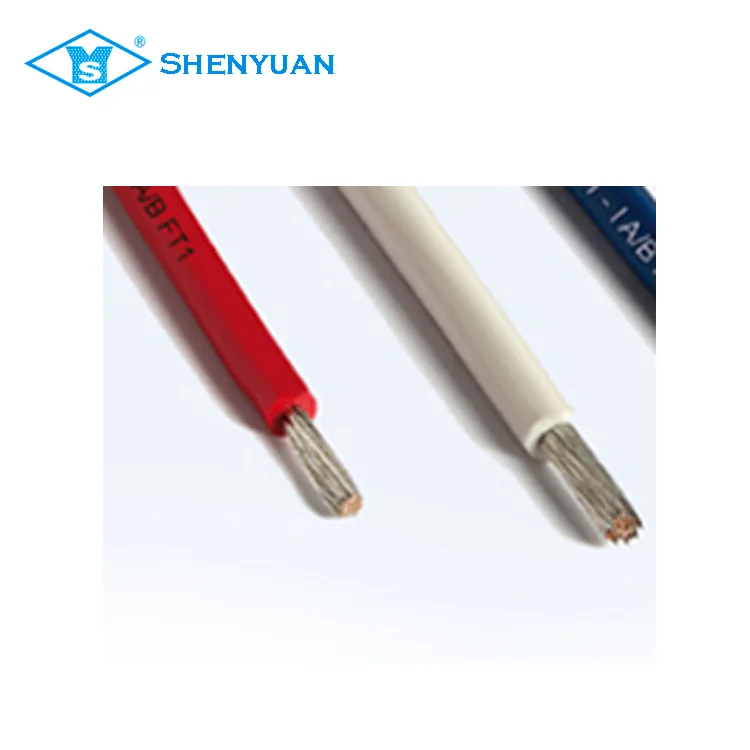

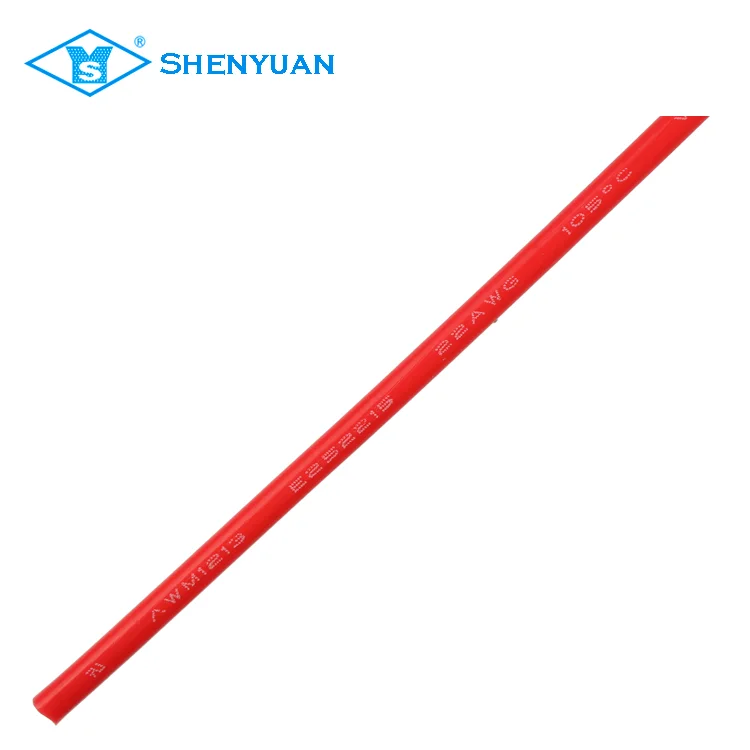

1) Product: fep pfa ptfe wire
2) Style No.: AF200/250
3) Size: 0.1mm2 ~ 35mm2
4) Rated Voltage: 600V
5) Rated Temperature: -100°C~+200°C
6) Conductor: tinned, silver or Nickel copper
7) Insulation: FEP/PFA/PTFE/ETFE 8)Color: red / yellow / blue / white /black/ yellow green / brown / orange / purple / green / etc

Product features
Has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Applications
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Section Area	Conductor construction NO.×mm	Insulation Thickness mm	Outer Diameter mm	m/coil
0.05	1×0.26	0.25	0.65	500
0.07	1×0.30	0.2	0.7	500
0.12	7×0.15	0.225	0.85	500
0.2	1×0.50	0.3	1.1	500
0.35	19×0.16	0.3	1.4	200
0.5	19×0.18	0.35	1.6	200
0.75	19×0.23	0.35	1.85	200
1	19×0.26	0.35	2	200
1.2	19×0.28	0.4	2.2	200
1.5	19×0.32	0.4	2.4	200
2	19×0.37	0.45	2.75	100
2.5	19×0.41	0.55	3.15	100
4	37×0.37	0.5	3.58	100
