Silicone Heating Cable 220V Heating Cable





Technical Data of 220V Heating Cable



Out Diameter	2mm to 4mm	2mm to 6mm
Heating Coil Circling Skelton	0.5mm to 1.5mm
Heating Wire Material	Nichrome or CuNi
Insulating Layer	105C for PVC	Silicone Rubber
Tolerance	DC Ohm for +-5%    Out Diameter for =0.2/-0.1mm
Output Power	15W/M	40W/M
Voltage	Max 600V
Max Temp	105C	200C
Min Temp	-30C	-70C

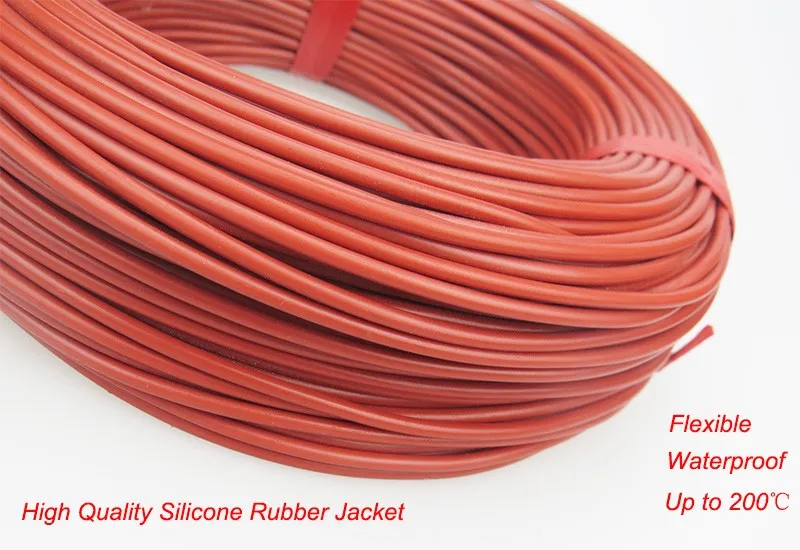

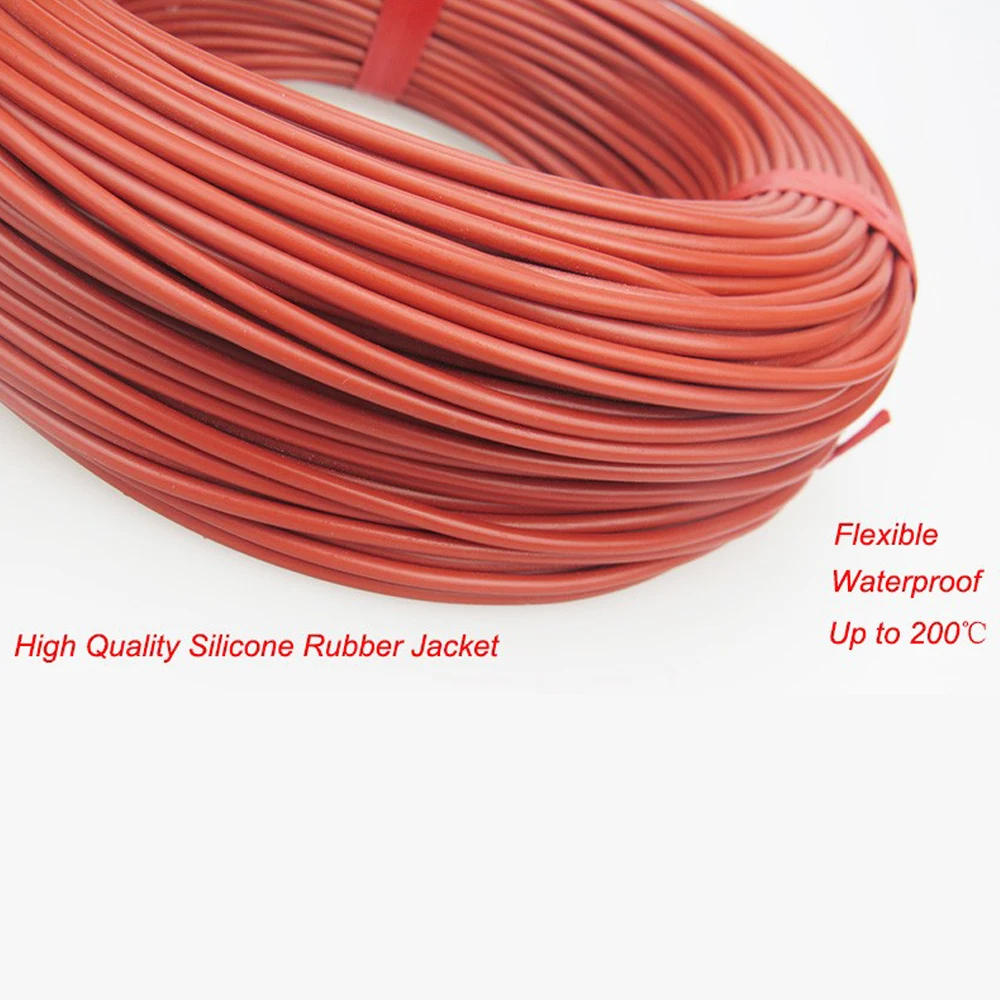

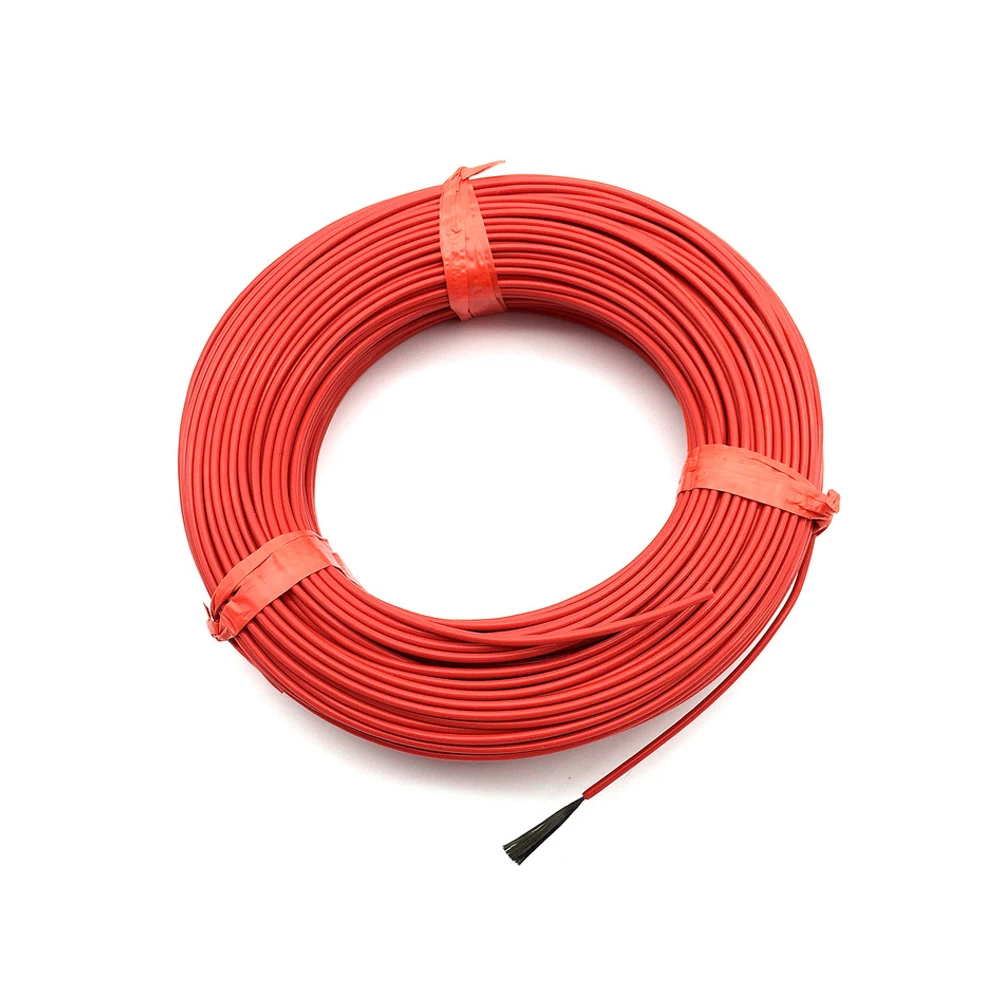

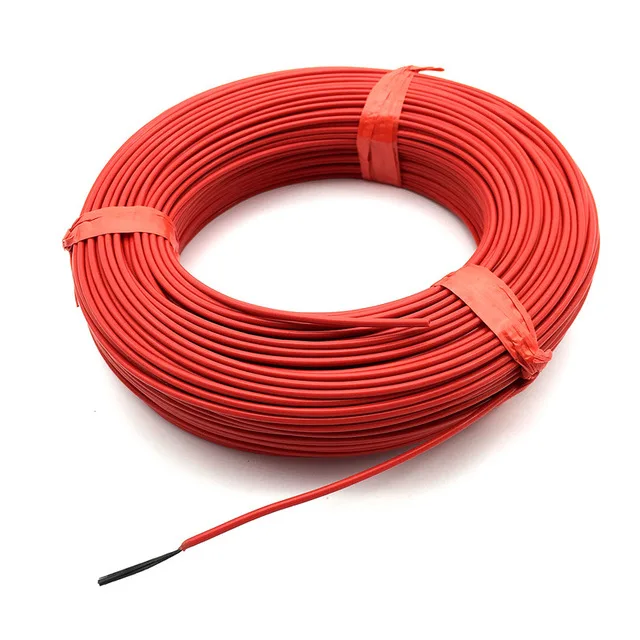

Show of 220V Heating Cable







Description for 220V Heating Cable

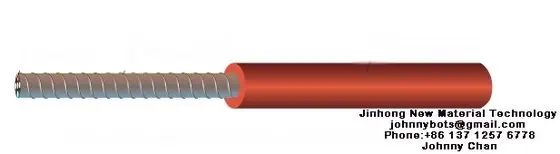

• This model heating cable is consist of Fiber Glass wire twined with electrical resistance alloy s and outside silicone insulated;
• Out diameter is commonly for 1.2mm,2.0mm,2.5mm,3.0mm,4.0mm and 5.0mm;
• Resistance: 0.3-20000 ohm/m;
• Temperature Resistance: 180C/ 90C;
• Application:

                          1.Refrigerators, air conditioners, freezers defrost

                          2. Rice cooker heat preservation
                          3.Electric blanket
                          4.Electric heating cushion
                          5.Electric massage chair
                          6.Medical and beauty equipment
                          7.Electric thermal clothing
                          8.Electric heating shoes
                          9.Bath pool heat
                         10.Footbath heat
                         11.Pipeline and tank insulation antifreeze
                         12.Car window heat and etc.



Main Types for 220V Heating Cable

• PS Resistance Heating Wire
• PVC Heating Wire
• Silicone Heating Wire



PS Resistance Heating Wire

For food use,nontoxic,but low temperature at -25C to 60C,Max 8w/m



PVC Heating Wire

Used mostly for Refrigerators, air conditioners, freezers defrost and for temperature at -25C to 70C,max 12w/m



Silicone Heating Wire

Top heat-resistant quality,used widely for Refrigerator freezer defroster,-60C to 155C,up to 50w/m



Production Line for 220V Heating Cable
