Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Теплообменник из нержавеющей стали под рептилию для охлаждения испарительная трубка производственная линия сгибания катушек
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: BOBO,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 23800.22 $* | 24990.95 $* |
| Aug-19-2025 | 23600.61 $* | 24780.62 $* |
| Jul-19-2025 | 19800.31 $* | 20790.12 $* |
| Jun-19-2025 | 23200.39 $* | 24360.75 $* |
| May-19-2025 | 20200.22 $* | 21210.11 $* |
| Apr-19-2025 | 22800.48 $* | 23940.25 $* |
| Mar-19-2025 | 22600.53 $* | 23730.93 $* |
| Feb-19-2025 | 22400.44 $* | 23520.73 $* |
| Jan-19-2025 | 22200.12 $* | 23310.15 $* |
Характеристики
Product Description

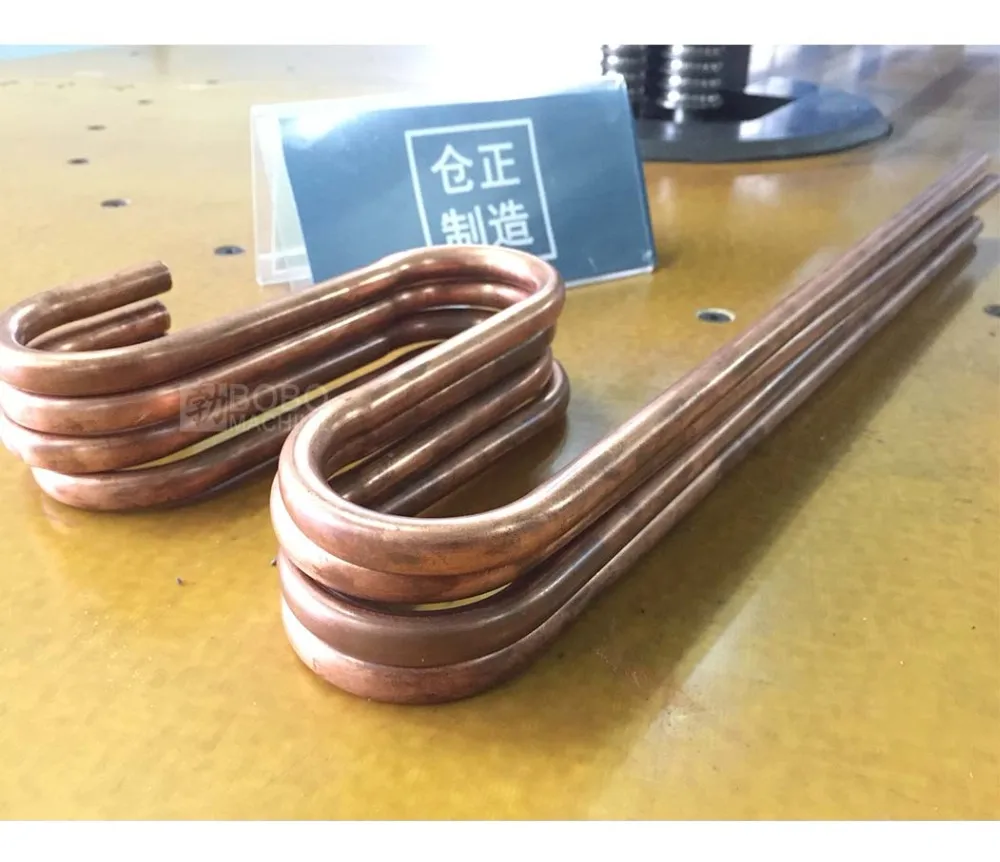

Rotating table steel bundy aluminum copper tube bending machine
Main Technical data
No. | Parameter | Data |
1 | Tube Material | Steel Tube / Bundy tube |
2 | Tube Diameter | Φ3-12mm |
3 | Tube Wall Thickness | 0.3-1.0mm |
4 | Bending Capacity | 1-12 pcs / cycle |
5 | Bending Angle | 1~180 degree |
6 | Bending Radius | R15~R35 |
7 | Bending Times | Up to 110 times/cycle |
8 | Feeding length | 0-700mm/time, max. 3 times |
9 | Worktable Size | Φ1800mm |
10 | Control System | PLC control / Touch Screen |
11 | Motor Power | 5.0KW |
12 | Electric System | 380V, 50Hz, 3Phae (Customized) |
13 | Dimension | 2200 x 1000 x 1580 mm (Excluded Table) |
14 | Weight | About 1300 KG |

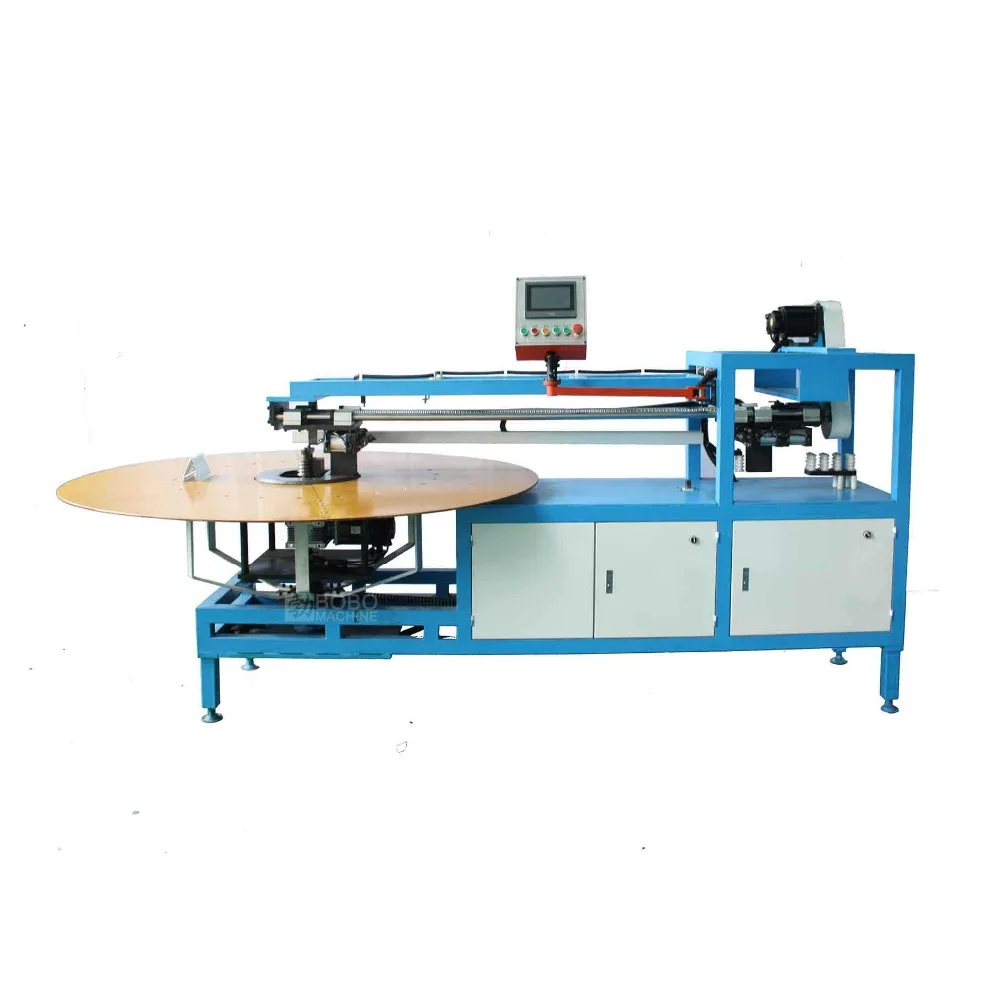

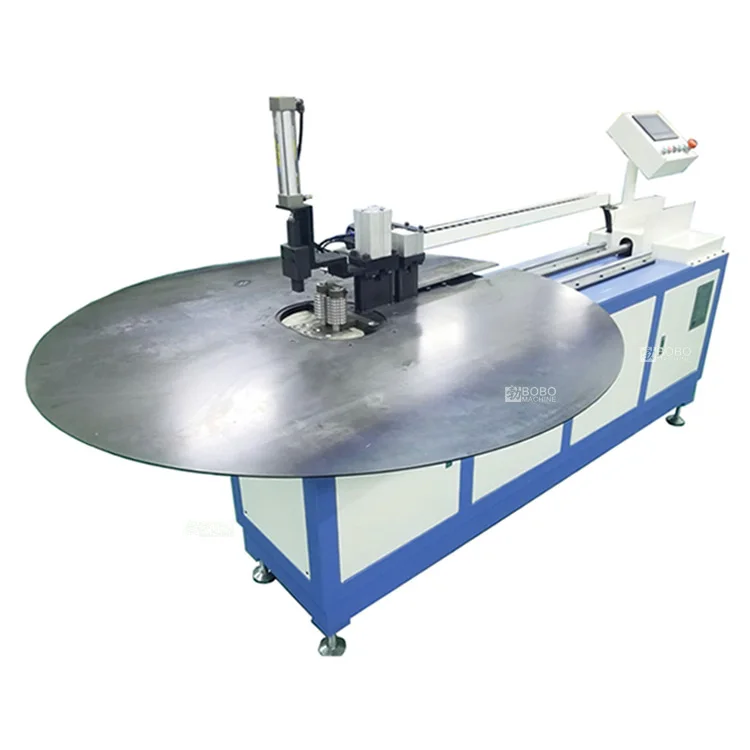

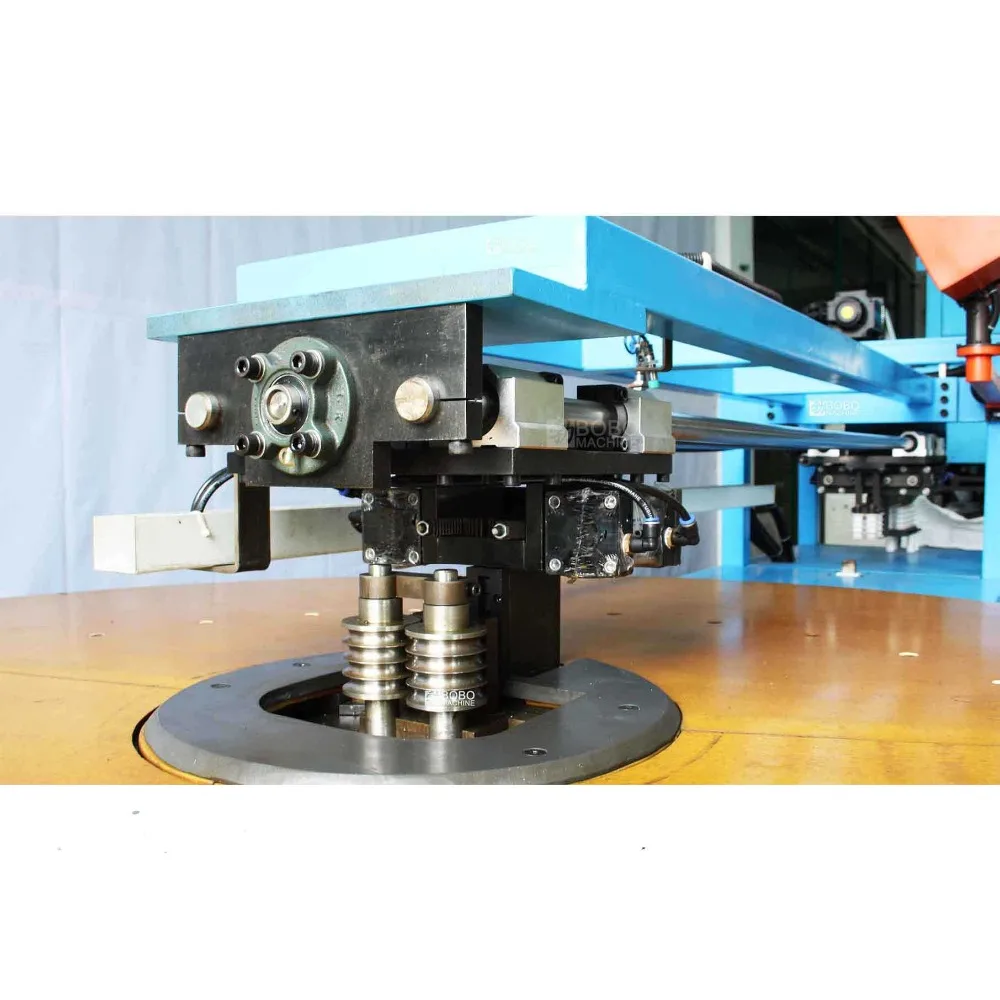

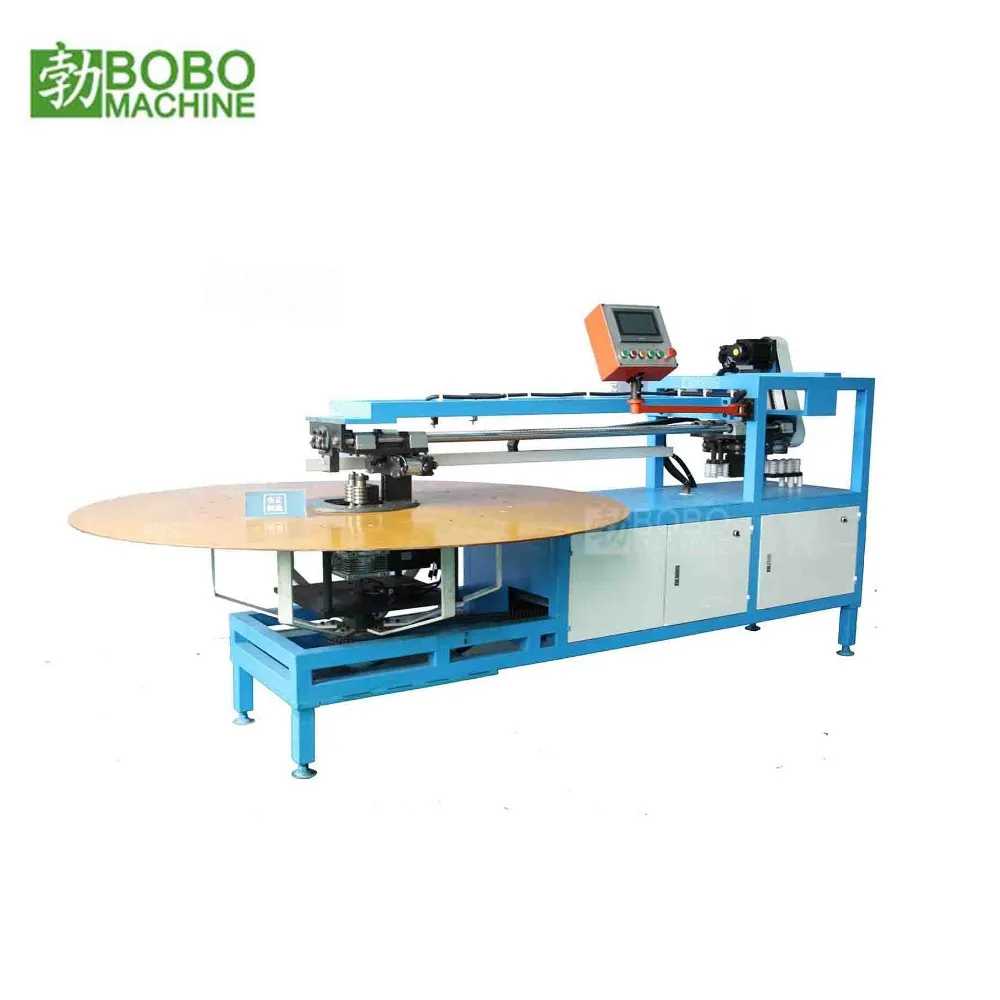

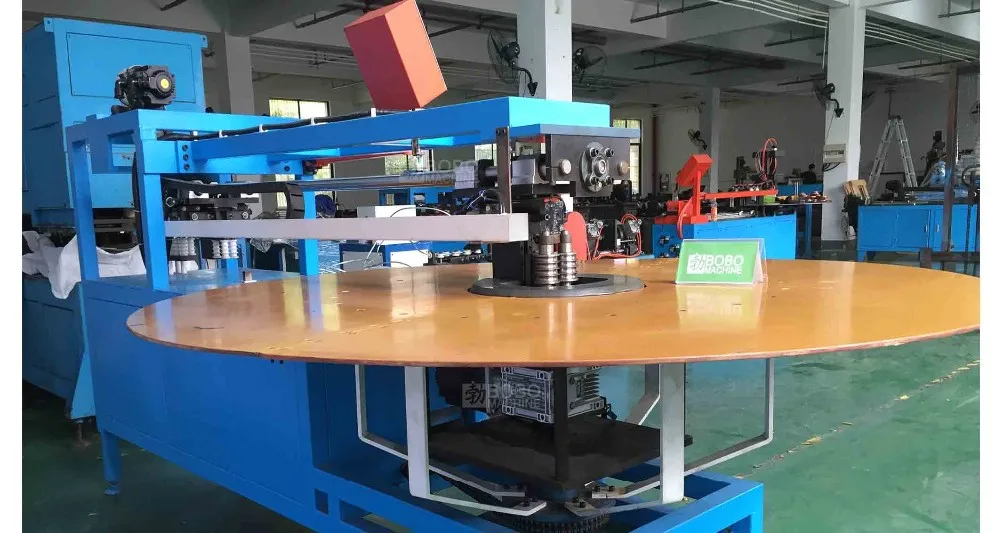

Detailed Images
Main Features
1. Patented special designed servo control bending system for different bending direction and bending angle in exact size. (Patent No.: ZL 2011 1 0092227.X)
2. Patented special designed bending tools ensure exact bending radius, less deformation and good appearance (Patent No.: ZL 2011 2 0107426.9)
3. Patented special designed bending structure ensures the stable performance for up to 10-12 grouped tubes in one time. (Patent No.: ZL 2009 2 0013741.8)
4. Servo drive system, PLC control system, and touch screen control to get high accuracy product size with easy operation and maintenance.
5. Matched with automatic tube chipess cut to length machine, the semi-automatic serpentine bender takes large output capacity with less fault and breakdown.
Packing & Delivery
Packaging | ||
Size | 3000* 1300 * 1680 (Excluded Table) | |
Weight | About 2500 KG | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the photo and drawing.
3. Q: When we received the machine, how to install it?
A: The machine has been installed already before shipment, when you recieved, just need to connect the electric.
4. Q: How to maintenance baling machine?
A: Every shift has to fill in lubrication oil and machine oil.
5. Q: Why we choose your machine?
A: Our factory is over 20 years old, has rich experience on production. All the machines are invented by ourself, we have patent for invention.
6. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
7. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
