Двигатель переменного тока
220V 130ST-77025 2KW 7.7N. М 130 мм серводвигатель переменного тока с

220V 130ST-77025 2KW 7.7N. М 130 мм серводвигатель переменного тока с

Категория: Двигатель переменного тока >>>
Поставщик: Shenzhen,Xinlichuan,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.21 $*	0.17 $*
Aug-18-2025	0.43 $*	0.54 $*
Jul-18-2025	0.14 $*	0.89 $*
Jun-18-2025	0.72 $*	0.43 $*
May-18-2025	0.74 $*	0.40 $*
Apr-18-2025	0.82 $*	0.79 $*
Mar-18-2025	0.18 $*	0.48 $*
Feb-18-2025	0.97 $*	0.99 $*
Jan-18-2025	0.39 $*	0.1 $*

Характеристики

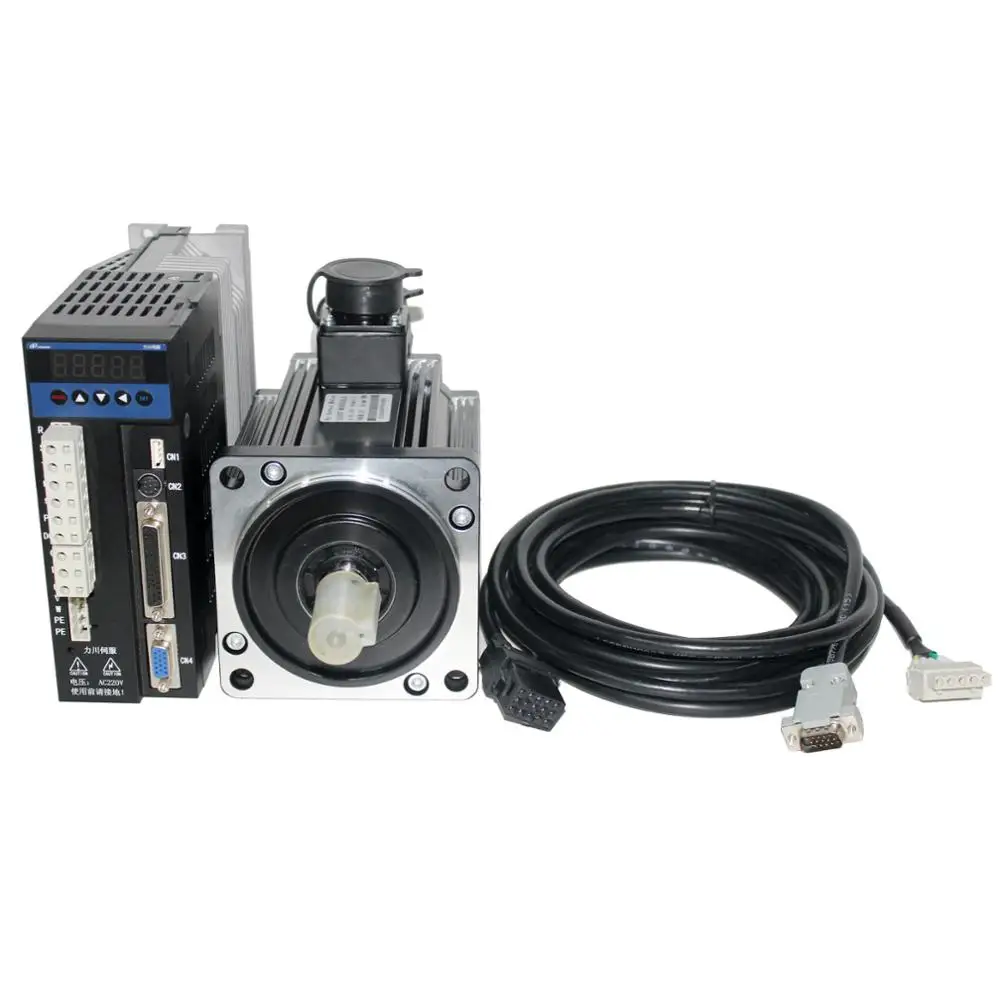

220V 130ST-77025 2KW 7.7N.M 130mm Cheaper price for Ac servo motor with servo drive

Product Description

130mm Series AC Servo motor information :

Product Name: 130 series AC servo motor

Lichuan 130 series AC servo motor contains 1KW, 1.3KW, 1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.

130mm Series Servo motor parameter specification :

130 Servo Motor model	LCMT-10L02-130M04025	LCMT-13L02-130M05025	LCMT-15L02-130M06025	LCMT-20L02-130M07725	LCMT-10L02-130M10010	LCMT-15M02-130M10015	LCMT-26M02-130M10025	LCMT-23ML02-130M15015	LCMT-38M02-130M15025
Rated power (KW)	1.0	1.3	1.5	2.0	1.0	1.5	2.6	2.3	3.8
Rated voltage(V)	220	220	220	220	220	220	220	220	220
Rated current(A)	4.0	5.0	6.0	7.0	4.5	6.0	10	9.5	13.5
Rated speed (rpm)	2500	2500	2500	2500	1000	1500	2500	1500	2500
Holding torque(N.M)	4.0	5.0	6.0	7.7	10	10	10	15	15
Peak torque(N.M)	12	16	18	22	20	25	25	30	30
Torque Coefficient(N.m/A	1.0	1.0	1.0	1.03	2.2	1.67	1.0	1.58	1.11
Rotor Inertia(Kg.m2)	0.85X10^-3	1.06X10^-3	1.26X10^-3	1.53X10^-4	1.94X10^-3	1.94X10^-3	1.94X10^-3	2.77X10^-3	2.77X10^-3
Voltage constant(V/1000r/min)	72	68	65	68	140	103	70	114	67
Phase Resistance (	2.76	1.84	1.21	1.01	2.7	1.29	0.73	1.1	0.49
Phase Inductance(mH)	6.42	4.9	3.87	2.94	8.8	5.07	2.45	4.45	1.68
Machanical Time-constant(Ms)	2.32	2.66	3.26	3.80	3.26	3.93	3.36	4.05	3.43
Encoder line Number(PPR)	2500	2500	2500	2500	2500	2500	2500	2500	2500
Insulation Class	Class B(130℃)	Class B(130℃)	Class B(130℃)	Class B(130℃)	Class B(130℃)	Class B(130℃)	Class B(130℃)	Class B(130℃)	Class B(130℃)
Safety Class	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66

130mm Series AC Servo driver information :

B2 series servo driver is a new generation of high performance, high stability products, support speed, position, torque and three mixed mode, increase the semi-automatic and automatic gain automatic tuning function, built-in MODBUS communication control function, can match more domestic servo Motor. Servo main IC using the United States Texas Instruments DSP all-digital chip, very low failure rate, adaptive drive 0.1KW ~ 26KW servo Motor.
