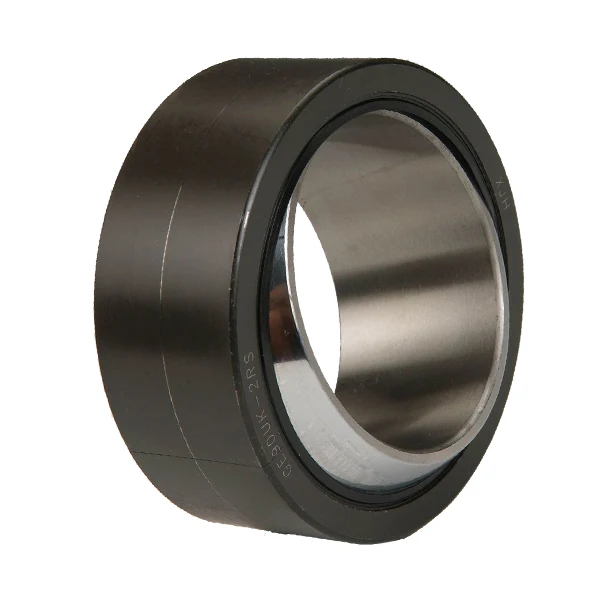

GE20UK 2RS maintenance free radial spherical plain bearing



Features

  • Maitenance free

  • Outer ring with single split in axial direction

  • Outer Ring:chrome steel 52100(100Cr6),heat treated HRC54-60,phosphating,with lip seals in both sides

  • Inner Ring:chrome steel 52100(100Cr6),heat treated HRC58-64,hard chrome plated

  • Sliding Contact Surfaces:Steel/PTFE



Dimensions

  • Inside Diameter:  20mm

  • Outside Diameter:  35mm

  • Net Weight:  0.066kg

  • Load Ratings:  45KN(Dynamic);  104KN(Static)

  • Maximum Angular Misalignment: 9 Degree

  • Length Through Bore: 16mm

  • Length Through Outer Ring: 12mm





Features    • sliding contact surface: steel / PTFE fabric • maintenance free  • inner ring    —bearing steel     —heat treated HRC 58-64    —hard chrome plated  • outer ring    —carbon steel

Part No.	Dimensions mm									Load ratings KN		Weight kg
	d	D	B	C	d1	dk	R1s	R2s	α	Dyn	Sta
					min		min	min	≈	C	C0
GE15UK 2RS	15	26	12	9	18	22	0.3	0.3	9	25	59	0.035
GE17UK 2RS	17	30	14	10	20	25	0.3	0.3	10	32	75	0.041
GE20UK 2RS	20	35	16	12	24	29	0.3	0.3	9	45	104	0.066
GE25UK 2RS	25	42	20	16	29	35.5	0.6	0.6	7	85	204	0.119
GE30UK 2RS	30	47	22	18	34	40.7	0.6	0.6	6	110	263	0.153
GE35UK 2RS	35	55	25	20	39	47	0.6	1	6	140	338	0.233
GE40UK 2RS	40	62	28	22	45	53	0.6	1	7	175	419	0.306
GE45UK 2RS	45	68	32	25	50	60	0.6	1	7	225	540	0.427
GE50UK 2RS	50	75	35	28	55	66	0.6	1	6	275	665	0.546
GE60UK 2RS	60	90	44	36	66	80	1	1	6	430	1030	1.04
GE70UK 2RS	70	105	49	40	77	92	1	1	6	550	1320	1.55
GE80UK 2RS	80	120	55	45	88	1051	1	1	6	705	1700	2.31
GE90UK 2RS	90	130	60	50	98	115	1	1	5	860	2070	2.75
GE100UK 2RS	100	150	70	55	109	130	1	1	7	1070	2570	4.45
GE110UK 2RS	110	160	70	55	121	140	1	1	6	1150	2770	4.82
GE120UK 2RS	120	180	85	70	135	160	1	1	6	1680	4030	8.05
GE140UK 2RS	140	210	90	70	155	180	1	1	7	1890	4530	11.02
GE160UK 2RS	160	230	105	80	170	200	1	1	8	2400	5760	14.01
GE180UK 2RS	180	260	105	80	199	225	1.1	1.1	6	2700	6480	18.65
GE200UK 2RS	200	290	130	100	213	250	1.1	1.1	7	3750	9000	28.03
GE220UK 2RS	220	320	135	100	239	275	1.1	1.1	8	4120	9900	35.51
GE240UK 2RS	240	340	140	100	265	300	1.1	1.1	8	4500	10800	39.91
GE260UK 2RS	260	370	150	110	288	325	1.1	1.1	7	5360	12870	51.54
GE280UK 2RS	280	400	155	120	313	350	1.1	1.1	6	6300	15120	65.06
GE300UK 2RS	300	430	165	120	336	375	1.1	1.1	7	6750	16200	78.07
