Wcdma fwt 3g gsm фиксированный беспроводной терминал для системы

Wcdma fwt 3g gsm фиксированный беспроводной терминал для системы

Категория: Беспроводные терминалы >>>
Поставщик: Shenzhen,Etross,Telecom,Co.,Ltd.

Цена:3 992,91 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4750.39 $*	4988.97 $*
Aug-19-2025	4711.86 $*	4947.58 $*
Jul-19-2025	3952.49 $*	4150.64 $*
Jun-19-2025	4631.71 $*	4863.50 $*
May-19-2025	4032.86 $*	4234.7 $*
Apr-19-2025	4551.54 $*	4779.52 $*
Mar-19-2025	4511.23 $*	4737.7 $*
Feb-19-2025	4471.92 $*	4695.99 $*
Jan-19-2025	4431.66 $*	4653.33 $*

Характеристики

3G wcdma GSM FCT 2 PORTS for alarm system 3g gsm fwt 8848

Product Description

3G WCDMA FWT8848 is a WCDMA to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.

Connecting the RJ11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, It isa GSM Fixed Wireless Terminal that produces an analog FXS phone line .

Features

1) It is a 1 port WCDMA FWT which has 2 RJ-11 outputs for extensions;

2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.

3) Employ industrial module to make

4) Simple to install and easy to maintain

5) Steady module and reliable design ensures good performance

6) Provides optimized circuit directly connecting the exchange device for extensions

7) Compatible to most telephones, PBX device.

8) Strong signals with high gain antenna

9) Attractive plastic casing

10) SIM card supported (1.8V, 3V)

11) Caller ID display

12) Provides reversal polarity signal for metering

13) No noise and clear voice

14) Suitable for wide voltage range and low power consumption

15) Suitable for all kinds of weather and environment

16) Locking PIN / network (optional)

Technical Specificat

Air interface standard:

Longsung U6100 is a wireless module which is designed for the global market. It is a consumptive product; it can be designed in many kinds of applications which can work on HSPA/UMTS/EDGE/GPRS/GSM network.

U6100 support the Bands as the following:

3G Tri-Band UMTS/HSDPA/HSUPA (WCDMA/FDD): 850/900/1900/2100 MHz

2G Quad-Band GSM: 850/900/1800/1900 MHz

Phone interface: supply RJ-11 Phone InterfaceHanging voltage: 45VPicking off voltage: 30mA / 41mADialing tone Frequency: 450HzAntenna interface: Antenna amplifying>2.5dbSensitivity:<-104DBMTransmitting power<3W

Color: White /Black (optional)AC-Adapter interface: Input: AC 110~240VAC 50~60Hz Output: 12DC 1A.

AC-Adapter type: EU, US, AU, British can be optional

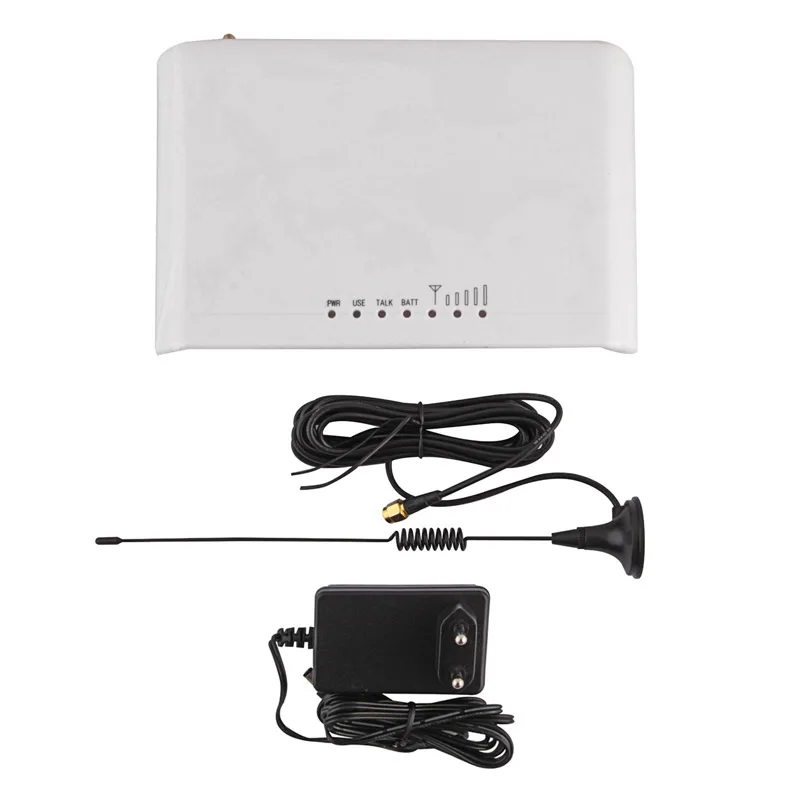

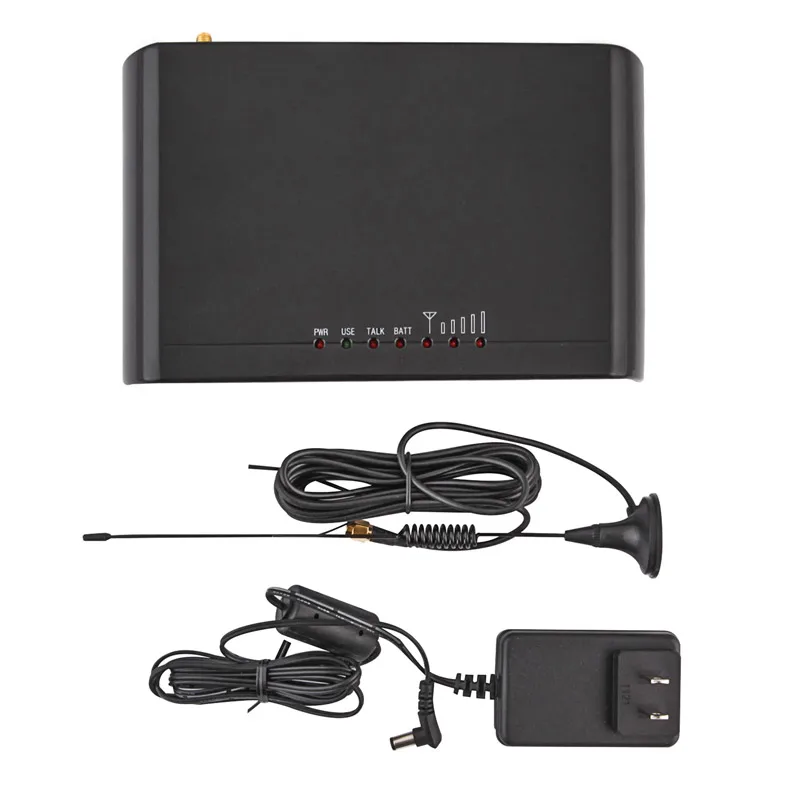

Packaging & Shipping

Name	Quantity	Remark
3G WCDMA FWT-8848	1pcs	3G/2G
Ac- adapter	1pcs	AC-110-240V, DC12V/1A
Antenna	1pcs	Magnetic Antenna with 3m cable
User's Manual	1pcs	English

Function Setting

Before you do the following function settings, Lift handset or press hands free key of telephone set, then you can press the buttons according to the following instructions to finish setting, you will hear 2 beeps when you finish, this testify setting successfully.

1) Restore to factory default setting

2) Adjust dial interval

3) Adjust Earphone Volume

4) Adjust Mic. Volume (sensitivity)

5) Setting local area code

6) Setting IP numbers

7)Hide Caller ID (been sent out)Setting

8) Bar incoming call Setting

9)FSK setting (optional) (should confirm before order)

10) Billing Mode setting

11)IMEI change Setting ( for Quad Band M35 Module only)

12) Pin Lock &Network Lock Setting (optional)(Should confirm before order)
