DZ90A лидер продаж Электрический Вибрационный
- Категория: Сваебойная установка >>>
- Поставщик: Wenzhou,Zhenzhong,Foundation,Construction,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.86 $* | 0.51 $* |
| Aug-20-2025 | 0.58 $* | 0.78 $* |
| Jul-20-2025 | 0.50 $* | 0.10 $* |
| Jun-20-2025 | 0.64 $* | 0.85 $* |
| May-20-2025 | 0.45 $* | 0.3 $* |
| Apr-20-2025 | 0.70 $* | 0.17 $* |
| Mar-20-2025 | 0.58 $* | 0.13 $* |
| Feb-20-2025 | 0.80 $* | 0.15 $* |
| Jan-20-2025 | 0.35 $* | 0.70 $* |
Характеристики
Product Description
Product Application

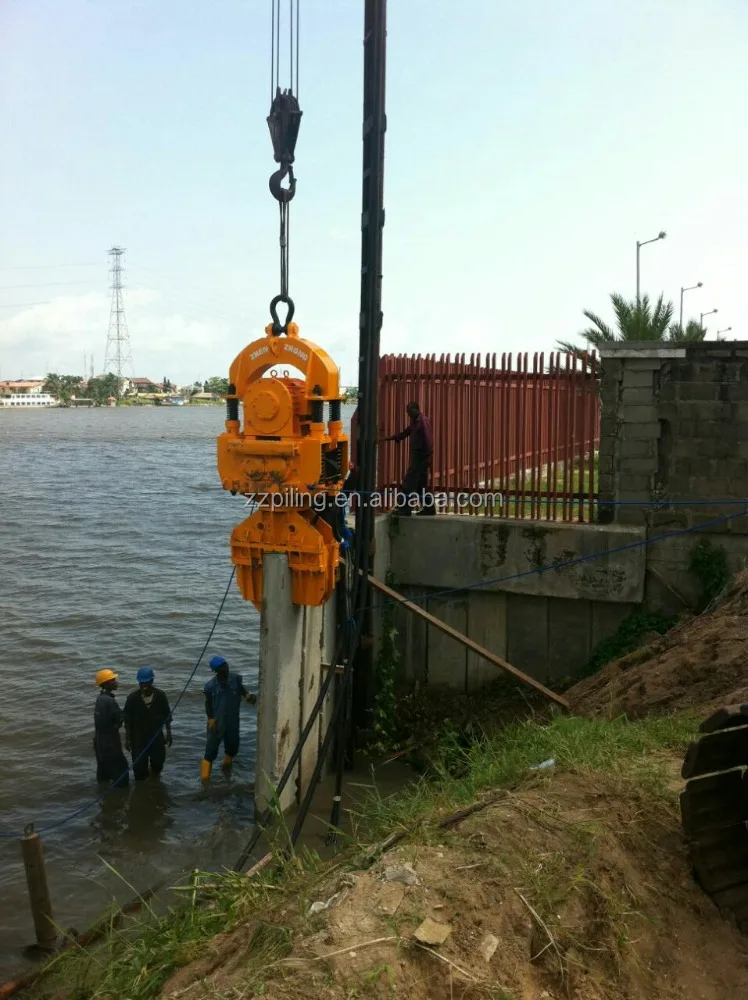

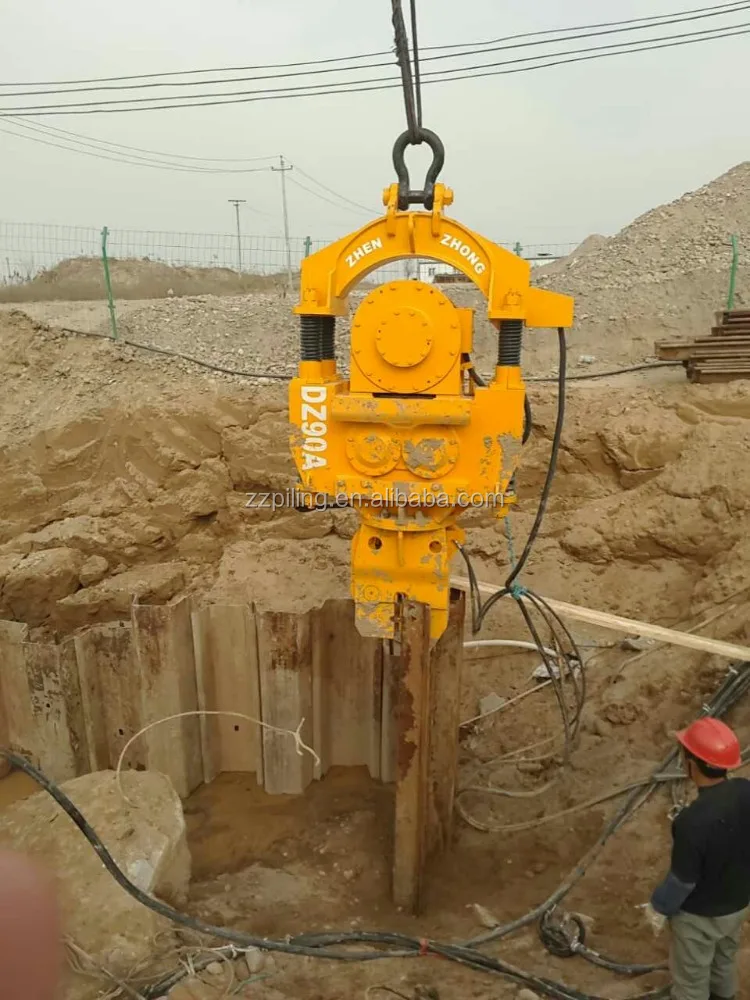

Vibratory Hammer utilizes periodic exciting force to make the surrounding soil liquefied and reduce the soil friction to pile to make pile embedded.That could drive concrete pile,large toe pile,lime pile,debris pile,steel pipe pile,l-piles,sheet piles etc.
motor power | kw | 90 |
frequency | r/min | 1050 |
eccentric moment | Nm | 460 |
centrifugal force | KN | 570 |
amplitude | mm | 10.3 |
Max.extraction force | KN | 240 |
dimension H | m | 2.56 |
dimension L | m | 1.53 |
dimension W | m | 1.1 |
total weight | kg | 6155 |
wire cable | mm² | 50 |
clamp | single/double | |
diameter of pile | 500-1200mm | |
generator capacity | kw | 300 |
Min.crane capacity | t | 50 |
Detailed Images

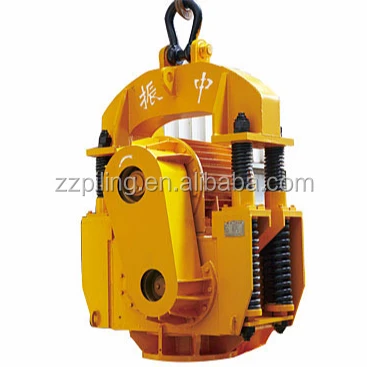

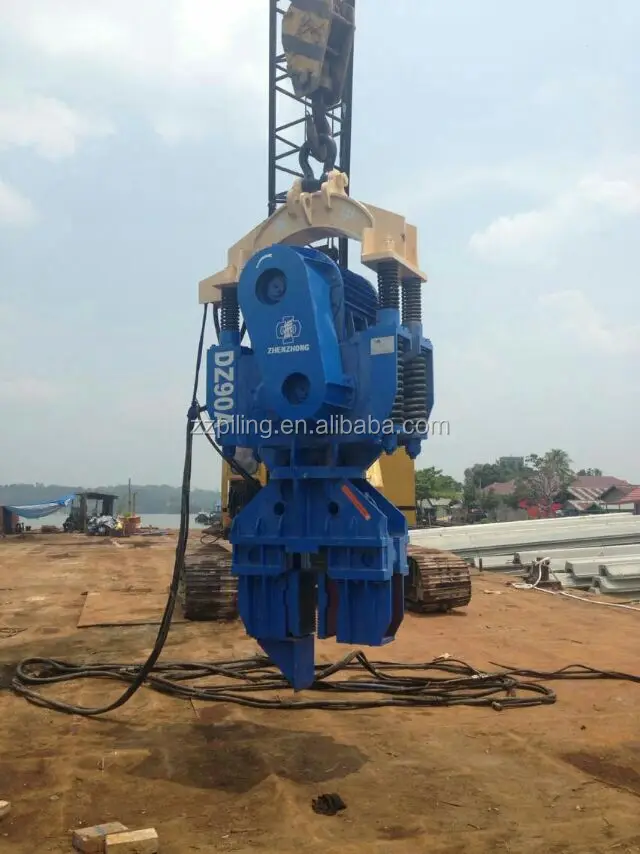

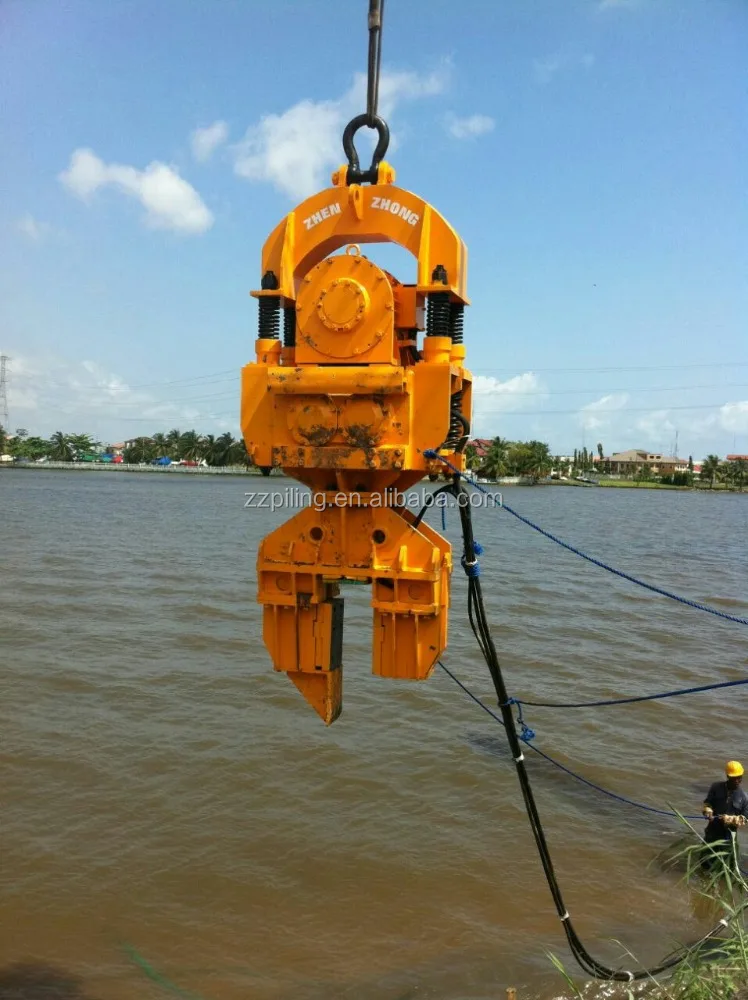

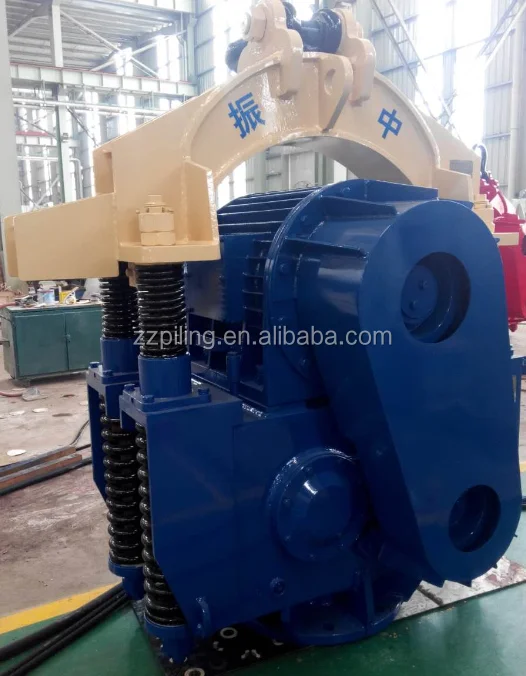

VIBRO HAMMER
Brand: ZHENZHONG
Domestic famous engines, strong driving force, It can match with the sheet pile clamp/single clamp and pipe pile clamp/double clamp to drive different kinds of piles.
DOUBLE CLAMP φ500-1200mm
Brand: ZHENZHONG
We have the sheet pile clamp,double pile clamp, concrete pile clamp.
CONTROL BOX WITH INVERTER
Brand: ZHENZHONG
It has the inverter inside the control box, it can used to adjust the frequency.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 11.01m³ | |
Weight | 7800kg | |
Packaging Details | The normal package is iron pallets. The vibro hammer dimension is 2.4*2*1.65m and the weight is 5800kg. The sheet pile clamp dimension is 0.90*0.75*1.2.the weight is 1200kg. The control box dimension is 1.47*1*1.55 and the weight is 800kg. | |
Title goes here.
Q. Can the price be discounted?
A. Products due to various configuration issues such as accessories, you can bargain, welcome to inquire
Q. Where are the products more advantageous?
A. Customer can choose the model they need, or they provide the pile dimension and ground condition report for us, we can
recommend the suitable product to them.
Q. Why choose you?
A. our company are specialized on the pile driver for 37 years, we have a lot of experience on it. So if you have technical
problems and difficulties on choosing the suitable machine, please find us.
Q. Can you customize?
A. we can do the OEM.
Q. Does the product have after sales service?
A. More services we can provided:
1, Great quality with reasonable price.
2,OEM Support.
3, After-sales Service Overseas.
A. Products due to various configuration issues such as accessories, you can bargain, welcome to inquire
Q. Where are the products more advantageous?
A. Customer can choose the model they need, or they provide the pile dimension and ground condition report for us, we can
recommend the suitable product to them.
Q. Why choose you?
A. our company are specialized on the pile driver for 37 years, we have a lot of experience on it. So if you have technical
problems and difficulties on choosing the suitable machine, please find us.
Q. Can you customize?
A. we can do the OEM.
Q. Does the product have after sales service?
A. More services we can provided:
1, Great quality with reasonable price.
2,OEM Support.
3, After-sales Service Overseas.
