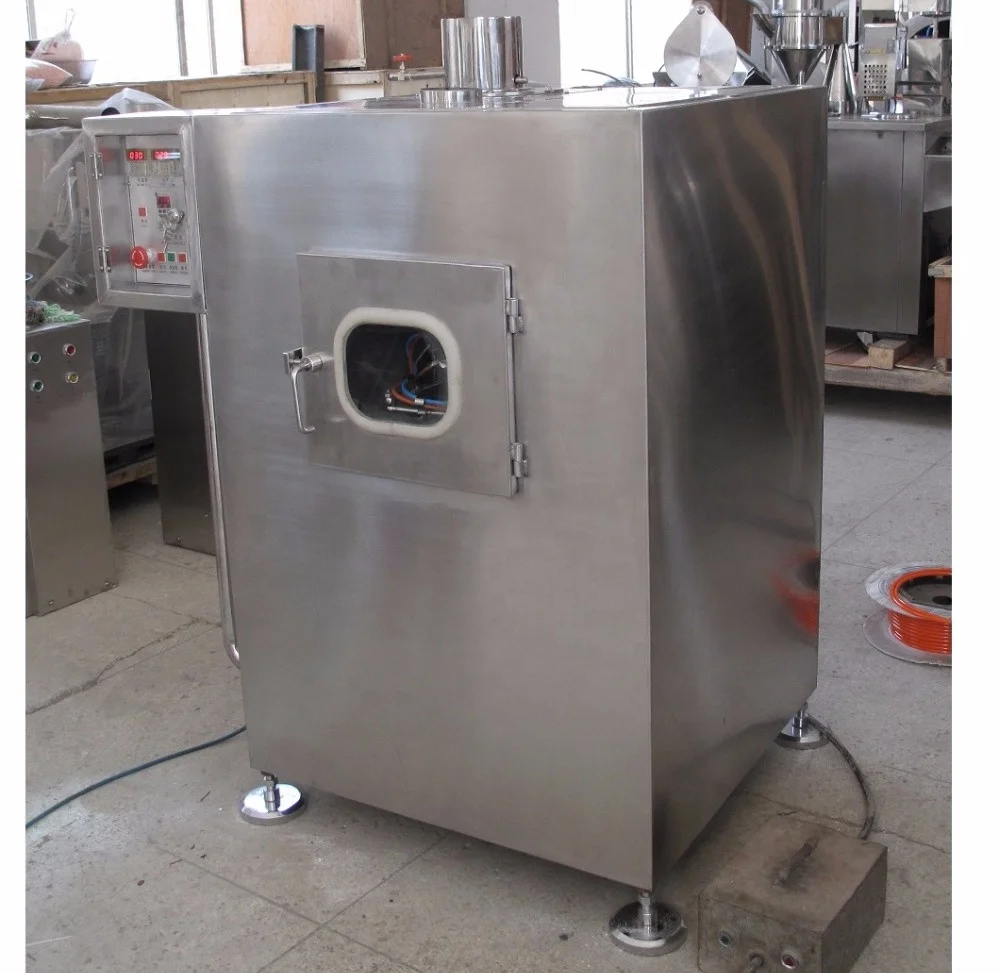

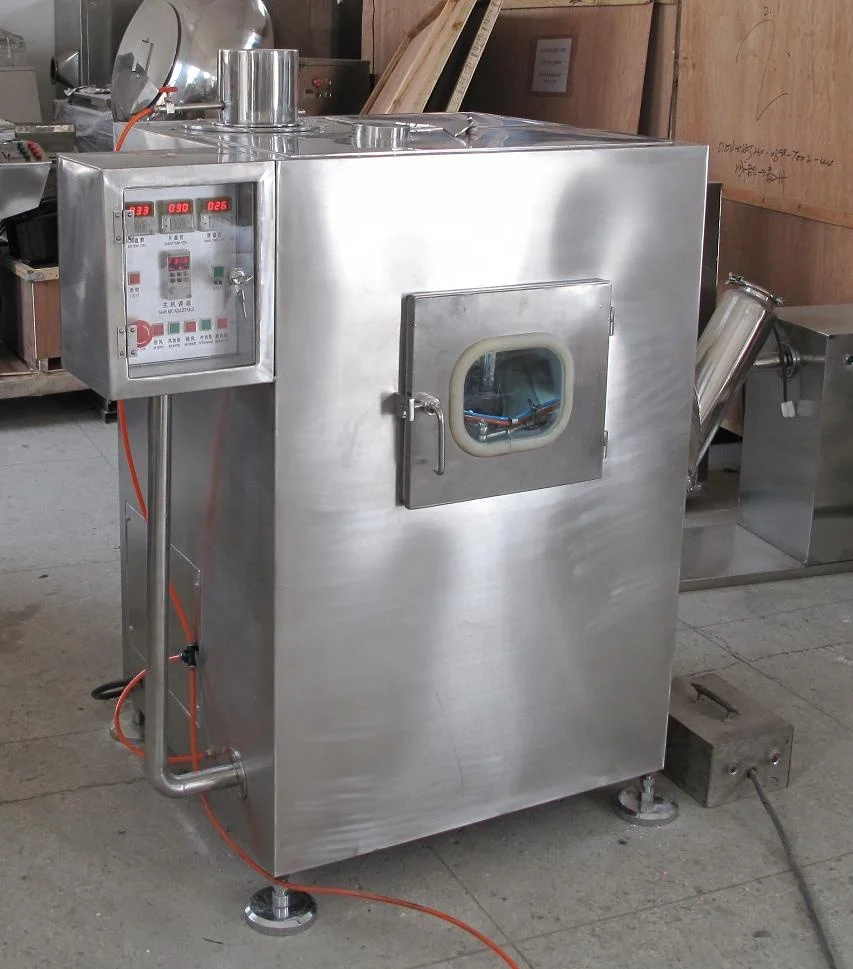

BGC400-1250 Closed Film Sugar Tablet Coating Machine



 Descriptions



This series coating machine has advantages of simplified structure, easy operation, less dust, smooth and fine tablet surface, saving auxiliary materials and convenient maintenance. The closed film coating machine is applied to carry out sugar coating and film coating to Chinese traditional and western medicine tablets, it integrates strong power, weak power and hydraulic pressure with pneumatic operation, it is a new type equipment improved on the basis of original common type sugar coating machine.

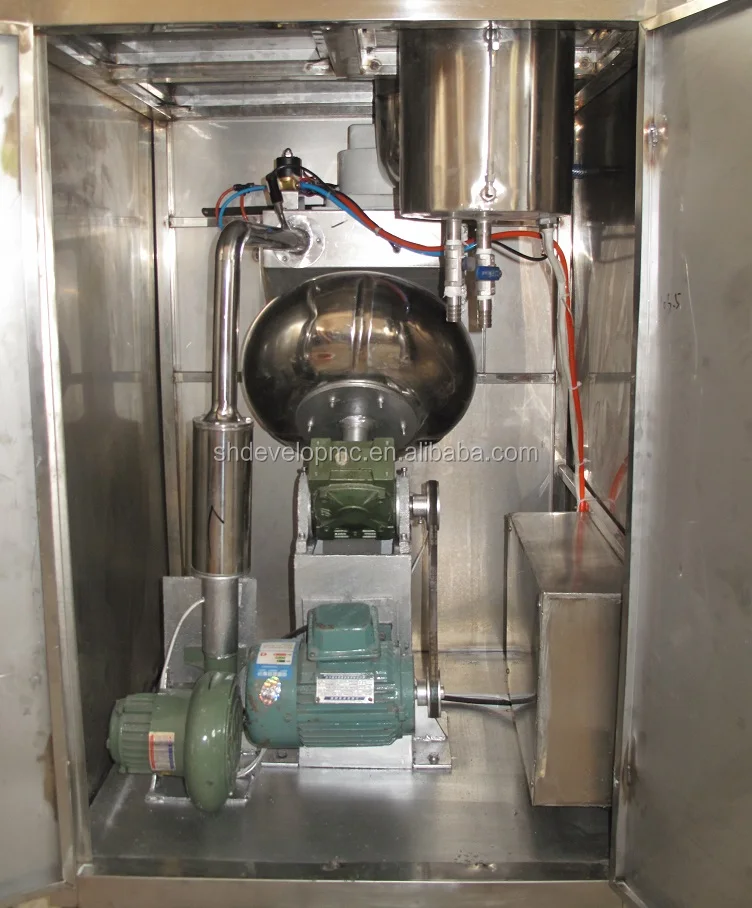

It is composed of the main machine (original sugar coating machine), controllable normal-temperature hot air system, automatic fluid supply and air supply spraying system, exhaust unit etc. The main motor has function of speed control, the coating is carried out in an airtight space.

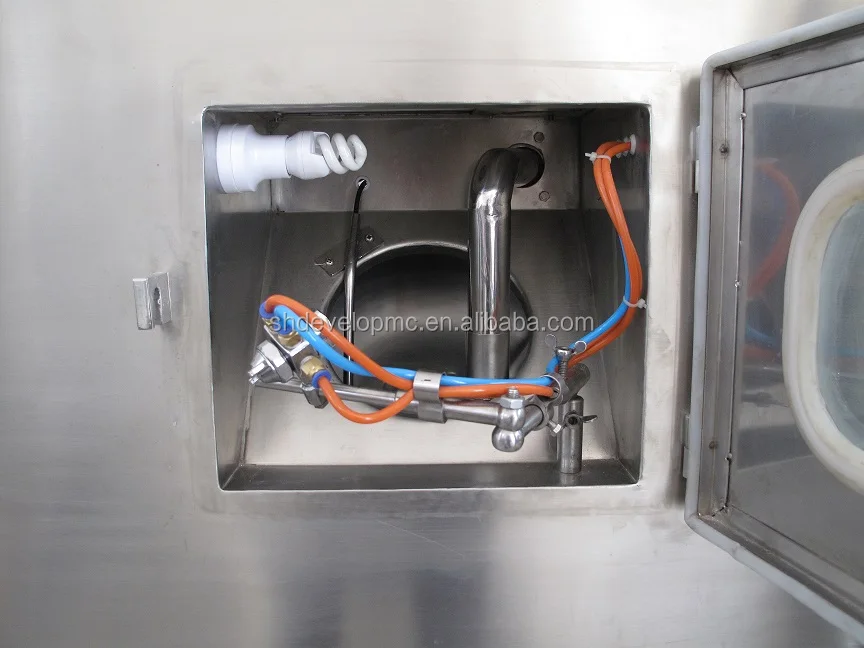

By means of automatic control of electrical appliances, it dissolves the auxiliary coating materials by dissolvent, then sprays dissolved solution to the tablet surface with high atomized spray gun, meanwhile, the tablets make continuous and complex track movement in the coating pan, let the dissolved solution cover the tablet core evenly the controllable normal-temperature hot air in the pan will dry the tablets at the same time. Exhaust fan discharges the waste gas and aqueous vapor, let the tablet surface form a firm, fine, complete and smooth surface film rapidly

Technical Parameters



Name \\ Model	BGC-300	BGC-400	BGC-500	BGC-600
Diameter of coating pot	300	400	500	600
Production capacity(kg/batch)	1—2	3-5	5-10	10-15
Range of air temp (℃)	20-110	20-110	20-110	20-110
Motor speed (r/min)	40	40	40	40
Blower fan power (W)	60	60	180	180
Electric heating Power (KW)	1	1	1	2
Compressed air pressure	0.4-0.8Mpa	0.4-0.8Mpa	0.4-0.8Mpa	0.4-0.8Mpa
Compressed air consumption	60L/min	60L/min	70L/min	80L/min
Dimensions(L x W x H)(mm)	800* 800*1200	800 * 800* 1200	900 *900* 1200	900 *900*1200
weight	200	200	310	310





BGC400 Coating Machine configuration list



NO.	Item	Specification	Material	Qty	Others
1	Reducer	WPA60   30:1	Group	1	Zhejiang spaceflight
2	Fuselage		Welding parts	1	DEVELOP-MC
3	frame		304	1SET	DEVELOP-MC
4	outsource		304	1SET	DEVELOP-MC
5	Coating cooker	φ400	304	1	DEVELOP-MC
6	Wind fan	60W		1	ZHEJIANG
7	Internal heating	0.9KW	SUS heating pipe	1SET	DEVELOP-MC
8	External heating	0.5KW	electric stove	1SET	DEVELOP-MC
9	Main motor	Y80S-4 ,0.55KW		1	WUXI
10	Air supply pipe		304	1set	DEVELOP-MC
11	Air exhausting fan	100W		1	SHANGHAI
12	Liquid bucket	3L	304	1	DEVELOP-MC
13	Pneumatic stirring			1	SHANGHAI
14	Liquid heating device	1KW	SUS heating pipe	1	DEVELOP-MC
15	Spray gun	φ0.5(Or made to need)	Bronze	1	Taiwan
16	Electrical control cabinet		304	1	DEVELOP-MC
17	Circuit breaker	DZ47-C20		1	DELIXI
18	AC contactor	CJX2-1810		1	DELIXI
		CTX2-0910		1	DELIXI
