Двуходовые впускные трубки XHnotion 2/2 стабильный и фиксирующий водяной электромагнитный
- Категория: Электромагнитные клапаны >>>
- Поставщик: Ningbo,Xhnotion,Pneumatic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.28 $* | 0.96 $* |
| Aug-16-2025 | 0.39 $* | 0.6 $* |
| Jul-16-2025 | 0.23 $* | 0.96 $* |
| Jun-16-2025 | 0.40 $* | 0.57 $* |
| May-16-2025 | 0.68 $* | 0.41 $* |
| Apr-16-2025 | 0.57 $* | 0.14 $* |
| Mar-16-2025 | 0.62 $* | 0.38 $* |
| Feb-16-2025 | 0.41 $* | 0.85 $* |
| Jan-16-2025 | 0.61 $* | 0.76 $* |
Характеристики
Product Description
Products Name | XHnotion 2/2 Way Inlet Tubes Bi-stable And Latching Water Solenoid Valve | ||||
Voltage: | DC 3V, 4.5V, 6V, 12V | ||||
Coil resistance: | 17Ω±1Ω (20 ℃ ) | ||||
Function | Pilot operated | ||||
Impulse width | 10ms-30ms | ||||
Working pressure: | 0.02Mpa-0.8Mpa | ||||
Medium temperature | 0-60℃ | ||||
Reacting time: | open≤0.15s close≤0.5s | ||||
Electric Strength: | Between conductor and nonconductor,shall be no puncture and spark in one minute under the condition of AC 1000V voltage. | ||||
Insulation capability: | over 100M between conductor and nonconductor. | ||||
Flow capability: | 0.05mpa≥5L/min, 0.3mpa≥20L/min, 0.8mpa≥28L/min | ||||
Working life: | more than 500,000cycles. | ||||
Marketing | All Over The World | ||||

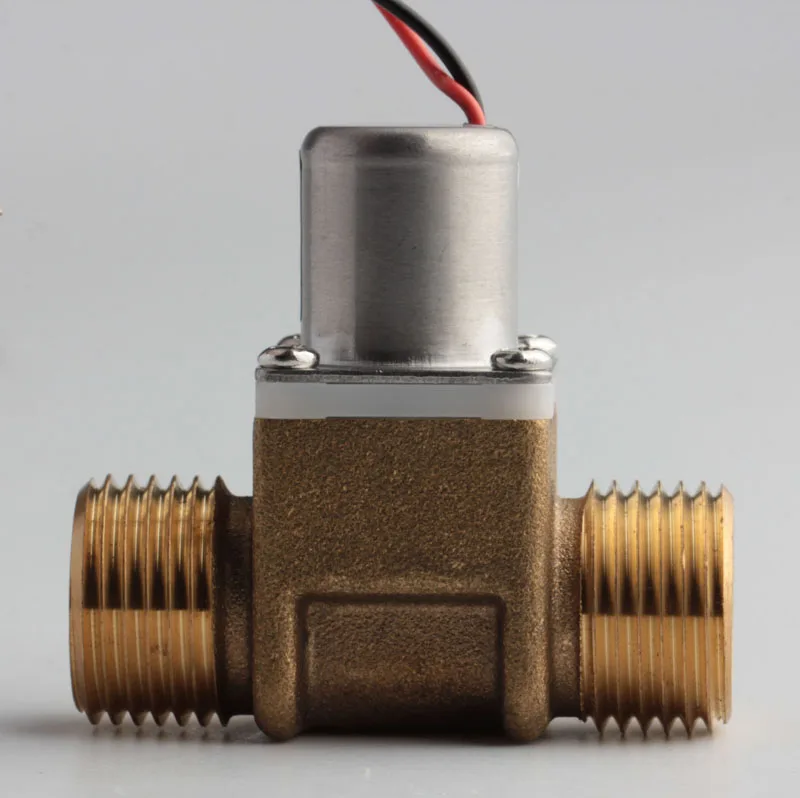

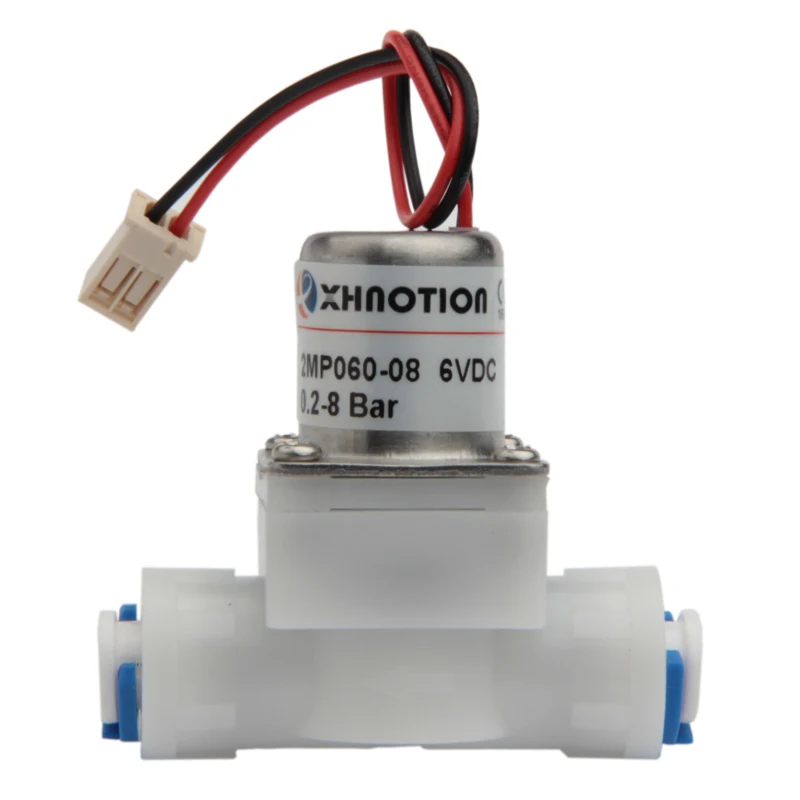

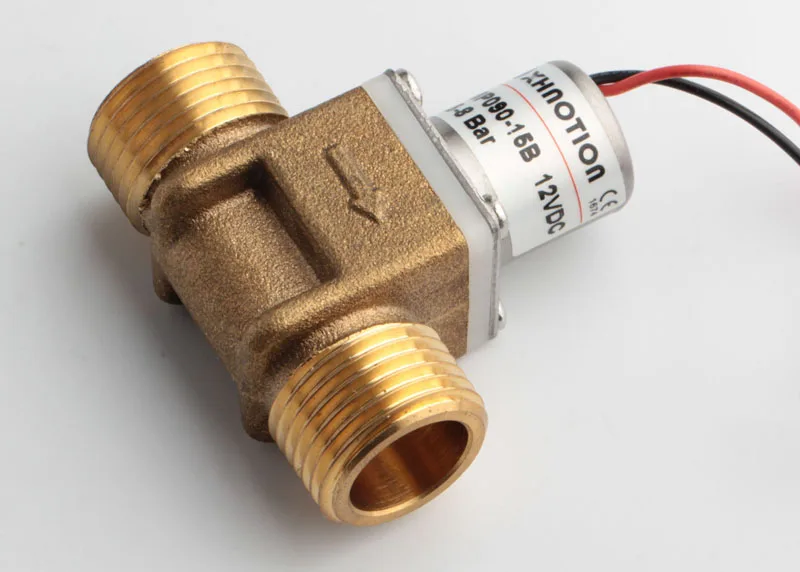

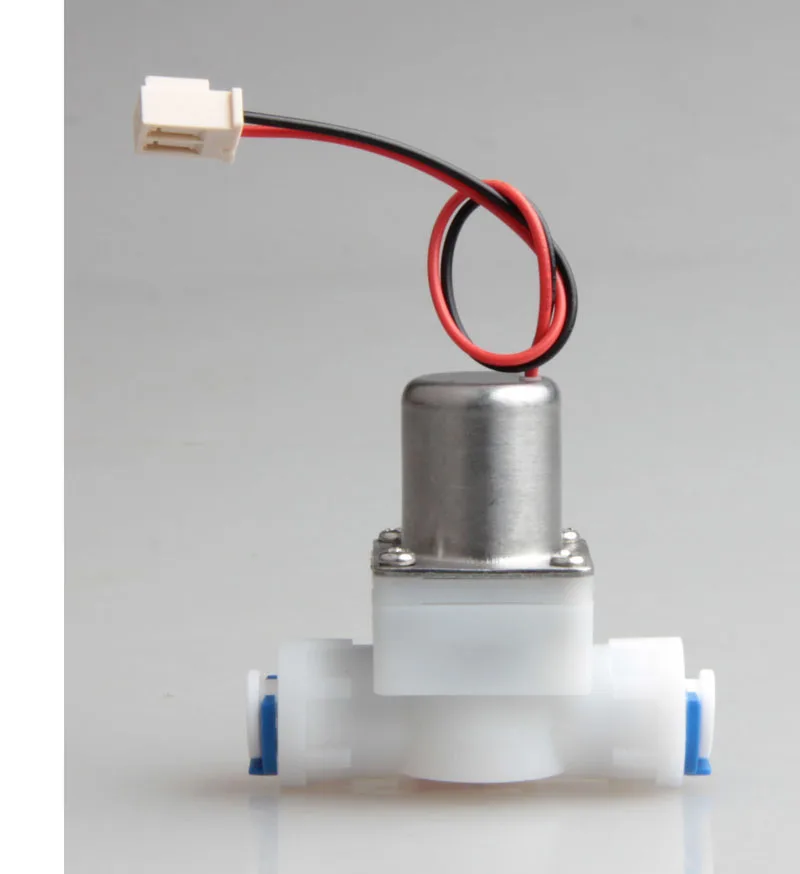

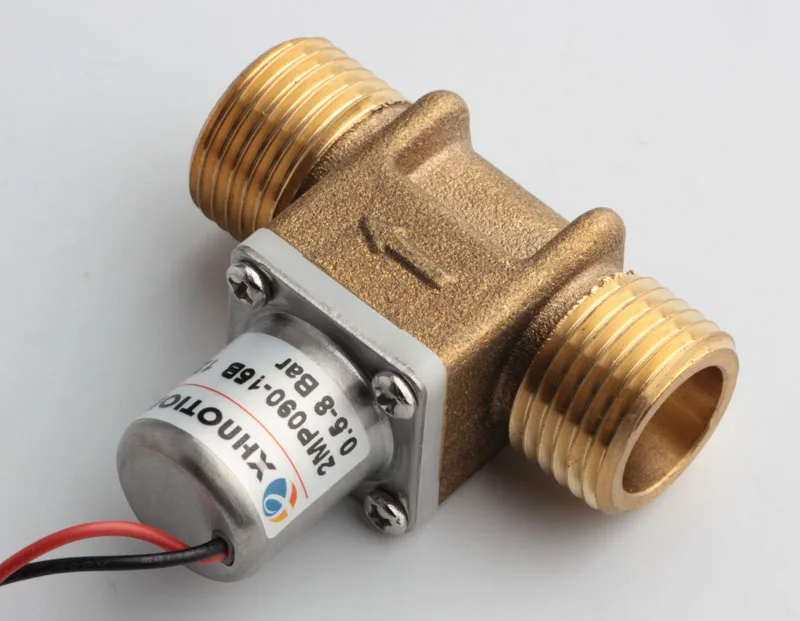

Products Show
2MP Series
Features
1.No self heating
2.Continues to hold even after the power is disconnected
3.Can operate by a pulse signal
4.A charge / discharge of capacitor will be enough to set and reset
Solenoid Valves
FEATURES
1. Installed on the ironing equipments independant.
2.Fully made of high temperature H class material
3. Steam flow rate can be adjustable, easy to operate.
4. Excellent performance for water proof.
5. Straight shape, angle shape, all kinds of connections are available.
6. Conforming to CE certificate.
2N Series Solenoid Valves
XLG Series High Pressure Solenoid Valves
2C Series Drinking Water Solenoid Valves
BI-STABLE Solenoid Valves
4V Series Directional Solenoid Valves
MSV Series Push Button Directional Solenoid Valves
Our Service
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, diecasting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Machine
Our Machines
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below items pneumatic fittings, plastic, brass, stainless steel push in fittings pneumatic quick coupling, air tool kits, air blow gun pneumatic muffler, silencer, filter air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil, air cylinder, air preparation, pneumatic directional valve modular hose, water push in fitting.
Packing & Delivery
Packing Details : Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Delivery Details : 3 days to 30 days depends on actual orders.
1. Special packaging
2. Professional packaging
3. Complete package
Our Certifications
