Небольшая подставка для ремонта двигателя
- Категория: Other Vehicle Tools >>>
- Поставщик: Qingdao,Haolida,Automotive,Equipment,Manufacturing,Co.,Ltd.,[Shandong,China]Qingdao
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 19135.40 $* | 19518.51 $* |
| Jul-15-2025 | 15519.99 $* | 15829.13 $* |
| Jun-15-2025 | 18834.80 $* | 19211.81 $* |
| May-15-2025 | 18683.4 $* | 19057.99 $* |
| Apr-15-2025 | 14916.25 $* | 15214.6 $* |
| Mar-15-2025 | 18382.90 $* | 18750.46 $* |
| Feb-15-2025 | 18231.55 $* | 18596.80 $* |
| Jan-15-2025 | 18080.35 $* | 18442.72 $* |
Характеристики
Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd
A professional manufacture of automotive maintenance and testing equipmenent.

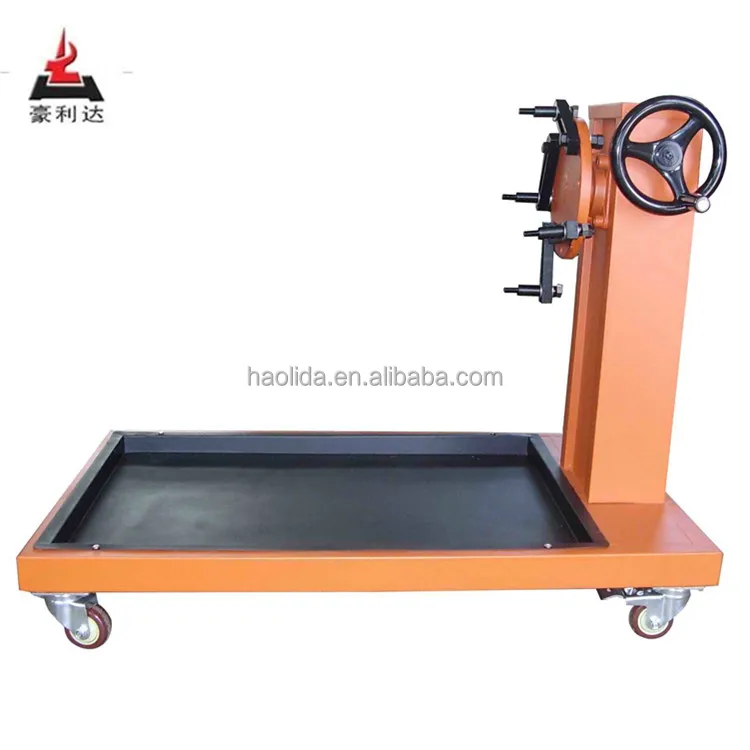

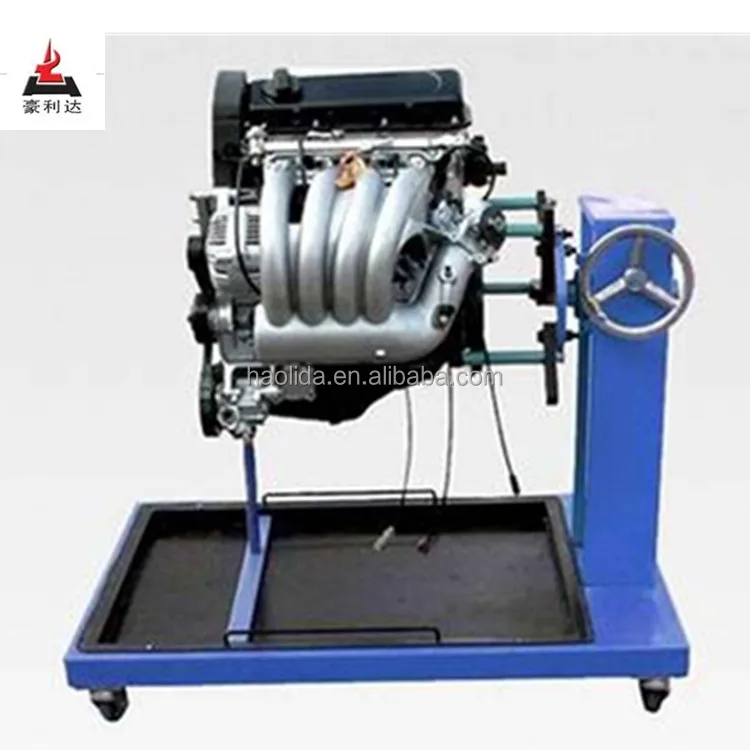

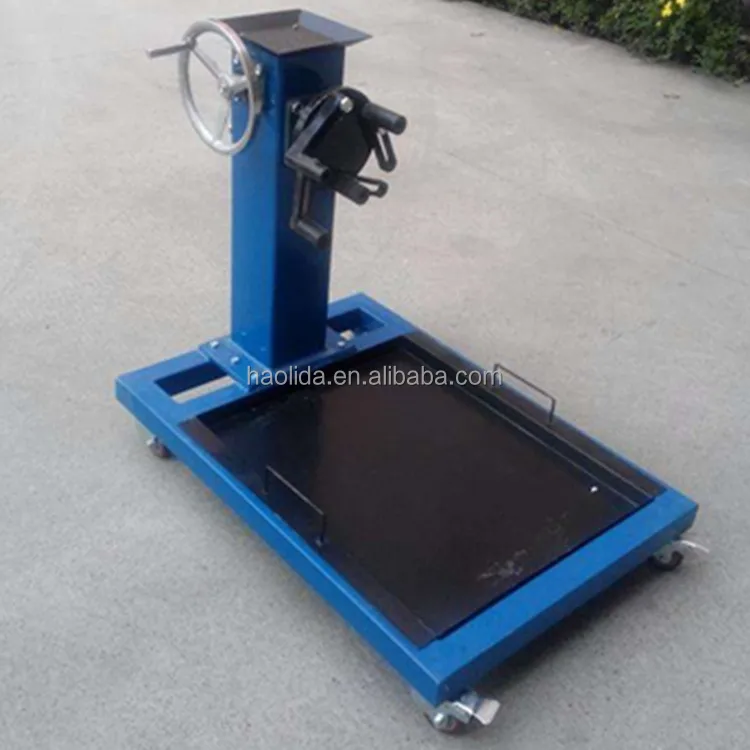

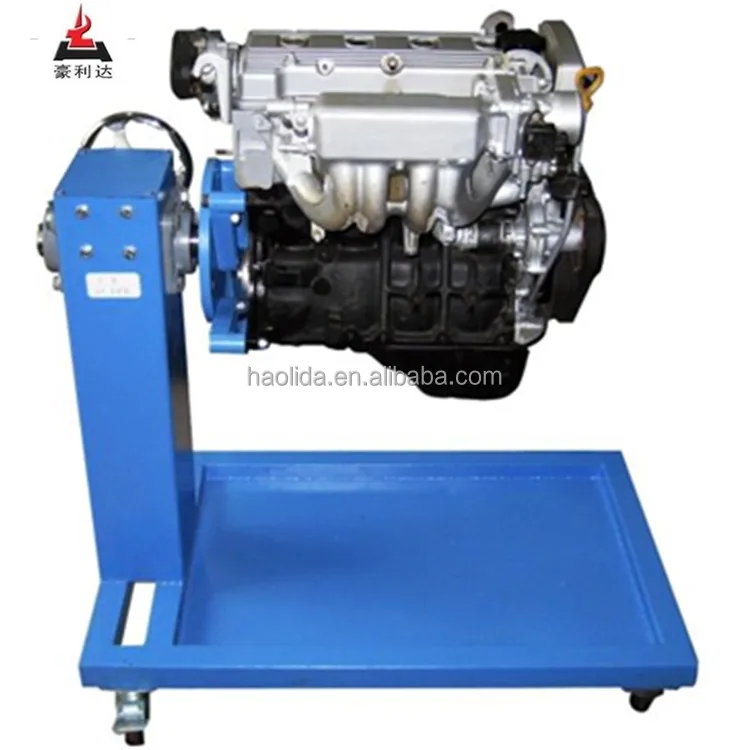

Small Car Engine Repair Stand
General introduction:
1. High-strength worm and worm gear mechanism enable the clamping parts rotate in any direction and self-locked at any angle to facilitate students' multi-angle observation.
2. There is an oil pan at the bottom of the engine stand to facilitate the storage of small parts and collect the oil during disassembly and assembly.
3. Affordable weight up to 1T.
4. Steel painted pedestal with swivel castors for freedom movement.
Technical parameter:
Model no | FCJ-3 |
Worm and gear reducer ,velocity ratio | 1:60 |
Output shaft torque | ＞3500N.m, can rotation random direction, adopts hand wheel to rotate, rotate flexible |
Chassis and stand column | The national standard Q235A steel was adopted and welded and processed, and the sheet thickness was more than 5mm. The surface is treated by high temperature spraying, the paint is not easy to fall off |
Castors | Adopts iron core polyurethane and high-strength universal casters, specifications: φ125X50, internal roller-type bearings, single wheel can afford more than 400kgs |
Dimension | 1120*750*850mm (LxWxH), Stand column height:690mm |
Oil collect plate | Size: 865*670*100mm, material is stoving varnish, used to collect tools, screws, bolts and collect oil. |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance be paid before delivery |
Delivery time | 15 days after receiving downpayment |
Packing sizes | Export plywood case |
Why Choose us:
1.32 years' design,development and produce experience
2.Professional R&D team
3.Strict QC
4.A good pre-sale and after-sale service
5.Can design and make according to customer's requests
