voip product gsm sim box gateway goip 4 port sms device server
- Категория: VoiP продукты >>>
- Поставщик: Skyline,(Shenzhen),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 187.0 $* | 191.45 $* |
| Jul-18-2025 | 151.64 $* | 154.84 $* |
| Jun-18-2025 | 184.37 $* | 188.53 $* |
| May-18-2025 | 182.85 $* | 186.62 $* |
| Apr-18-2025 | 146.52 $* | 149.27 $* |
| Mar-18-2025 | 179.13 $* | 183.51 $* |
| Feb-18-2025 | 178.29 $* | 182.57 $* |
| Jan-18-2025 | 176.84 $* | 180.9 $* |
Характеристики
voip product gsm sim box voip gateway goip 4 port sms gateway device sim server goip4
Contact
Contact me for user manual and price list of GOIP1,4,8,16,32.
Simonskype: skylinesimon
telegram: @Myfriendsimon
whatsapp/wechat: +8618825043723
whatsapp/wechat: +8618825043723
Product Description
4 Channel GSM Gateway
Our GoIPs come with all the common network, VoIP, and GSM features and they have been widely tested for compatibility, stability, and reliability. In addition, we’ve developed our proprietary Remote SIM technology for SIM card management without inserting SIM cards to GoIPs. Together with the SMS Server and SIM Sever, you can now build your own system for voice traffics between VoIP and GSM or a SMS Messaging system based on your application requirements. In addition, each GoIP is equipped with a Remote Control client which enables a secure remote access method for technical support and GoIP management. All of the above features are available at no additional charges.
Our GoIPs come with all the common network, VoIP, and GSM features and they have been widely tested for compatibility, stability, and reliability. In addition, we’ve developed our proprietary Remote SIM technology for SIM card management without inserting SIM cards to GoIPs. Together with the SMS Server and SIM Sever, you can now build your own system for voice traffics between VoIP and GSM or a SMS Messaging system based on your application requirements. In addition, each GoIP is equipped with a Remote Control client which enables a secure remote access method for technical support and GoIP management. All of the above features are available at no additional charges.
Key Features
--Multiple GoIP4 grouping mode
--Provide4 cellular channels for IP-PBX
--Open Standard VOIP Protocols(ITU H.323 V4 & IETF SIP V2)
--Single or Multiple Server Registrations
--Two 10/100 Ethernet circuits connect to the LAN and an additional device
--GSM module for making GSM calls
--Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
Goip Gateway
--Provide4 cellular channels for IP-PBX
--Open Standard VOIP Protocols(ITU H.323 V4 & IETF SIP V2)
--Single or Multiple Server Registrations
--Two 10/100 Ethernet circuits connect to the LAN and an additional device
--GSM module for making GSM calls
--Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
Goip Gateway
Basic Features
--LEDs for Power, Ready, Status, WAN, PC, GSM
--Call forward from GSM to VOIP and VOIP to GSM
--Dial in mode or dial out mode only
--Dial Plan
--Password protection for both GSM dial in or dial out
--Retransmit GSM Caller ID to VOIP terminal
Goip Gateway
Enhanced Features
--Dynamic selection of codec
--Advanced jitter buffer
--Automatic traversal of NAT and firewall
--VLAN / Qos
--Router
--Echo cancellation for Speakerphone
--Comfort noise generation (CNG)
--Voice activity detection (VAD)
--Auto provisioning (requires auto provisioning server)
--On line firmware upgrade
--Multi-language support: English and Chinese
--LEDs for Power, Ready, Status, WAN, PC, GSM
--Call forward from GSM to VOIP and VOIP to GSM
--Dial in mode or dial out mode only
--Dial Plan
--Password protection for both GSM dial in or dial out
--Retransmit GSM Caller ID to VOIP terminal
Goip Gateway
Enhanced Features
--Dynamic selection of codec
--Advanced jitter buffer
--Automatic traversal of NAT and firewall
--VLAN / Qos
--Router
--Echo cancellation for Speakerphone
--Comfort noise generation (CNG)
--Voice activity detection (VAD)
--Auto provisioning (requires auto provisioning server)
--On line firmware upgrade
--Multi-language support: English and Chinese
Specifications
--Processor: ARM9E 133MHz
--DSP: VPDSP101 196MHz
--Memory: RAM 16MB/ Flash 4MB
--GSM Module:850/900/1800/1900MHz
--Power: Input AC100V ~ 240V, output DC12V/2A+-10%
--Power consumption: 32W maximum
--Network card: 100/10Base-T x2
--LED: Operation and lines light
--GSM Passway:4
--Operating temperature: 10°C to 40°C (32°F to 104°F)
--Storage temperature: 0°C to 50°C (32°F to 122°F)
--Working Humidity: 40% ~ 90% Not congealed
--Weight: 1203 g (1 lb) (Including AC/DC Adapter)
--Warranty: one year
--DSP: VPDSP101 196MHz
--Memory: RAM 16MB/ Flash 4MB
--GSM Module:850/900/1800/1900MHz
--Power: Input AC100V ~ 240V, output DC12V/2A+-10%
--Power consumption: 32W maximum
--Network card: 100/10Base-T x2
--LED: Operation and lines light
--GSM Passway:4
--Operating temperature: 10°C to 40°C (32°F to 104°F)
--Storage temperature: 0°C to 50°C (32°F to 122°F)
--Working Humidity: 40% ~ 90% Not congealed
--Weight: 1203 g (1 lb) (Including AC/DC Adapter)
--Warranty: one year
How to use
Applications
The concept diagram above shows a simple VoIP network for call center application. It consists of a softswitch /IP PBX and VoIP clients such as an IP phone, a call center operator, and GoIPs. All VoIP clients are configured to register to the softswitch/IP PBX. For the GoIPs, each GSM channel is inserted with a valid SIM card in order to access the GSM network. Both incoming and outgoing calls between the VoIP and GSM/PSTN networks can now be realized.

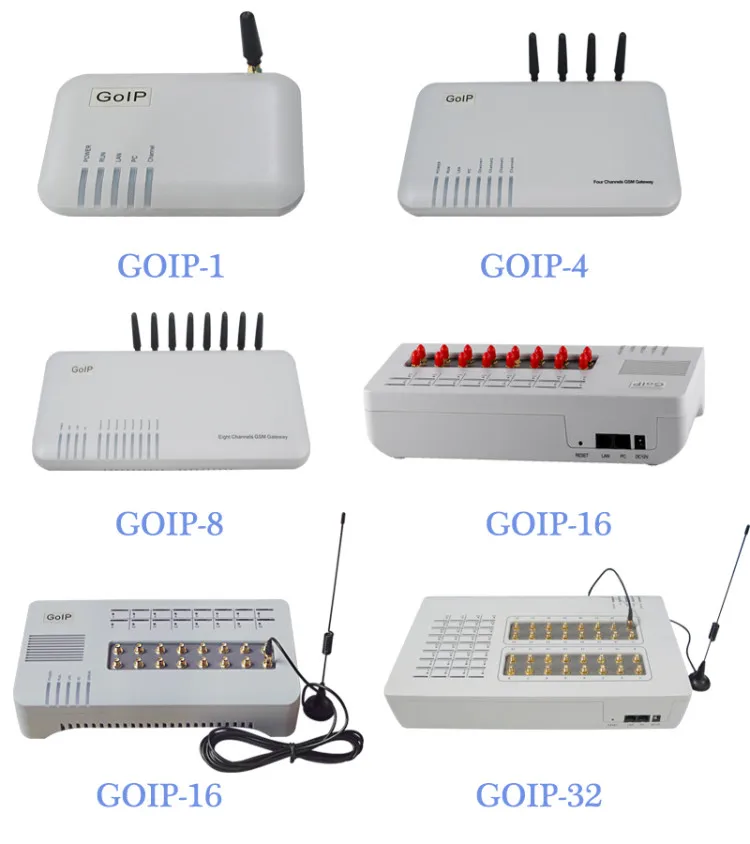

Series Products
Other devices we provide:
Packaging & Shipping
FAQ
1. What is a GoIP?
GoIP is the short name for GSM Gateway of VoIP. It is intended to bridge VoIP calls to GSM and GSM calls to VoIP. It is similar to a FXO gateway except that it is using the GSM network instead of the traditional PSTN network.
2. What are the advantages of GoIP over FXO gateways?
In principle, GoIP can achieve all the functions that an FXO gateway can do with additional values listed below.
a) With GSM costs getting lower and lower in many countries, it make more sense to use GSM for call termination rather than traditional PSTN lines. With GSM, there are no expensive charges and long waiting period for installation/reallocation.
b) You can change the phone and service provider by just changing the SIM card.
c) Text messaging via GSM SMS is powerful for developing other applications.
d) You can build your own telephone network easily.
3. Is GoIP legal?
Depending on your country policy, GoIPs may be considered illegal and you could be penalized if you import or use this type of products. Please check with your local authority for further information.
4. Is GoIP certified by a test lab for international standards?
We have tested our GoIPs in house for compliance with international standards. We can offer CE Conformity Declaration for the purpose of importation. Please contact our sales for a copy if required.
GoIP is the short name for GSM Gateway of VoIP. It is intended to bridge VoIP calls to GSM and GSM calls to VoIP. It is similar to a FXO gateway except that it is using the GSM network instead of the traditional PSTN network.
2. What are the advantages of GoIP over FXO gateways?
In principle, GoIP can achieve all the functions that an FXO gateway can do with additional values listed below.
a) With GSM costs getting lower and lower in many countries, it make more sense to use GSM for call termination rather than traditional PSTN lines. With GSM, there are no expensive charges and long waiting period for installation/reallocation.
b) You can change the phone and service provider by just changing the SIM card.
c) Text messaging via GSM SMS is powerful for developing other applications.
d) You can build your own telephone network easily.
3. Is GoIP legal?
Depending on your country policy, GoIPs may be considered illegal and you could be penalized if you import or use this type of products. Please check with your local authority for further information.
4. Is GoIP certified by a test lab for international standards?
We have tested our GoIPs in house for compliance with international standards. We can offer CE Conformity Declaration for the purpose of importation. Please contact our sales for a copy if required.
5. How do I insert a SIM card to GoIP?
Before inserting or removing SIM cards, please remove the power to the GoIP in order to prevent damages to the SIM cards.
Before inserting or removing SIM cards, please remove the power to the GoIP in order to prevent damages to the SIM cards.
The SIM card insertion method for GoIP is different from that for GoIP-4 / GoIP-8. The diagrams below show both insertion methods.
For GoIP, a SIM card is inserted with its cut corner in first and its metal contacts facing down.
For GoIP-4/GoIP-8, a SIM card should be inserted with its cut corner in first and its metal contacts facing up.
For GoIP, a SIM card is inserted with its cut corner in first and its metal contacts facing down.
For GoIP-4/GoIP-8, a SIM card should be inserted with its cut corner in first and its metal contacts facing up.
6. How do I insert or remove a SIM card without powering off the GoIP?
When a GoIP with multiple channels are in operation, it is not a good idea to remove its power in order to insert or remove a SIM card since other channels are affected. It is possible to shut down the power to each GSM channel via its built-in webpage. This page, shown below (for GoIP-4), is located under the Tools menu and the navigation link is "Tools -> MODEL CONTROL". Select the desired GSM channel to be shut down and then click [Save]. You are now ready to insert or remove the SIM card in the selected channel. Once completed, you can then remove the check mark at the selected channel and then click [Save]. The power to the GSM channel is then restored and normal operation is then resumed.
7. Can I send SMS via GoIP?
Yes, you can send SMS via the GoIP's built-in webpage, but it is limited to a single destination (just one GSM number per
message). Please note that the sent SMS is not saved for future review.
8. Can GoIP send bulk SMS?
Sending SMS via GoIP's built-in webpage is limited to a single destination (just one GSM number). For sending bulk SMS, you need to use our SMS Server which is a free Linux based software utility. You can find the SMS Server Installation Manual and Installation Package in the download area of our website.
9. Can GoIP receive SMS?
Yes, GoIP can receive SMS and the last five messages received are kept in the SMS Box regardless of the SMS Mode selected.
10. How do I delete received SMS messages?
You cannot delete received messages in the SMS Box. The latest 5 SMS messages are kept in the SMS BOX in the built-in webpage. Old messages are deleted as new messages come in.
11. What is the maximum number of characters in a SMS message?
The data length of a SMS message is 140 bytes. By default, GoIP is using 7-bit ASCII encoding scheme and this allows 160 characters to be packed in 140 bytes. However, if 16-bit unicode characters are entered, the encoding scheme is changed to 16-bit unicode automatically. The maximum number can be sent is reduced to 70 characters. Please note that the current 7-bit encoding algorithm only supports ASCII characters (excluding control characters).
12. How do I reset a GoIP to its factory defaults?
There are two ways to reset a GoIP to its factory defaults.
a)Reset configuration can be done manually.
· Connect the power to the GoIP
· Press and hold the RESET button. The RUN LED will then start flashing at a fast rate after around 10 seconds. Wait till the LED
stop flashing. This means that the Reset Configuration is successful.
b)Reset configuration via webpage
· Access the built-in webpage of the GoIP
· Access the Tools menu and the select Reset Config.
· Confirm the rest and then reboot the GoIP
When a GoIP with multiple channels are in operation, it is not a good idea to remove its power in order to insert or remove a SIM card since other channels are affected. It is possible to shut down the power to each GSM channel via its built-in webpage. This page, shown below (for GoIP-4), is located under the Tools menu and the navigation link is "Tools -> MODEL CONTROL". Select the desired GSM channel to be shut down and then click [Save]. You are now ready to insert or remove the SIM card in the selected channel. Once completed, you can then remove the check mark at the selected channel and then click [Save]. The power to the GSM channel is then restored and normal operation is then resumed.
7. Can I send SMS via GoIP?
Yes, you can send SMS via the GoIP's built-in webpage, but it is limited to a single destination (just one GSM number per
message). Please note that the sent SMS is not saved for future review.
8. Can GoIP send bulk SMS?
Sending SMS via GoIP's built-in webpage is limited to a single destination (just one GSM number). For sending bulk SMS, you need to use our SMS Server which is a free Linux based software utility. You can find the SMS Server Installation Manual and Installation Package in the download area of our website.
9. Can GoIP receive SMS?
Yes, GoIP can receive SMS and the last five messages received are kept in the SMS Box regardless of the SMS Mode selected.
10. How do I delete received SMS messages?
You cannot delete received messages in the SMS Box. The latest 5 SMS messages are kept in the SMS BOX in the built-in webpage. Old messages are deleted as new messages come in.
11. What is the maximum number of characters in a SMS message?
The data length of a SMS message is 140 bytes. By default, GoIP is using 7-bit ASCII encoding scheme and this allows 160 characters to be packed in 140 bytes. However, if 16-bit unicode characters are entered, the encoding scheme is changed to 16-bit unicode automatically. The maximum number can be sent is reduced to 70 characters. Please note that the current 7-bit encoding algorithm only supports ASCII characters (excluding control characters).
12. How do I reset a GoIP to its factory defaults?
There are two ways to reset a GoIP to its factory defaults.
a)Reset configuration can be done manually.
· Connect the power to the GoIP
· Press and hold the RESET button. The RUN LED will then start flashing at a fast rate after around 10 seconds. Wait till the LED
stop flashing. This means that the Reset Configuration is successful.
b)Reset configuration via webpage
· Access the built-in webpage of the GoIP
· Access the Tools menu and the select Reset Config.
· Confirm the rest and then reboot the GoIP
