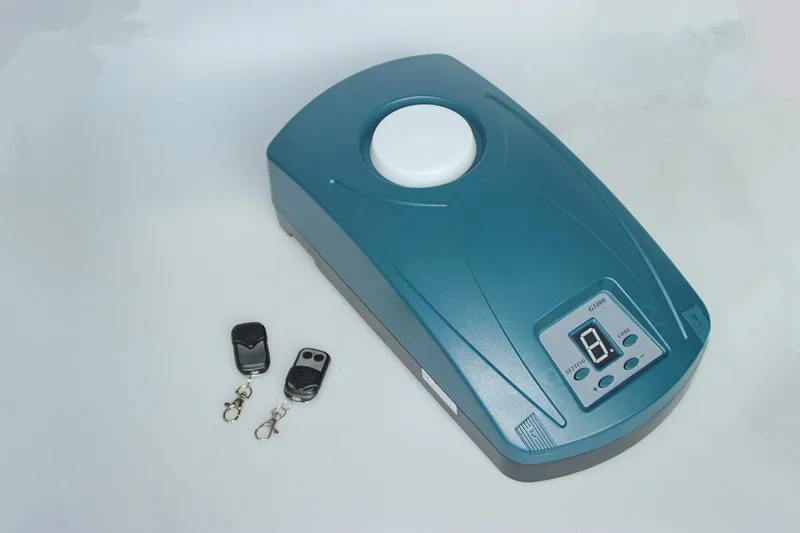

CALIO Series Overhead Sectional Garage Door Opener Motor

Sectional Garage Door Opener

Battery Operated Garage Door Opener

Garage Door Opener

Basic kit                                                                                                                                                 Package

                             :

Features:

1.soft start and soft stop

2.electric limit

3.safety reversing sensor

4.Chain (Belt) drive and super -quiet

5.Enclosure:ABS and pp plastic mateiral ,high stength ---Tougher

6.Manual release handle in case of power failure

7.Two remote controls with 433.92MHZ rolling code

8.Transformer:Including Resettable fuse---Safer

9.Control Board:With 63V capacitors ,resisting high voltage---securer

 Accessories

 -----Photocell for safety purpose

Specification:

Model	CALIO600	CALIO800	CALIO1000
Motor Power	110W 24VDC	154W 24VDC	198W 24VDC
Light Power	10-25W	10-25W	10-25W
Operation speed	120mm/s	120mm/s	120mm/s
Frequency	433.92MHz	433.92MHz	433.92MHz
Standby Power	< 8W	< 8W	< 8W
Ambient Temperature	-25c-50c	-25c-50c	-25c-50c
Max Force	600N	800N	1000N
Headroom Required	30mm	30mm	30mm
Max door height	2.4M	2.4M	2.7M
Max Area	9 M²	12 M²	16 M²
G.W/N.W	15KGS/14KGS	15KGS/14KGS	17.2KGS/16KGS
