Шампунь крем жидкий вакуумный эмульгирующий миксер по заводской

Описание и отзывы

Трекер стоимости

Характеристики

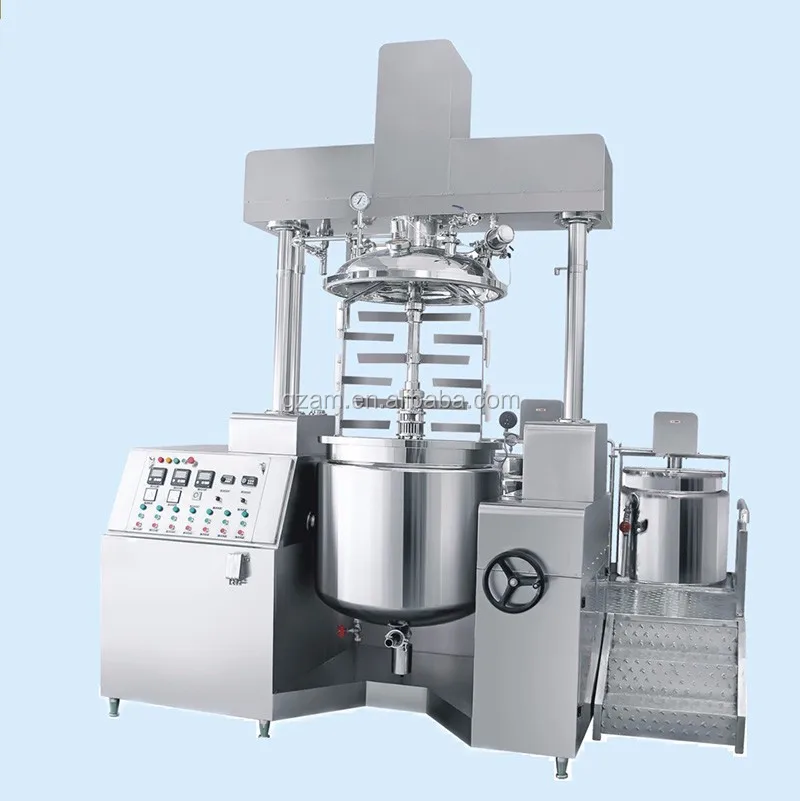

Factory price shampoo,cream,liquid Vacuum Emulsifying Mixer Machine



PERFORMANCE

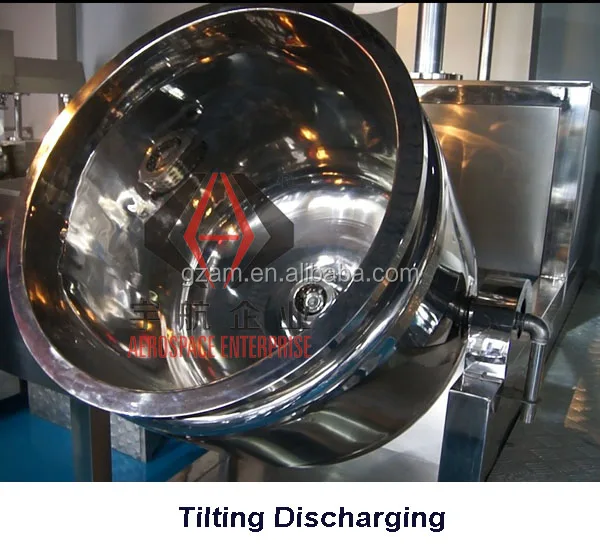

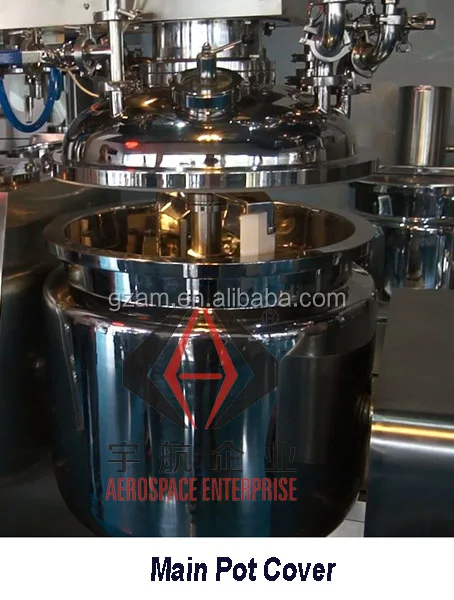

Provided with oil pressure lifting system, which can freely lift and lower the boiler cover and has such functions as boiler tilting

The blending system adopts advanced triple blending and frequency conversion speed adjustment, so ads to satisfy production of different technology requirement

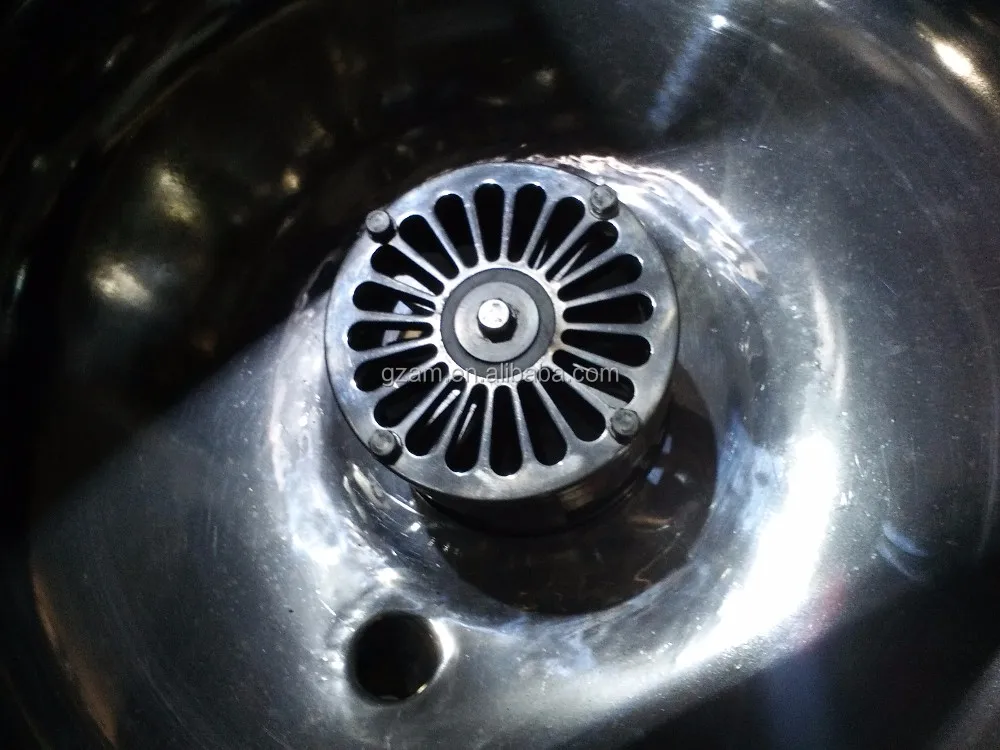

Advanced homogenizer with unique structure and reliable sealing (the mechanical seal adopt Germany Bergman product), and the emulsifying rotation speed of 0-3500 rpm (Taiwan’s Teco frequency debugger)

Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are carried out mirror polishing, which is in complete accordance with GMP standard

The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic. The vacuum sucking material adopted can avoid dust, especially for the powder products

According to technological requirements, the tank can heat and cool the material. The heating method can be chose to steam or electric heating according to customer requirements

The advanced electric control system adopt PLC control, which is equipped with color touch screen to completely supervise the data of material temperature, blending and homogenizing rotation speed and time etc. and print out the above data



TECHNICAL SPECIFIATIONS

Model	YHS-50	YHS-100	YHS-200	YHS-500
Volume of Emulsifying Pot	50 L	100 L	200L	500 L
Vacuum pressure of Emulsifying Pot	-0.09 Mpa	-0.09 Mpa	-0.09 Mpa	-0.09 Mpa
Temperature of Emulsifying Pot	≤120 ℃	≤120 ℃	≤120 ℃	≤120 ℃
Pressure of Jacket	normal pressures	normal pressures	normal pressures	normal pressures
Speed of Scraping Plate Blender	0-83 r/min	0-83 r/min	0-83 r/min	0-83 r/min
Speed of Homogenizer	0-3040 r/min	0-3040 r/min	0-3040 r/min	0-3040 r/min
Voltage	50Hz  380V±10%-15%	50Hz  380V±10%-15%	50Hz  380V±10%-15%	50Hz  380V±10%-15%
