Product introduction

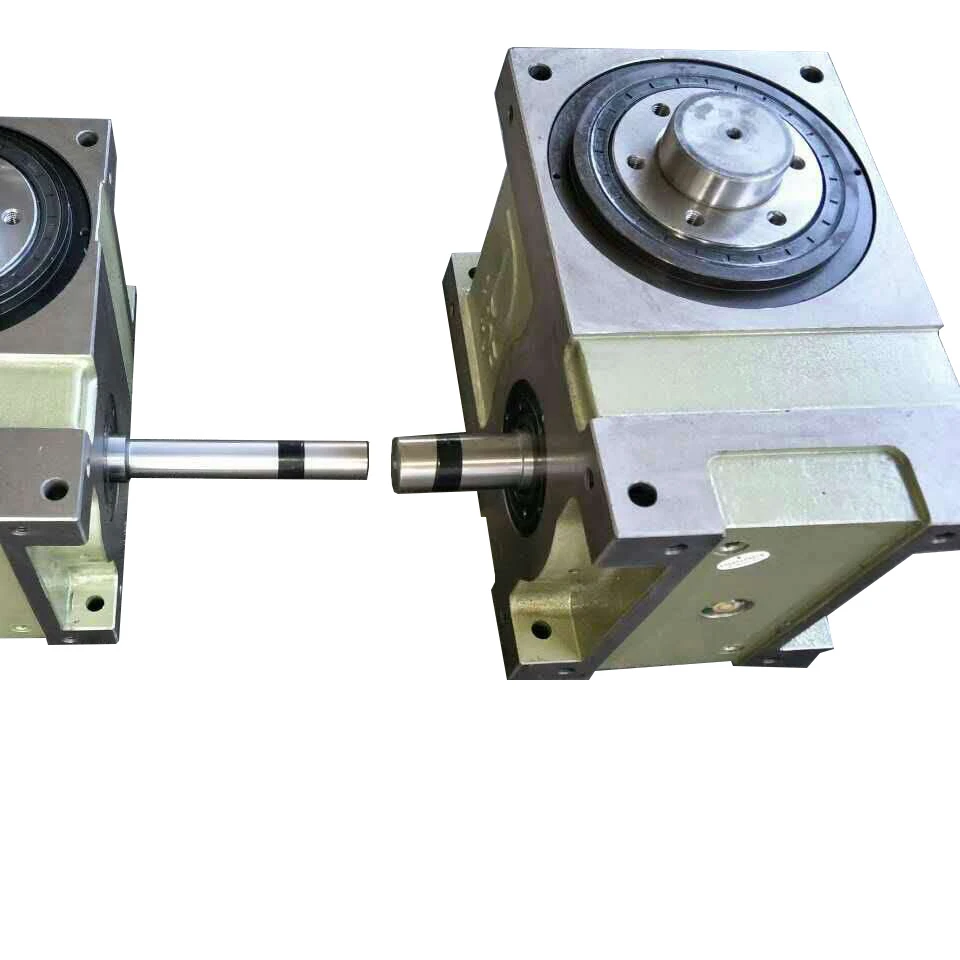

 Cam Index Drives  indexing drive DT seires   is one of the fully-developed table type index drives, which has high rigidity because of the adoption of a wider and lower table in whose canter a tough hollow shaft is employed. This housing is so designed that an attachement can be installed on its sides, therefore, it is most suitable to rotary automatic assemblers, transfer machines and automatic wrappers.



We have various series of products such as DS, DF, DFH, DT, DA, PU etc.

Series

Reference model

DS

45D

60D

70D

80D

83D

100D

110D

140D

180D

250D

DF

45DF

60DF

70DF

80DF

100DF

110DF

125DF

140DF

180DF

250DF

DFH

45DFH

60DFH

70DFH

80DFH

100DFH

110DFH

125DFH

140DF

180DFH

200DFH

250DFH

DT

80DT

110DT

140DT

180DT

200DT

250DT

350DT

DA

90DA

110DA

150DA

PU

PU50

PU60

PU65

PU80

PU100

PU125

PU150

PU175

PU200

PU225

PU250

PU320



Please tell us the parameters you know, and we will recommend the appropriate model for you.



Parameters to be referenced

1. How many stations?

2. Each time the output shaft rotates, what is the rotation angle of the input shaft?

3. What are the revolutions per minute of the input shaft? (       RPM)

4. Disc diameter:        mm;     Thickness:          mm;     Material:

5. Weight of each group of clamps:         kg;    Number of clamps:        groups

6. Weight of each group of workpieces:         kg;    Number of pieces:        Group

7. Diameter of fixed pitch circle of fixture and workpiece:         mm

8. The bottom of the disc is supported:         mm (radius)

9. Conveyor belt spacing:         mm

10. Pitch circle diameter of driving wheel:         mm;   Weight:        kg

11. Pitch circle diameter of driven wheel:           mm;   Weight:       kg;

12. Diameter of transmission shaft:        mm;   Weight:          kg;   Quantity:        PCs

13. Sprocket pitch circle diameter:         mm;   Weight:          kg;   Quantity:        Group

14. Chain weight:         kg;   Quantity:          group;   Length:          mm
