Climate Stryker X8000 Xenon Lamp Testing Chamber






Product Description







Equipment summary:


Xenon ARC Lamp Tester is a comprehensive climate testing machine, can do climatic aging test and


the lightfastness testof  polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidityto test the materials; it can be used for choosing new materials, improving  existing materials, or assessment of change in material composition;





Corresponding standard:
GB12831-86 Vulcanized rubber artificial  climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance  to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing


SQ: Simulation of solar radiation on the ground



Applicable industries of the climatic chamber:


Xenon ARC Lamp Tester applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace,


medical care ... and so on.





Techincal parameterof the climatic chamber:





















































































































Model



ZME-2011



Testing room D×W×H



500*600*500mm



Index



Temperature range



RT+10°C~80°C



Humidity range



65% to 98%R·H



Spray time



1 to 9999min, abjustable



Spray cycle



1-240min, interval adjustable



spectral wavelength



290nm to 800nm (550w/m2)



light source



Full spectrum xenon lamp (air-cooled)



Xenon lamp power



2.5 kw  (longevity: 1600H)



Control


system



Time controller



Import controller from Moeller



Accourate range



Temperature: ±0.1 degree / humidity: ±0.1R·H



Sensor



Platinum resistance  Pt 100Ω/mv



Heating system



Independent system, nickel chromium alloy electric heating type heater



Humidity system



stainless steel, external Isolated humidifier



Blackboard temperature



Bimetal thermometer blackboard 55~75 degree



Water supply



Humidification water supply with automatic control, xenon lamp cooled by water recycling



Temperature controller



Import controller



humidity



Irradiation: 30%~65%RH darkly: up to 90%RH



Cycle system



 low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel



Material



Outside material



Advanced spray color plate /SUS304 stainless steel



Inside material



SUS304 stainless steel



Sample holder material



SUS304 stainless steel



insulation



High and low temperature aging of silicone rubber



Standard



a set of radiation-proof glass window,  dynamic testing sample shelf 1, xenon lamp tube 2



Protector



Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection.



Power



AC380V±10% 50±0.5HZ , Three-phase five-wire system



Working environment



±5+30 ≤85%R·H

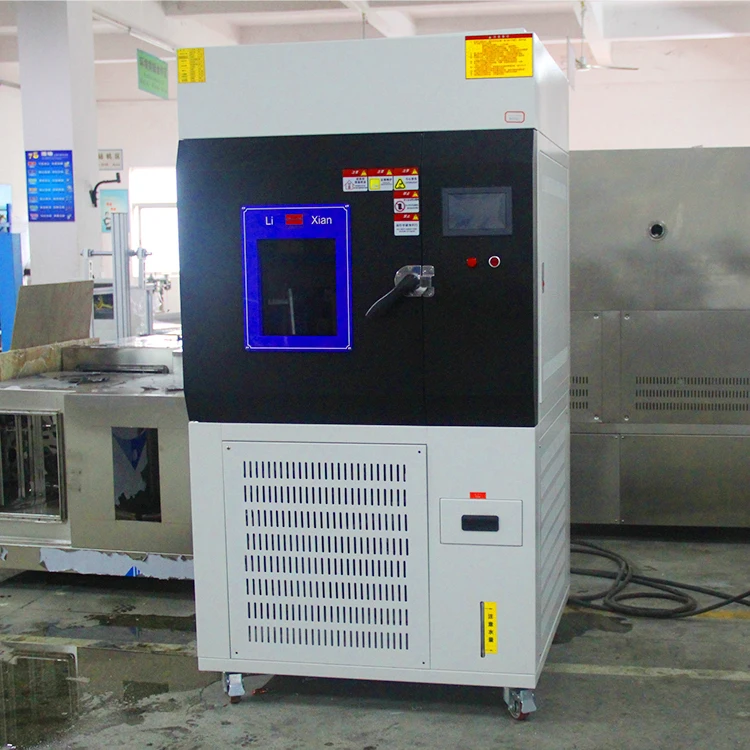

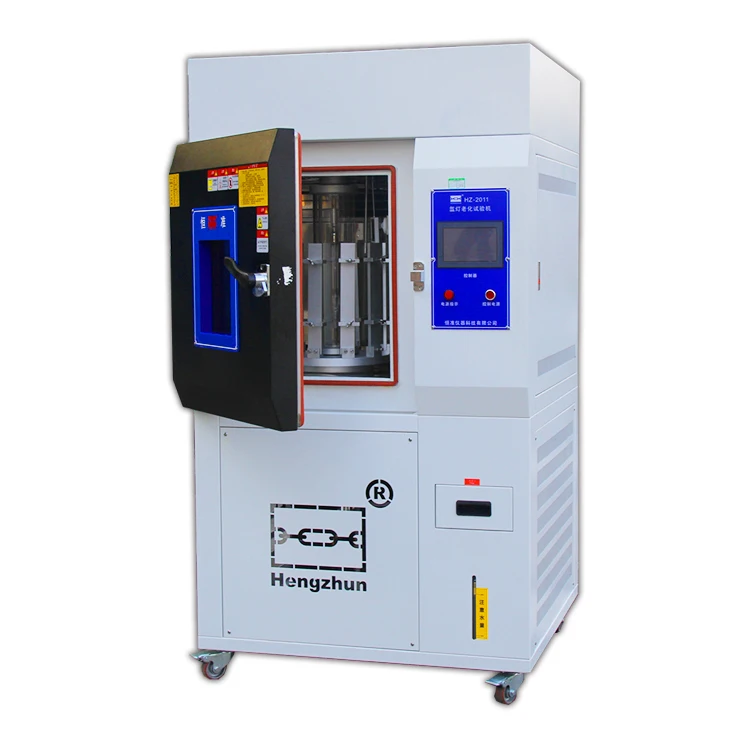

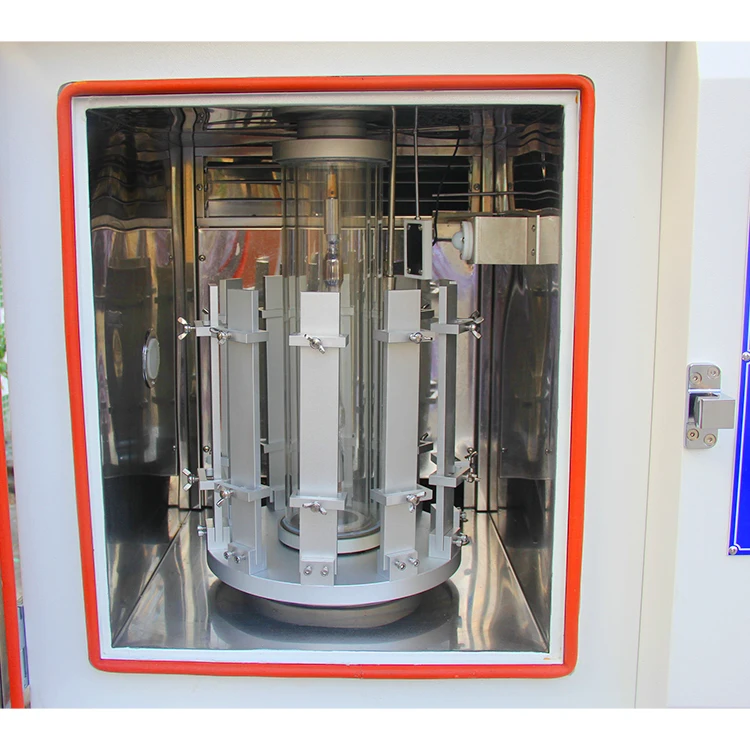

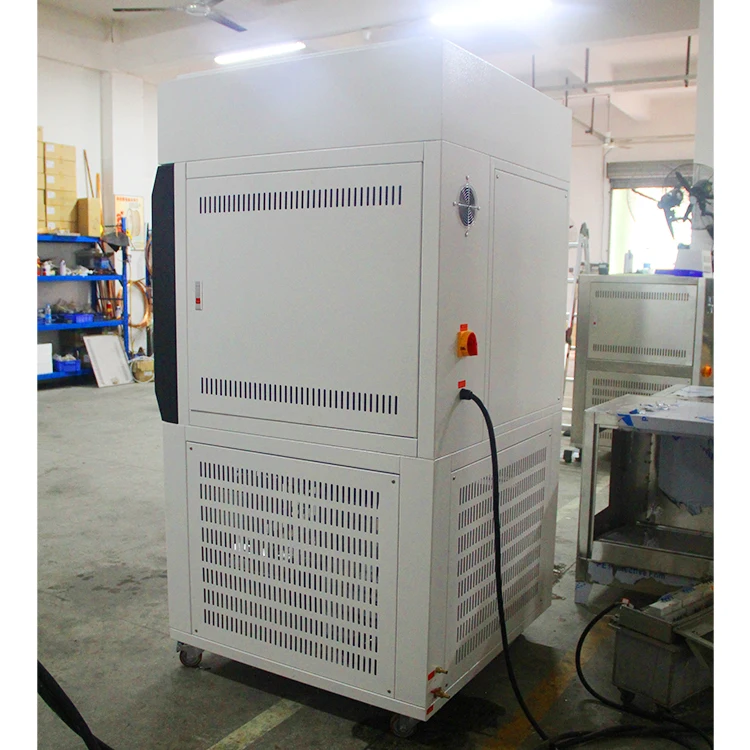

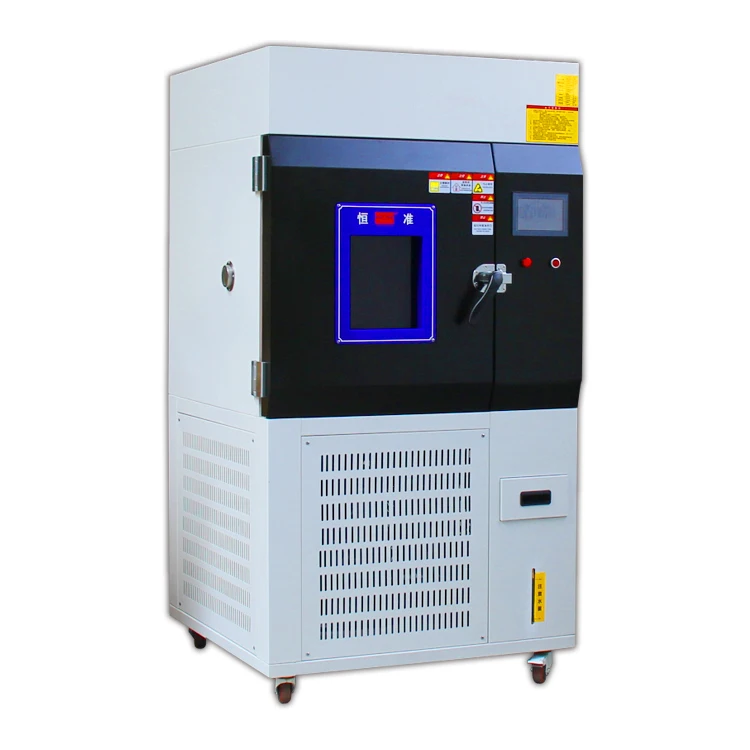

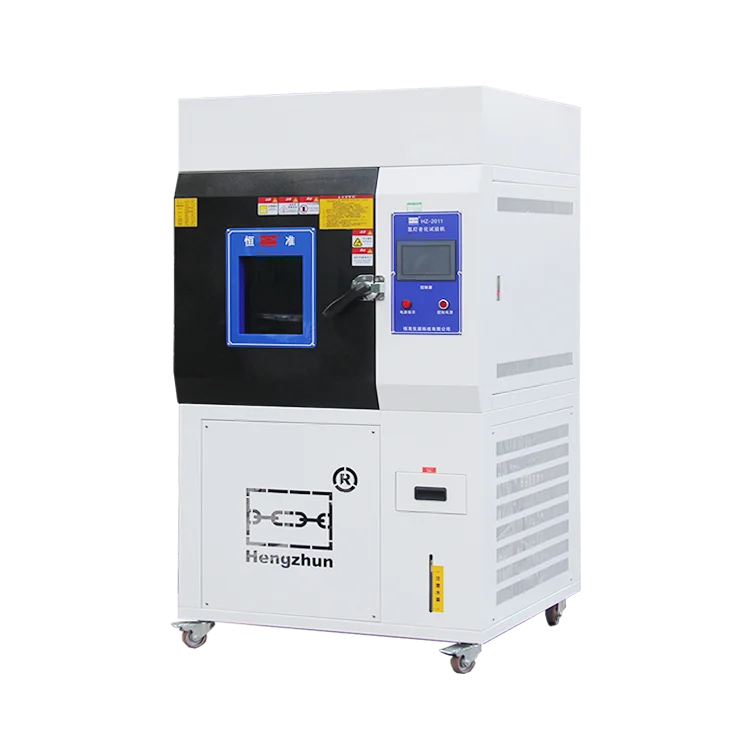

Detailed Images





















Company Information


5





6





789





FAQ







     Q1: What is your warranty ?


        A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be                            provided if any performance failure occurs within 12 months caused by non-human damage.





        Q2: How-to vedio provided ?


         A: Yes. if required, our engineers will record a specialize how-to video for you.





        Q3: Are your company a trading one or a factory?


         A: Yes, we are a manufactured factory* trade (integration).15 years focusing on test instruments field. 6 years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.





        Q4: After an order is placed, when to deliver?


         A: Generally about 25 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.





         Q5: What about the after-sales service and product’s quality?


          A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support.and help customer solve problems encountered while using our product, handies guest problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be go abroad to training, repair and others help you need.





       Q6: what about the packing of equipment?


         A: Covered with air bubble film before put the machine into the stanard exporting wooden case, which not only has good shock absorption, impact resistance, heat sso has the advantag- es of nontoxic, odorless, moisture corrosion, good transparency etc.
