Металлическая Прорезная машина keyway по низкой
- Категория: Рубанок и долбежные станки >>>
- Поставщик: Zaozhuang,DS,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.54 $* |
| Aug-16-2025 | 0.24 $* | 0.87 $* |
| Jul-16-2025 | 0.12 $* | 0.54 $* |
| Jun-16-2025 | 0.47 $* | 0.33 $* |
| May-16-2025 | 0.4 $* | 0.84 $* |
| Apr-16-2025 | 0.75 $* | 0.93 $* |
| Mar-16-2025 | 0.22 $* | 0.24 $* |
| Feb-16-2025 | 0.21 $* | 0.88 $* |
| Jan-16-2025 | 0.77 $* | 0.26 $* |
Характеристики

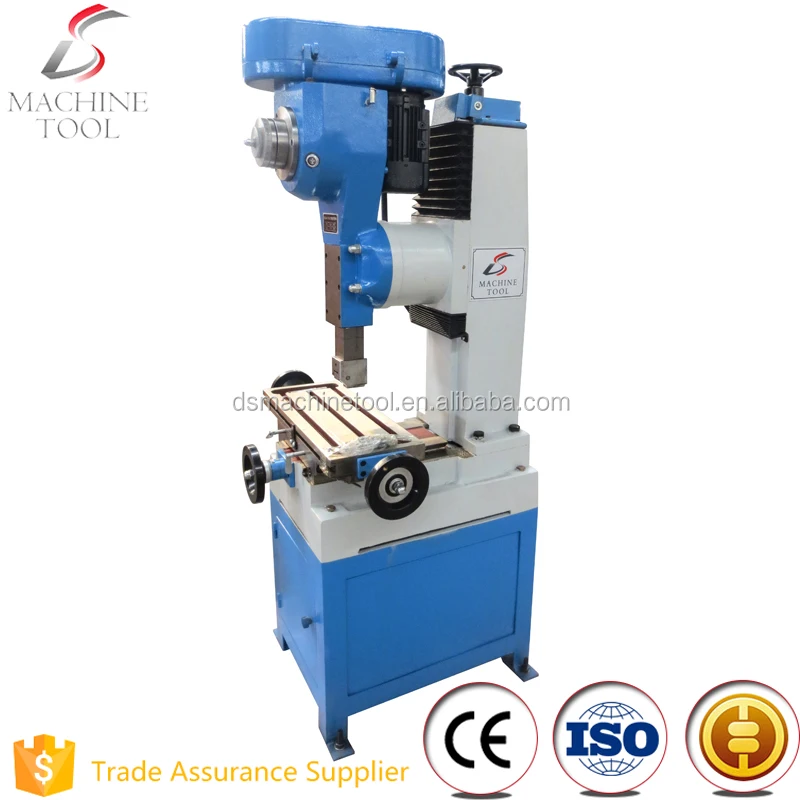

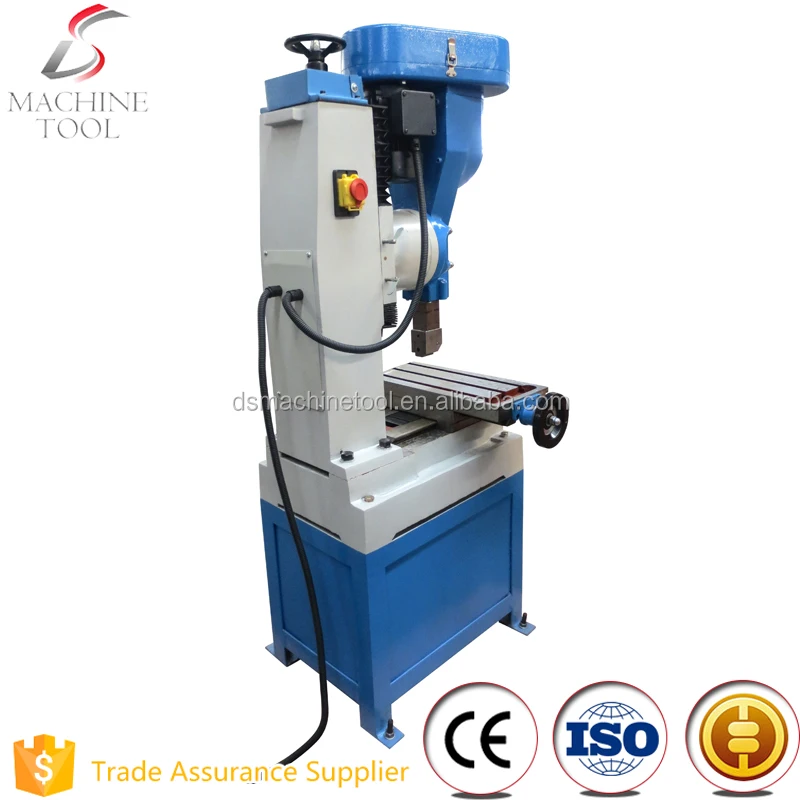

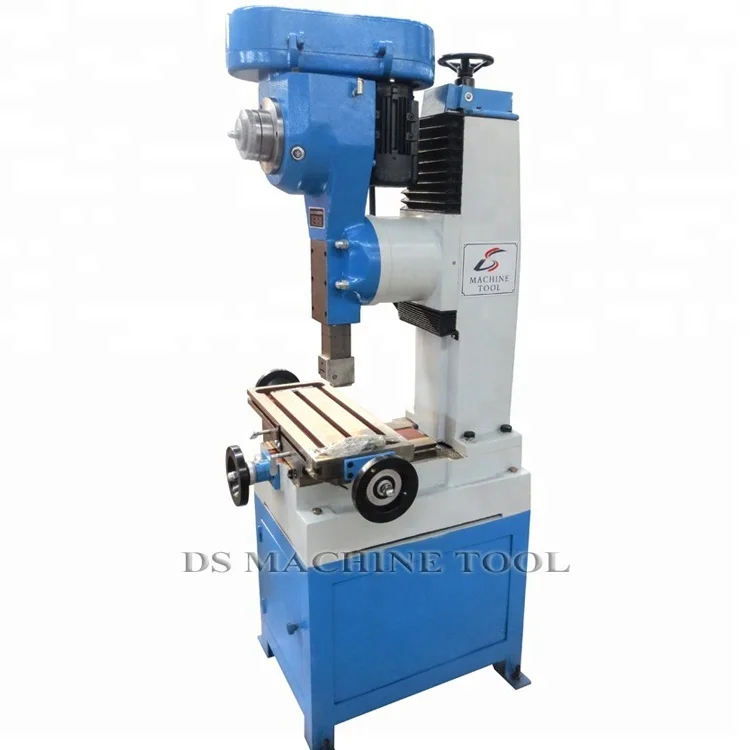

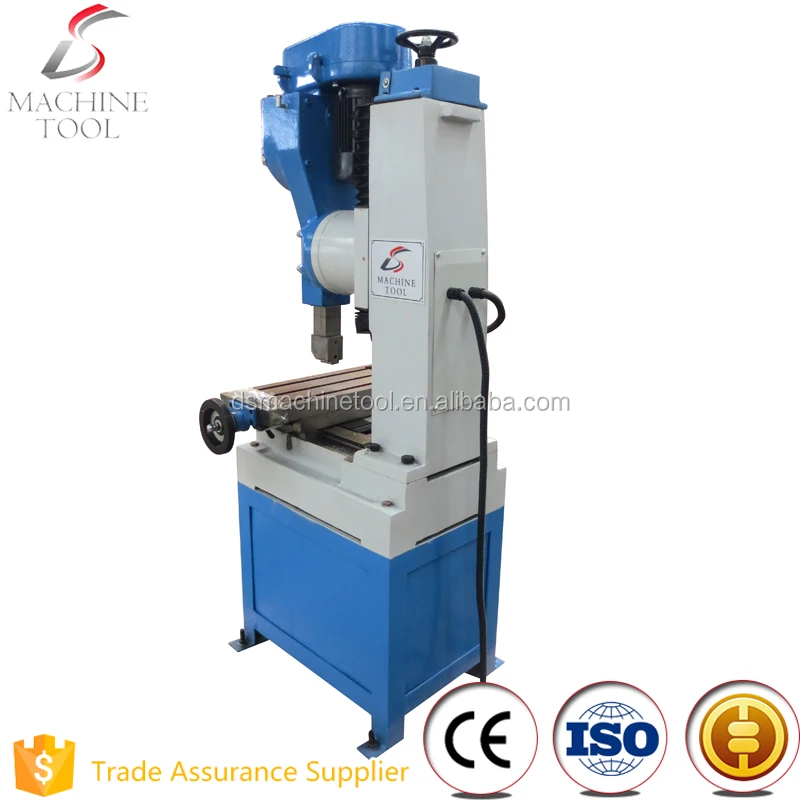

Metal keyway Slotting Machine cheap price
Model | Parameter | ||
HT100 | HT125 | ||
The biggest slotting(mm) | 100 | 125 | |
Minimum number of stroke (times/min)) | 60 | 60 | |
Maximum stroke times (times/min) | 350 | 350 | |
The spindle speed | 6 | 6 | |
For the turning Angle of rest | 90 | 90 | |
Table size (mm) | 500*200 | 500*200 | |
Table travel (mm) | 200*150 | 200*150 | |
The motor power (W) | 250 | 370 | |
Overall dimensions (mm) | 750*750*1550 | 750*750*1550 | |
The net weight/gross weight (Kg) | 236/286 | 243/293 | |
Installation dimensions | T bolt dividing circle (mm) | 150 | 150 |
For the turning Angle of rest | 360 | 360 | |
T bolt size (mm) | M12X80 | M12X80 | |
Note: the installation size is only for choice, other size can also order according to user requirements. | |||
