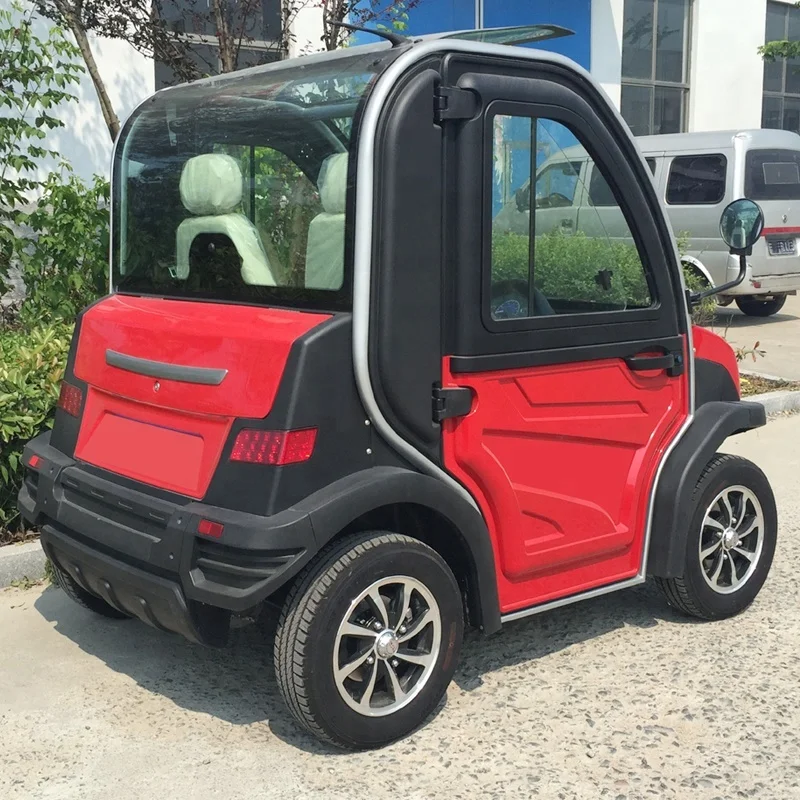

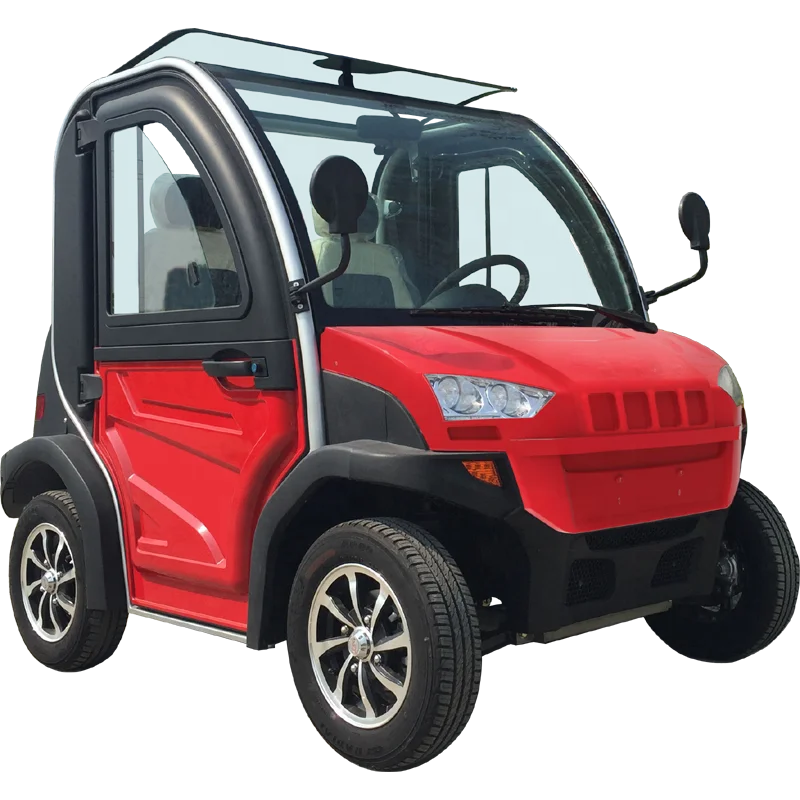

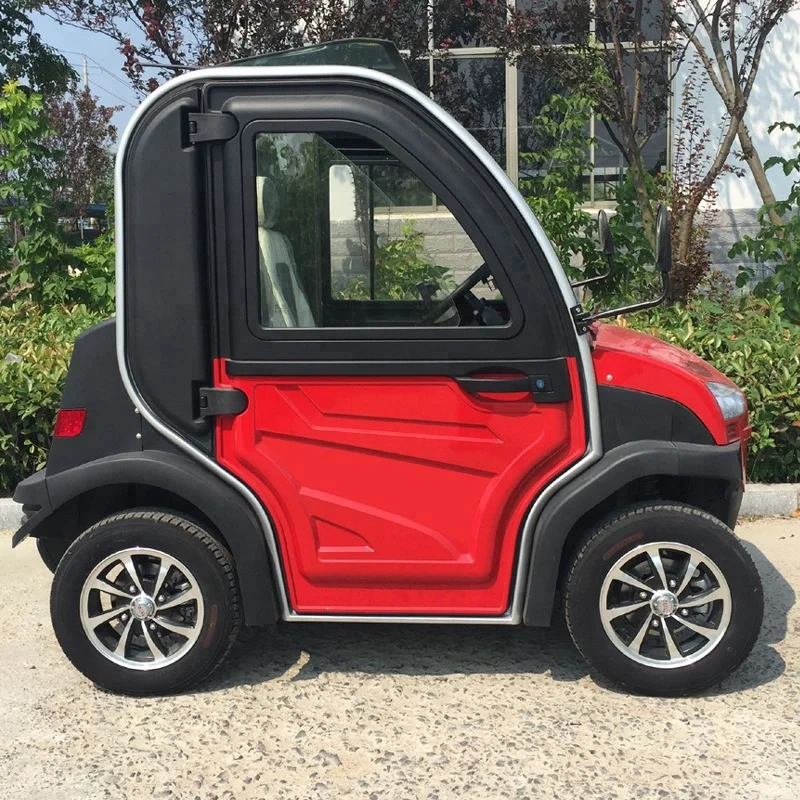

Model LS9020KF is a 2 Seater Chinese Mini Electric Car. It can be nice city car.
SPECIFICATIONS OF 2 Seater Chinese Mini Car LS9020KF
Key Components
Controller
Curtis Brand
Motor
4KW AC motor
Battery
5pcs, 12V100AH Lead Acid Battery
Performance
and
Dimensions
Passenger Capacity
2
Range (Loaded) *
80-100kms
Max.speed
40km/h
Min. Turning Radius
3.8m
Max. Gradeability
20%
Max. Loading Weight
150kgs
Net Weight
560kgs
Overall Dimensions
2050X1380X1620mm
Body and Frame
Frame (Chassis)
Welded steel framework, with anti-rust treatment of sand blasting and painting
Body
PP, PC and ABS
Windshield
Laminated glass, with wiper
Body Frame
Steel, integral frame structurer
Seat
High back seat
Floor
Anti-slip rubber floor mat

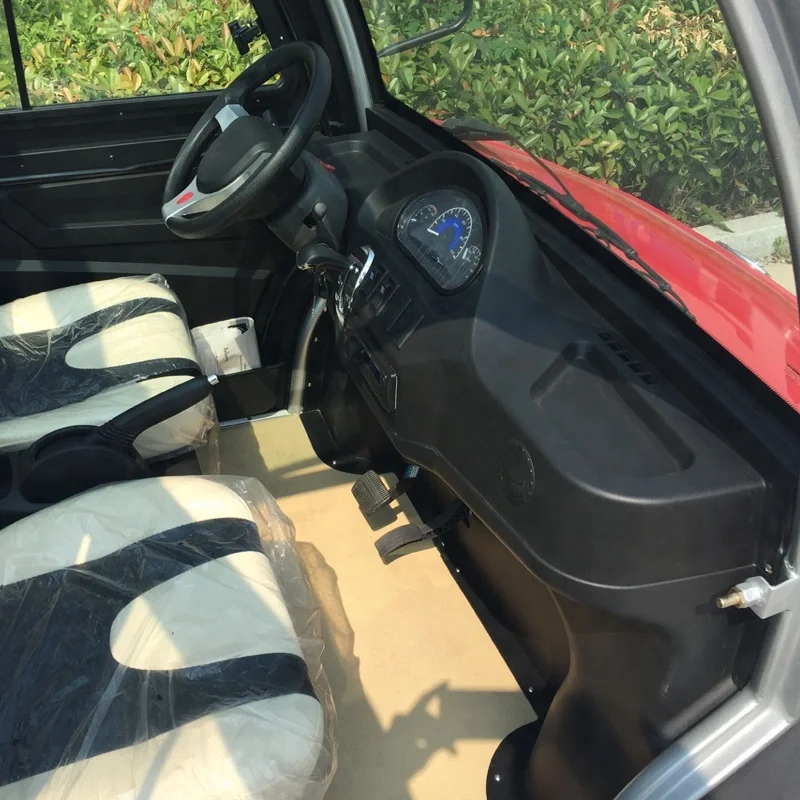

Dashboard
FRP, with F/R Switch, Emergency Stop Switch, Digital Meter
Side trim
Aluminum alloy
Sider mirror
2pcs, foldable
Electric System
Lighting system and horn
2 headlights, 2 front turn signals, 2 brake light, 2 rear turn signal, 1 reverse light, 1 rear fog light, with voltage reducer (converting from 48V to 12V), electric horn.
Digital Meter
With battery power meter, amperemeter, voltmeter, speedometer, odometer, time, F/R indicator, turn signal indicator
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
4 wheel hydraulic disc brake, hand park brake
Accelerator
Stepless speed change
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio12.49:1
Suspension system
Front independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber
Wheel & Tyre
4J*12 Aluminum rim & 145/70R12C 8PR Tire
Packing & Delivery
Packaging
Container Size
Assembled
Disassembled
20'ft Container
2
/
40'GP Container
8
/
40'HQ Container
9
/
Packing Method
Assembled, nude packing
Certifications
Our Company
More than 12 years experiencein electric vehicle business
The partners of Suzhou Lexsong have been in electric vehicle business for more than 12 years, can provide valuable suggestion and support to your purchasing and your business.
3 Production Lines with Production Capacity of 15000 units yearly
Our factory has 3 production lines, one line for golf carts and its variants; one line is personal carrier, sightseeing bus and their variants; one line is for various customized vehicles
Our electric vehicles have been exported to more than 40 countries around the world
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
10 Categories 100 models for different applications
We have 10 different categories and more than 100 models for different applications, golf cart, utility cart, personal carrier, sightseeing car, electric truck, garbage truck, fire truck, etc. Moreover, we customize electric vehicles as per customer's request at reasonable cost, short lead time and high quality.
Our Service
12+ Years EV Expertise
The partners of Suzhou Lexsong has more than 12 years experience in electric vehicles. With that expertise, we can help you grow your business
Life-time Spare Parts Supplies
In the life-time of the vehicles or maximum within 5 years we stop the production of any model, we still supply the spare parts for after service.
One Year Warranty
We provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
Flexible Payment Terms
We offer different payment terms to different customers according to customer's special request, in order to support your business.
18x7x360 Technical Support
We provide technical support by phone or email, in 360 days a year, 7 days a week and 18 hours a day.
Main Categories
Electric Golf Cart
Personal Transport Vehicle
Electric Shuttle Bus
Electric Industrial Vehicle
Electric Car
Special Vehicles
FAQ
Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
