Magnetic magnetic water flow switch



A.[Features of magnetic water flow switch]



Widely Application of electronic water pump flow switch

Suitable for various fluid ,concise and direct indicator;



High Quality and longer working life

The magnetic water flow switch with stainless steel material sensor and high quality chips;



Superior performance of magnetic water flow switch

 The magnetic water flow switch with lower pressure loss,various reply type and switch value can be adjusted;



Precise Design

The flow switch with much small diameter ,no movable parts and easy installation.



B.[Parameters]

magnetic water flow switch---Basic Production Information
Set Range	1…150cm/s( water),3…300cm/s(oil),20…2000cm/s(air)
Output	PNP, NPN, Relay ,4-20mA, NO+NC (SPDT)
Power Supply	24V±20%DC or 230V±15%AC
Switching Current	Max.400mA(PNP or NPN type ), Max.4A( Relay type )
Unload Current	Max.80mA

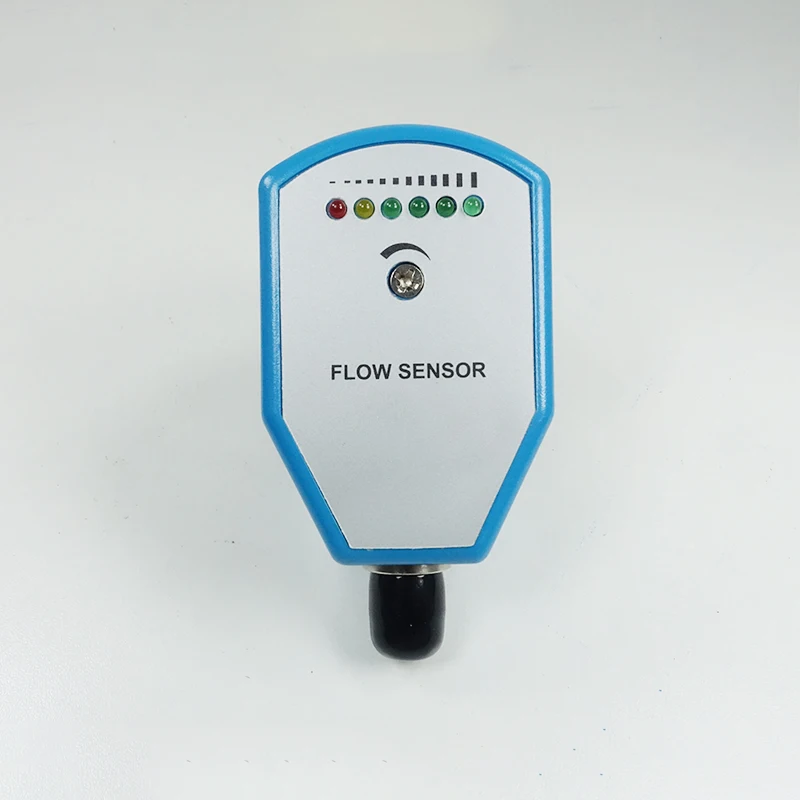

Flow Indicator	LED (6)
Set Type	potentiometer set
Proof Pressure Range	100bar
Temperature Gradient	4℃/s
Response Time	1--13s,standard is 2s
Initialization time	8s
Electrical protection	reversed-phase , short circuit ,overload protection
Protection Class	IP67
Medium temperature	-20~80℃
Enviroment temperature	-20~80℃
Storage temperature	-20~100℃
Connection	M12 connector /2m cable (option)

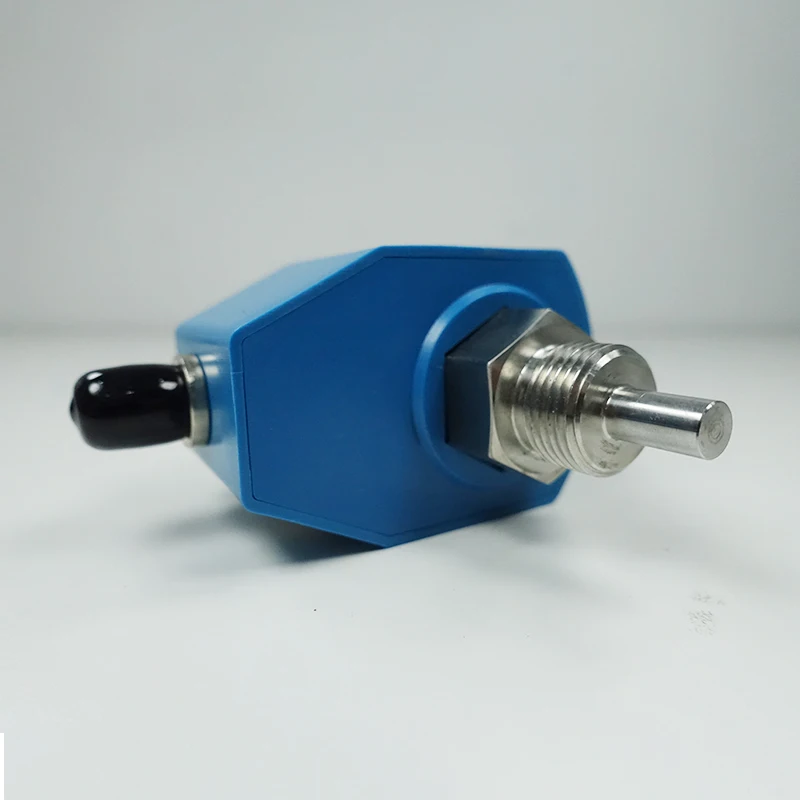

Material	Probe is stainless steel . Housing is PBT .

C.[Installation]

  When mounted vertically , it should install on the tube which flow direction is from the bottom to the top . When mounted horizontally , the probe should avoid air and sediment .

D.[Connection]
