3G 4G LTE видео Hdmi кодер H.265/H.264 для прямой трансляции поддержка SRT RTMPS HTTP RTSP RTMP UDP
- Категория: Оборудование для радио и ТВ >>>
- Поставщик: Shenzhen,Uray,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 488.95 $* | 512.25 $* |
| Aug-17-2025 | 484.81 $* | 508.27 $* |
| Jul-17-2025 | 406.70 $* | 426.19 $* |
| Jun-17-2025 | 476.77 $* | 500.53 $* |
| May-17-2025 | 414.61 $* | 435.52 $* |
| Apr-17-2025 | 467.10 $* | 490.51 $* |
| Mar-17-2025 | 463.97 $* | 486.3 $* |
| Feb-17-2025 | 459.67 $* | 482.79 $* |
| Jan-17-2025 | 455.95 $* | 478.13 $* |
Характеристики
Overview
URaytech video encoder(Model No. UHE265-1WB-4G) is a HD audio and video encoding device with powerful functionality. It supports HDMI(audio build-in) and external stereo audio(3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. It enable you to choose 4G LTE or 3G or WIFI or LAN port to transmit the video stream. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.
If you input external audio, you can choose HDMI embedded audio or external audio as output audio.
We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.
All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.
Typical Connection
1). For Live Streaming Online Connection
2). For Multi-purpose Connection
3). For IPTV Project Connection
The Feature
• Embedded HiLinux system, stable and effective
• Support wide area network remote management(via port forwarding)
• Support HEVC /H.265 and MPEG-4 /H.264 AVC and MJPEG video encoding for selection
• Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection
• The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)
• Support SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol
• Support insert image, logo, text, roll text, time on the output video stream
• Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)
• Support different protocol transmission for the 4 output video streams
• Support choose HDMI embedded audio or external audio as output audio
• Support upgrade device by upgrading new firmware
• Support configure the encoder via webpage or APP
• Support 3G(TD-SCDMA) or 4G(FDD LTE/TDD LTE)
• Support hot shoe mount at camera
• Support external SONY battery F550, F750, F970 for selection
• Support 2.4G WIFI and 5G WIFI
• Support connect to spare WIFI automaticlly when WIFI signal lost connection
• Provide SDK and API and CGI for secondary development
• Support brightness, contrast, hue, saturation setting on output displayed video
• Network interface full-duplex mode with 1000M speed
• Support HDCP and HD blue-ray
• English webpage operating interface, language is customizable
• A click to restore the default configuration
• Stable and effective, support 7 x 24h working time
• Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack
• Provide many kinds of customization(logo print, language customization, firmware or function customization etc)
• Multi platforms live streaming
This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, up to 4 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.
• Multi type video stream URL play
Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.

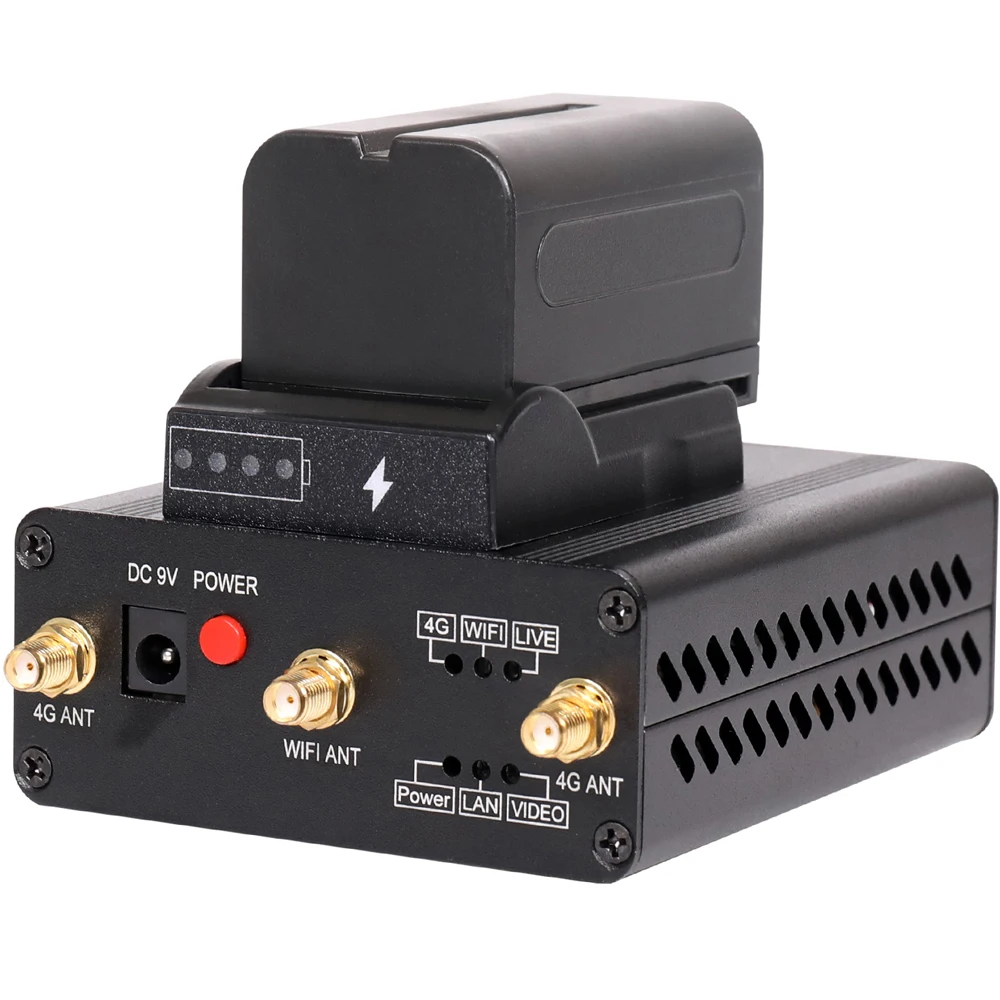

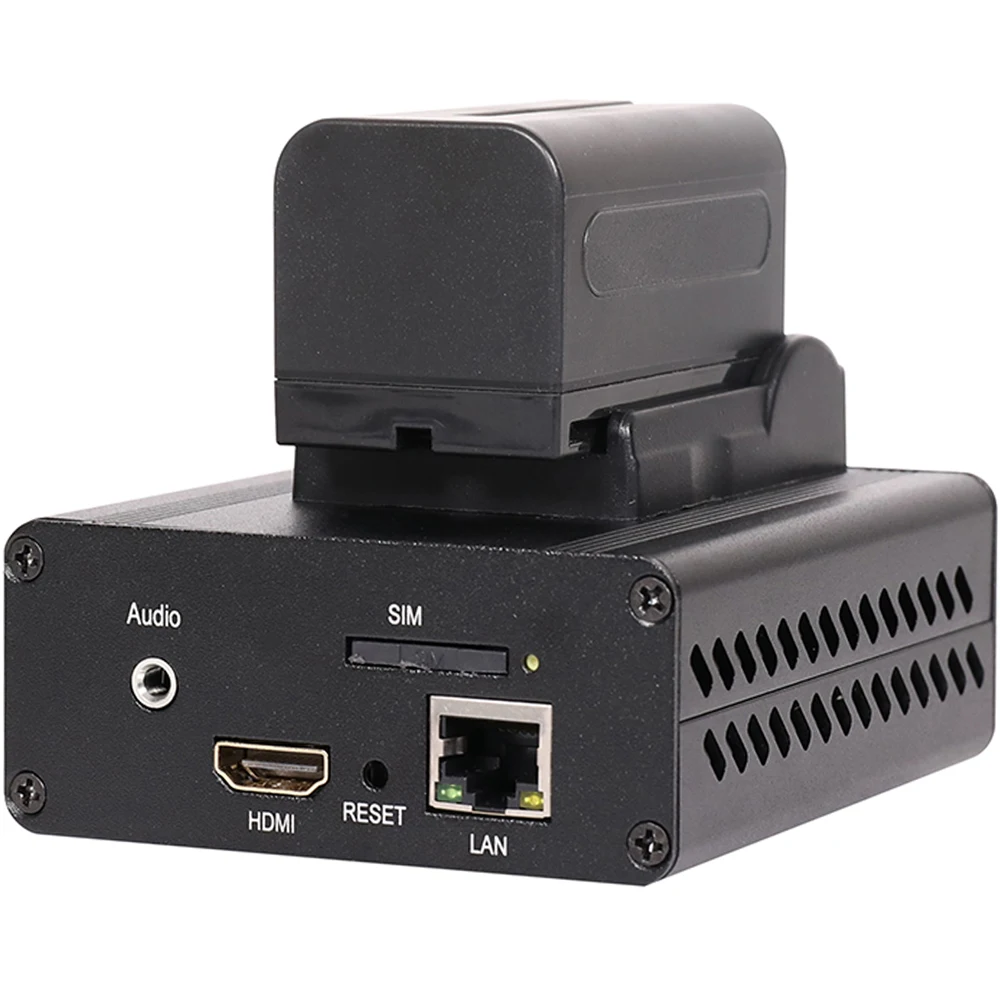

• Long-lasting battery life
You can use SONY battery F550, F750, F970. Normally the battery enable you to do live stream broadcast for 8+ hour. When the electric quantity is low, you can just connect a USB battery pack to keep it going.
Note: 1. The working time of the battery is based on the battery model
2. The battery is not included because of the shipping reason.You can buy SONY battery F550/ 750 /F970 at your local place
The Specification
| Model No. | UHE265-1WB-4G |
| Video | |
| Input | HDMI(Support HDCP) |
| Input Resolution | Max 1080P or 1080i resolution, Max 60fps frame rate |
| Encoding Type | HEVC /H.265 and H.264 /AVC and MJPEG for selection |
| Encoding Levels | H.265 main profile; H.264 high /main /baseline profile |
| Video Bitrate | Adjustable from 32kbit /s to 32mbit /s |
| Bitrate Control | CBR or VBR or Strong CBR for selection |
| Output Resolution | It is adjustable, max 1920x1080P /60fps |
| Video Pre-processing | De-interlacing, noise reducing and sharpening |
| Audio | |
| Input | HDMI embedded audio or external stereo audio(3.5mm jack) |
| Audio Encoding | AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 |
| Sampling Rate | 44.1KHz, 48KHz |
| Bitrate Control | Adjustable from 48000~320000 |
| Sampling Accuracy | 24bit |
| ONVIF | G.711 |
| Network | |
| Interface | Ethernet port Or WIFI(2.4G /5G) Or 3G(TD-SCDMA) or 4G(FDD LTE/TDD LTE) |
| 4G Band | FDD LTE: B1, B2, B3, B4, B5, B7, B8, B9, B20; TDD LTE: B38, B39, B40, B41 |
| Streaming Protocol | SRT, HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc |
| Control Panel | Webpage control panel(language customizable) or APP |
| Firmware Upgrade | Firmware is upgradeable |
| General | |
Dimension (W* L* H) | 125 x 90 x 60 /mm |
| Net Weight | 0.4kg |
| Hot shoe | Included |
| External Battery | Support SONY battery F550 /F750 /F970 for selection |
| Temperature | 0 to 45(For working), -20 to 80(For storing) |
| Input Voltage | DC 12V /1A or 9V /1A |
| Power Consumption | 8w |
Control Panel
APP Control
Contact Us
• If you have problem of making payment, please contact us.
• If you are worried about customhouse charge, please contact us.
• If you need to print your logo on the device, please contact us.
• If you require any files regarding to the product(user manual, new firmware etc), please contact us.
• If you require discount for bulk order(>5pcs), please contact us.
• If you have questions before buying, please contact us.
• If you meet the technical problems after buying, please contact us.
• If you want to test this device before buying, please contact us.
About Us
Shenzhen URay Technology Co., Ltd is a technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of video encoder and video decoder also video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc. Presently these products are widely used in the industrial and enterprise and school and hospital etc. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.
For more information about our company and product, please visit our official website.
