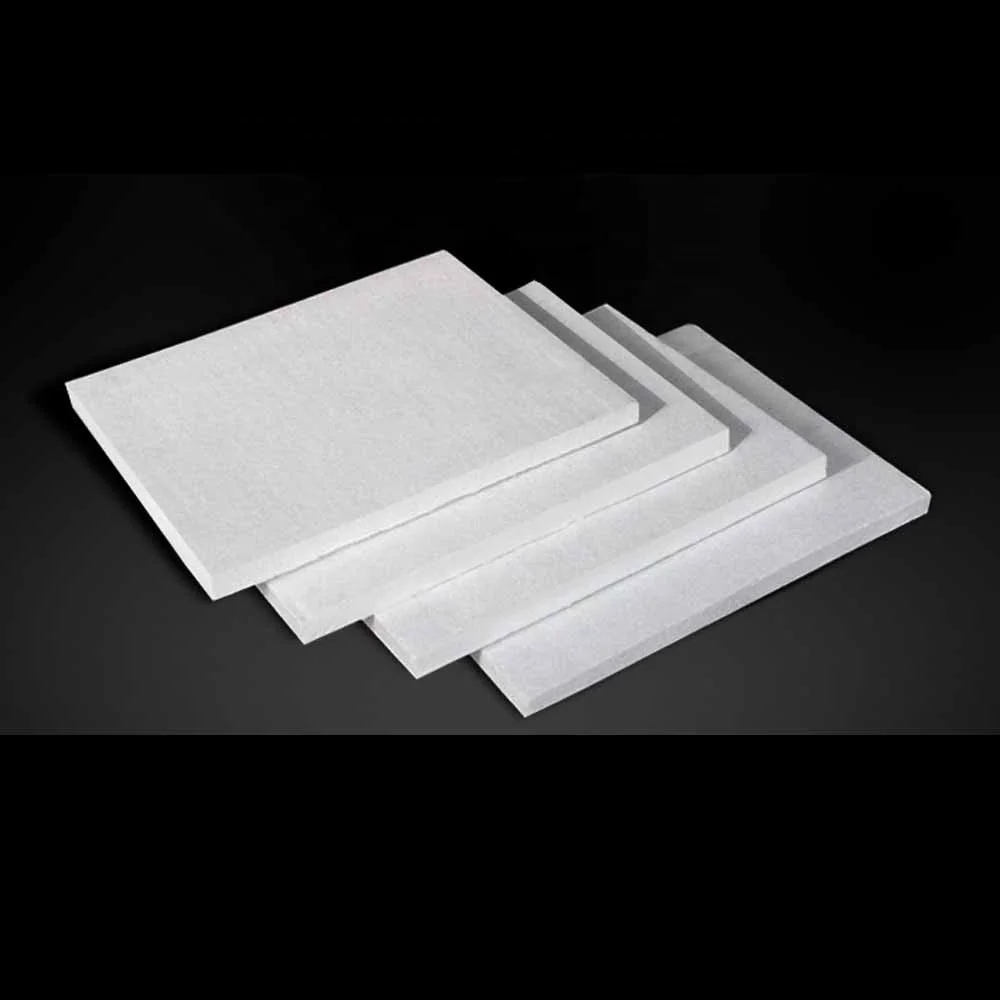

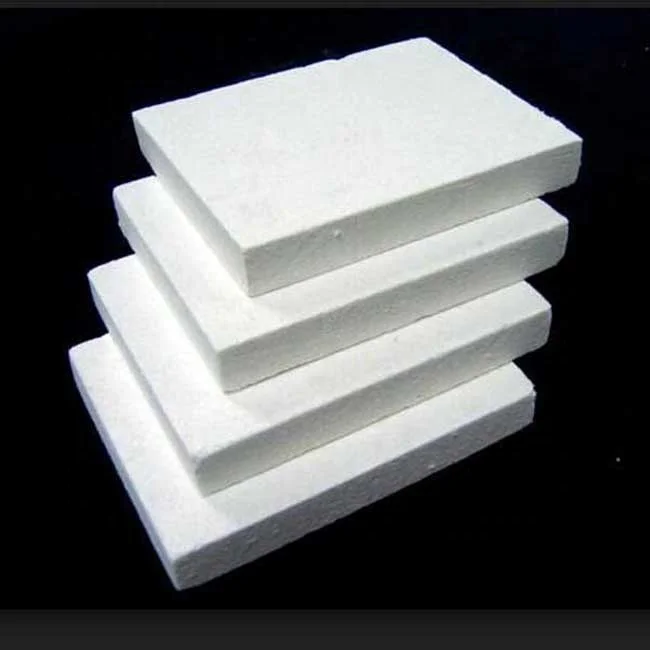

Керамическая волоконная нагревательная панель STA 1260C для печи

Описание и отзывы

Трекер стоимости

Характеристики

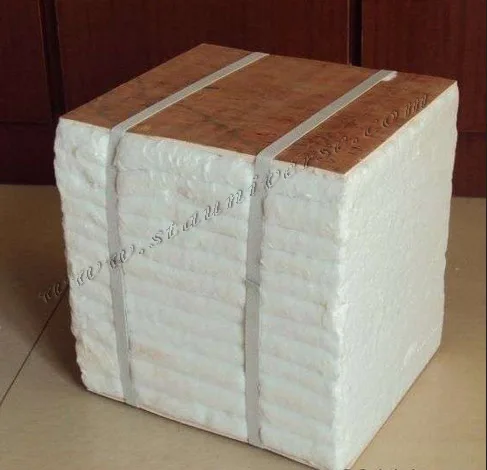

Refractory ceramic fiber module is a new refractory lining product in order for simplifying and speeding up the furnace construction and improving the lining integrity. The product,pure white, normal size, can be directly fixed on the anchor bolt of industrial furnace steel sheet, with a good fireproof and thermal insulation, which increase the furnace refractory  insulation integrity and improve the furnace lining technology. Its classification temperature (From 1050°Cto 1600°C).

The kiln and furnace’s lining insulation in petroleum and chemical industry, metallurgical industry, the building materials industry such as: ceramics and glass, heat treatment furnace in heat treatment industry, and other industry kiln stoves.

Specification:

1. Low thermal conductivity
2. Excellent insulating effect

3. Good springiness for fiber
4. Low thermal shrinkage

5. Good thermal shock resistance

6. Without poisonous and pollution

7. International standard ISO9001 certification

8. Working Temp: 800C-1800C

Type: 1100C/1260C/1400C/1800C



Technical datas



Item	Standard	High-purity	Aluminum-zirconium	Zirconium
Specification Temp(°C)	1260	1260	1360	1400
Working Temp(°C)	1050	1100	1200	1350
Thermal Conductivity(W/m.k)	200C    0.050~0.060 400C    0.095~0.120 600C    0.160~0.195
Rate of linear%	1000°Cx24h≤-3	1100°Cx24h≤-3	1280°Cx24h≤-3	1350°Cx24h≤-3
Density(kg/m3)	220±15	220±15	220±15	220±15
Size(mm)	Common size: 600*240--300*100—200; Other made according to customer’s requirement, producing various anchoring parts.
