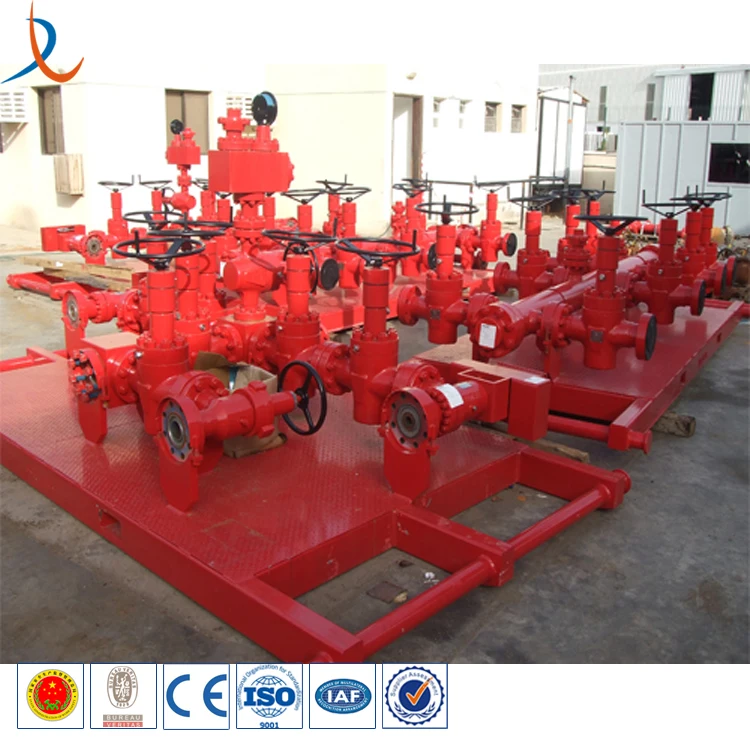

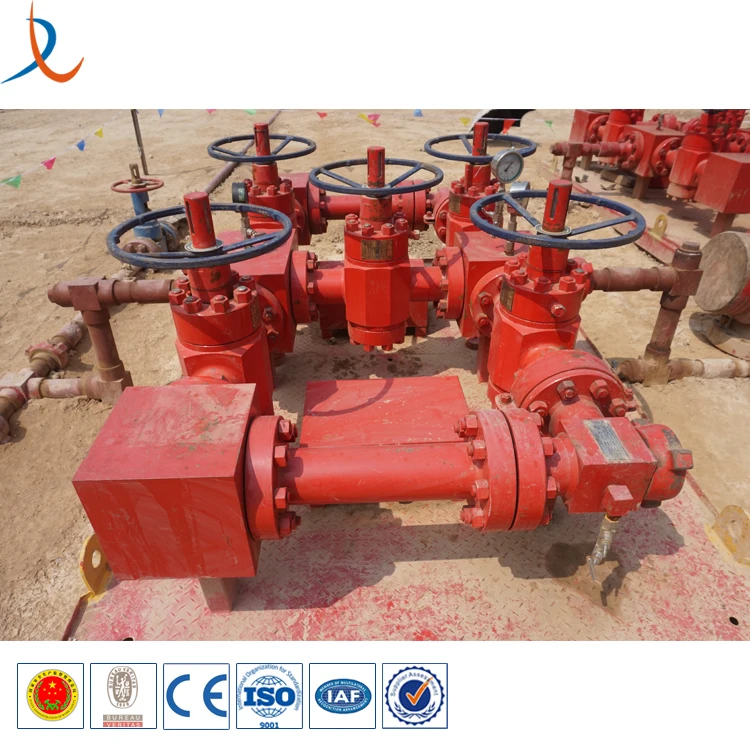

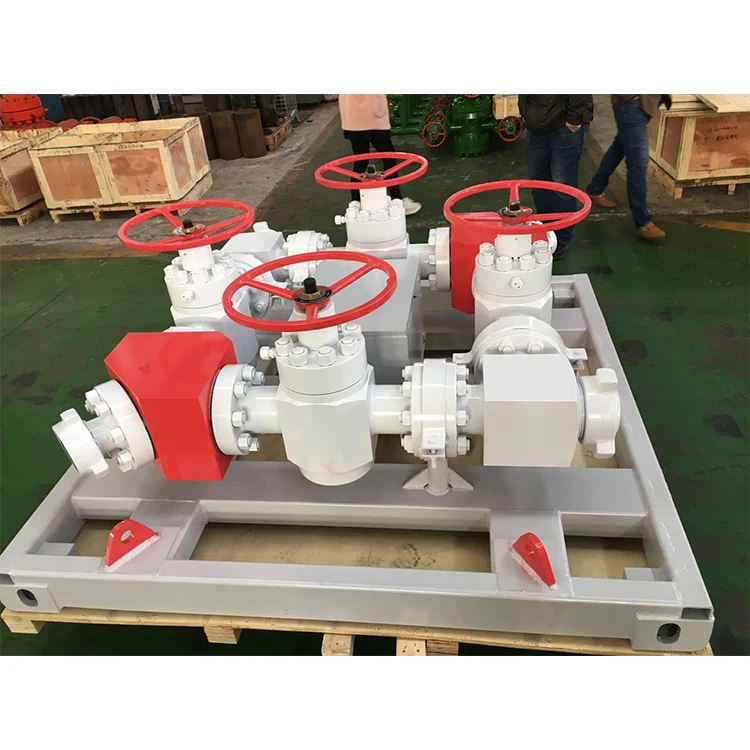

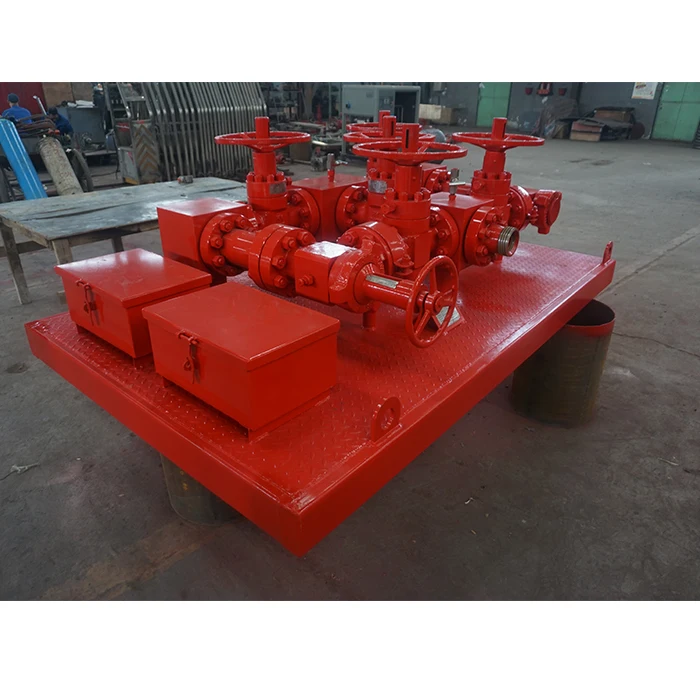

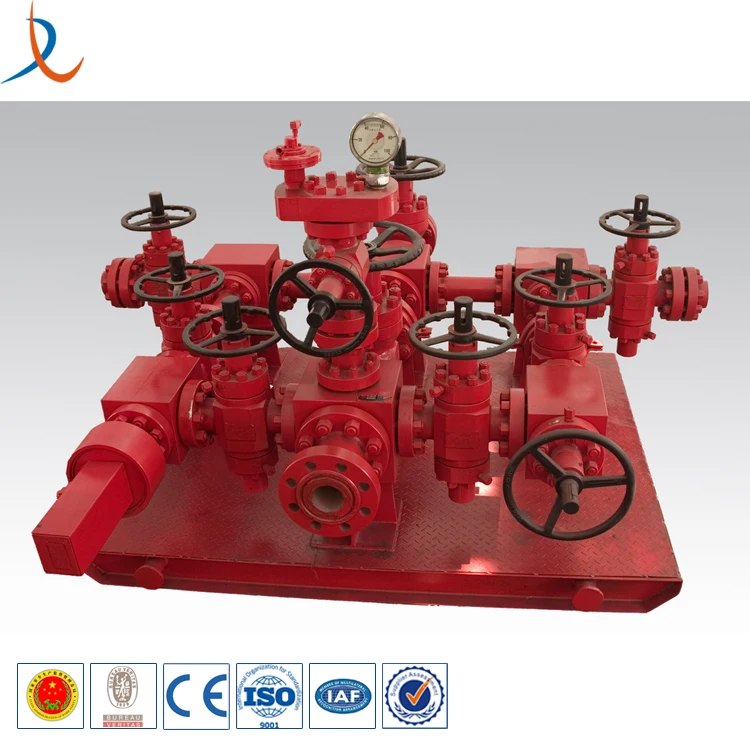

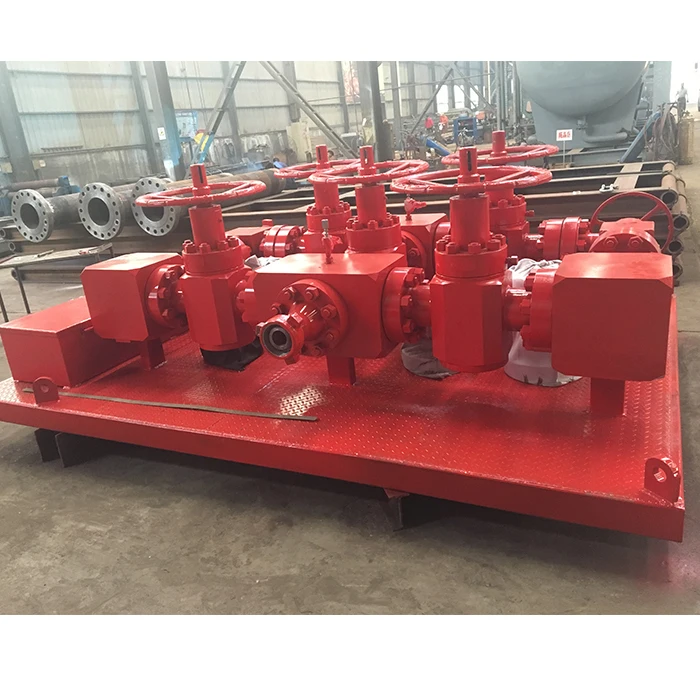

Oilfield surface drilling choke manifold / manual & hydraulic choke manifold
Product Description
Choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.
The thchnical paramerers about our oilfield surface drilling choke manifold / manual & hydraulic choke manifold :
| Pressure | 35MPa(5000psi) | 70MPa(10000psi) | 105MPa(15000psi) |
| Color | Blue | Yellow | Red |
| Model | JG/S52-35 | JG/S78-70 | JG/S78-105 |
| Design Pressure | 35MPa | 70MPa | 105MPa |
| Weight | 2530kg(5578lb) | 3580kg(7892.5lb) | 4630kg(10260lb) |
| Dimension(L×W×H) | 1802×1339×680mm | 2516×1824×799mm | 3270×2371×1038.7mm |
| Material Level | EE | EE | EE |
| Product specification level | PRL3 | PRL3 | PRL3 |
| Working Temperature | PU(-29℃~121℃) | PU(-29℃~121℃) | PU(-29℃~121℃) |
| Product performance level | PR1 | PR1 | PR1 |
| Nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle | Fixed and adjustable nozzle |
| Characteristics | Five gate design | Five gate design | Five gate design |
| work medium | Mud,oil and drilling fluid | Mud,oil and drilling fluid | Mud,oil and drilling fluid |
| Connection type | Flange | Flange | Flange |
Main features of our oilfield surface drilling choke manifold / manual & hydraulic choke manifold as below:
1.Control the well fluid flow
2.Built-in Cameron style gate valves which can be redressed on pipeline
3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke
4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection
5.Metal-to-metal, double seal to ensure reliability in harsh environments
