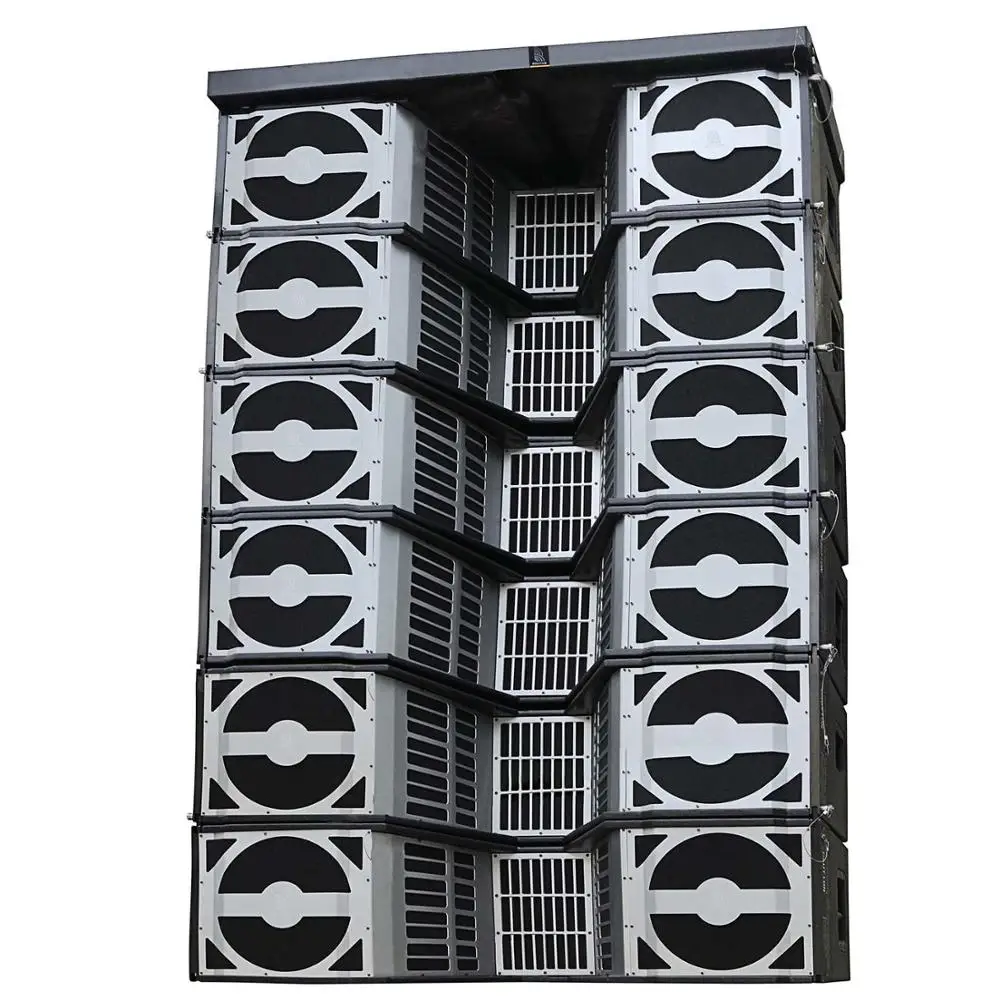

10000W 4-полосная дает полный спектр Neo DJ звук профессиональная акустическая система линейного массива

The I-10000ND are high power, 4 way, full range professional line array speaker system comprised of 4 pcs neo LF Driver (2*15in,2*12in),2pcs  MF Neo driver(3in), 3pcs HF driver.The perfect combination of compression midrange phase control technology and belt-type treble lens makes the module system with high sensitivity, high power, high sound pressure, low distortion, high transmission efficiency, consistent phase response and uniform step angle control. Of the projection coverage, enough to deal with a variety of complex sound field environment, the system hanging pieces of high strength aluminum alloy processing, installation is simple, fast and safe.

Application

Applicable to large-scale performances, multi-function room,theatre,gymnasium.

Features

External crossover system/Symmetrical horn and unique cabinet construction/ rated power 3500W, Peak power 10000W.

SPECS

Rated Power: 3500W (RMS)

Peak Power: 10000W

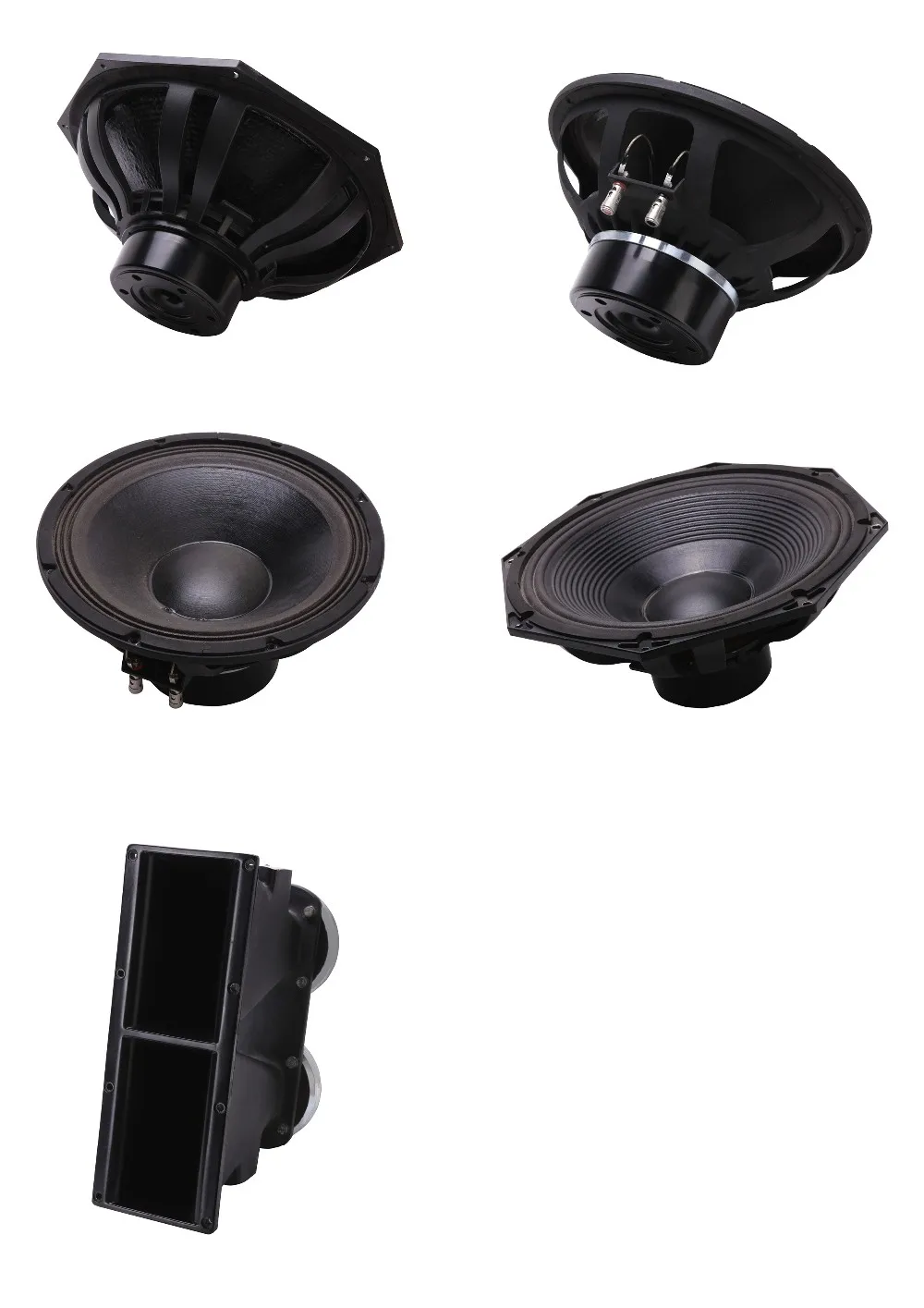

Component: LF2x15"(Neo,φ100mm)/Mid-Low: 2x12"(Neo,φ100mm)/ MF2x65mm(Neo)/HF3xφ75mm Neo

Dispersion: 110x12°

Impedance: LF4Ω, MF4Ω, HF4Ω

Sensitivity: 104dB

Max. SPL: 137dB(RMS) 143dB(Peak)

Freq. Response: 46-20kHz(±3dB)

Cabinet: 18mm Birch plywood

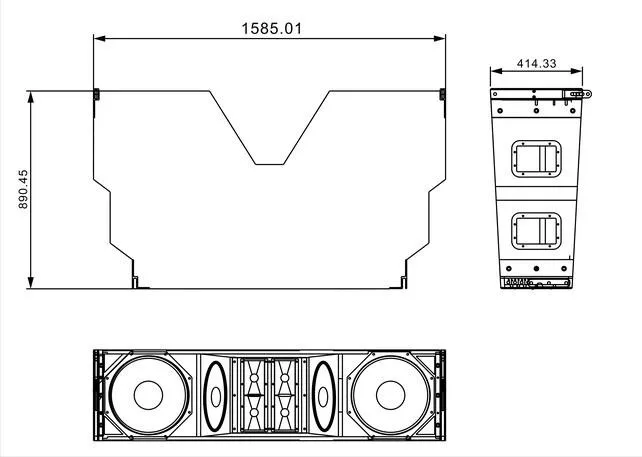

DIM(WxDxH): 1585x890.5x414.3mm

N.W: 105kg

Paint: Black emery abrasion-proof water paint
