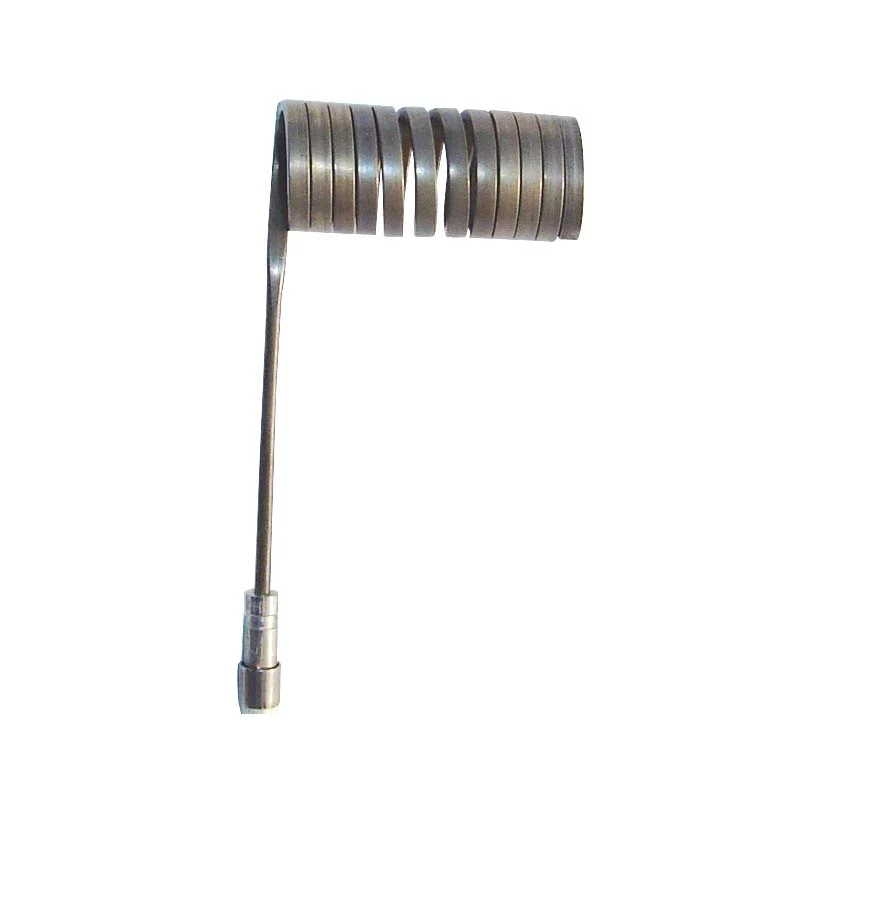

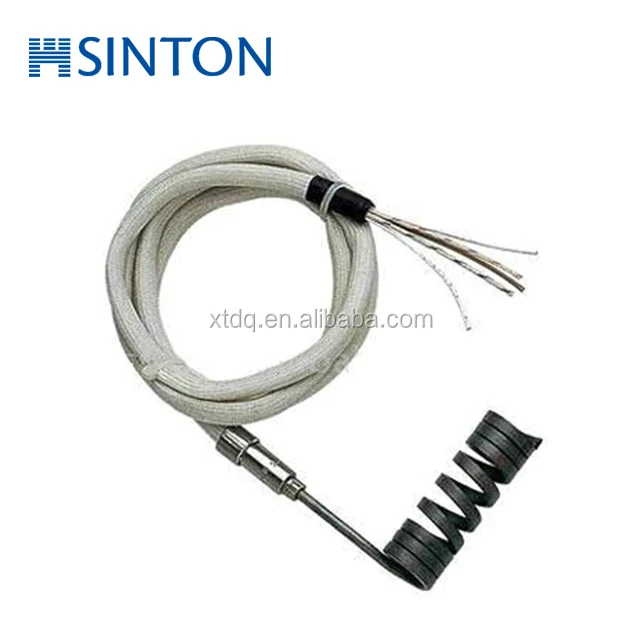

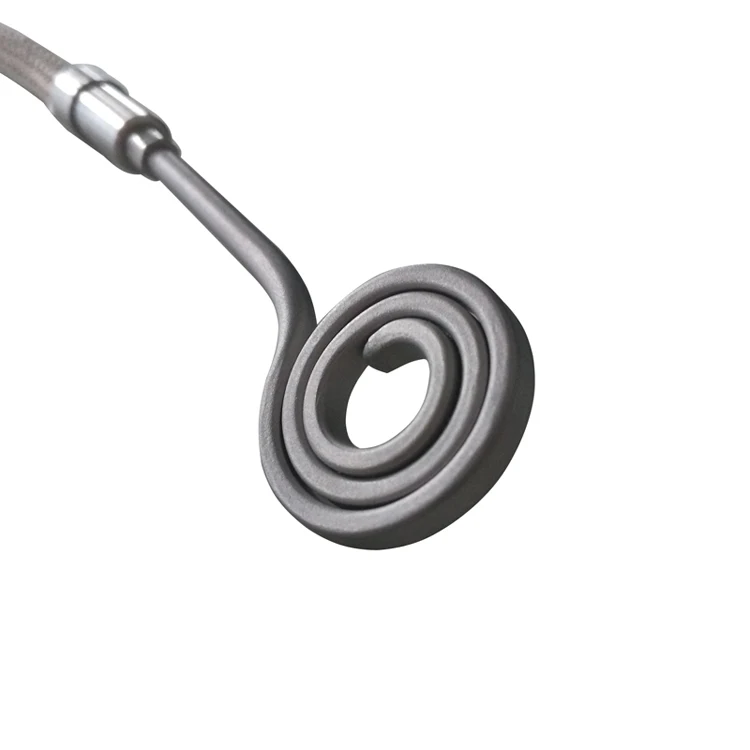

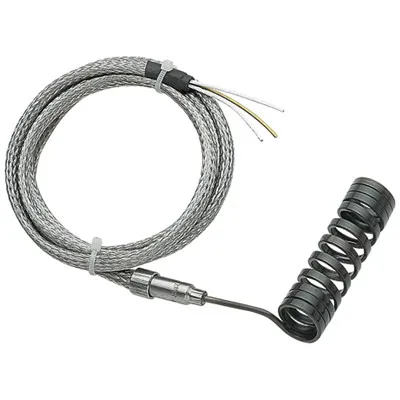

spiral hot runner heating coil heater

Coil Heater features continuous operating temperatures up to 1200°F. Rapid heating and cooling occur, due to the low mass construction. All heating elements are sealed from contamination and the stainless steel sheath provides maximum corrosion resistance. An optional internal thermocouple may be utilized for precise control.  Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.



 Technical Specification and Tolerance:



Standard thermocouple: .....................................ANSI Type J

Optional thermocouple: ......................................ANSI Type K

Minimum bending radius: ..................................Three times the sheath diameter

Dimensional

Standard square cable: .......................................0.125" square

Standard rectangle cable: ...................................0.080" x 0.140", 0.105" x 0.150"

Standard round cable diameters: ......................0.093", 0.125", 0.150", 0.188", 0.200", 0.250", 0.312", 0.375" - Other dimensions available

Cable diameter tolerance: ...................................±0.005

Standard potting adapter: ....................................0.281" / 0.250" diameter - used with heater only and heater with thermocouple leads, 20 gauge and finer  -  1/2" - used with heater only and heater with thermocouple leads, 18 gauge to 12 gauge

Standard potting adapter length: .......................1.0" - Other lengths available

Standard coil I.D.: .................................................From 3/8" up to 2 1/2" in any increments

Coil I.D. tolerances: .............................................3/8” to3/4”, + 0.000”, - 0.020”  - 7/8” to 1 1/4”, + 0.000”, - 0.030"  -   1 1/2” to 2 1/2”, + 0.000”, - 0.060”

Coil length: ............................................................Up to 12” on 3/8” to 3/4” I.D.  -  Up to 16” on 7/8” to 1 1/4” I.D.  -  Up to 18” on 1 1/2” to 2 1/2” I.D.

Coil length tolerance: ...........................................0 to 6”: + 0, - 1/8”  -  6 to 12”: + 1/8”, - 1/4”  -  12 to 18”: ± 1/4"

Electrical

Resistance tolerance: ..........................................± 10%

Wattage tolerance: ................................................± 10%

Maximum amperage: ...........................................Size dependent, consult factory

Standard Voltage: .................................................120 or 240 volts, for higher or lower wattages contact Durex Industries






certification



Packing





FAQ:

1. Why is the price so low?
You are ordering directly from the factory



2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.



3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Western union,Paypal and Aliexpress is available.



4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
" Customers'satisfaction is always our company's first priority!  ”. Xingtai people always attach great importance to high quality and good service from beginning to end.



Welcome to contact us for more details ,most competitive price for you!
