Машина для литья воска с одной станцией типа c 40

Описание и отзывы

Трекер стоимости

Характеристики

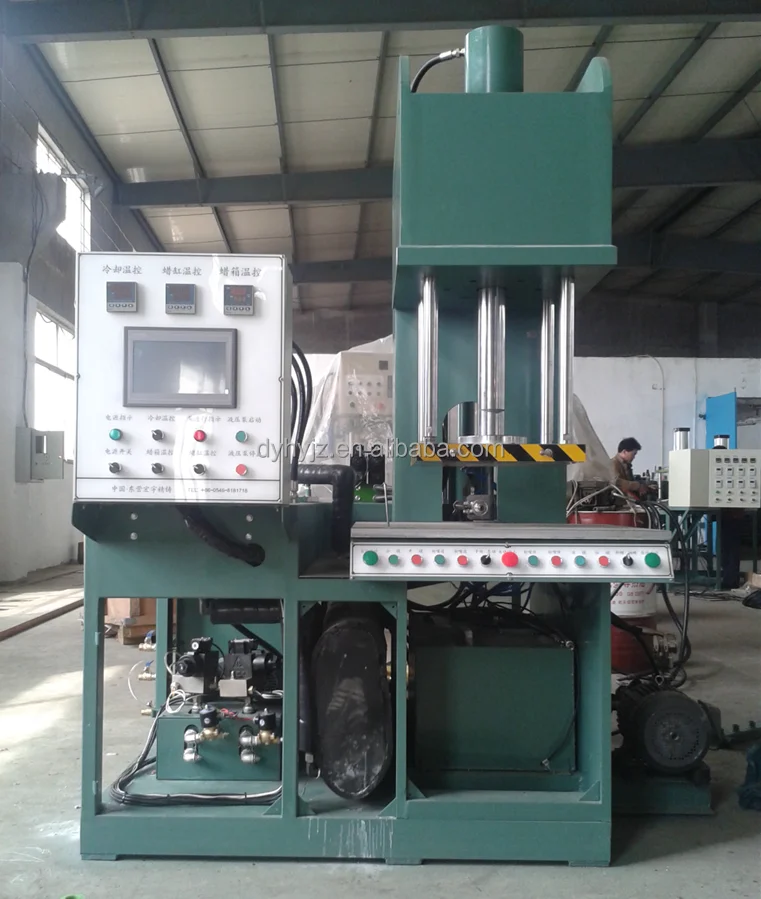

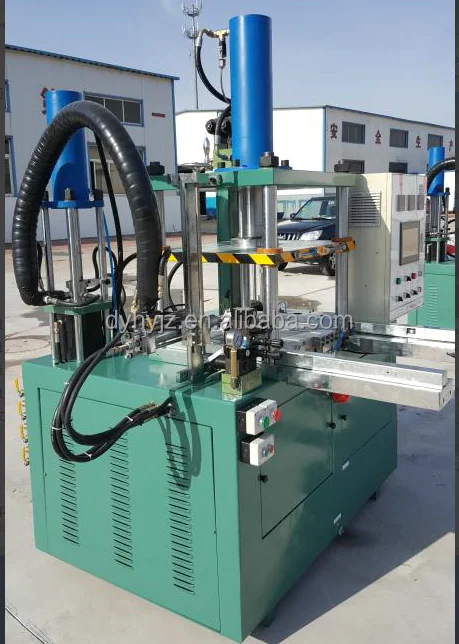

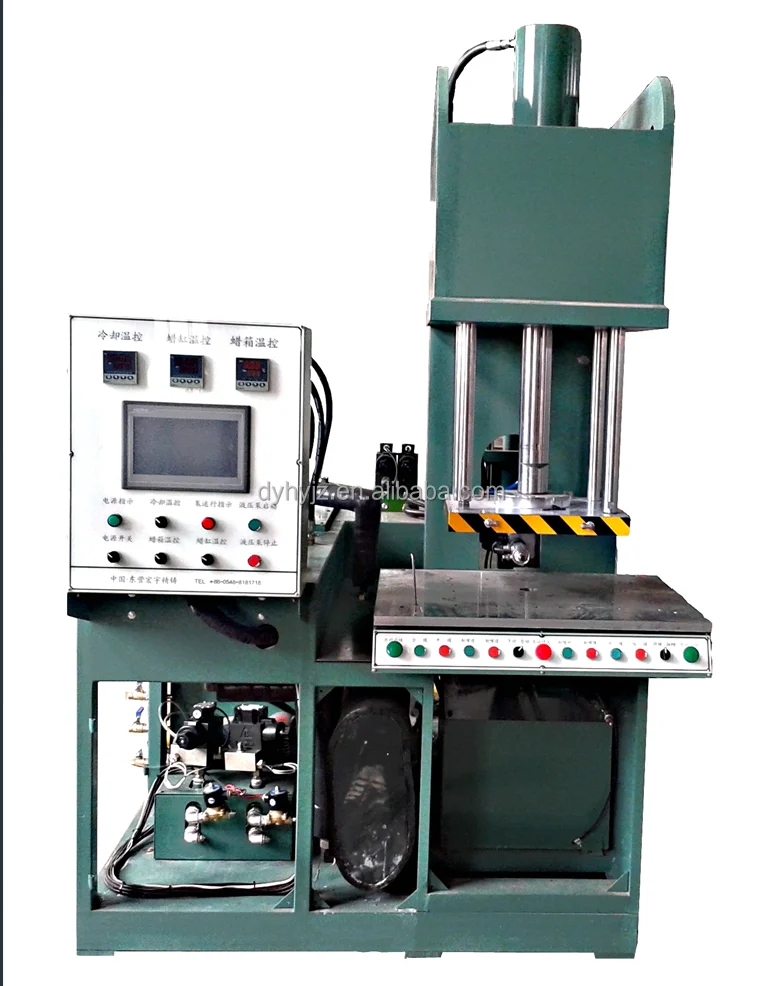

 Single Type Wax Injection molding Machine

instructions	unit	SMZ09-40LB-YD
Clamping force (Max)	T	40
Mould use space (depth x width x height)	mm	800*900*700
Up and down mode stroke.	mm	600
Up and down the minimum height	mm	200
The moulding board	mm	600*600
Side injection center minimum distance.	mm	150
Telescopic stroke	mm	150
Minimum distance from the base plate of the nozzle.	mm	100
Adjust your stroke up and down.	mm	400
Table height	mm	900
Single maximum amount of wax.	L	15
Maximum injection pressure	MPa	0～10 (Variable pressure)
Wax injection time	s	0～99.9
The holding time	s	0～999
Wax box temperature control	℃	0～80
		Second section temperature control
Temperature control system	℃	54～58±0.05
Wax tank	L	120
Installed power	KW	14.5
Outside for ice water	℃	≤15

1 LB - Y type for four-post type clamping mechanism, and the template and mold were to leave water interface, all work in vice cooling water circulation plates with the audience, to achieve overall mold temperature is not too high, improve the quality of wax parts molding. CB - Y to the \\"C\\" type structure. Pressure template constant temperature control with mold temperature control can better control the wax mold flow lines, surface quality and size control for wax models have originality.

2, side injection nozzle mechanism can be adjusted in fluctuation, horizontal two dimensional freedom, to match the size different mould of flexible use.

Sharing a wax boxes for about 3, station, two wax outlet, all the rest of the independent, ensure that two workstation run independently.

4, each station are an oil circulating cooling and temperature of the thermal insulation system, to ensure the accuracy of temperature from nozzle injection wax control in the plus or minus 0.5 ℃, the cooling using three layer tube design, increase the heat conduction oil and wax liquid heat transfer area, heat preservation system required by the heat from the hot liquid wax, the operation of the equipment energy consumption greatly reduced.

5, have the double function manual and automatic electric control, ensure the easy operation, stable process parameters to perform, even with a simple automatic operation fault can also be used manually, not delay the schedule.

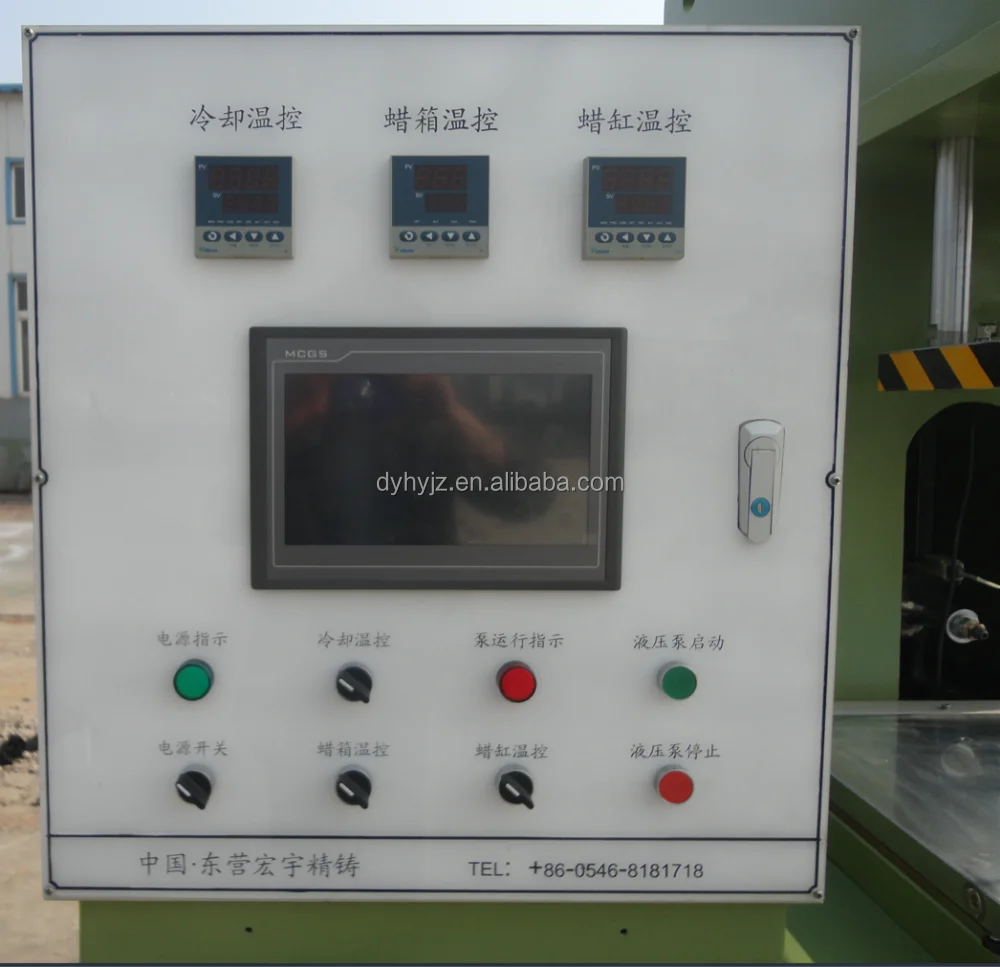

6, the machine adopts touch display, touch screen + PLC and accurate SCR to effectively control temperature control, time and pressure etc.

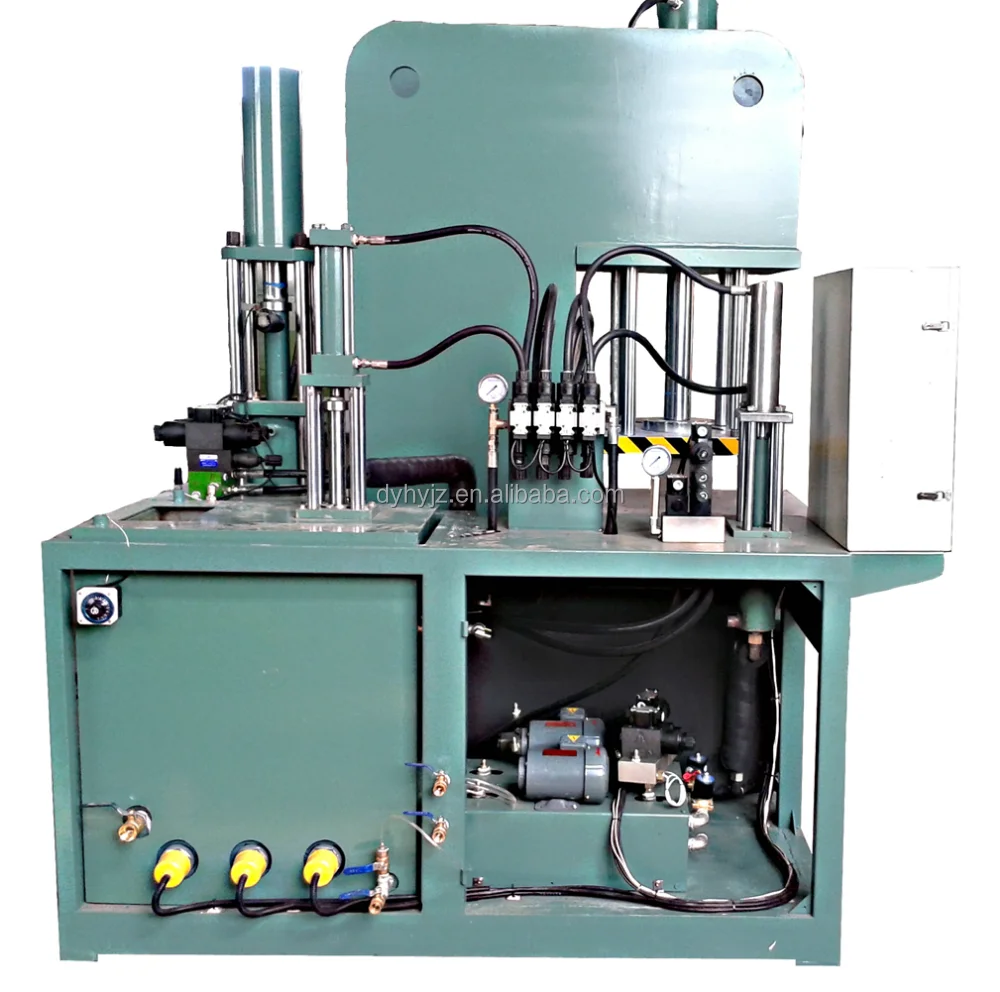

7, Taiwan original hydraulic system, adopting the combination of high and low pressure pump with quick clamping and slow the effective combination of high pressure, can save electricity costs, improve work efficiency. All adopt hydraulic drive equipment operation stable and reliable. Clamping, crowded wax, wax pressure are adjustable freely, LB - Y can make the injection pressure of two variable pressure control, so as to adapt to the alternate use of many kinds of mold.

8, MZ09-50 cb - Y wax injection machine should slip plate workbench configuration structure and hoisting facilities functions, convenient mould lifting and FRP mould.

9, with automatic lost wax system, can realize automatic filling wax directly from stalling barrels, also can manually fill wax.

10, clamping and automatic ejection mechanism from top to bottom, side core-pulling system can completely realize the process automation, and only artificial will wax pieces \\"pick\\", greatly reduce the operator labor intensity, can achieve \\"one, one, two location\\" operation, saving labor costs.

Our Business philosophy and principle:

To be honest and sincerity

To run business of law-abiding

To create value for customers

Dongying Hongyu precision casting equipment Co., Ltd. is located in Shandong Province, Dongying City, the hinterland of the Shengli Oilfield, located in the vast the Yellow River Delta, is specializing in the production of precision casting equipment manufacturers, covers an area of 20000 square meters, production workshop 4, covers an area of 4000 square meters, since the establishment of the company, vigorously implement the development strategy of science and technology, absorption the domestic and foreign advanced technology and management experience, the spirit of "honesty, quality first" purpose, to make our company equipment, advanced technology, practicability and reliability improvement.

Q: Can I ask for special designs?

A: Sure.Customized are available for us.

Q: How long is the delivery time?

A: Generally 30-45 days for production according to the quantity,

Q: How about installation and  commission overseas?How  long  will it   take ?

A: we  supply  overseas  service , customer only  needs  to arrange for  the  engineers' flight tickets  and      hotel,food

Small  machine  usually  takes  within  3-5  days .Whole production line  usually  takes about  10-15  days.

Q: What is the terms of payment ?

A: L/C is available for our company.If TT terms,30% T/T in advance ,balance 65% before shipment and 5%  after installment.

Q: How about the quality guarantee period?

A: One year.After sales service will be for the machine whole life.

Q:How can you guarantee the production quality ?

A: We have strictly quality control system in our production process.We are honest and reliable supplier who    never cheat the clients.With us the money is safe and any quality issue the payment will be refundable.
