Усиленный гидравлический многожильный
- Категория: Hydraulic Jacks >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.12 $* | 0.45 $* |
| Aug-16-2025 | 0.55 $* | 0.92 $* |
| Jul-16-2025 | 0.15 $* | 0.85 $* |
| Jun-16-2025 | 0.62 $* | 0.59 $* |
| May-16-2025 | 0.37 $* | 0.78 $* |
| Apr-16-2025 | 0.4 $* | 0.28 $* |
| Mar-16-2025 | 0.39 $* | 0.69 $* |
| Feb-16-2025 | 0.15 $* | 0.47 $* |
| Jan-16-2025 | 0.85 $* | 0.59 $* |
Характеристики

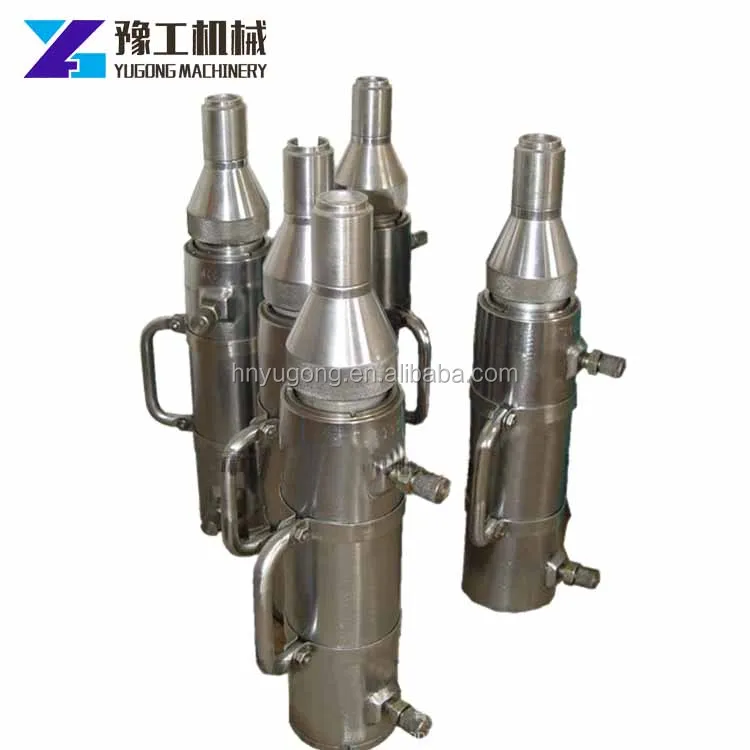

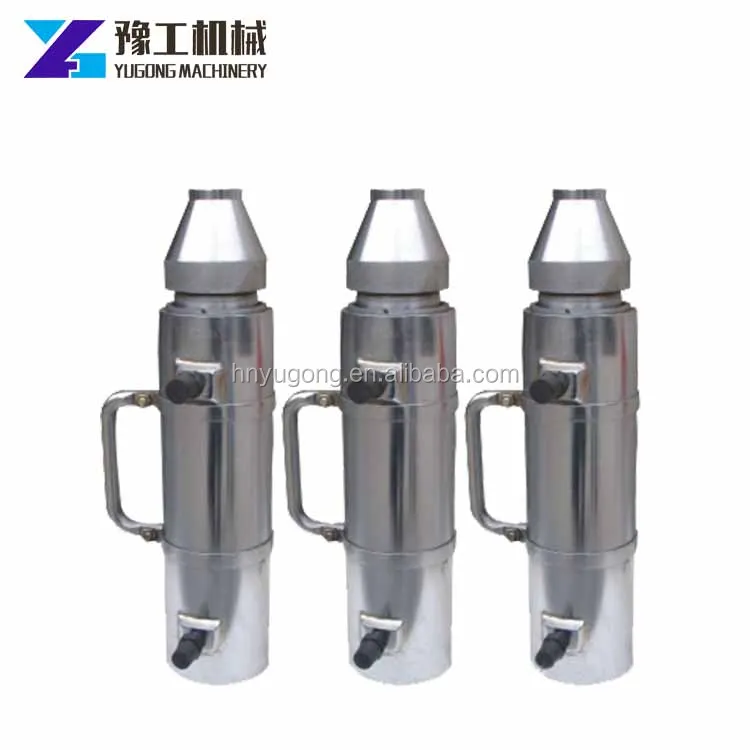

Stressing Hydraulic Multi Strands Jack
Description of Hollow hydraulic Jack
1, YGM-270 mono-strand Jack is a kind of general purpose for prestressing applied for pre-tension and post-tension of various steel strand anchors.
2, YGM-270 mono-strand Jack is widely used in precast structures, such as prestressed bridge girders and decks units, rock and earth anchoring construction, hydraulic structures and other great projects.
3, The hydraulic prestressing Jack is also easy to hoist, to operate and convenient to maintain, with high contamination tolerance and durability.
4, YGM series Jacks are cost-effective.
Feature of Hollow hydraulic Jack
Weight: 20KGS
Jack capability(Load): 270KN
Stressed PC Strand Diameter: 12.7mm(0.5"), 15.2mm(0.6")
Jack capability(Load): 270KN
Stressed PC Strand Diameter: 12.7mm(0.5"), 15.2mm(0.6")

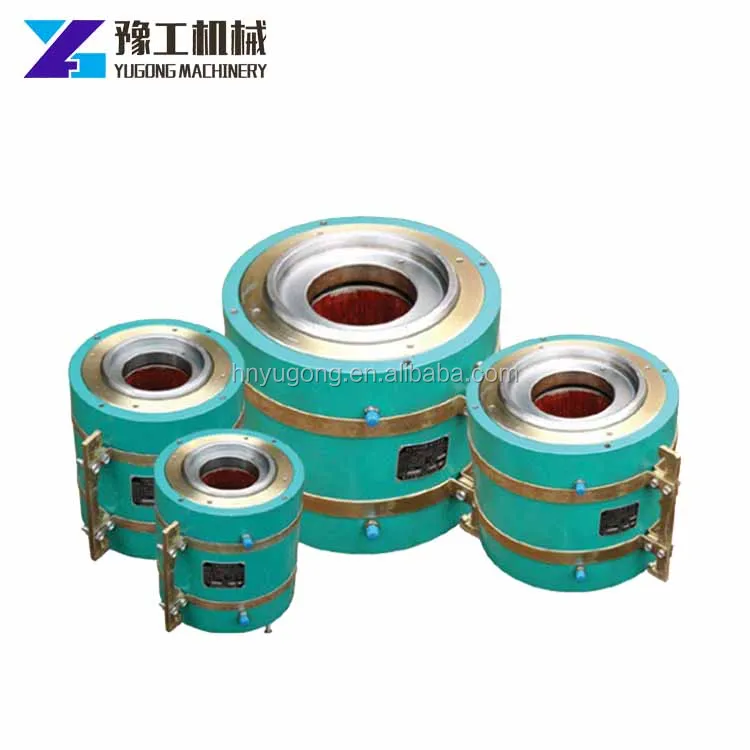

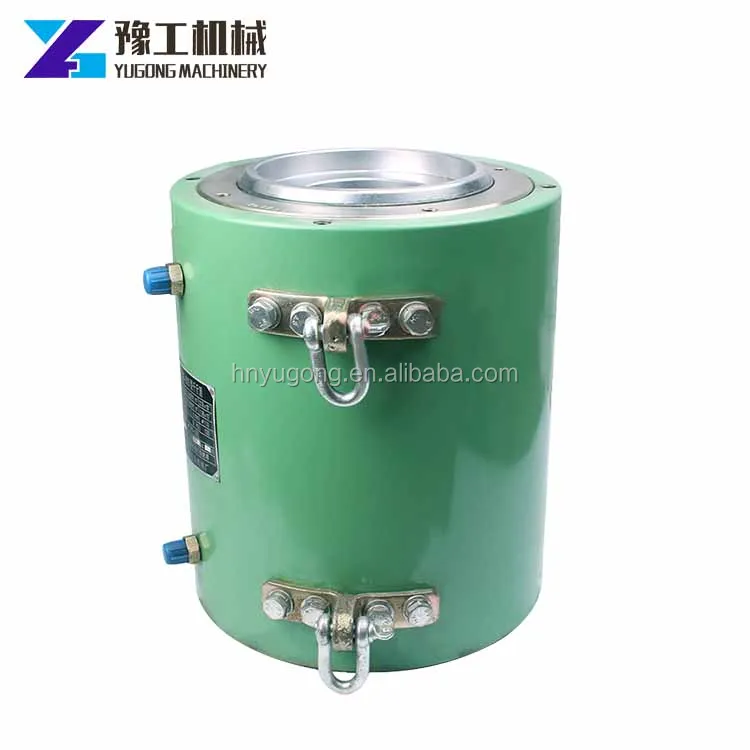

Technical parameter of Hollow hydraulic Jack
| Models Items | Rated Load Capacity (Ton) | Pump Oil Pressure (Mpa) | Stroke (mm) | Body Dimension (mm) (Dia. x Length) |
| YGM-650 | 65 | 50 | 200 | Φ170 x 288 |
| YGM-1100 | 110 | 50 | 200 | Φ218 x 330 |
| YGM-1500 | 150 | 50 | 200 | Φ270 x 330 |
| YGM-2000 | 200 | 50 | 200 | Φ320 x 360 |
| YGM-2500 | 250 | 50 | 200 | Φ350 x 360 |
| YGM-3000 | 300 | 50 | 200 | Φ375 x 380 |
| YGM-3500 | 350 | 50 | 200 | Φ415 x 395 |
| YGM-4000 | 400 | 51 | 200 | Φ435 x 395 |
| YGM-4600 | 460 | 51 | 200 | Φ470 x 410 |
| YGM-5000 | 500 | 51 | 200 | Φ495 x 410 |
Our services
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.
Company Information
Visite us
Certifications
Company honor
Our Services
Before sales: Engineering Consultance Service & Technical Support
After sales: Process clients' feedback and or problems during the operation of the
equipments/machines within 24 hours
OEM service: We accept OEM orders and 70 percent of our clients are enjoying OEM services.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
Contact us
