Полностью автоматический режущий станок с ЧПУ 4x4000 мм V-образной

Metal sheet grooving machine can V-groove stainless steel sheet, aluminum sheet, composite aluminum sheet, copper sheet and other metal sheets, making the arc radius of the edge of the bent workpiece extremely small, satisfying the needs of hotels, restaurants, restaurants, commercial buildings , Banks, airports and other places in the high-end decorative special needs.

1)Bevelling available

2)Available to groove not from one sided of plate and end not at another side

3) The min distance from the side of plate to the first groove line is 10~12mm

4) The min size of plate to groove is 100x100mm

5) Grooving from one point to another point

6)Power saving

7)Environmental protection(no hydraulic oil)

Products Introduce:

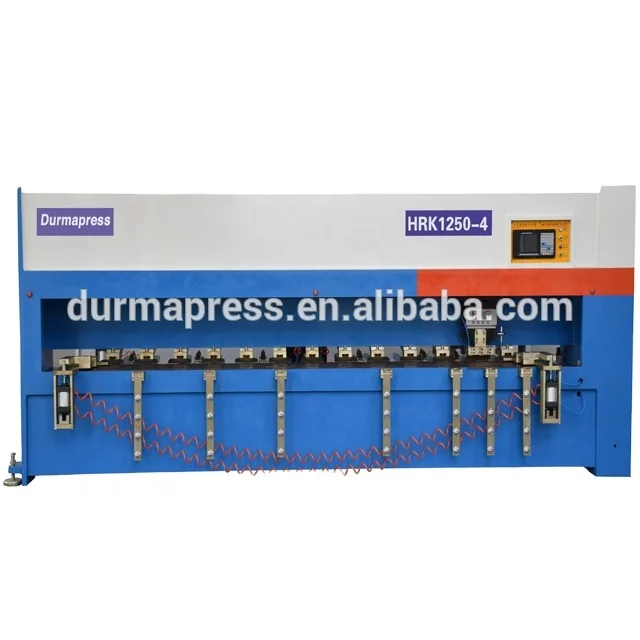

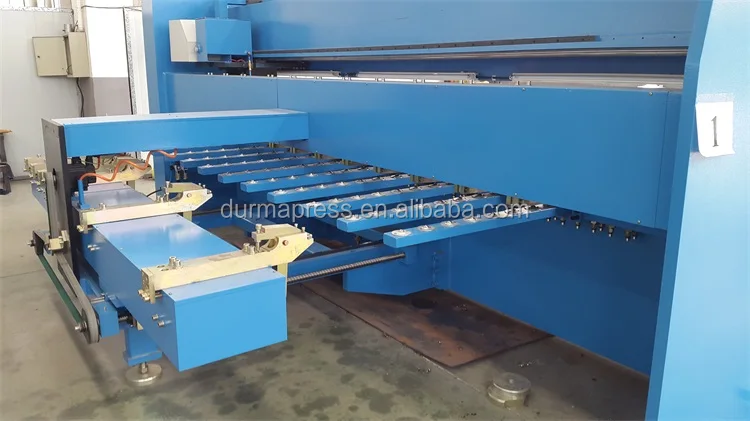

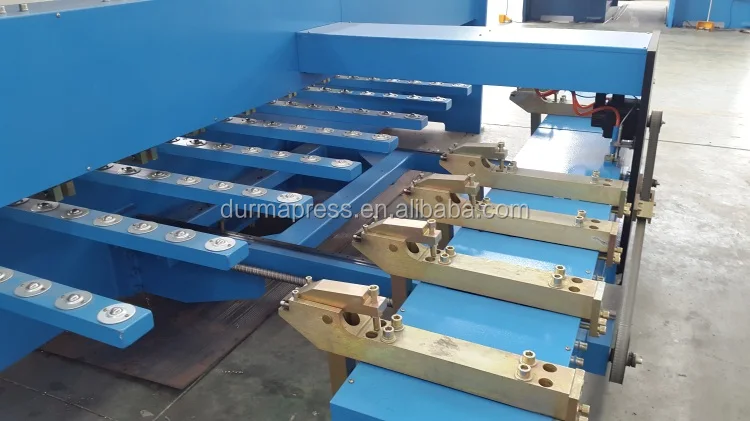

HRK series cutting machine is the upgrade of traditional ones. Adopted frame structure, this series make the overall stress relief tempered, bolts connecting with high strength , and the overall rigidity is good, and will gain less deformation. The beams of this series is solid without moving, the work piece material can be sent by the evacuation mechanism,and as for work tables, they were make of carbon tool steel, hardness of which can be 55-60HRC (ordinary table<30HRC)after high-frequency surface hardening, which makes the work table much harder than the hardness of stainless steel, and completely solve the phenomenon of the work surface grooves appeared due to low hardness of traditional machines, to ensure the work surface flatness ≤ ± 0.03mm, completely solve the reduction of the accuracy of the V-grooves due to deformation of work table surface, prolonged the life of the equipment. Around the work table there are care feeding device to prevent scratches during processing of sheet metal.

Products Feature:
1.The fuselage is welded with pure steel , and internal stress has been weakened after heating process, it has high strength and no deformation on the body of machine.
2. Applying the numerical control systems provided by Taiwan Yitu , so the technology is mature, and the performance of products is more stable and reliable.
3.The electronics are original products provided by the one of the three well-known global manufacturer-- Schneider, which can ensure life and stability of the circuit.

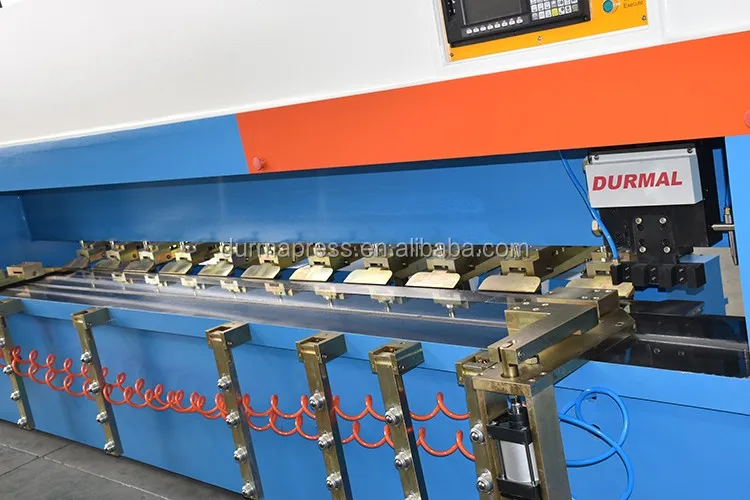

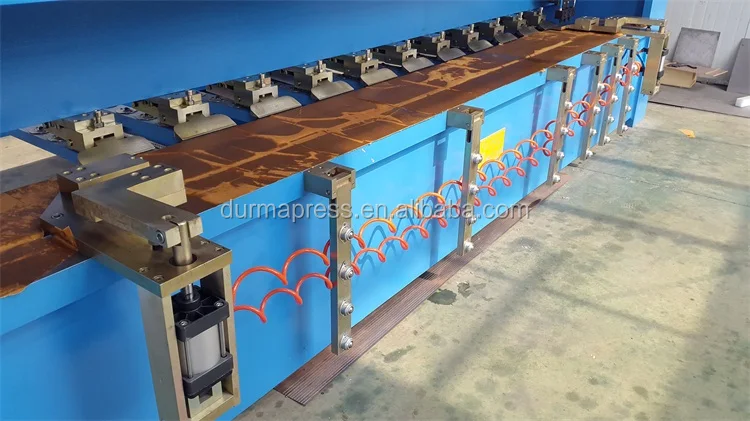

4.Using pneumatic control system of Taiwan Yadeke, clamping and release of the platen and jaws are fully automated, and the board will not get pined, the pressure is stable and reliable during the process.
5.Mitsubishi servo motor cutting feed, with high accuracy and is reliable, and the accuracy even be 0.01mm.
6.Mitsubishi servo motor control turret and feeding device, has accurate chipping and precise positioning.

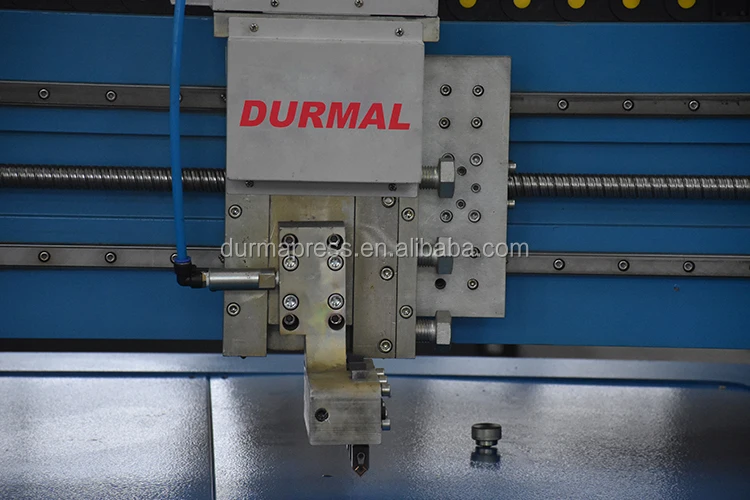

7.As for Turret, it changed the traditional way to the way of forging nut screw drive steel rack and pinion, work together withprecise planetary gear of Li Ming Taiwan and servo motor power of Mitsubishi, which makes it easier to maintain, lower the failure rate, and makes it return faster, more efficient, and run more smoothly in a muted way.
8.work tables are made of carbon tool steel,the hardness of high-frequency surface can reach 55-60HRC (ordinary table<30HRC) after hardening
9.work table surface is equipped with a mechanical compensation, after long-time use it can adjust error of depth of V groove
10.Allowing using three knives to process "V" groove, thus the cutting amount can be allocated evenly,and the deformation of the workpiece can be reduced.

Products Feature:

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

CNC Press Brake

Guillotine Shearing Machine

Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .

Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 20 year's manufaturer experience.

Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.

Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable

Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.

Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.

Q:Do you offer teaching & training ?
A:Training at supplier's plant

Q:How ato contact you to know more details?
A:You can contact me at any time as following contact way:
