Круглая 1 39 дюймовая Гибкая Сенсорная панель oled 400*400 MIPI с
- Категория: >>>
- Поставщик: Shanghai,Top,Display,Optoelectronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.75 $* | 0.57 $* |
| Aug-16-2025 | 0.25 $* | 0.85 $* |
| Jul-16-2025 | 0.55 $* | 0.34 $* |
| Jun-16-2025 | 0.65 $* | 0.82 $* |
| May-16-2025 | 0.3 $* | 0.55 $* |
| Apr-16-2025 | 0.62 $* | 0.77 $* |
| Mar-16-2025 | 0.11 $* | 0.21 $* |
| Feb-16-2025 | 0.3 $* | 0.38 $* |
| Jan-16-2025 | 0.68 $* | 0.83 $* |
Характеристики
Product Description

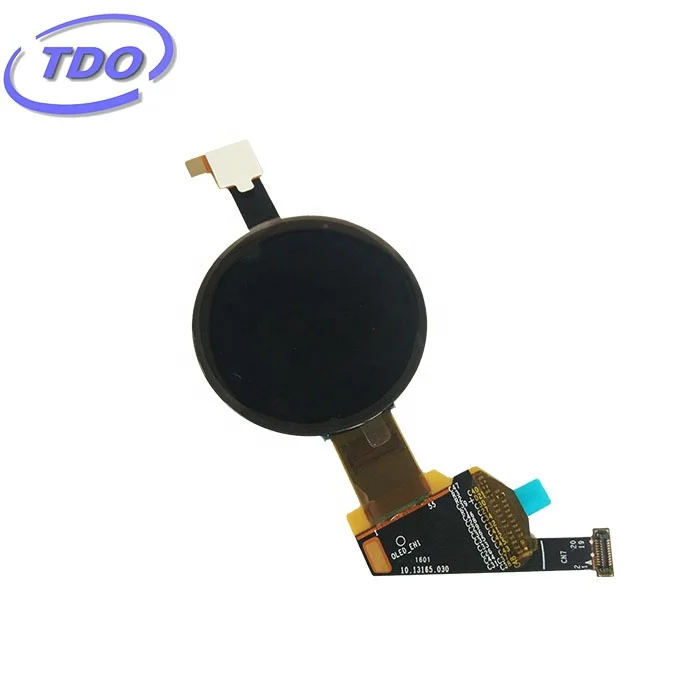

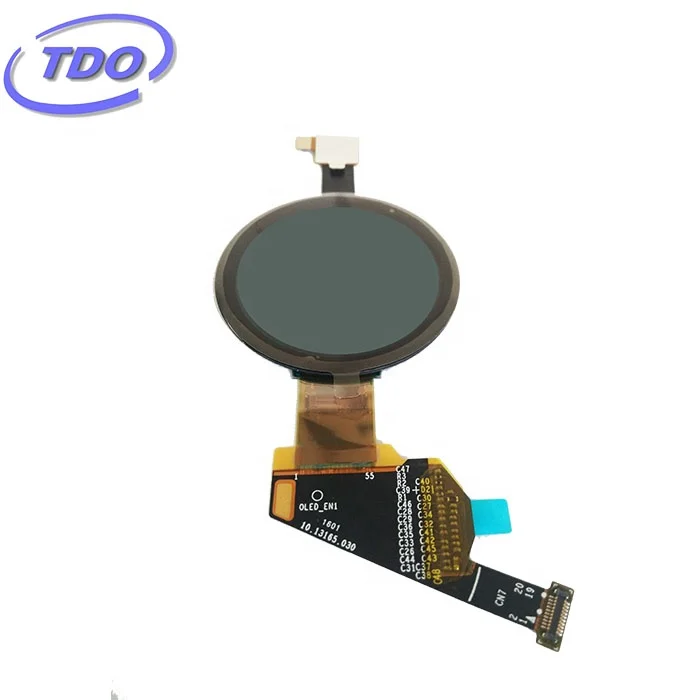

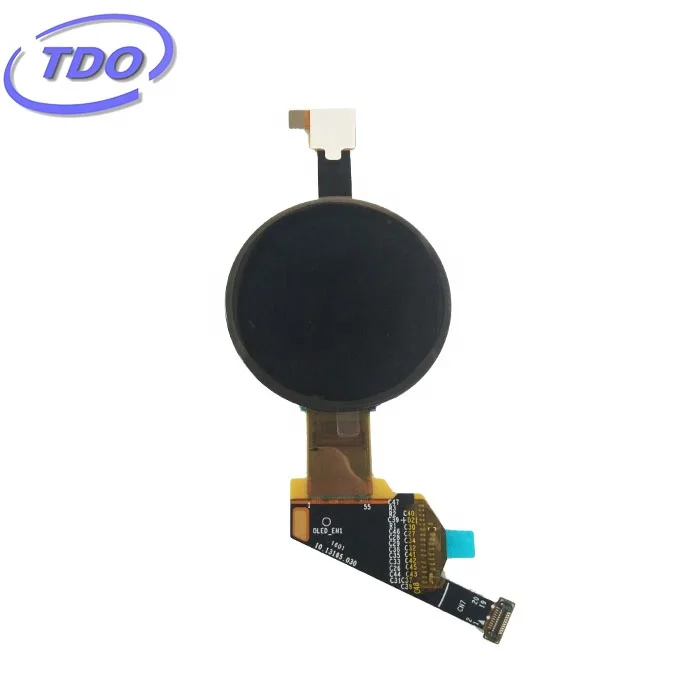

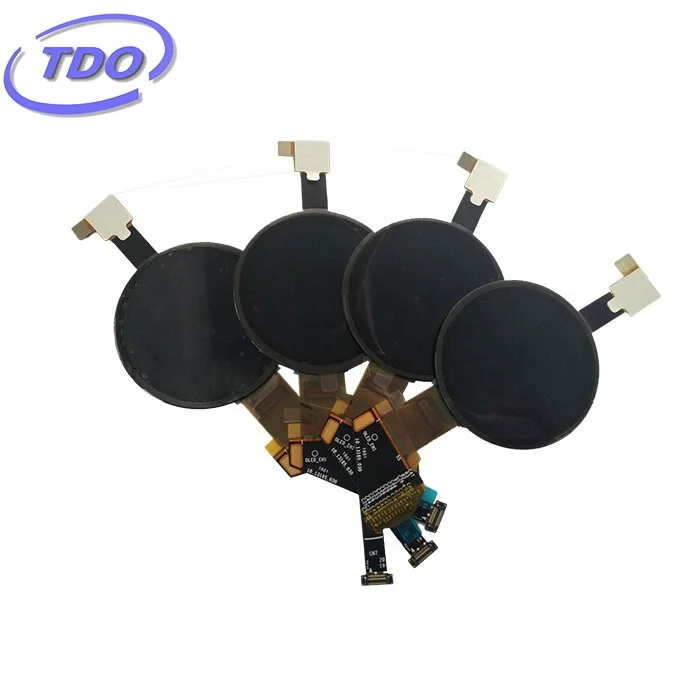

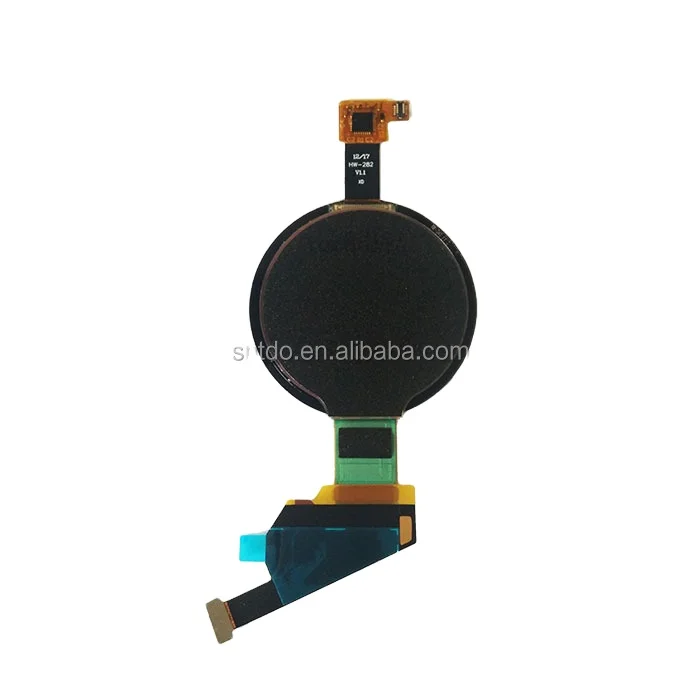

round 1.39inch oled flexible 400*400 MIPI oled touch panel with CTP
1.Application :Smart watch
2.Features:
1)display color:16.7M(RGB*8bits)
2)Display format:1.4inch(400RGB*400)
3)Pixel arrangement:Real RGB arrangement
4)Interface:MIPI 1-lane
Mechanical Specifications
| Item | Specifiaction | Unit |
| Dimension outline | 38.6*40.5*0.69 | mm |
| LTPS Glass outline | 38.6*40.5 | mm |
| Encapsulation Glass outline | 38.6*38.6 | mm |
| NUmber of dots | 400(W)*RGB*400 | dots |
| A.A size | Φ35.4 | mm |
| Diagonal size | 1.39 | inch |
| Pixel pitch | 29.5*88.5 | um |
| Glass thinckness (LTPS/encapsulation glass) | 0.2/0.3 | mm |
Note:Refer to 9 outline dimension drawing.
Picture for more
Structure diagram
