Product Description

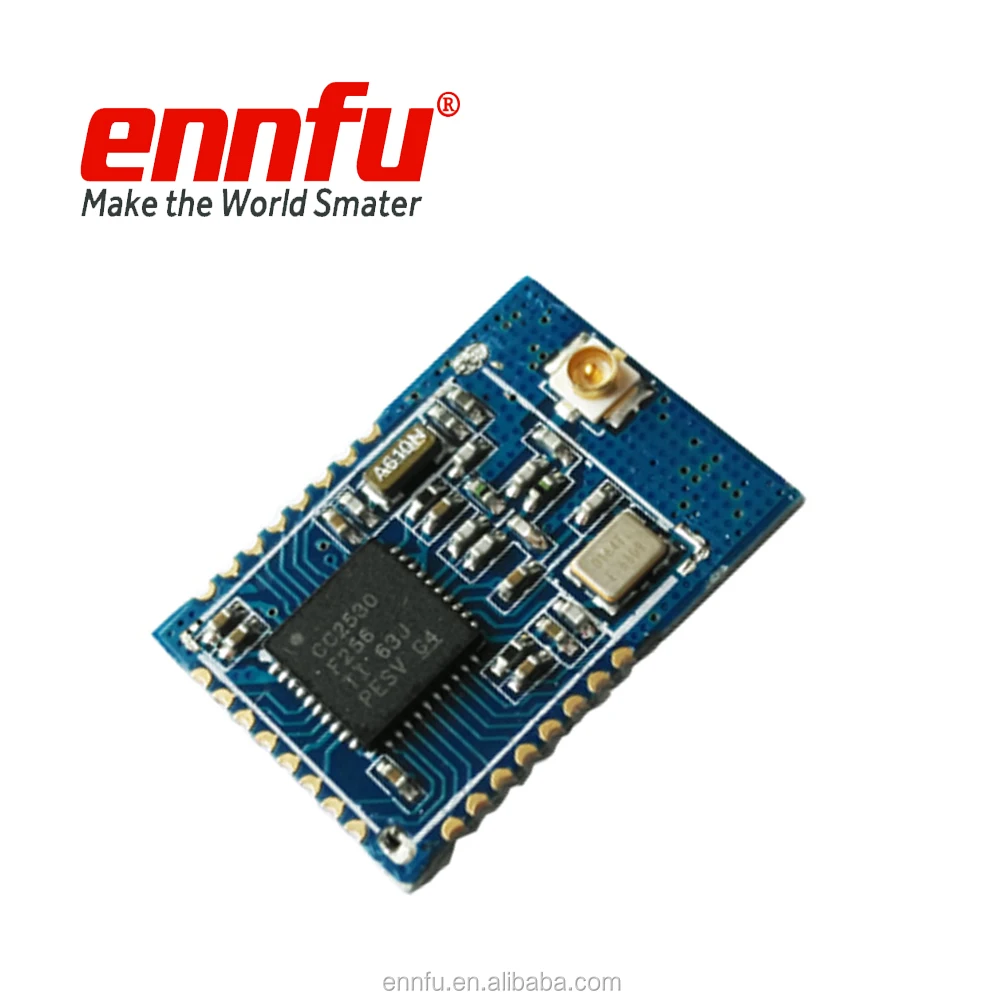

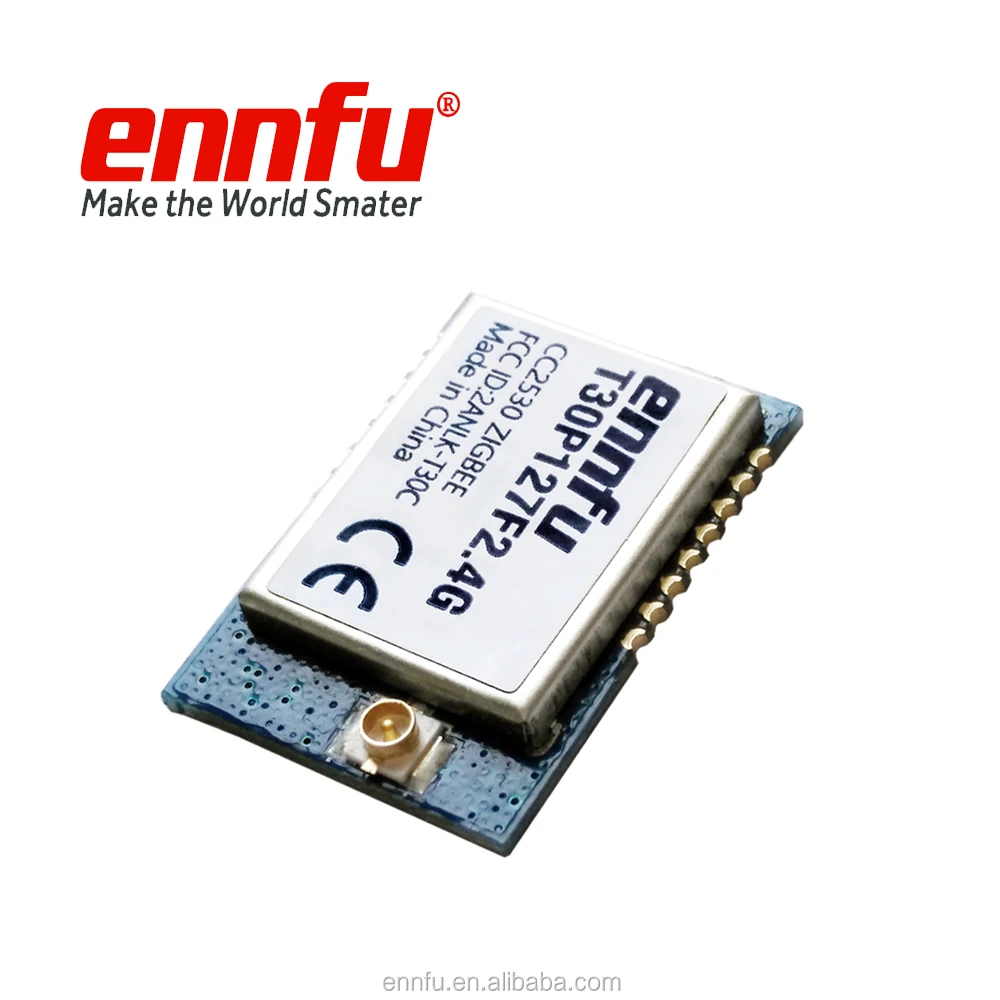

T30P127F2.4G Zigbee Wireless Module(390meters)

1) Description:

T30P127F2.4G is a tiny volume integrated 2.4GHz zigbee wireless module,which was based on TI CC2530 Zigbee RF chip technology, adopted standard IEEE 802.15.4 protocol. its data maximum transfer distance up to more than 390 meters, can be widely used into the following applications:

• Industrial Control and Data Monitoring

• Environmental and Health Monitoring
• Home Automation, Entertainment and Toys

• Security, Location and Asset Tracking
• Emergency and Disaster Response

• Military/Battlefield Applications

2) Technical Parameters:

1\tRF IC TI CC2530
2\tModule Size\t14.6*20.45*2.7mm, Including IPEX
3\tModule Weight\t1.2mg, Including IPEX
4\tWorking Frequency\t2405~2480MHz\t2.4GHz, IEEE 802.15.4 Protocol
5\tCraft\tImmersion Gold\tSMT，ROHS
6\tInterface Mode\t3*8*1.27mm Pitch\tSMD
7\tSupply Power\t2.0~3.6V DC\t
8\tCommunication Level\t+0.7V~+5V\t
9\tMax.actual test distance\t≈390m\tTest Condition:
Weather:Sunny, 35℃;Relative Humidity:65%;Test location:Open space;Antenna Gain:3DB; Height:2m;

Speed Rate:250K.
Power: 2.5mW
10\tAir Ratio\t250Kbps\t
11\tSend Power\t4dBm\t
12\tShut Current\t1.2uA\t
13\tSend Current\t28mA@4dBm\t
14\tReceive Current\t27mA\t
15\tCommunication Interface\tI/O\tMCU sleep，Wireless shut，Voltage:3.3V
16\tSend Length: 1~103Bytes\tPower supply must exceed 100mA
17\tReceive Length: 1~103Bytes\tAverage current
18\tRSSI Support\tSupport\tAll I/O pins of MCU, please see IC manual for detail.
19\tAntenna Interface IPEX\tSingle data packet
20\tWorking Temperature\t-40℃~+85℃\tSingle data packet
21\tRelative Humidity :10%~90%\tPlease see IC manual.
22\tStorage Temperature: -40~+125℃\tAntenna external
23\tReceive Sensitivities: 97dBm@250Kbps\tIndustrial grade

More information,please contact us......

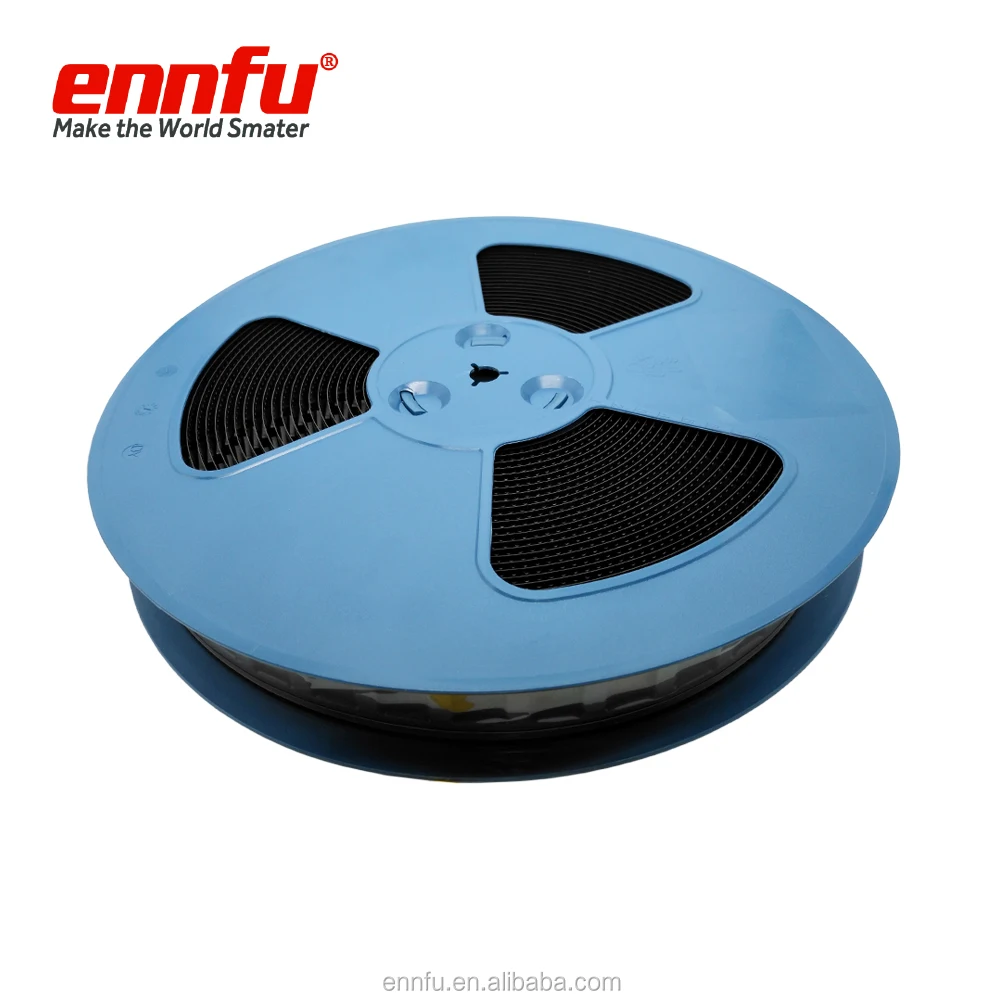

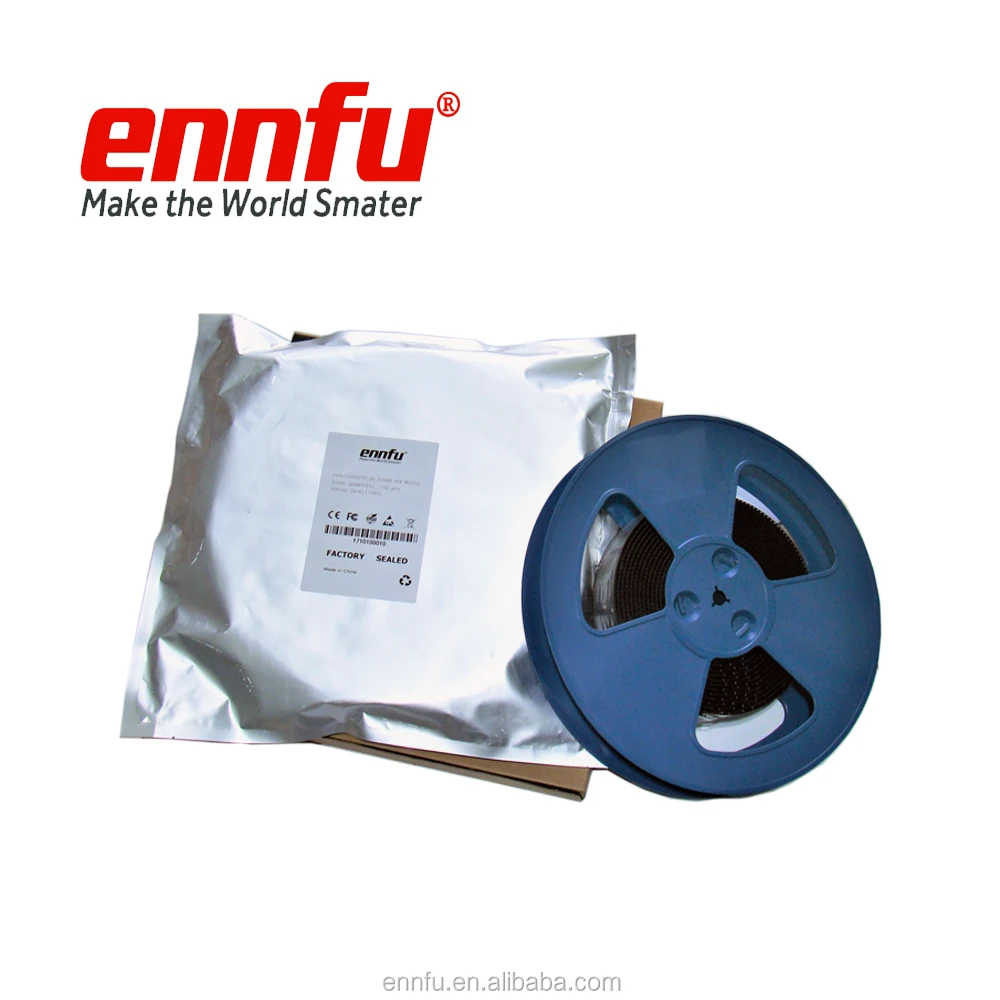

Package:

ZIGBEE CORPORATOR+WIFI GATEWAY WITH RS232/485/IO OUTPUT

CC ZIGIBEE Development kit

T30PA127F2.4G ZIGBEE PCB MODULE-800meters
