Полуавтоматическая машина для розлива
- Категория: Packaging Machine >>>
- Поставщик: Shanghai,Tops,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.41 $* | 0.34 $* |
| Aug-15-2025 | 0.4 $* | 0.86 $* |
| Jul-15-2025 | 0.4 $* | 0.28 $* |
| Jun-15-2025 | 0.27 $* | 0.50 $* |
| May-15-2025 | 0.4 $* | 0.89 $* |
| Apr-15-2025 | 0.52 $* | 0.55 $* |
| Mar-15-2025 | 0.74 $* | 0.77 $* |
| Feb-15-2025 | 0.8 $* | 0.81 $* |
| Jan-15-2025 | 0.65 $* | 0.71 $* |
Характеристики

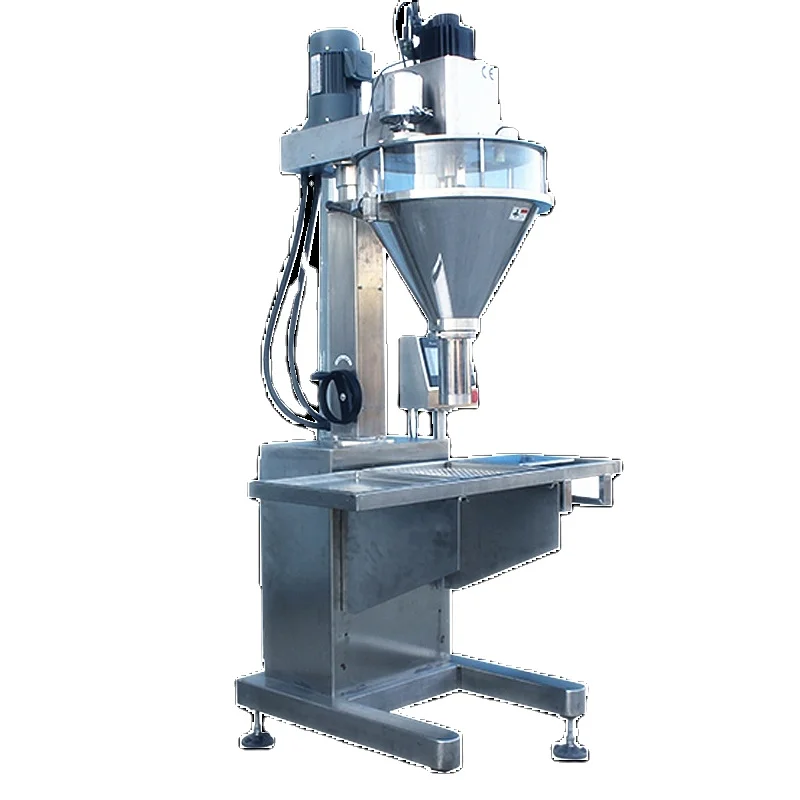

Production Description
Features &Specificaton
Model | TP-PF-A10 | TP-PF-A11 | TP-PF-A11S | TP-PF-A14 | TP-PF-A14S | ||
Control system | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | ||||
Hopper | 11L | 25L | 50L | ||||
Packing Weigh | 1-50g | 1 - 500g | 10 - 5000g | ||||
Weight dosing | By auger | By auger | By load cell | By auger | By load cell | ||
Weight Feedback | By off-line scale (in picture) | By off-line scale (in picture) | Online weight feedback | By off-line scale (in picture) | Online weight feedback | ||
Packing Accuracy | ≤ 100g, ≤±2% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5% | |||
Filling Speed | 40 – 120 times per min | 40 – 120 times per min | 40 – 120 times per min | ||||
Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | ||||
Total Power | 0.84 KW | 0.93 KW | 1.4 KW | ||||
Total Weight | 90kg | 160kg | 260kg | ||||
Overall Dimensions | 590×560×1070 mm | 800×790×1900mm | 1140×970×2200mm | ||||
Details
Level split hopper
It is very easy to open hopper and do cleaning.
Disconnect hopper
it is not easy to take hopper apart and do cleaning.

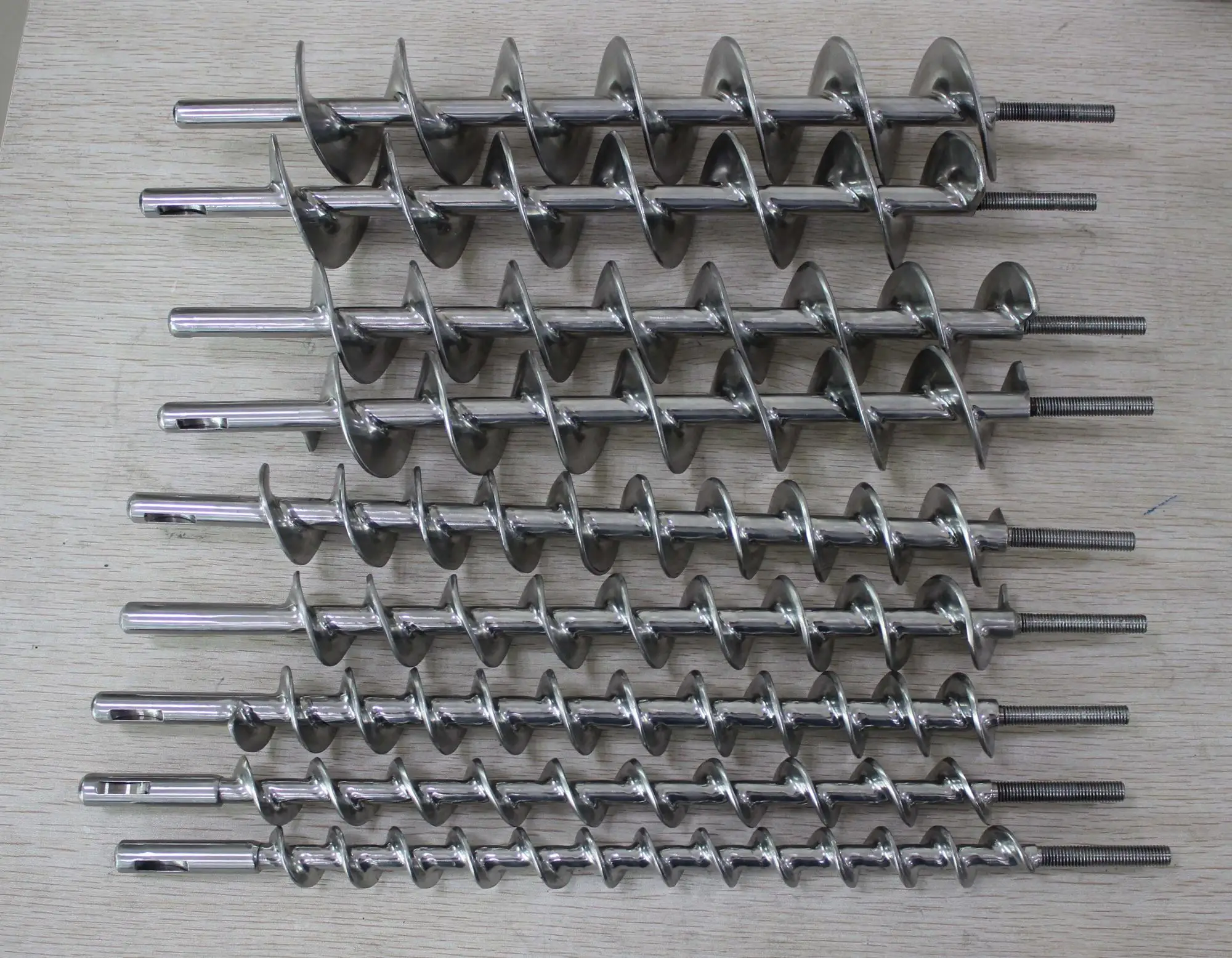

Screw type
It will not make material stock, and easy for cleaning.
hang type
t will not make material stock, and become rust,not easy for cleaning.
Stainless steel type
It is easy for cleaning and beautiful.
cloth type
it has to change termly for cleaning.

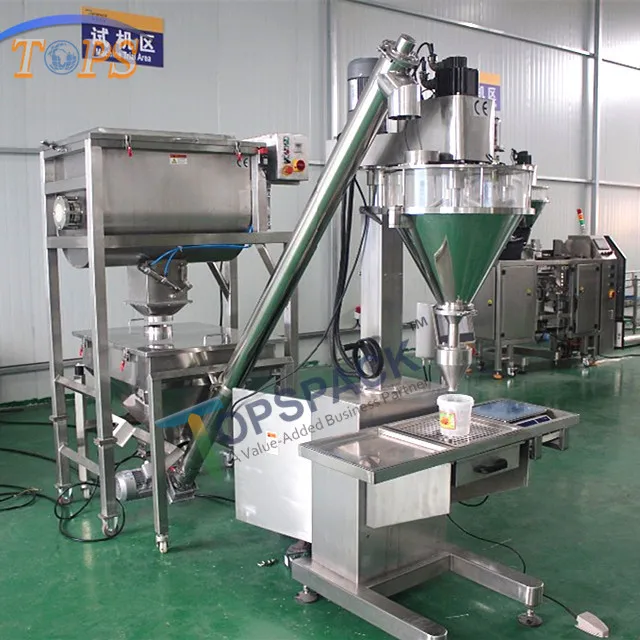

level senor
it gives signal to loader when material lever is low, it does feeding automatically.
hand wheel
It is suitable for filling into bottles/bags with different height.
Leak proof acentric device
It is suitable for filling products with very good fluidity, such as, salt, white sugar etc.
Leak proof acentric device
It is suitable for filling products with very good fluidity, such as, salt, white sugar etc.

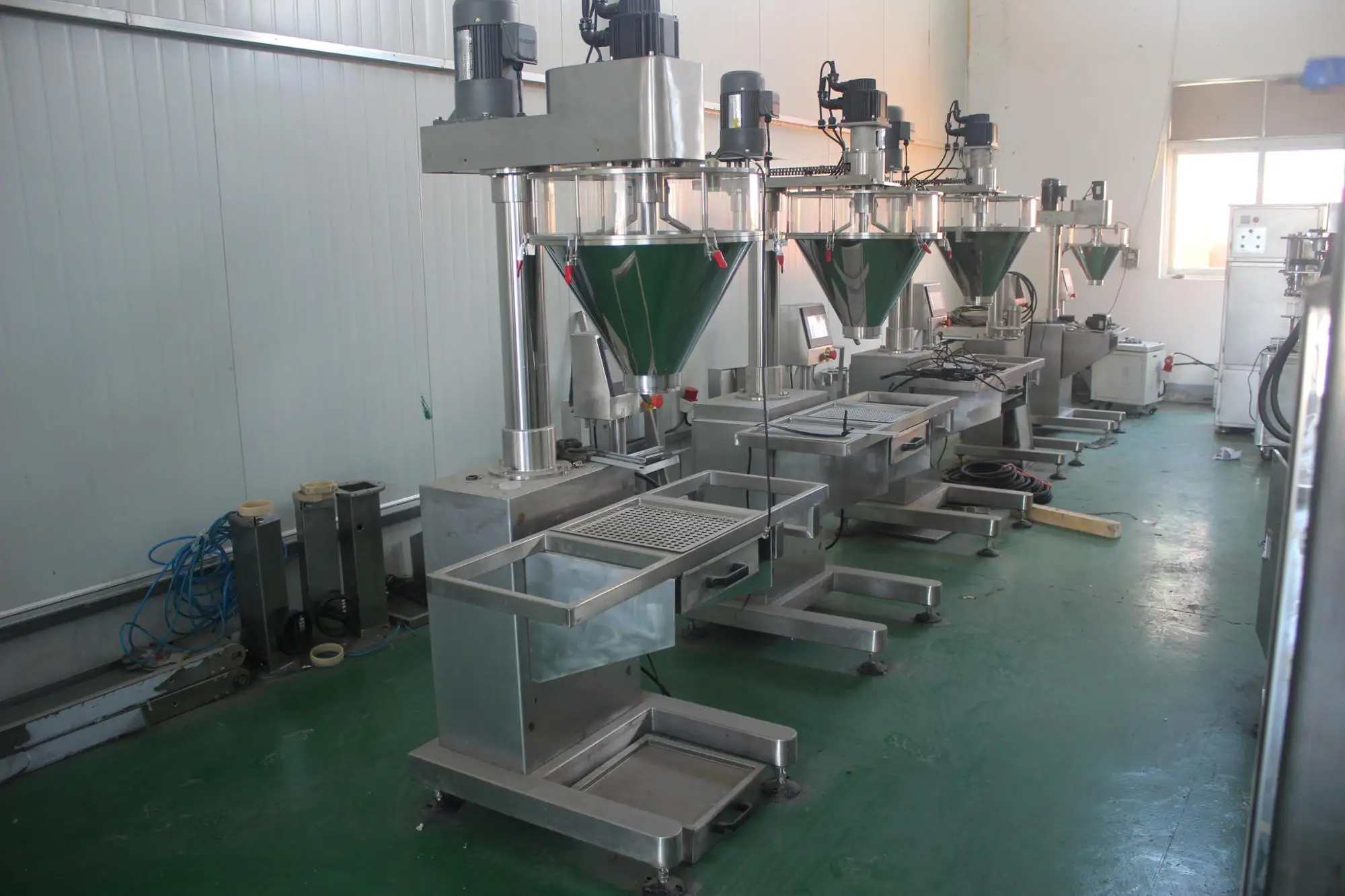

Production &Processing
About Us
Shanghai Tops Group Co., Ltd is professional manufacturer for powder and granular packaging systems. We specialize in the fields of designing, manufacturing, supporting and servicing a complete line of machinery for different kinds of powder and granular products, Our main target of working is to offer the products which are related to the food industry,agriculture industry, chemical industry, and pharmacy field and more.
Package & Shipping
