Услуги клонирования печатной платы

Printed circuit board clone pcb pcba services

We have a professional team for PCB design with average experience more than 10 years. Also we have 5 years of successful cooperation experience with professional PCB design companies in Japan and the United States.Proficient in using a variety of EAD tool software, such as: Allegro, POWER PCB, Protel SE, CR5000, WG, CAM350, etc. Realize the mutual conversion among the schematics and PCB original files designed by of a variety of software,Dedicated knowledge of PCB design specifications and process specifications in China and foreign countries. Experienced in PCB layout, routng design, power supply design, signal integrity analysis (SI) and EMC design. Provide One-Stop service of schematic design , layout design, PCB fabrication and assembly.High efficiency, high quality and best price are the biggest advantages of our team. Strong sense of responsibility, rigorous design, attention to detail, and zero failed rate are our continuous goals.

- High-quality professional engineers, engineers with average experience more than 5 years, senior engineers with experience more than 15 years.

- Packaging engineer, Layout engineer, SI engineer, EMC engineer, DFM engineer... the guarantee of profession

- Process first, large-scale team, dedicated technology...the greatest guarantee of quality.

- PCB design, farication, assembly, fast response...the maximum guarantee of delivery time.

Professional team, professional engineers, professional services

-If you have sample, pls no hesitate to contact me. we will quote you the price. thanks.

-If you provide us with two samples, we will provide : Schematic/ BOM / Gerber Flies etc.

Company Introduction:

All Services:

- High-Speed PCB Design / PCB Layout
- High-Speed PCB SI / PI / EMC Analysis
- PCB Reverse Engineering Design, Engineering and Early Design-in Support
- PCBA Reverse Engineering Design
- Fast 1-24LPCB Prototype,samll-medium volume Fabrication
- Professional HDI PCB Production
- Rigid-Flex Board Manufacture
- SMT Assembly / PCBA Assembly
- PCB Parts Sourcing

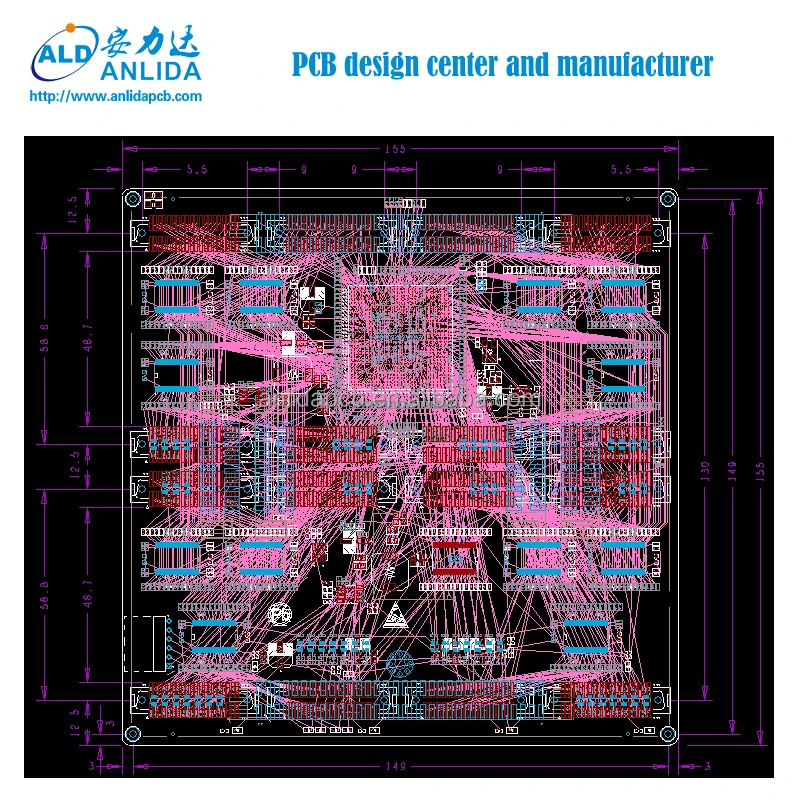

Design-parameters:

Mail Content Display :

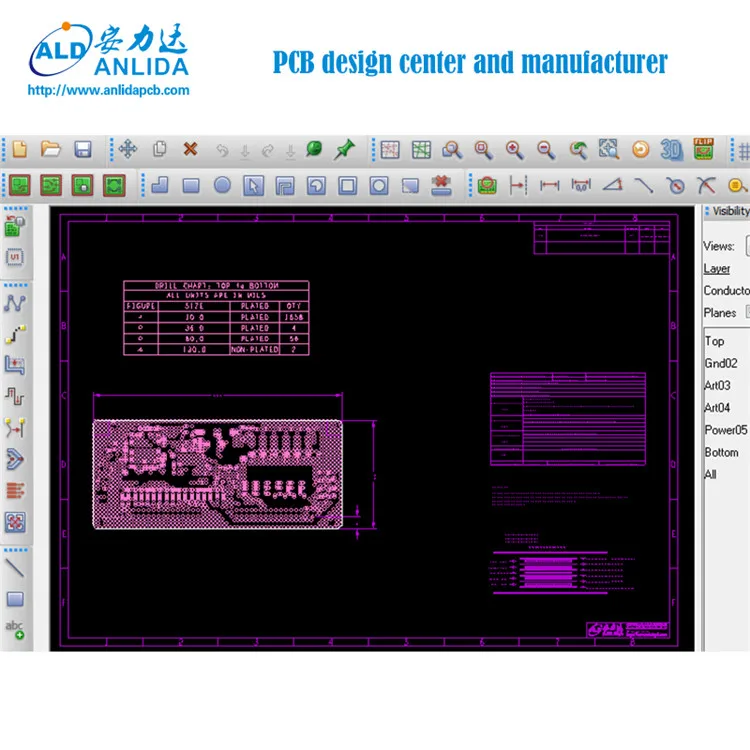

Attached you can find the fabrication files for the ABCD single board, all the fabrication and assembly process as per the following files.The design files shall be deleted within 3 days after fabrication,so please back up the files,thank you !

--ABCD_PCB.ZIP →  the pcb design files(.brd,.pcb)

--ABCD_CAM.ZIP → the file for pcb manufacturing

--ABCD_ASM.ZIP → the assembly files for pcb welding

--ABCD_SMD.ZIP → the SMT files for the SMT manufacturing

--ABCD_DXF.ZIP →  the structure files for comfirming structure

--ABCD_SILK.ZIP → the silkscreen files for reference use of the assembly factory

Any questions ,please contact me ,thank you !

Hope we have a nice cooperation!

flow diagram:
